Model 188 4-Stroke Gasoline Wood Chipper

SKU ECO-188-Mob-Gas Categories , , , ,

4-Stroke Gasoline Wood Chipper
13HP 389cc 4-stroke gasoline wood chipper with 20 alloy steel cutting blades and two-wheel hand push design, no external power supply required, 89mm maximum cutting diameter, suitable for garden branch recycling, orchard waste processing, small forestry operations, community green maintenance and farm branch crushing.
Technical Data
Drive Type: Gasoline Engine
Engine Type: Single Cylinder Four-Stroke
Engine Displacement: 389 cc
Maximum Power: 13 HP
Engine Speed: 3600 rpm
Starting System: Manual Pull Start
Fuel Type: Unleaded Gasoline
Fuel Tank Capacity: 6L
Oil Capacity: 1.1L
Fuel Consumption: Approx. 4 L/H
Blade Configuration: 20 Alloy Steel Cutting Blades
Blade Speed: 2800 rpm
Maximum Cutting Diameter: 89 mm
Machine Weight: 95 kg (Net) / 100 kg (Gross)
Packing Size: 83 × 49 × 120 cm
Moving Type: Two-Wheel Hand Push Design
Feeding System: Inclined Feed Hopper with Anti-Rebound Structure
Discharge System: Side Arc Discharge Guide Plate
Structure: Heavy-Duty Cold Rolled Steel Welded Frame
Applications
Garden Branch Recycling, Orchard Waste Processing, Small Forestry Operations, Community Green Maintenance, Farm Branch Crushing

Let us tailor a solution for you.



    Get technical table

    Drive type

    Gasoline 4-Stroke

    Branch Limit

    ≤3.1" Inch

    Power

    13 HP

    Capacity

    1–2 t/H

    Make the chipping process easier.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

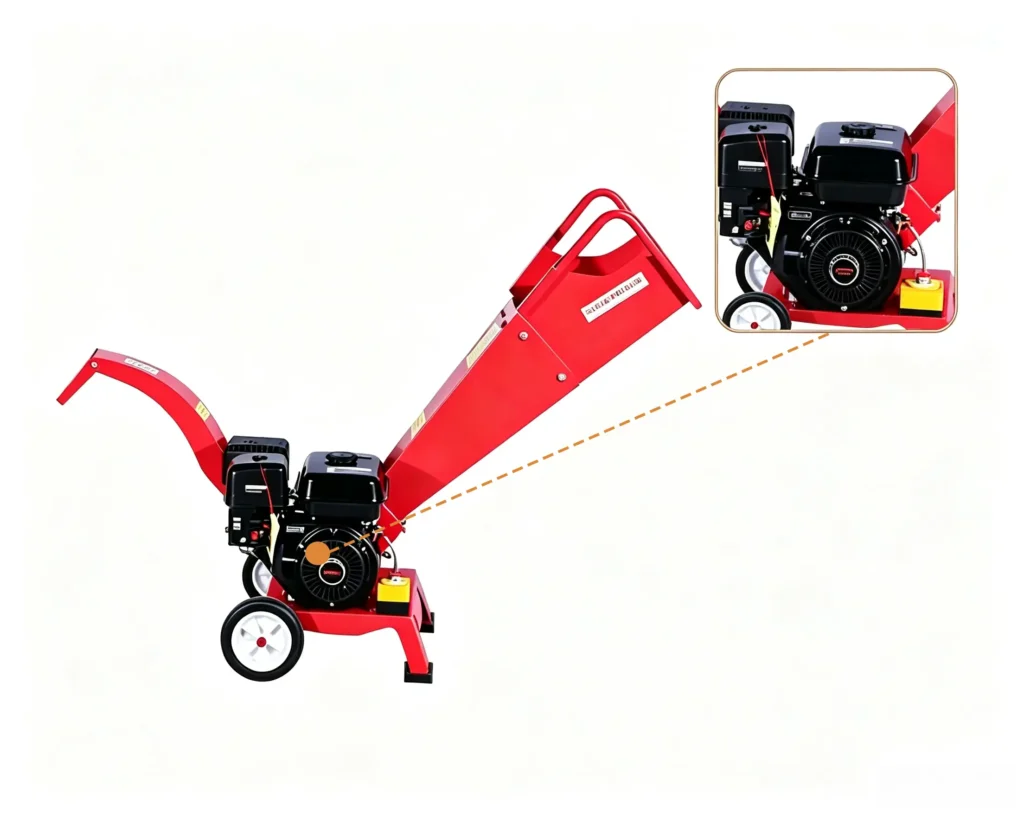

    4-Stroke Gasoline Engine Driven Walk-Behind Wood Chipper

    This portable wood chipper is equipped with a high-performance 13HP 4-stroke air-cooled gasoline engine, delivering strong and stable power to chip tree branches, twigs and garden green waste efficiently. With a reliable recoil pull-start system (electric start optional) and low fuel consumption, it operates completely independently without external power supply, perfectly suitable for outdoor orchards, forest farms, gardens and remote green maintenance sites.
    Factory sawdust crusher machine processing wood chips, branches, and biomass materials with industrial production capability

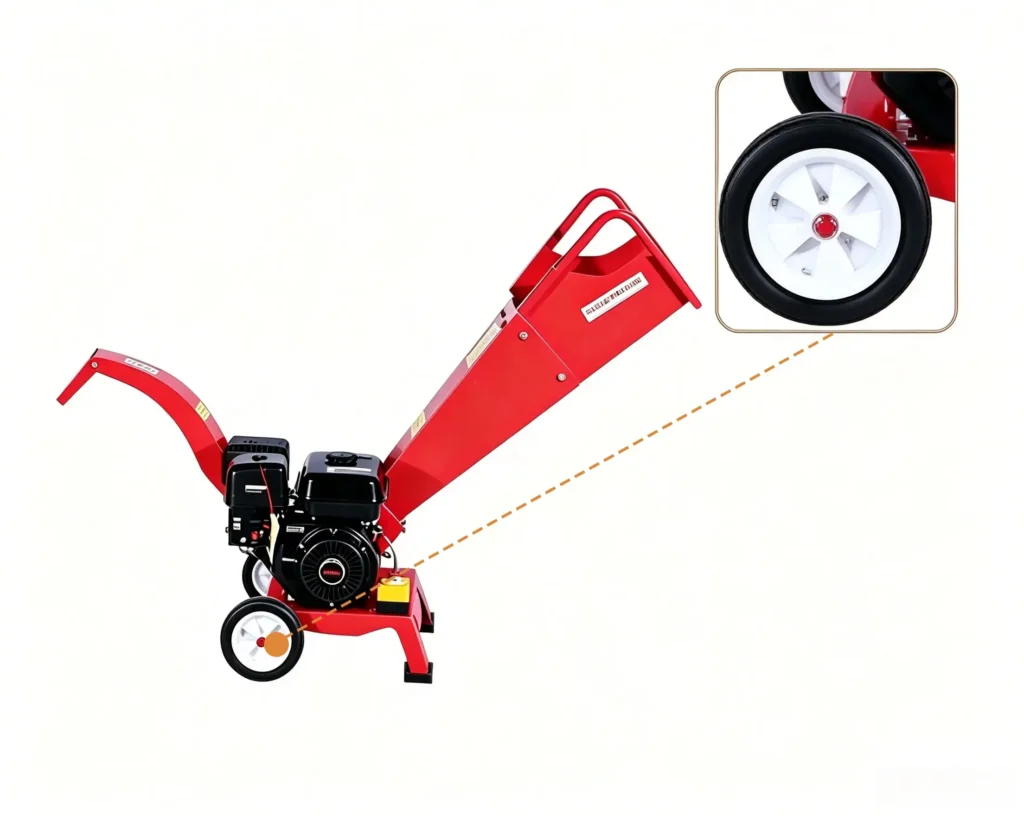

    Dual-Wheel Hand-Push Chassis for Flexible Site Transfer

    Featuring a compact hand-push frame and two large-diameter rubber wheels, this wood chipper can be easily maneuvered on garden paths, orchard rows, uneven slopes and grasslands. It has a small turning radius, allowing one operator to push and transfer the machine flexibly between multiple work spots without extra towing tools, greatly improving deployment convenience.
    Portable sawdust crusher processing wood chips, branches, and biomass materials with mobile crushing capability

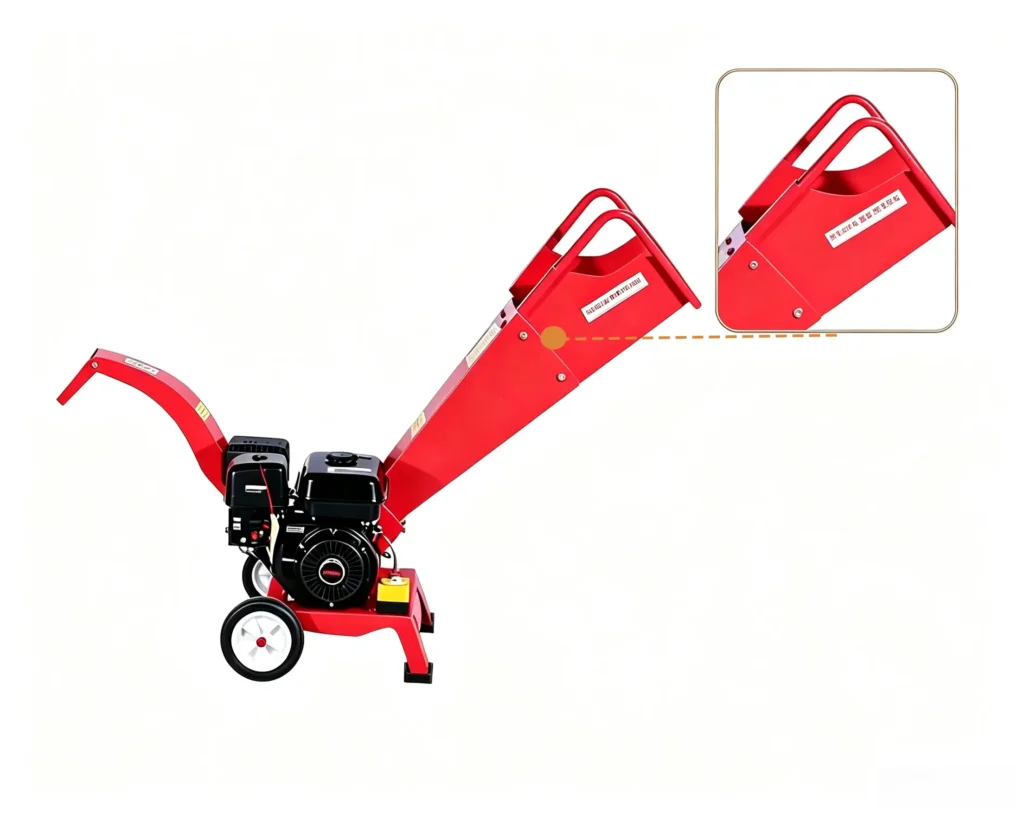

    Inclined Large Feeding Hopper for One-Pass High-Efficiency Chipping

    The large inclined top feeding chute allows easy and continuous feeding of branches and pruned waste without frequent pauses. The high-speed cutter head with 3 pieces of 65Mn hardened steel blades chips branches into uniform wood chips of 10-20mm in one pass, and the curved discharge outlet throws finished materials directly to the side for easy collection. It greatly reduces garden waste volume, cuts transportation and manual cleaning costs significantly.
    Mini sawdust crusher machine processing wood chips, branches, and biomass materials with compact crushing structure

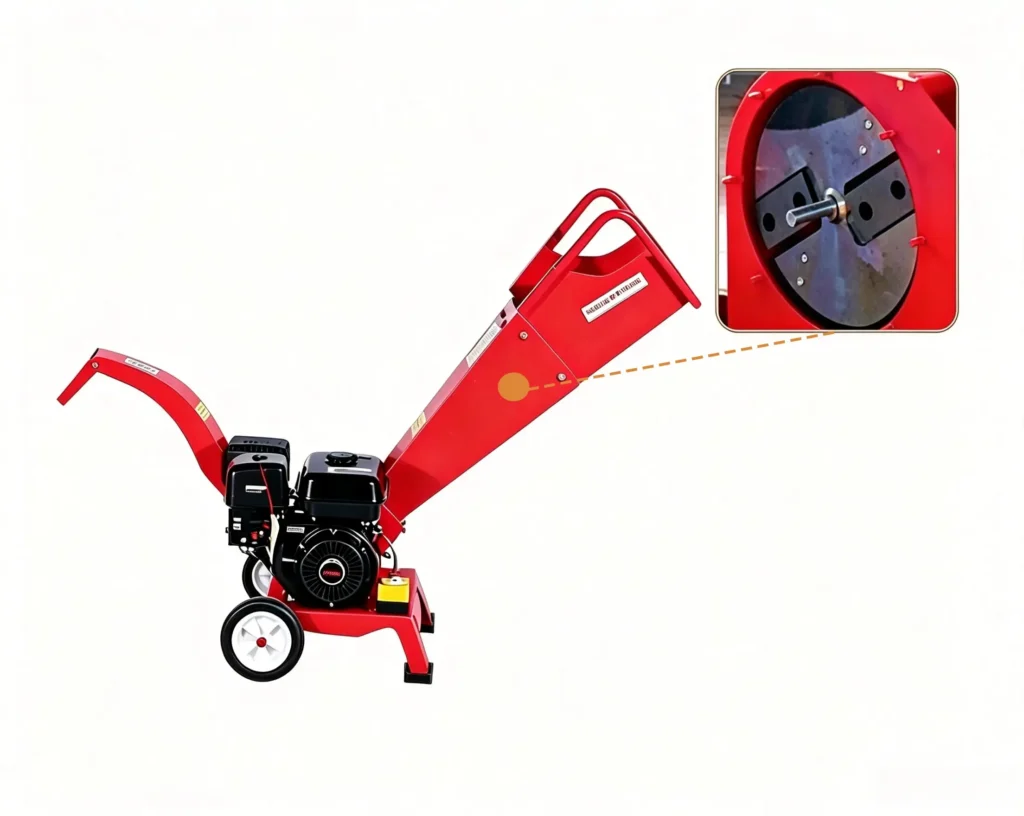

    Hardened Alloy Blade Cutter Head for Uniform Wood Chip Output

    The core chipping chamber is equipped with a precision-balanced cutter head fitted with 3 pieces of 65Mn hardened steel blades, featuring excellent wear resistance and impact toughness. It cuts branches into uniform fine wood chips (10-20mm) that can be directly used as garden mulch, organic compost raw material or biomass fuel. The fully enclosed chipping chamber prevents debris splashing, ensuring safe and reliable operation
    Large scale sawdust crusher processing wood chips, logs, branches, and biomass materials with high capacity production system

    Specifications

    Model 188 4-Stroke Gasoline Wood Chipper
    Engine Power 13HP Single Cylinder 4-Stroke Air-cooled Gasoline Engine
    Engine Speed 3600 rpm
    Fuel Type 92# Unleaded Gasoline
    Drive System Heavy-duty Belt Drive System
    Maximum Feed Diameter ≤80mm (≤3.1 Inch) Branches
    Cutting System 3pcs 65Mn Hardened Steel Chipper Blades
    Cutter Head Speed 2400 rpm
    Processing Capacity 1–2 Ton/h
    Finished Chip Size 10–20mm Adjustable Wood Chips
    Feeding System Inclined Feed Hopper with Anti-Rebound Safety Structure
    Discharge System Side Arc Discharge Guide Plate
    Mobility System Two-Wheel Hand Push Mobile Design
    Frame Structure Heavy-duty Cold Rolled Steel Welded Frame with Anti-Rust Treatment
    Safety Features Emergency Stop Button, Cutting Chamber Guard, Belt Protection Cover, Engine Low Oil Protection
    Applicable Materials Tree Branches, Twigs, Bamboo, Garden Waste, Orchard Pruning Residues
    Application Garden Maintenance, Orchard Waste Recycling, Small Forestry Operations, Landscaping Projects
    Overall Dimension 830 × 490 × 1200mm
    Machine Weight Approx. 95kg
    Core Advantages Powerful Gasoline Drive, Portable Mobile Design, High Chipping Efficiency, Large Feeding Capacity, Ideal for Outdoor Green Waste Processing
