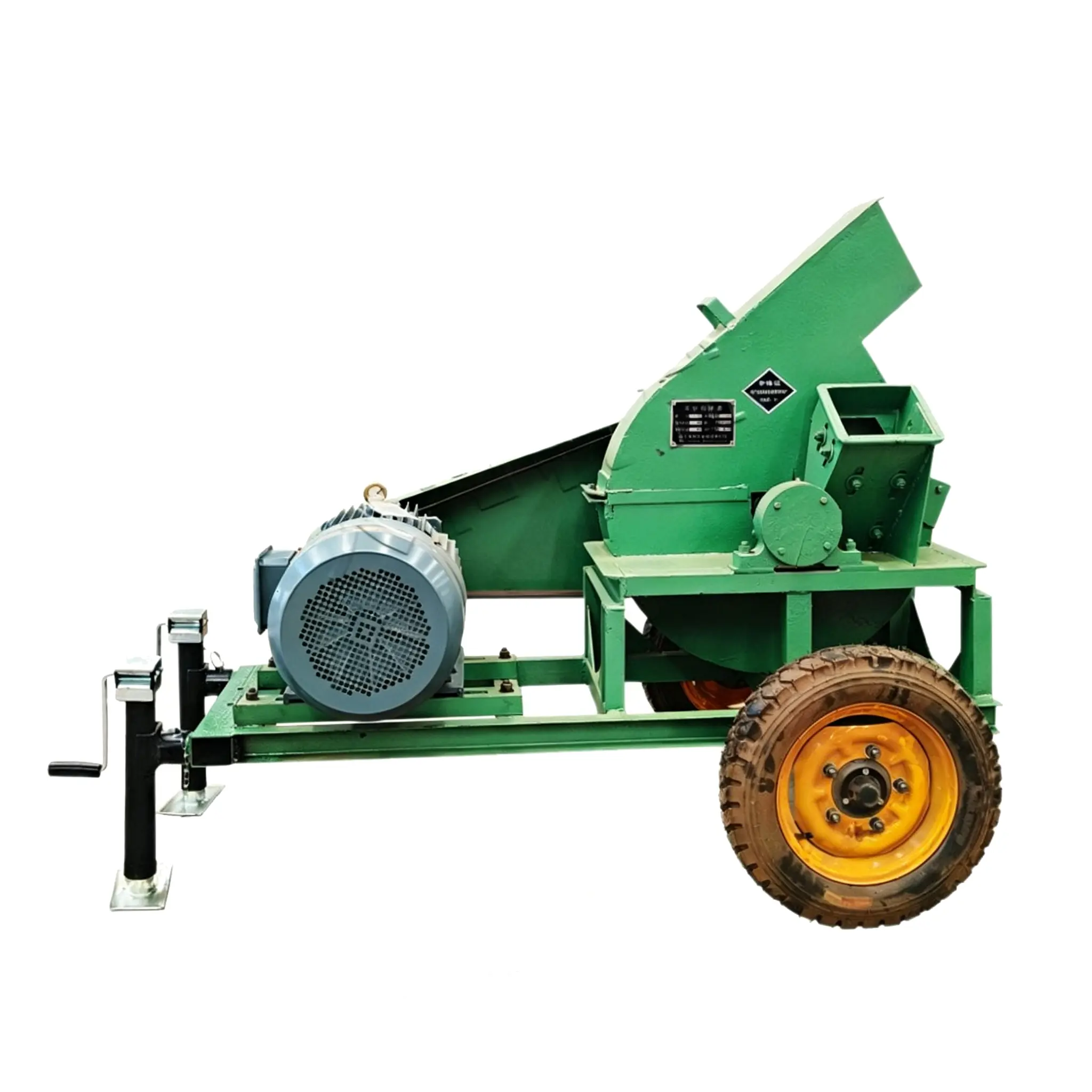

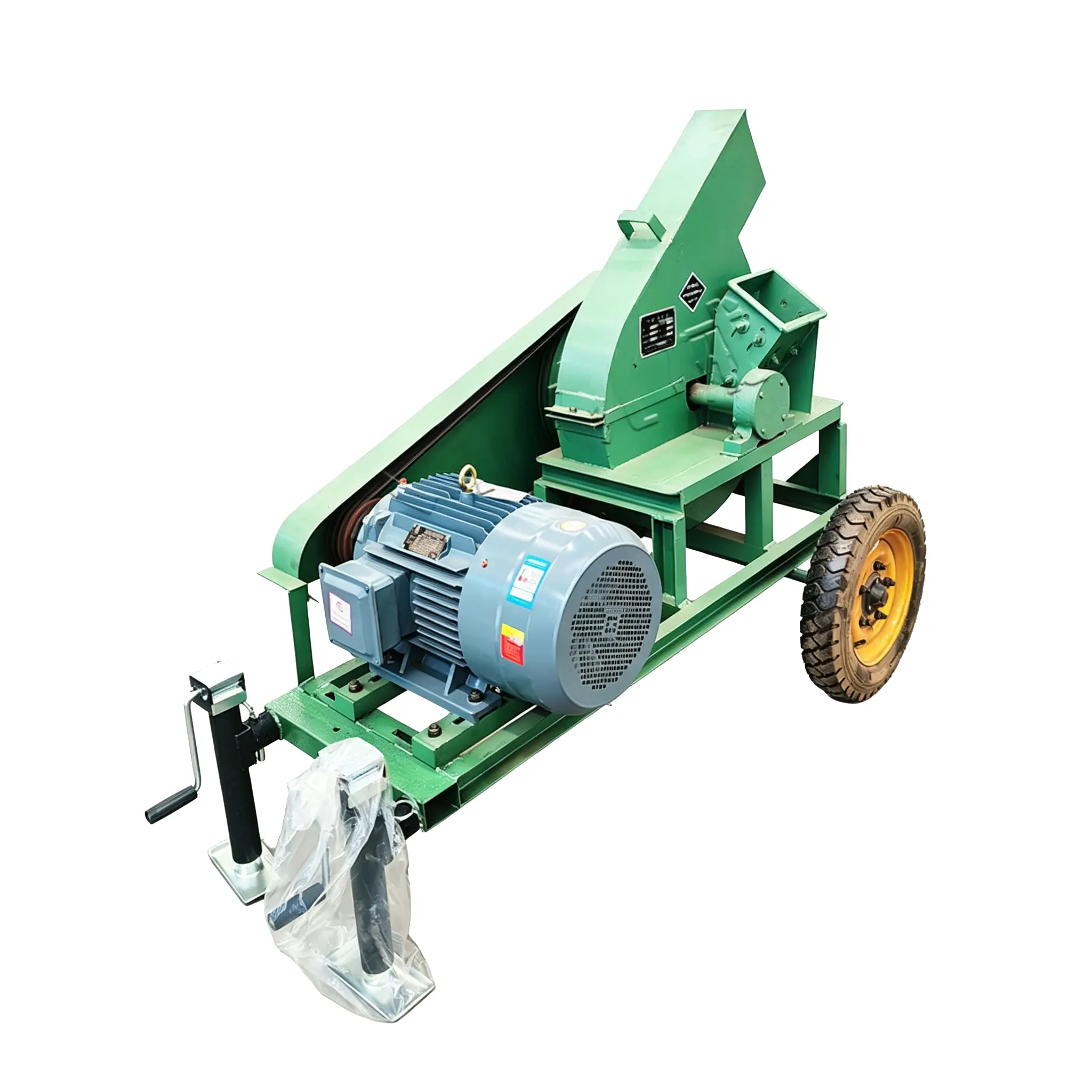

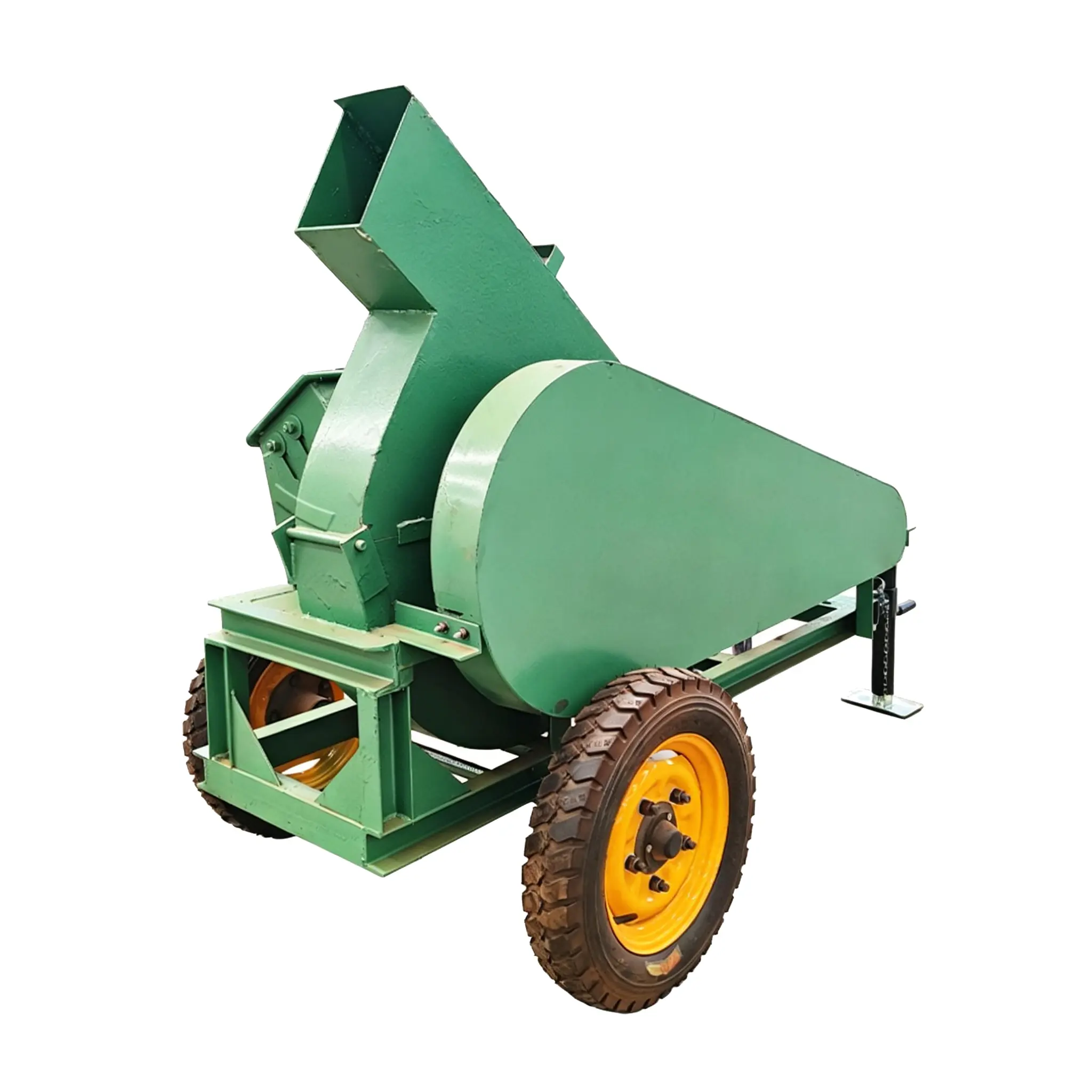

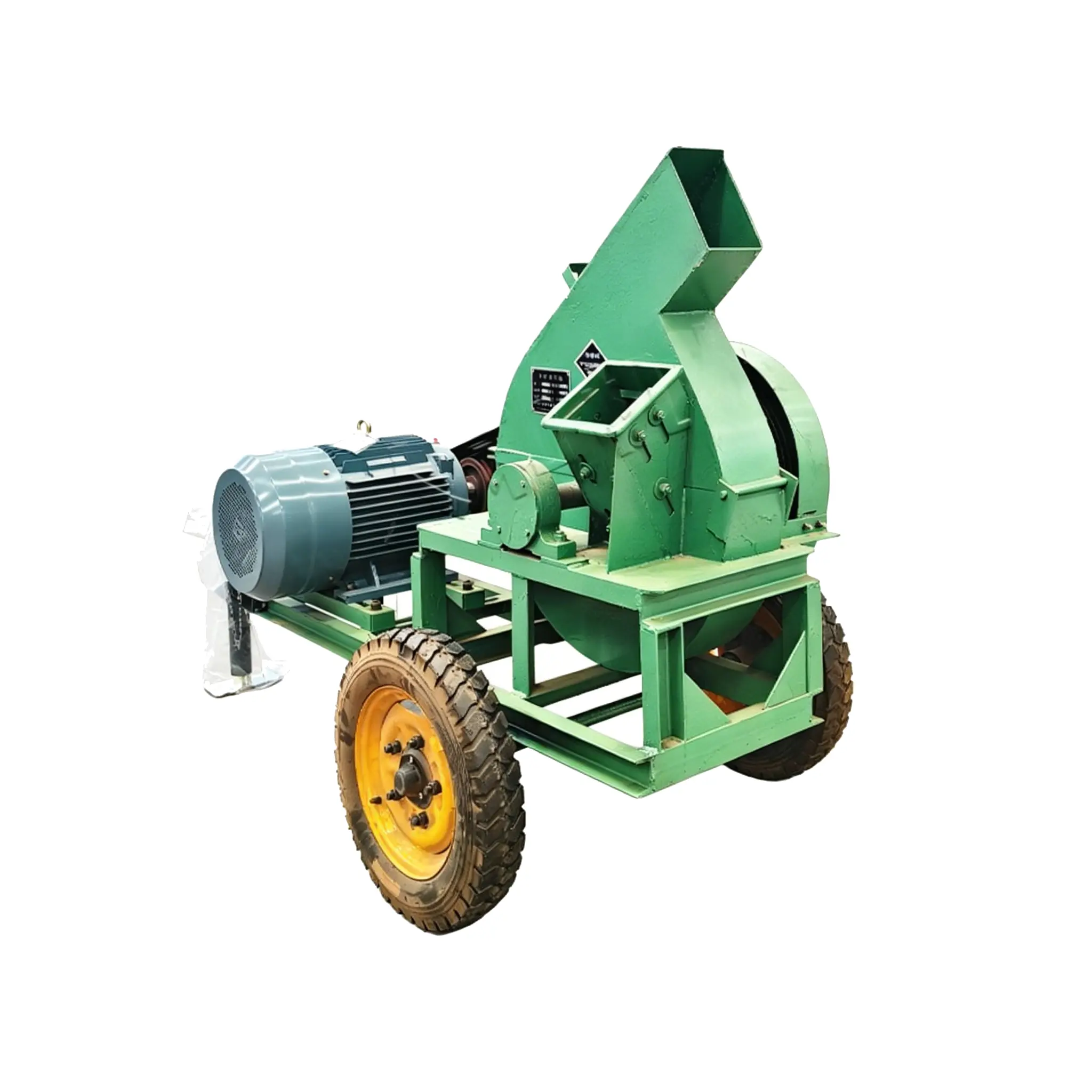

Model 420 Wood Chipper
Let us tailor a solution for you.
Drive type
Electric
Branch Limit
≤4" Inch
Power
7.5 KW
Capacity
0.6-1 t/H
Make the crushing process easier.
Features & Advantages

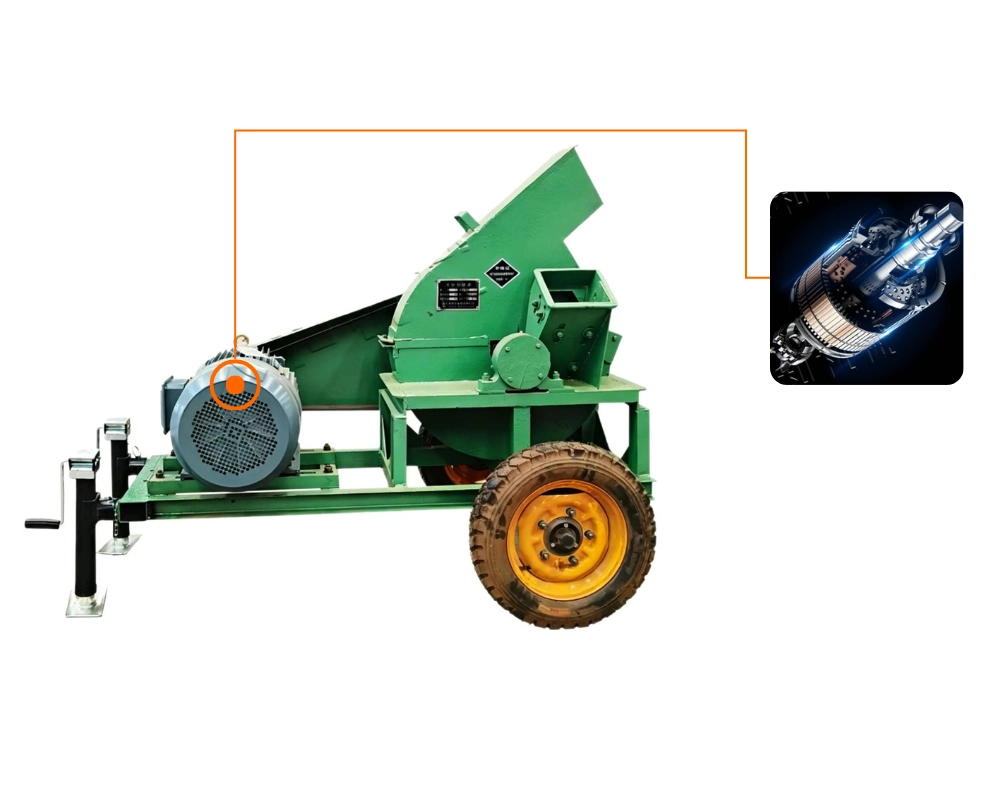

High-Power Motor for Maximum Crushing Efficiency

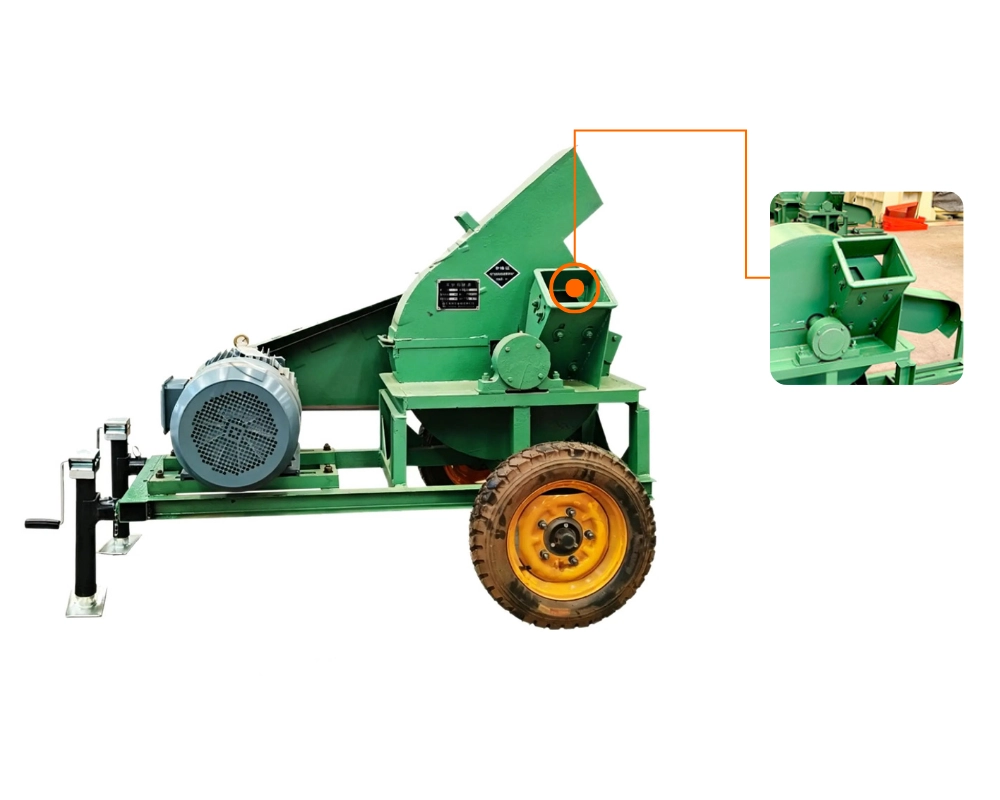

Optimized Crushing Chamber for Uniform Material Processing
The carefully designed feed hopper and crushing chamber allow fast and consistent processing of wood, straw, and branches, improving productivity and material quality.

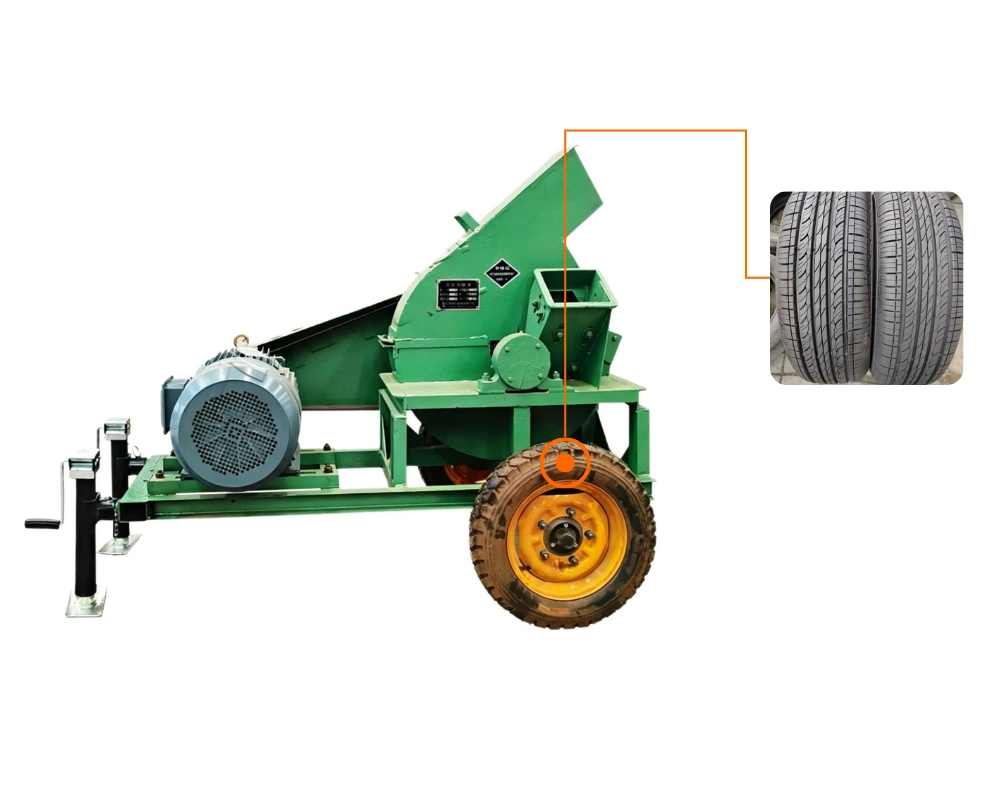

Stable Support Frame with Adjustable Mobility
The solid support frame with adjustable legs and durable wheels ensures easy movement, precise positioning, and adaptability to various terrains and work sites.

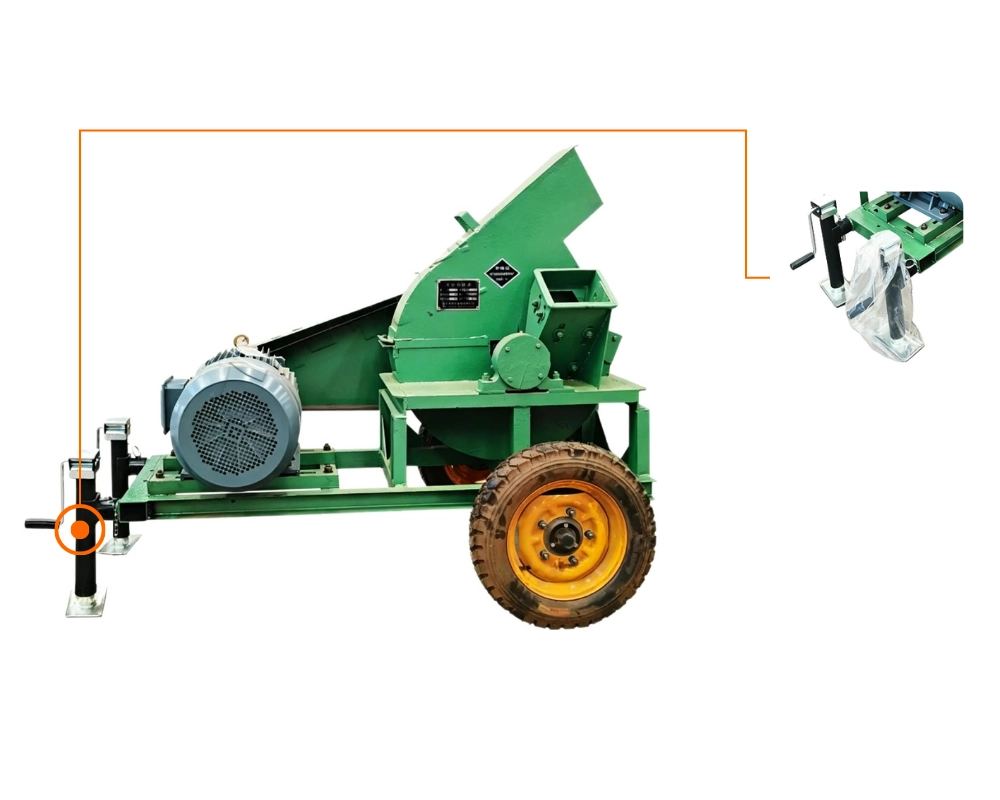

Adjustable Support Stand for Stable Operation
Specifications
General Information
| Item | Specification |
| Model | Model 420 Wood Chipper |
| Machine Weight | 280–320 kg |
| Dimensions (L×W×H) | 1200 × 500 × 800 mm |
Power & Drive System
| Power (Hp) | 7.5 |
| Motor Power | 7.5 kW (Standard Version) |
| Optional Diesel Engine Power | 15 HP (~11 kW) |
| Operating Voltage | 380V, 50Hz, Three-phase |
| Transmission Type | Belt Drive |
Processing Capacity
| Production Capacity | 0.6–1 ton/hour |
| Finished Chip Length | 20–50 mm (Adjustable) |
| Finished Chip Thickness | 3–8 mm |
| Main Shaft Speed | 600 r/min |
Cutter & Blade System
| Cutter Disc Diameter | 420 mm |
| Blade Size | 150 × 70 × 8 mm |
| Number of Blades | 2 pcs |
| Blade Material | 65 Manganese Steel / Alloy Steel |
Feeding & Discharge
| Feed Opening Size | 150 × 150 mm |
| Feeding Method | Inclined Feeding |
| Discharge Method | Fan-assisted Top Discharge |
Machine Body & Material
| Machine Body Material | Thickened Welded Steel Plate |
Applicable Materials
| Applicable Materials | Logs, Branches, Bark, Bamboo, Straw, etc. |
