Name: Model 1500 Wood Sawdust Crusher - JUNRONGECO
SKU: ECO-1500-WSC-ME

The Model 1500 Wood Sawdust Crusher is specially designed for medium to large-scale wood processing operations, delivering powerful performance and stable crushing efficiency. With a robust structure and smooth operation, the machine supports continuous working conditions and can efficiently process logs, branches, and various forestry residues into uniform and fine sawdust, meeting the demands of large-scale production.

The machine can be equipped with either an electric motor or a diesel engine, making it suitable for both fixed production lines and mobile operations. It performs reliably even in off-grid environments without electricity.

Key Specifications

Model: 1000 Wood Sawdust Crusher
Power Configuration: 110-160 kW (Electric Motor or Diesel Engine Optional)
Applicable Materials：10–40 cm
Production Capacity: 10–12 T/H
Blade Quantity: 8
Cutting Disc Diameter: 1160 mm
Feed Inlet Size: 450 × 430 mm
Spindle Speed: 1200 r/min

Widely used in a variety of industries, including:

Forestry Processing
Biomass Energy Production
Edible Mushroom Cultivation
Organic Fertilizer Processing
Garden Mulch Production
Wood Pellet Fuel Manufacturing
Paper Industry
Engineered Board Production

Drive type

Electric/Diesel Engine

Branch Limit

≤15.7" Inch

Power

110-160 KW / 150–215 HP

Capacity

10-12 t/H

Make the crushing process easier.

Features & Advantages

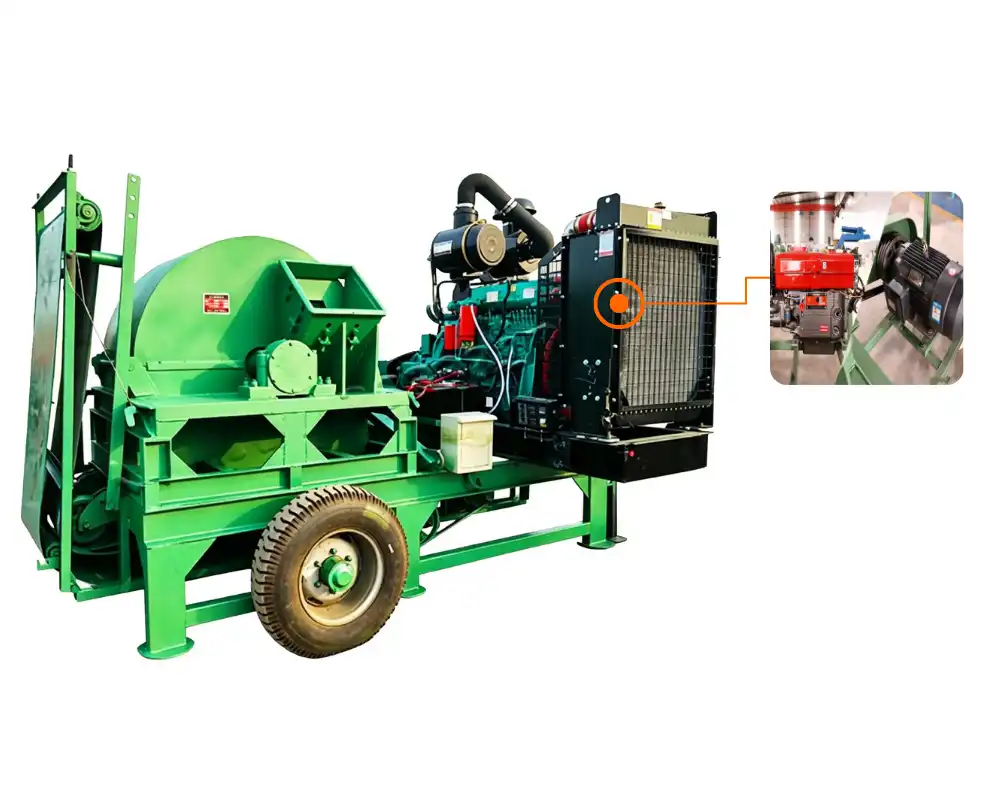

Optional Electric Motor or Diesel Engine Drive System

The machine can be flexibly configured with either an electric motor or a diesel engine drive system, suitable for different working environments. It ensures stable performance and strong adaptability for both indoor and outdoor operations.

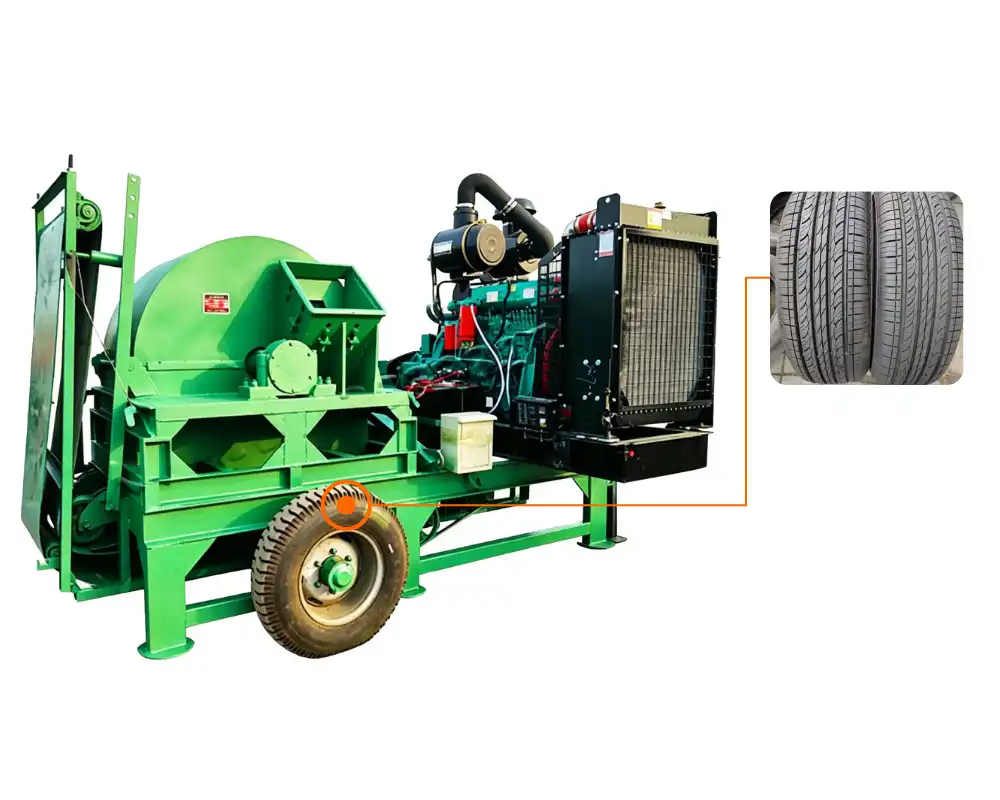

Heavy-Duty Trailer Tires for Stable Transport & Strong Load Capacity

Equipped with durable heavy-duty tires for smooth movement, strong traction, and reliable load-bearing performance on various road conditions.

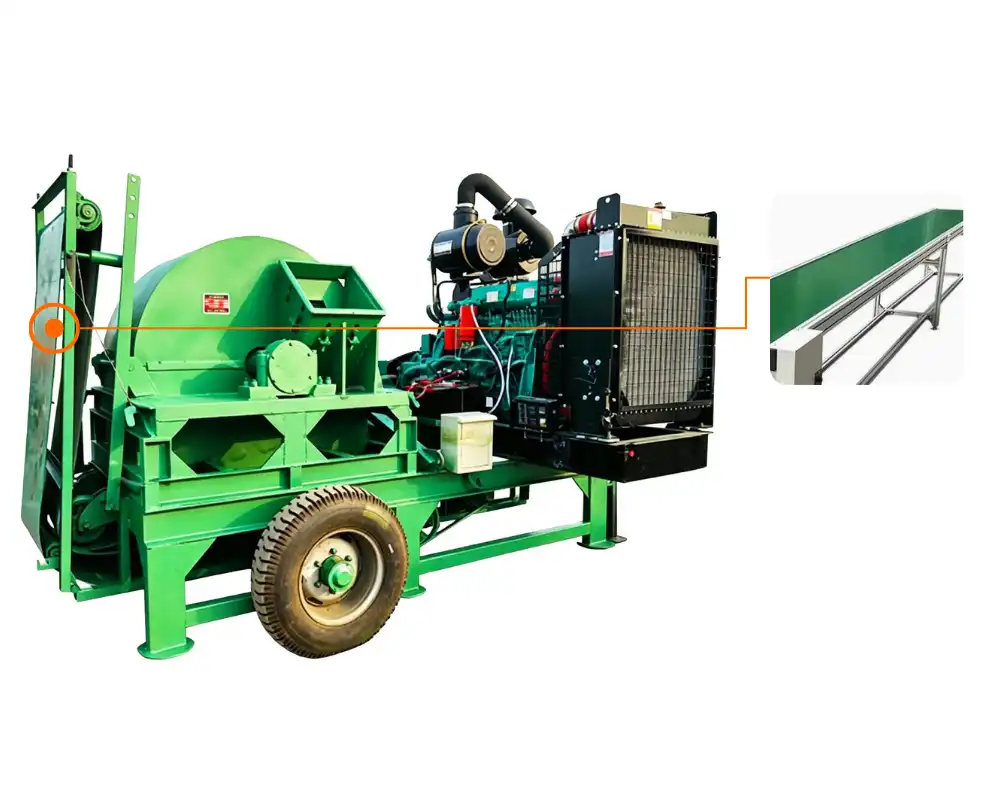

Integrated Conveying Discharge System, Smooth Output Without Clogging

Adopting an integrated conveying and discharge structure, the material is discharged continuously and evenly without blockage or accumulation. The optimized flow channel design ensures smooth operation, higher efficiency, and reduced downtime, making it suitable for long-term stable production.

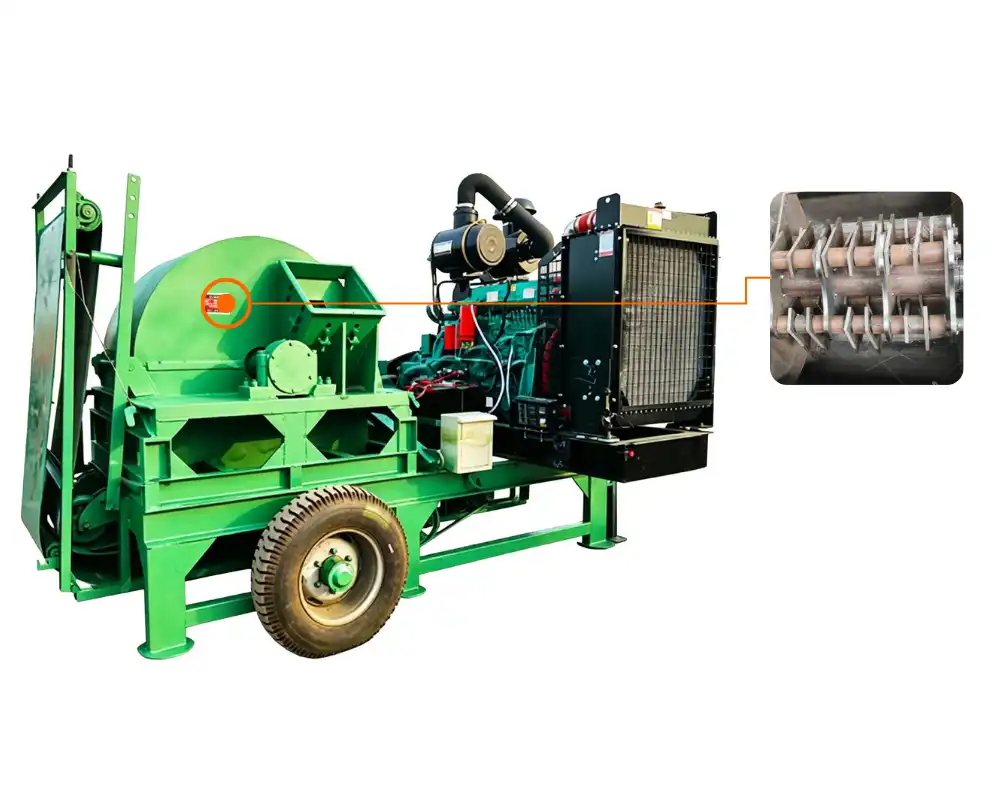

Alloy Steel Blades

Made of high-strength alloy steel, the blades offer excellent wear resistance and impact strength. They can continuously process approximately 20,000–30,000 kg of material while maintaining sharp cutting edges with minimal wear, suitable for long-term heavy-duty operation.

Specifications

General Information

Item	Specification
Model	Model 1500 Wood Sawdust Crusher
Machine Weight	1800 kg

Power & Drive System

Diesel Engine (Hp)	150–215
Motor Power	110-160 kW (Standard Version)
Operating Voltage	380V, 50Hz, Three-phase
Transmission Type	Belt Drive

Processing Capacity

Production Capacity	10-12 ton/hour
Finished Chip Length	20–50 mm (Adjustable)
Finished Chip Thickness	3–8 mm
Main Shaft Speed	1200 r/min

Cutter & Blade System

Cutter Disc Diameter	1160 mm
Blade Type	Double Arc Blade
Number of Blades	8 pcs
Blade Material	Alloy Blade

Feeding & Discharge

Feed Opening Size	450 × 430 mm
Feeding Method	Inclined Feeding
Discharge Method	Fan-assisted Top Discharge

Machine Body & Material

Machine Body Material

Thickened Welded Steel Plate

Applicable Materials

Logs, Branches, Bark, Bamboo, Straw, etc.
