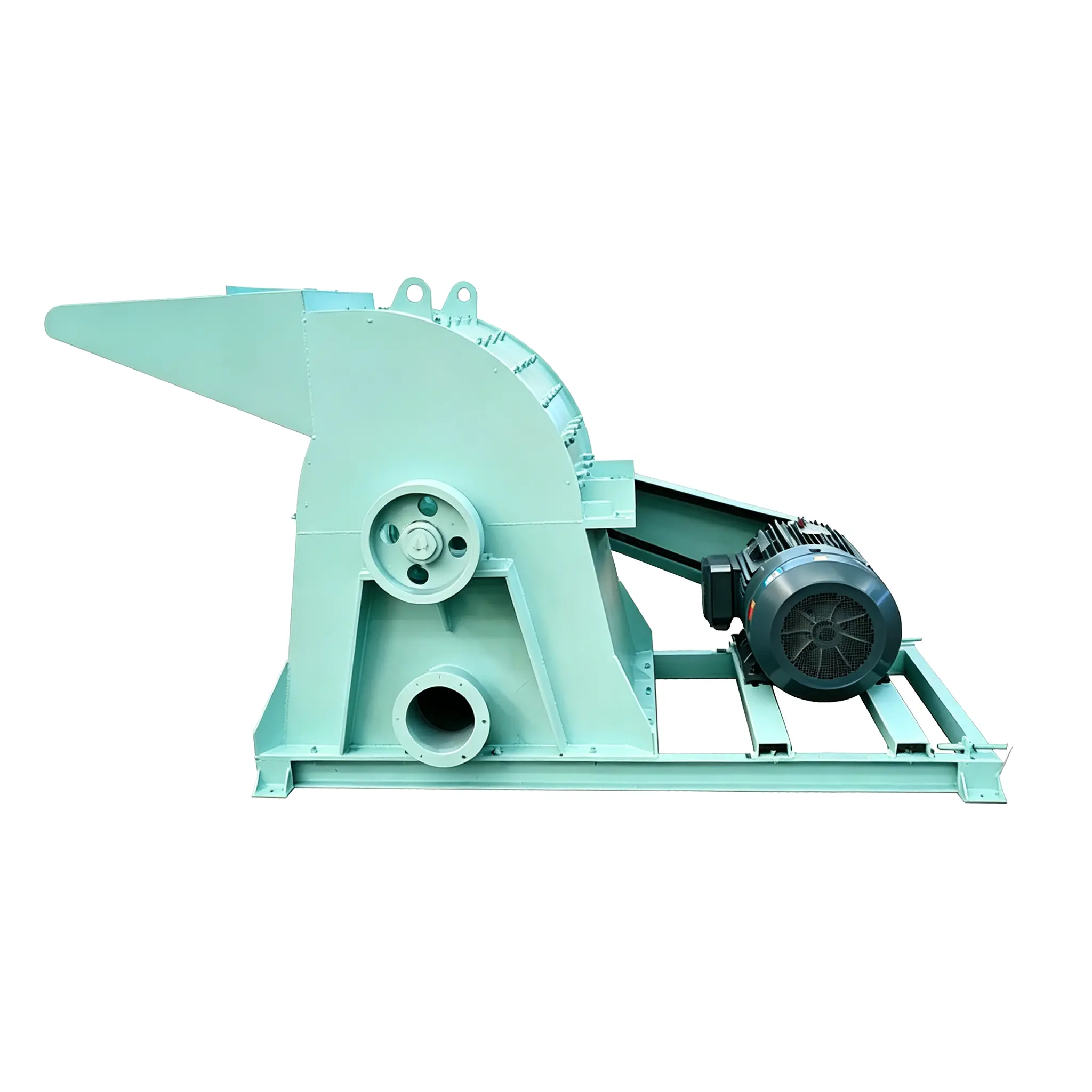

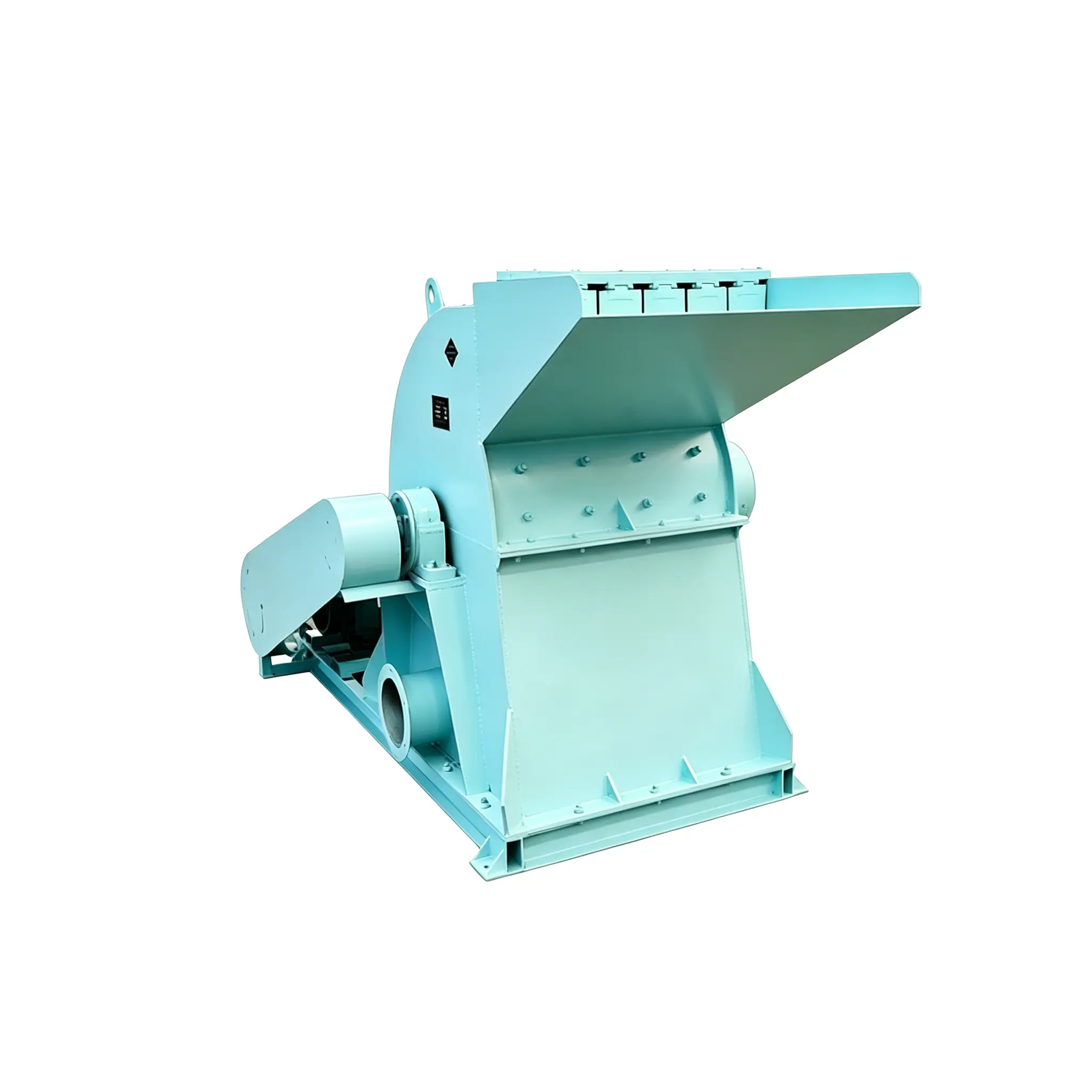

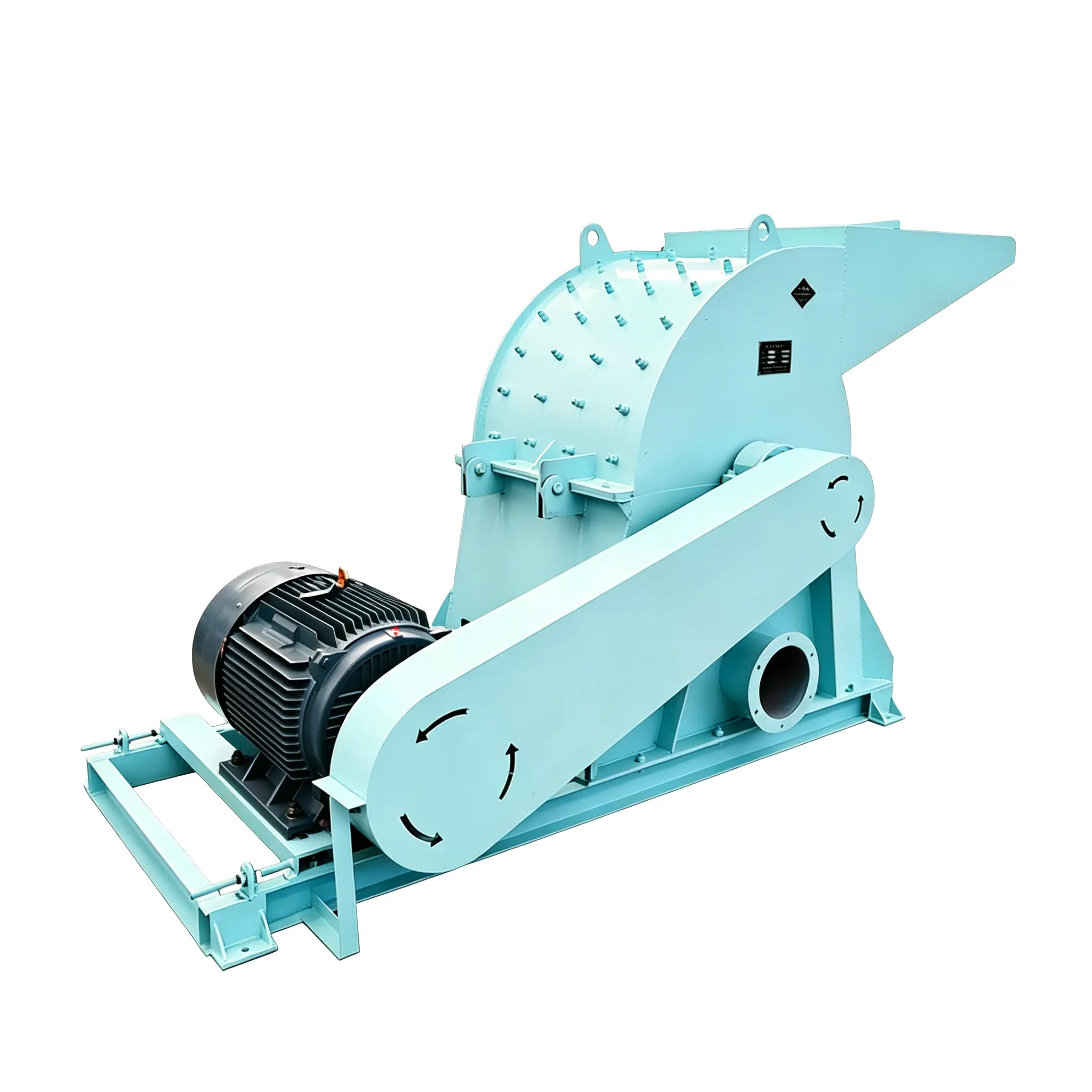

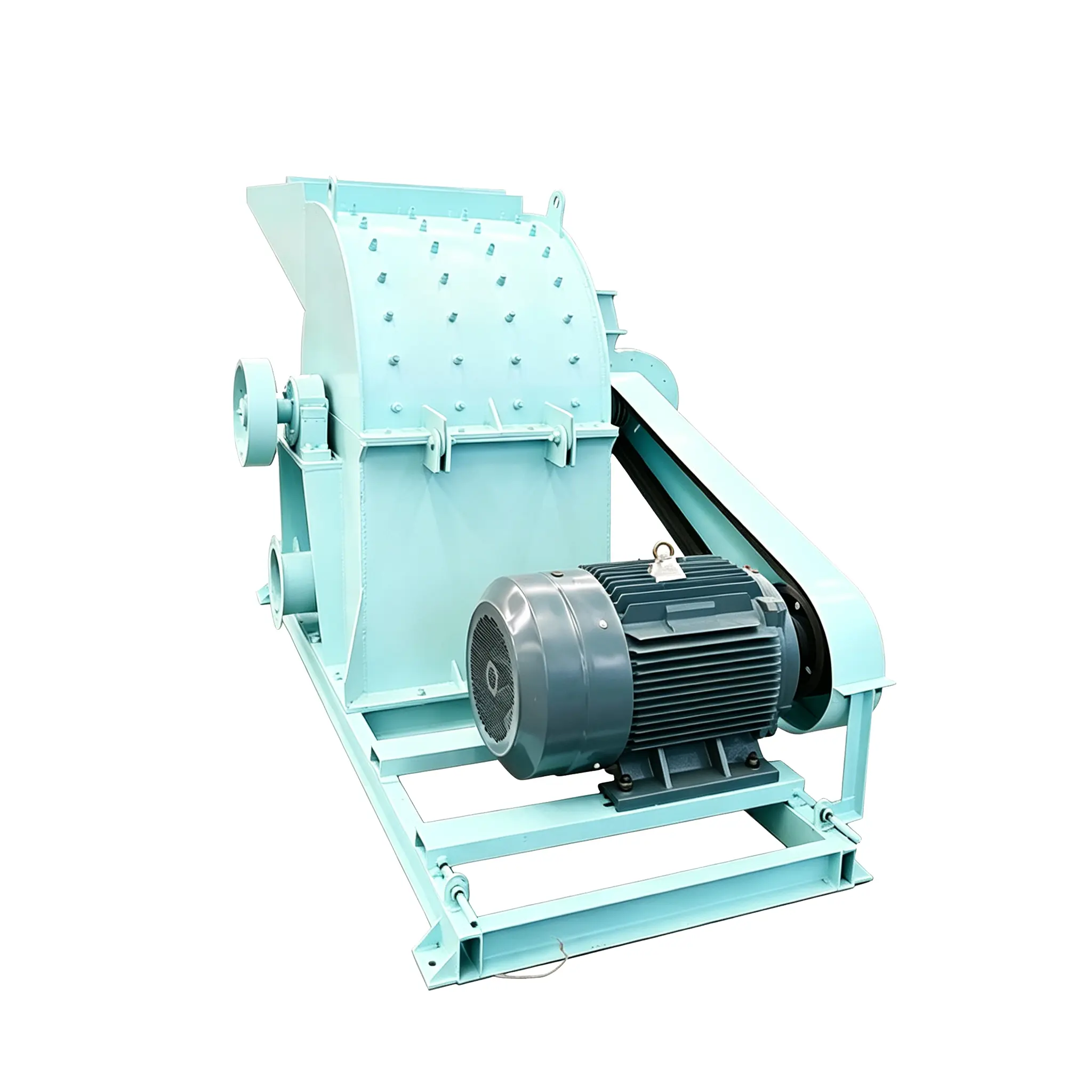

Model 800 Sawdust Crusher
The Model 800 Sawdust Crusher is designed for efficient wood processing, delivering strong performance and stable output. Equipped with a forced-feed system and a powerful electric motor, the machine processes branches, wood chips, and raw materials into uniform sawdust, making it ideal for biomass and recycling applications.
Key Specifications
Power Configuration: 55 kW
Drive System: Electric Motor Driven
Production Capacity: Approx. 2 tons/hour
Max Processing Diameter: <80 mm (≈ 3.15 inches)
Applications
Sawdust Production | Mulch / Landscaping Material | Biomass Feedstock Preparation
Further Processing Uses
Charcoal Production | Biomass Pellets | Livestock Bedding | Organic Fertilizer / Composting
Let us tailor a solution for you.
Drive type
Electric
Branch Limit
≤3.15" Inch
Power
55 KW
Capacity
2-3 T/H
Make the crushing process easier.
Features & Advantages

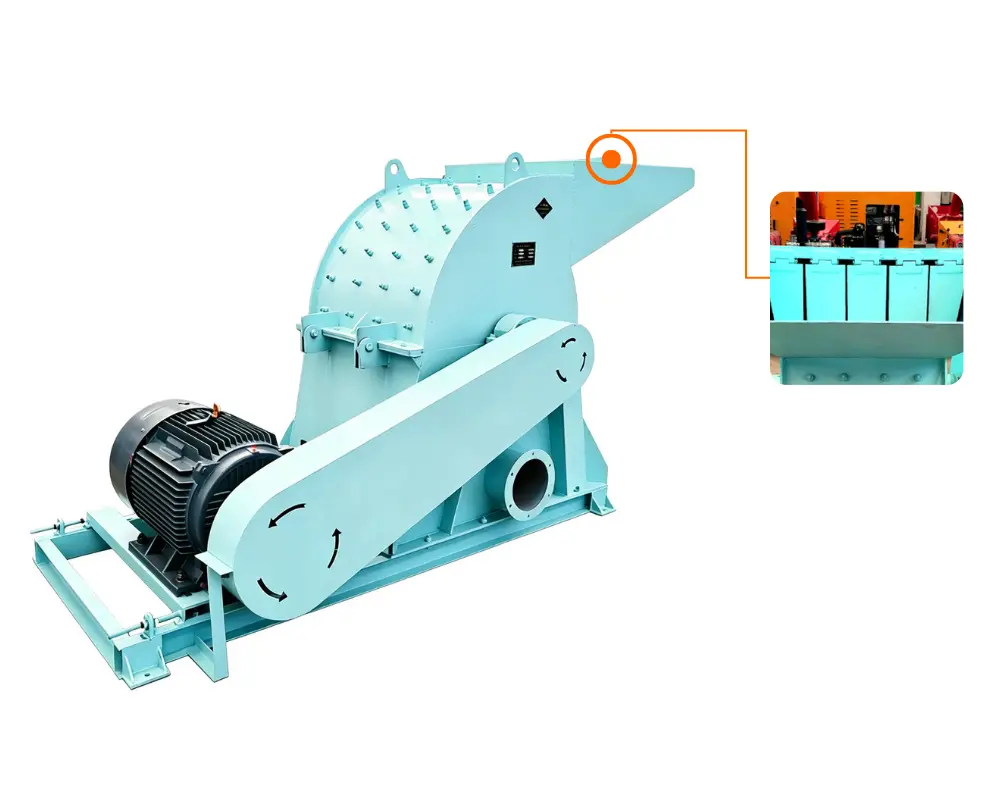

Feeding System Optimization

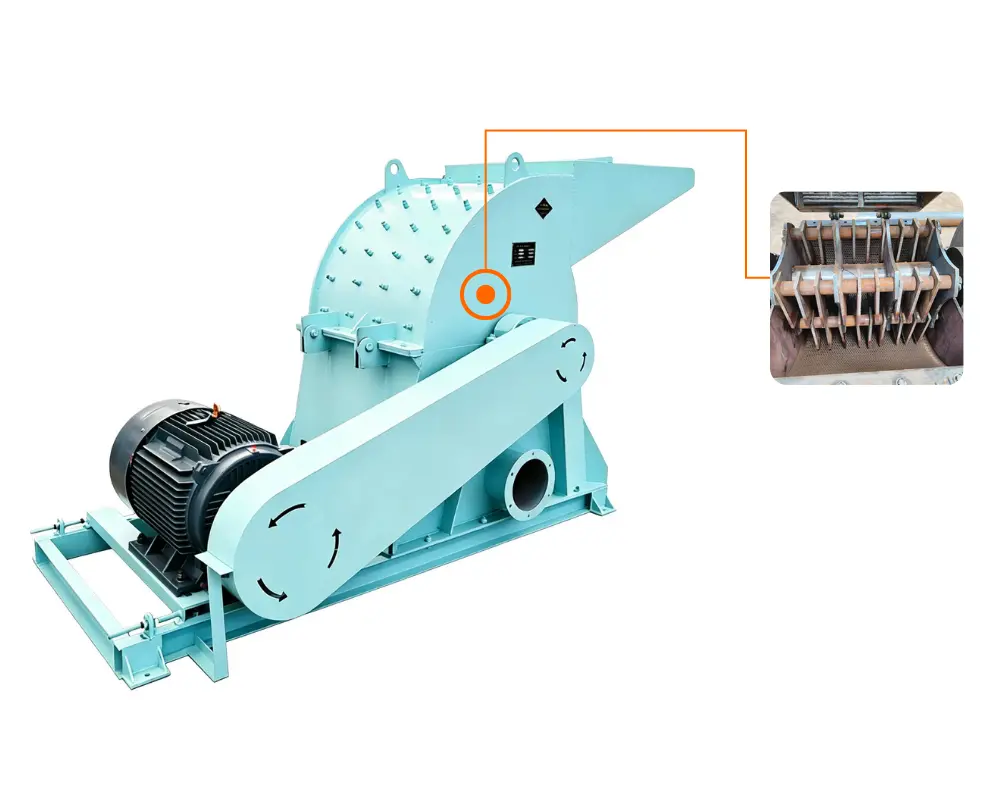

Thickened Hammer – Durable, Low-Wear, Easy Maintenance
The thickened hammer is made from robust materials, ensuring low wear and long service life. Its durable design makes maintenance quick and convenient, helping to reduce downtime and improve operational efficiency.

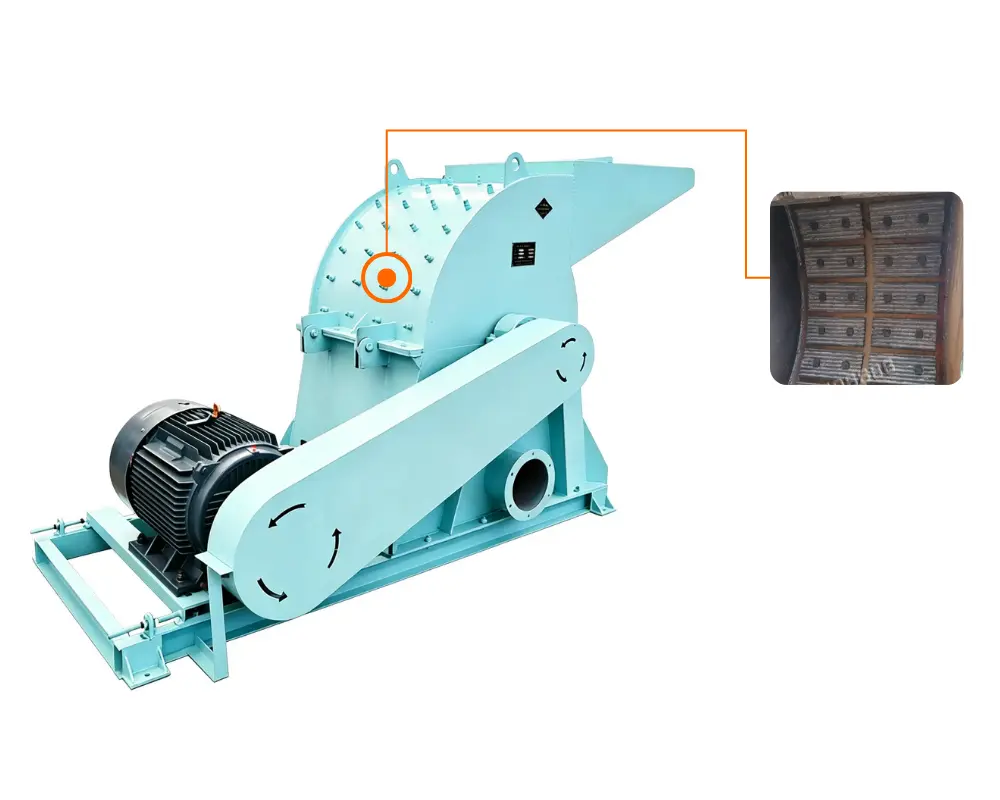

Manganese Steel Liner – Thick, Shock-Resistant, Low-Wear
The 25mm-thick manganese steel liner provides excellent shock absorption and vibration resistance, while its wear-resistant design ensures minimal material loss over time. Ideal for heavy-duty operations, it helps maintain performance and prolongs equipment life.

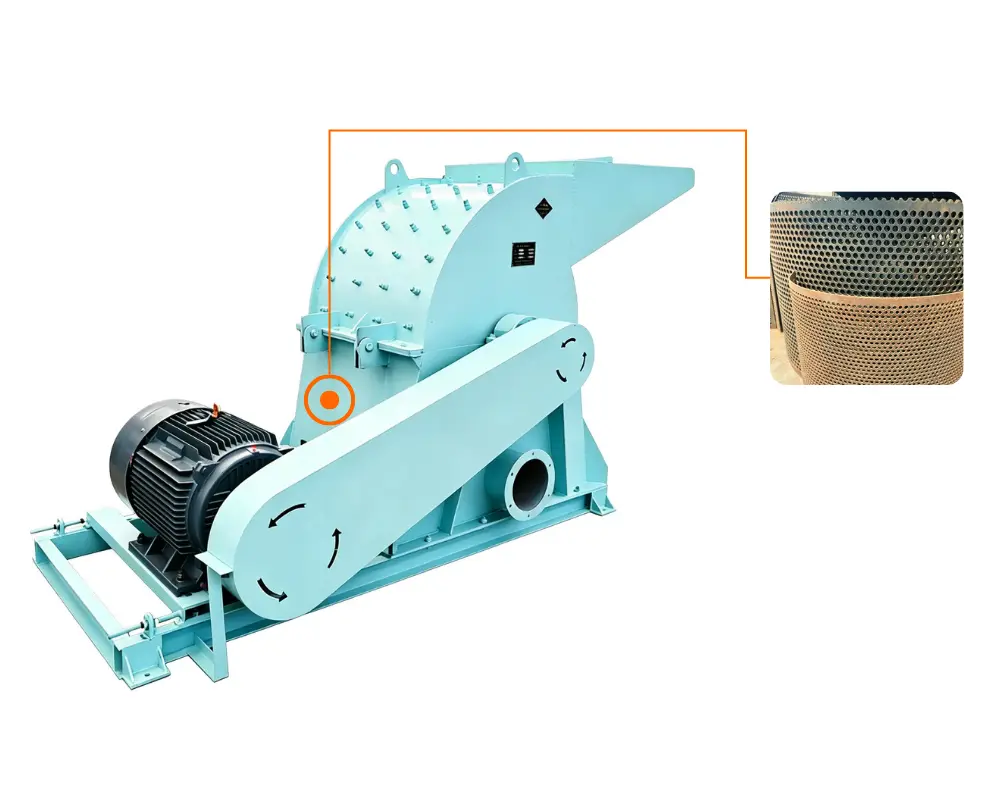

Screen System
Specifications
General Information
| Item | Specification |
| Model | Model 800 Sawdust Crusher |
| Overall Dimensions (L×W×H) | 2850 × 1350 × 1650 mm |
| Total Weight | 1600 kg |
| Discharge Method | Independent Fan Discharge |
| Start Method | Control Cabinet Start |
Rotor and Hammer
| Item | Specification |
| Rotor Diameter | 780 mm |
| Number of Hammers | 48 pcs |
| Hammer Size | 230 × 70 × 10 mm |
| Hammer Pin | 45# Steel, High-Frequency Quenched |
Feed and Material Handling
| Item | Specification |
| Max. Wood Diameter | <80 mm |
| Feed Inlet Size | 1000 × 800 mm |
| Feed Throat Size | 800 × 320 mm |
| Sleeve | Seamless Tube, Cut to Size |
| Other Configurations | Windproof Discharger (Optional) |
Liner and Screen
| Item | Specification |
| Liner Thickness | 25 mm |
| Liner Material | Manganese Steel or Cast Steel |
| Screen | Optional 8–30 mm |
Dust Collection and Airflow
| Item | Specification |
| Dust Collection Method | Bag Filter |
| Number of Bags | 10 pcs |
Motors and Gearboxes
| Item | Specification |
| Motor Power | 55 kW |
| Motor Type | Electric Motor |
| Main Shaft Speed | 2400 r/min |
| Transmission | Belt Drive |
| Bearing Housing | Detachable Split Type |
Optional Configuration
| Item | Specification |
| Optional Screen | 8–30 mm |
| Optional Discharger | Windproof Discharger (Optional) |
