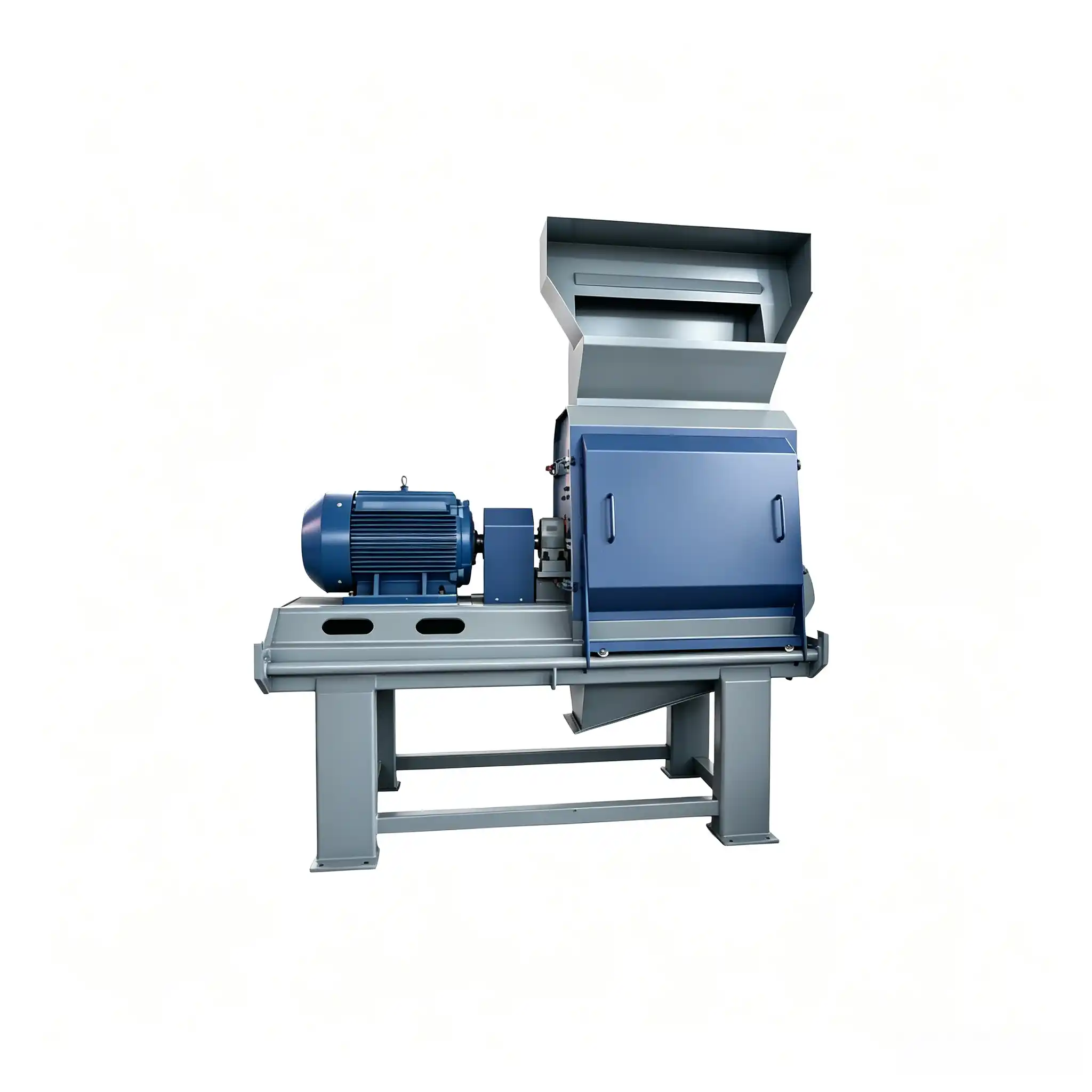

Water-drop Type Hammer Mill Crusher

SKU ECO-HM-Stat-Elec Categories , , , ,

Hammer Mill Crusher

Hammer Mill Crusher is designed for large-scale dry material crushing. This 55-110kW feed hammer mill adopts a high-speed hammering structure for continuous industrial production. The 0.8-10mm screen grain crusher is suitable for feed production, grain processing, and biomass material preparation.

Features

  • High efficiency
  • Continuous operation
  • Multiple power options
  • Adjustable output size
  • Low noise water-drop chamber design
  • Heavy-duty industrial structure

Technical Data

Model: Hammer Mill Crusher

Power: 55 / 75 / 90 / 110 kW

Voltage: 380V Three Phase

Motor Speed: 2970 r/min

Capacity: 5–18 T/H

Standard Output: 75kW model: 8–11 T/H (Corn Processing)

Hammer Configuration: 32–48 High Manganese Steel Hammers

Hammer Groups: 4 / 6 Groups

Screen Size: 0.8–10 mm Optional

Noise Level: ≤85 dB

Bearing Type: 312 / 314 Heavy-Duty Self-Aligning Bearing

Feeding System: Wide Top Inlet with Anti-Splash Design

Discharge System: Bottom Direct Discharge + Cyclone Dust Collection Compatible

Lubrication: External Grease Injection System

Material: Q235 Steel Frame + Wear-Resistant Manganese Steel Liner

Overall Size (110kW Model): 2600 × 1200 × 2100 mm

Machine Weight: 3.8–4.6 Tons

Material Moisture Requirement: ≤18%

Applications

  • Animal Feed Production
  • Grain Processing
  • Biomass Crushing
  • Corn Crushing
  • Dry Material Grinding
  • Industrial Powder Processing

System

Hammer Mill Crusher provides an efficient industrial crushing solution with adjustable screen sizes, durable hammer structure, and stable continuous operation for large-scale material processing.

Let us tailor a solution for you.



    Drive type

    Electric

    Screen Size Range

    0.8–10 mm

    Power

    55–110 kW

    Capacity

    5–18 T/H

    Make the grinding process easier.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

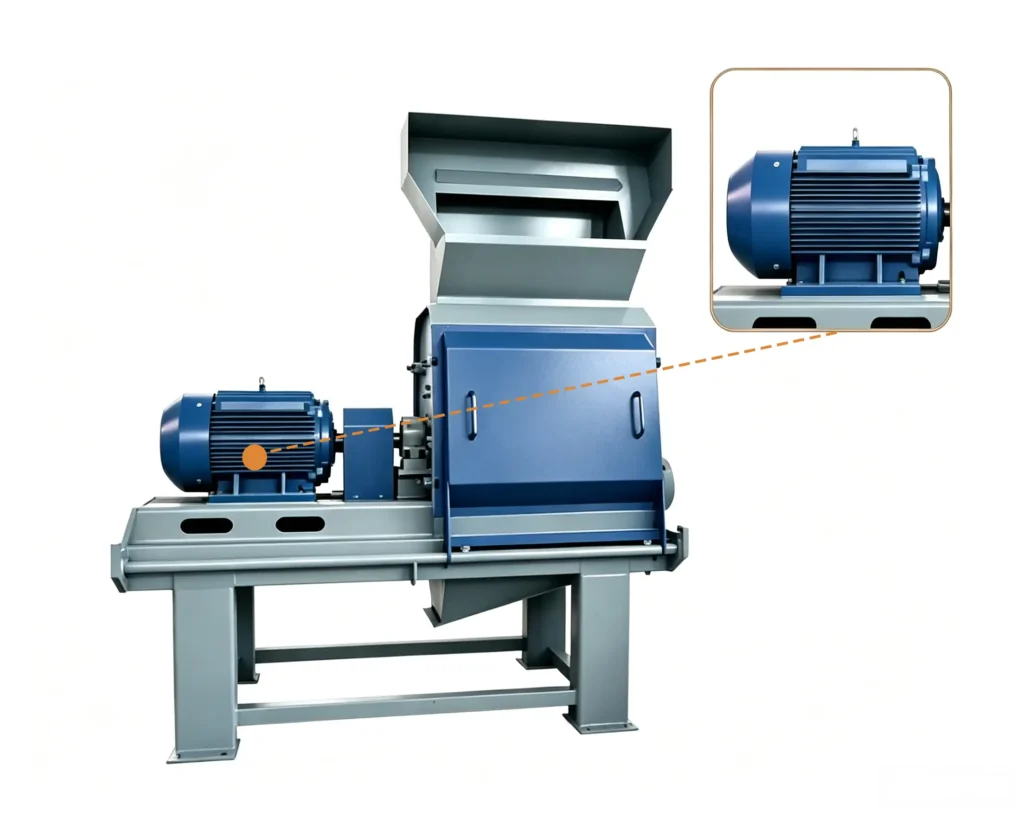

    Multi-Model High-Power Three-Phase Motor Drive

    This industrial hammer mill supports 55/75/90/110kW multiple power configurations to match different production scale requirements. The high-speed three-phase asynchronous motor delivers stable and strong power with low noise and strong overload resistance, supporting 24-hour continuous heavy-duty operation, perfectly matching large feed factories and grain processing production lines.
    Energy saving sawdust crusher processing wood chips, branches, and biomass materials with efficient low power consumption system

    Water-Drop Chamber Design for Efficient Grinding

    The unique water-drop shaped crushing chamber optimizes the material circulation trajectory, effectively improving grinding efficiency and reducing energy consumption. The high-speed rotating hammer rotor achieves uniform impact grinding, with adjustable screen size from 0.8mm to 10mm to flexibly meet different finished particle size requirements for feed and industrial processing.
    Automatic feeding sawdust crusher processing wood chips, branches, and biomass materials with auto feed system

    Wear-Resistant Manganese Steel Structure for Durable Performance

    The crushing chamber is lined with wear-resistant manganese steel and equipped with 32–48 pieces of high manganese steel hammers, featuring excellent impact resistance and wear resistance for long-term heavy-duty operation. The external grease injection system simplifies daily maintenance, and the heavy-duty self-aligning bearings ensure stable and reliable long-term operation.

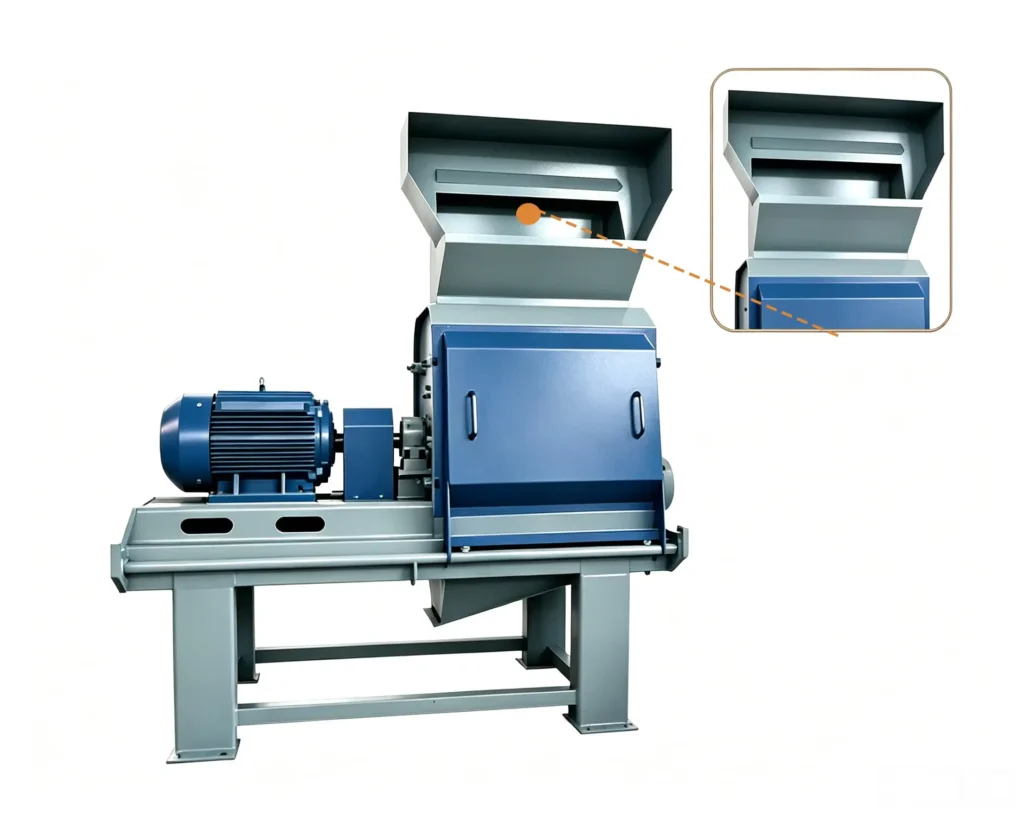

    Continuous sawdust crusher machine processing wood chips, branches, and biomass materials with nonstop production capability

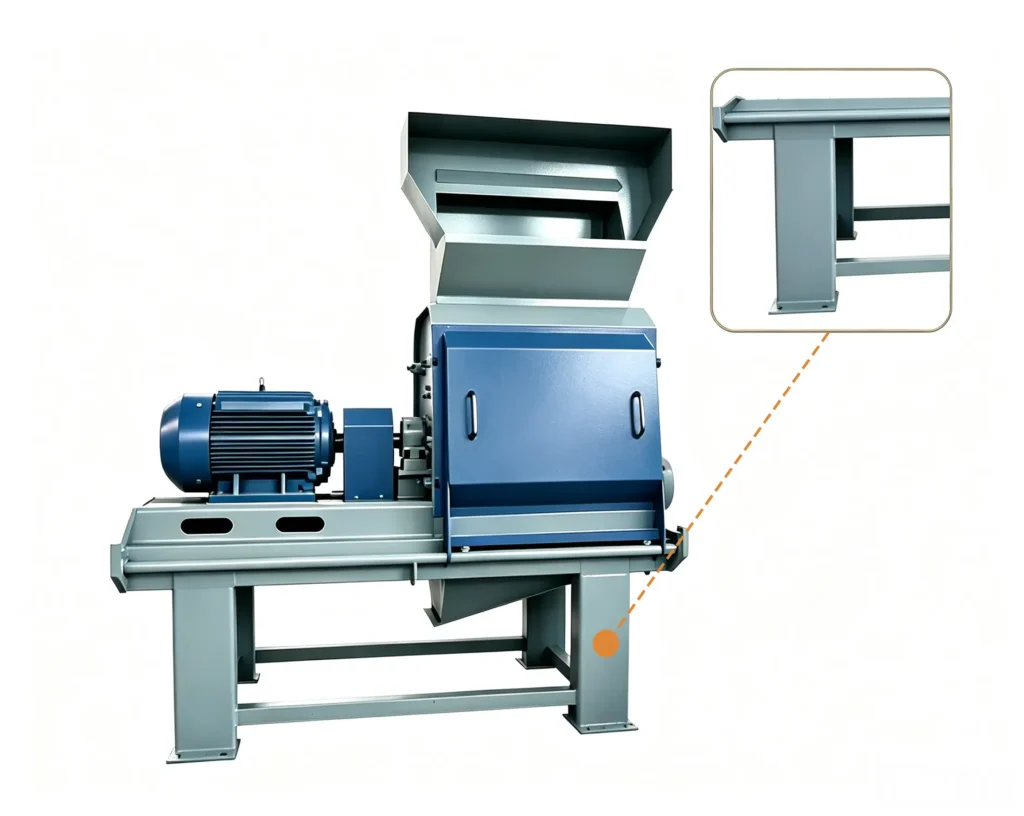

    Heavy-Duty Welded Frame for Stable Fixed Installation

    The whole machine adopts an integrated thickened steel welded frame with high structural rigidity, effectively offsetting strong vibration generated by high-speed rotor operation. The wide top anti-splash feeding hopper allows bulk continuous feeding, and the bottom discharge can be matched with cyclone dust collection and conveying equipment to form a fully automatic grinding production line.

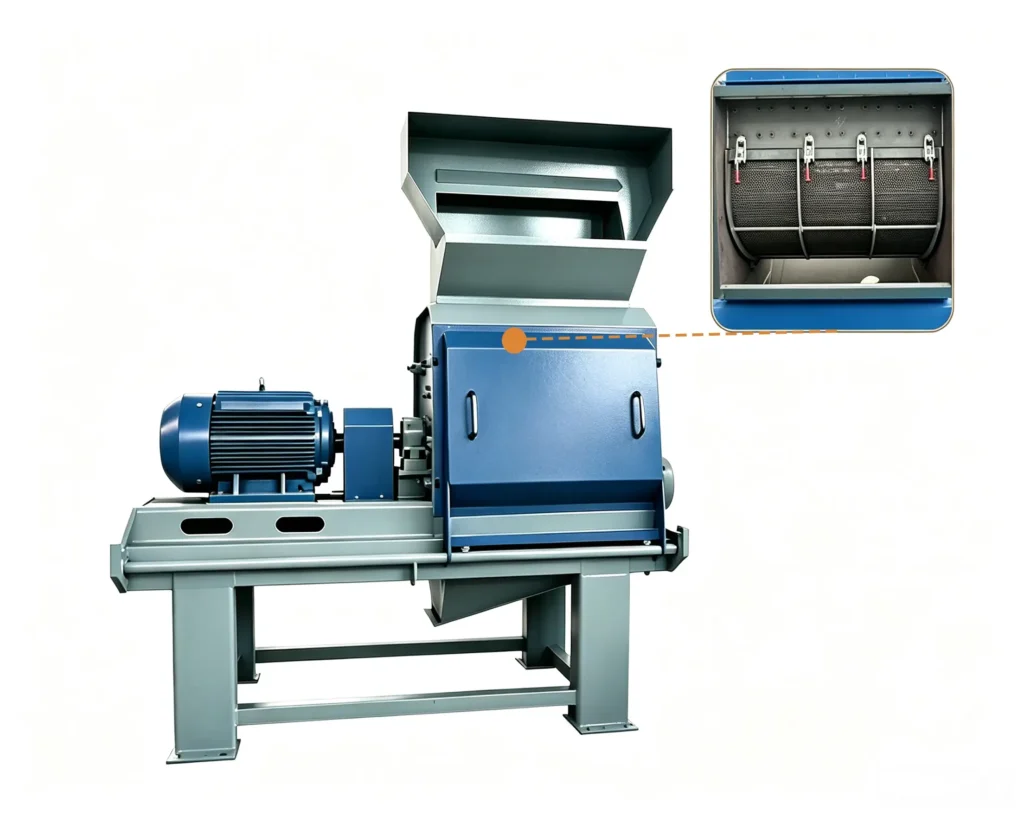

    Low energy sawdust crusher processing wood chips and biomass materials with energy efficient crushing technology

    Specifications

    Model Water-drop Type Hammer Mill Crusher
    Power Options 55 / 75 / 90 / 110 kW
    Rated Voltage 380V, 50Hz, Three-Phase
    Motor Speed 2970 r/min
    Processing Capacity 5–18 T/H
    Hammer 32–48 pcs High Manganese Steel, 4/6 Groups
    Screen Size 0.8–10 mm
    Optional Chamber Type Water-drop Type
    Feeding Wide Top Anti-Splash Inlet
    Discharge Bottom Direct Discharge
    Frame Q235 Steel + Manganese Steel Liner
    Weight 3.8–4.6 Tons
    Overall Dimension (110kW) 2600 × 1200 × 2100 mm
    Applicable Materials Grain, Corn, Feed, Biomass, Dry Materials
    Application Animal Feed, Grain Processing, Biomass Crushing, Industrial Grinding
