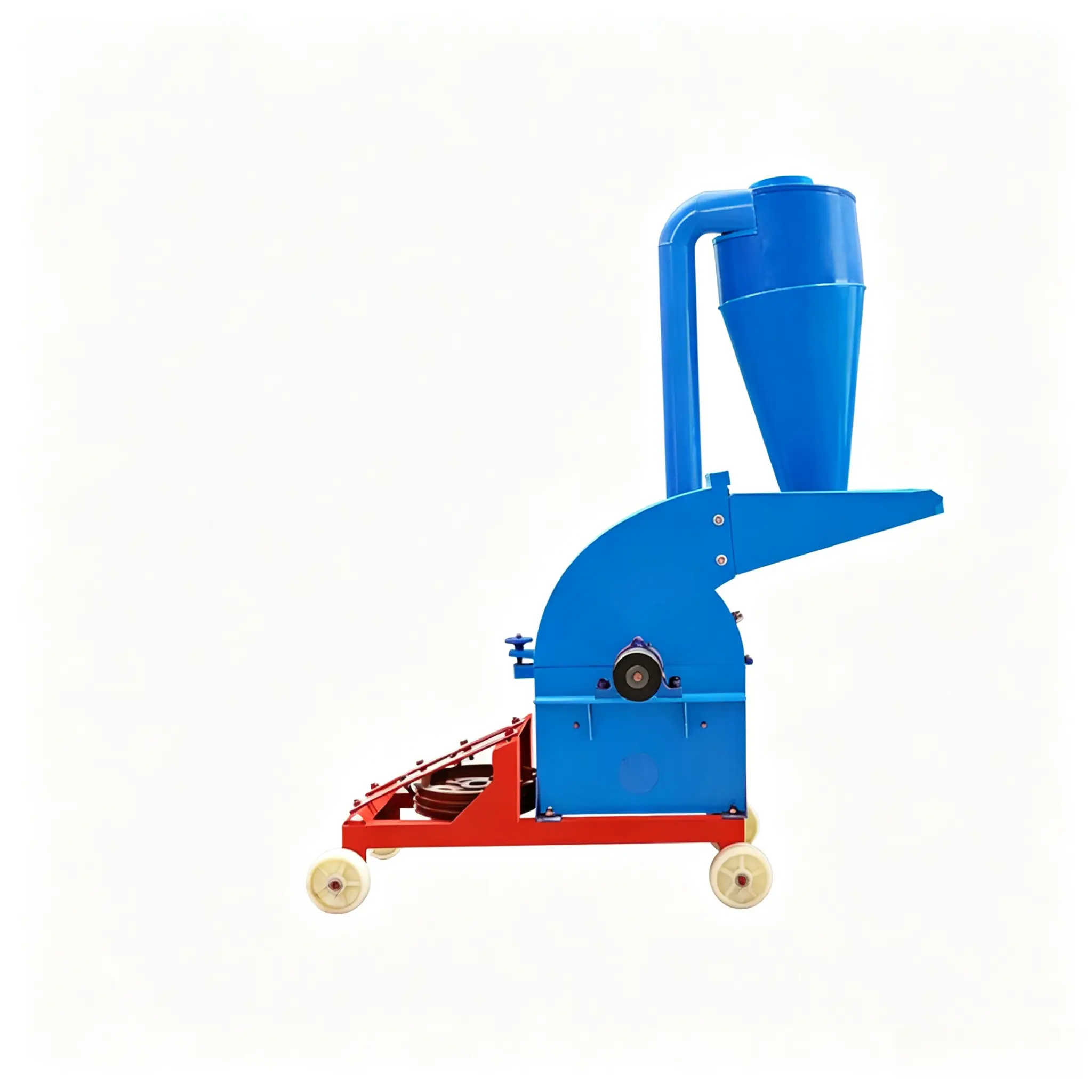

Model 360 Mobile Electric Hammer mill wood crusher

SKU ECO-360-Mob-Elec Categories , , , ,

Hammer mill wood crusher

Hammer mill wood crusher is designed for small-scale crushing of wood, straw, grain, and biomass materials. This Mobile wheeled hammer mill with cyclone dust collector is suitable for home use, small farms, and agricultural processing. The Small electric hammer crusher for wood and straw provides fine crushing with flexible mobility.

Features

  • High efficiency
  • Electric powered
  • Mobile wheel design
  • Cyclone dust collection
  • Fine crushing performance
  • Easy operation

Technical Data

Model: 360 Hammer mill wood crusher

Voltage: 220V/380V Optional

Motor Power: 4.5 kW Copper Motor

Motor Speed: 2800 r/min

Main Shaft Speed: 400 r/min

Hammer Configuration: 24 Steel Hammer Pieces

Crushing Chamber Width: 210 mm

Screen Size: 200 × 455 mm

Feed Size: ≤10 mm

Output Size: Up to 1 mm

Capacity: 500–1000 kg/h

Structure: Full Steel Body with Mobile Wheel Base

Discharge System: Top Cyclone Dust Collector Discharge

Applicable Materials:
Grains, Feed Materials, Dry Chinese Herbs, Dry Straw, Corn Cobs, Soybean Meal, Wood Materials

Applications

  • Household Grain Processing
  • Small Farm Feed Production
  • Biomass Crushing
  • Herbal Material Processing
  • Agricultural Waste Recycling

System

Hammer mill wood crusher provides a compact crushing solution for small-scale wood, straw, and agricultural material processing with fine output and easy movement.

Let us tailor a solution for you.



    Drive type

    Electric

    Max Feed Size

    ≤0.39" Inch

    Power

    4.5 kW

    Capacity

    0.5–1.0 t/H

    Make the crushing process easier.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

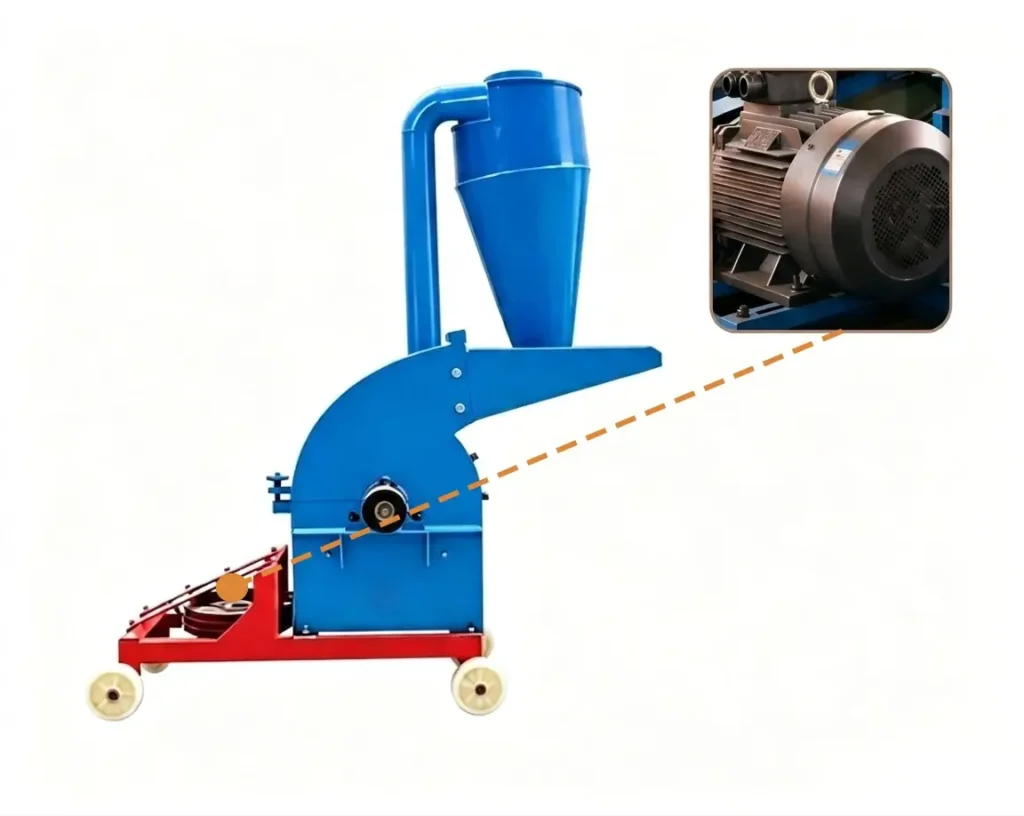

    High-Efficiency Copper Motor Belt Driven Mobile Hammer Mill

    This mobile hammer mill adopts belt transmission matched with a 4.5kW pure copper motor, supporting both 220V household and 380V industrial power supply. The belt buffer structure reduces motor damage caused by material jamming, with low energy consumption and stable continuous operation. It is suitable for home use, small farms and scattered rural processing sites.
    Sawdust crusher for biomass fuel production processing wood waste and agricultural materials into renewable fuel raw materials

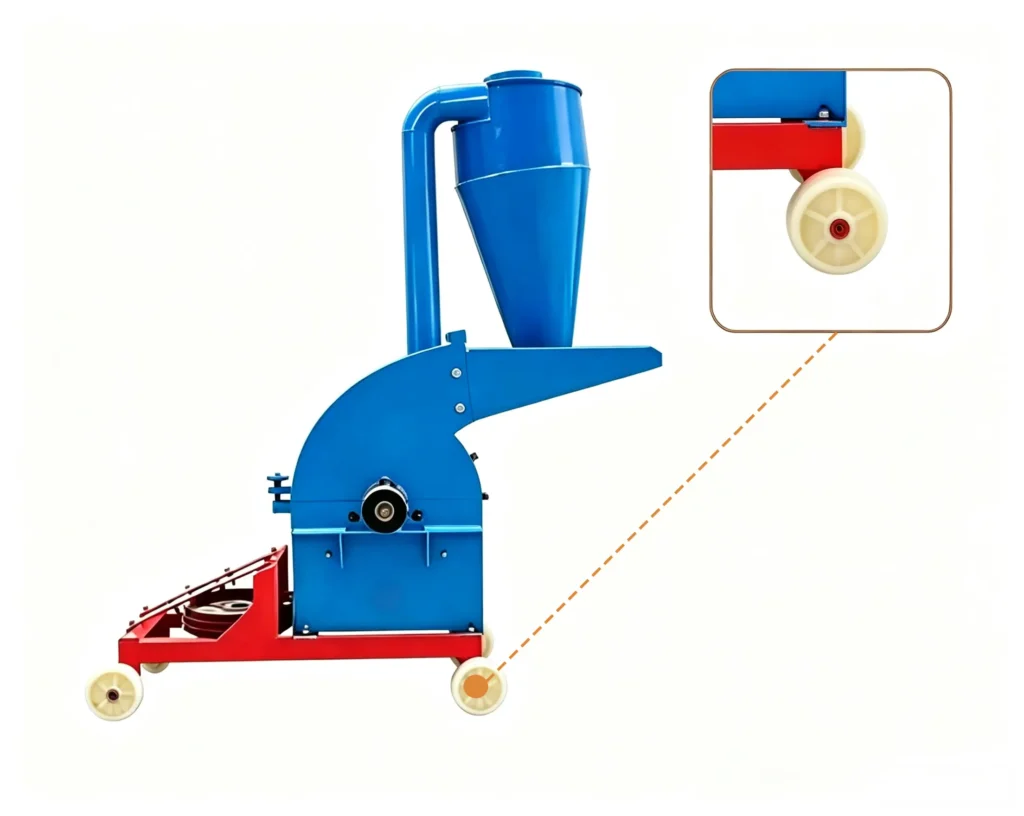

    Four-Wheel Trolley Chassis for Flexible On-Site Transfer

    Equipped with an integrated trolley frame and four wear-resistant universal wheels, the whole machine can be easily pushed on flat ground, farm roads and courtyard hard surfaces by one person. Lightweight design requires no lifting equipment for transfer, flexible for decentralized multi-point raw material crushing operations.
    Sawdust crusher for municipal waste processing green waste, branches, wood residues, and biomass materials into reusable resources

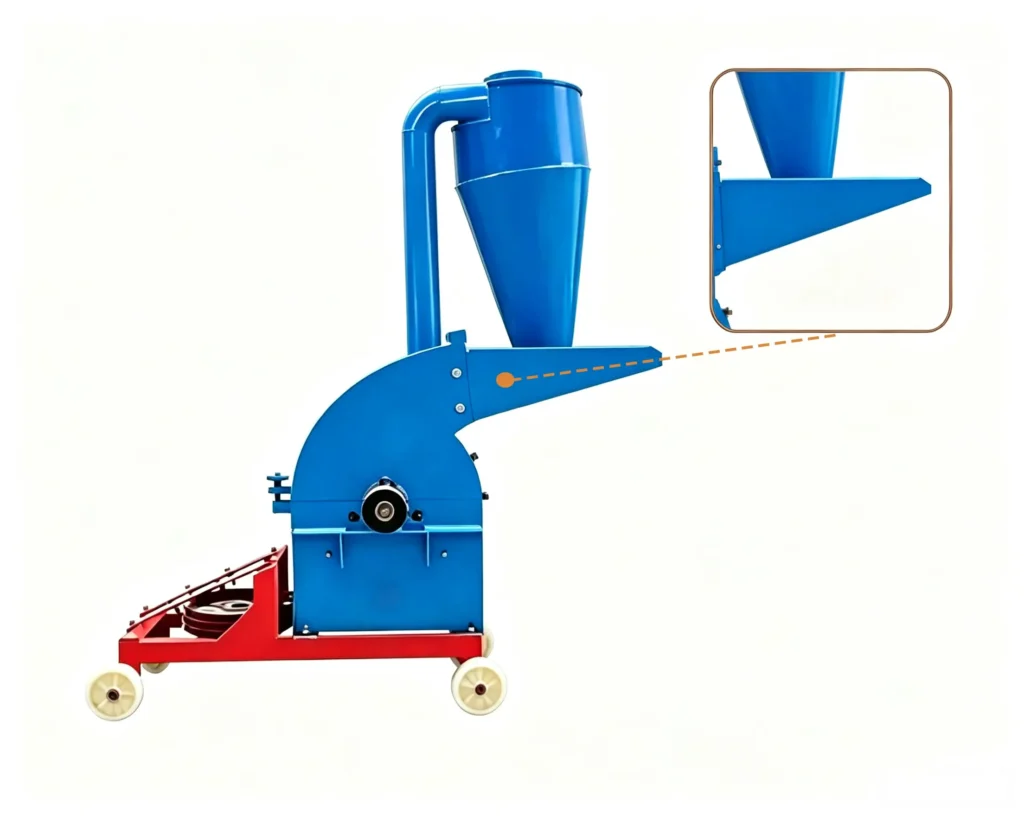

    Side Horizontal Feed Inlet + Cyclone Dust-Free Discharge

    The wide side feeding inlet supports continuous feeding of small wood scraps, straw, corn cobs and grain materials without frequent shutdown. Built-in fan conveys fine powder upward into the cyclone dust collector, automatically separating powder and dust with clean finished material and no flying dust, greatly improving daily processing efficiency.
    Sawdust crusher for garden waste processing branches, tree trimmings, and green waste into reusable materials

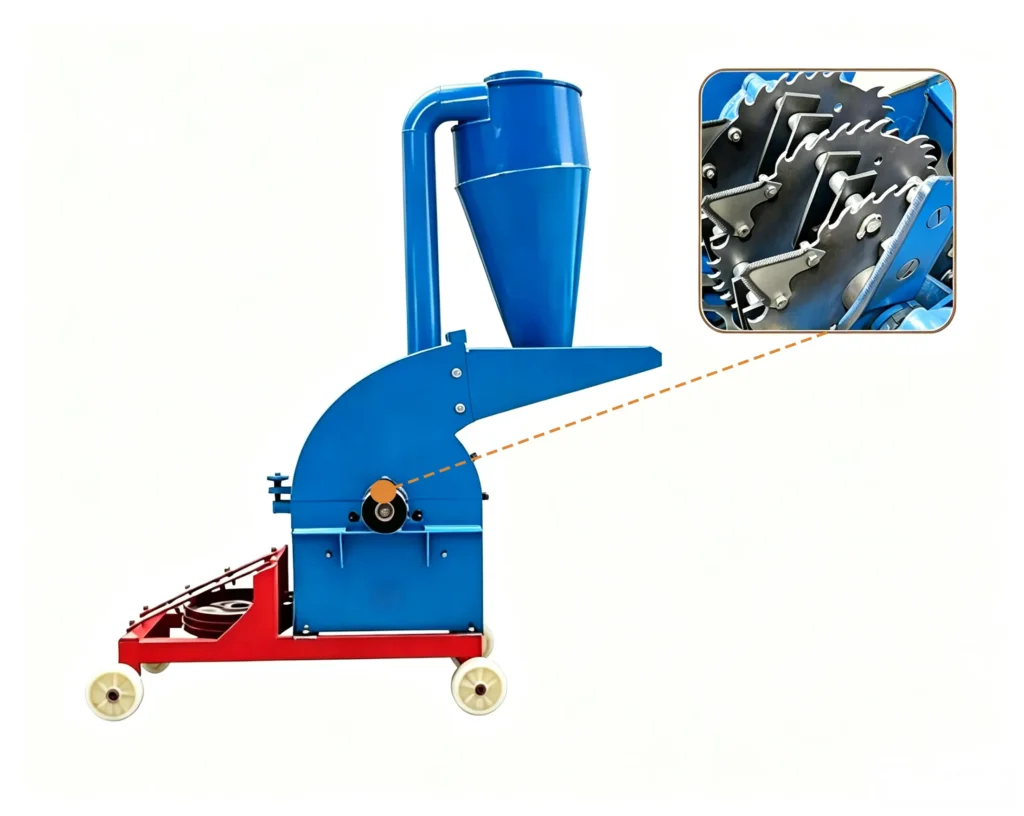

    Wear-Resistant Hammer Crushing System with Adjustable Granularity

    The closed crushing chamber is fitted with 24 pieces of quenched steel hammers, crushing biomass and grain materials into uniform fine powder through high-speed rotary impact. The replaceable internal screen flexibly adjusts finished particle size. Processed powder can be used as mushroom substrate, livestock feed, biomass fuel and organic fertilizer raw materials.
    Sawdust crusher for renewable energy processing wood waste and biomass materials into clean fuel resources

    Specifications

    Model 360 Mobile Electric Hammer Mill Wood Crusher
    Motor Power 4.5kW Pure Copper Motor
    Voltage 220V / 380V Optional, Three-phase Industrial Power Available
    Drive System V-belt Pulley Drive System
    Motor Speed 2800 r/min
    Main Shaft Speed 400 r/min
    Hammer Quantity 24pcs High Wear-resistant Steel Hammer Pieces
    Crushing Chamber Width 210mm
    Screen Size 200 × 455mm Replaceable Screen
    Maximum Feed Size ≤10mm (≤0.39 Inch)
    Finished Output Size Up to 1mm Fine Powder Output
    Processing Capacity 0.5–1.0 Ton/h (500–1000kg/h)
    Discharge System Top Cyclone Dust Collector Automatic Discharge System
    Mobility System 4 Universal Wheels with Mobile Trolley Base
    Structure Full Steel Body Structure with Heavy-duty Frame
    Applicable Materials Grains, Animal Feed, Dry Straw, Corn Cobs, Small Wood Scraps
    Application Home Use, Small Farms, Agricultural Processing, Biomass Material Preparation
    Net Weight Approx. 85kg
    Overall Dimension 950 × 600 × 1250mm
    Core Advantages Mobile Wheel Design, Compact Structure, Cyclone Dust-free Discharge, Fine Crushing Performance, Easy Operation and Maintenance
