Model 1600 Mobile Integrated Wood Crusher

SKU ECO-1600-Mob-Dsl Categories , , , ,

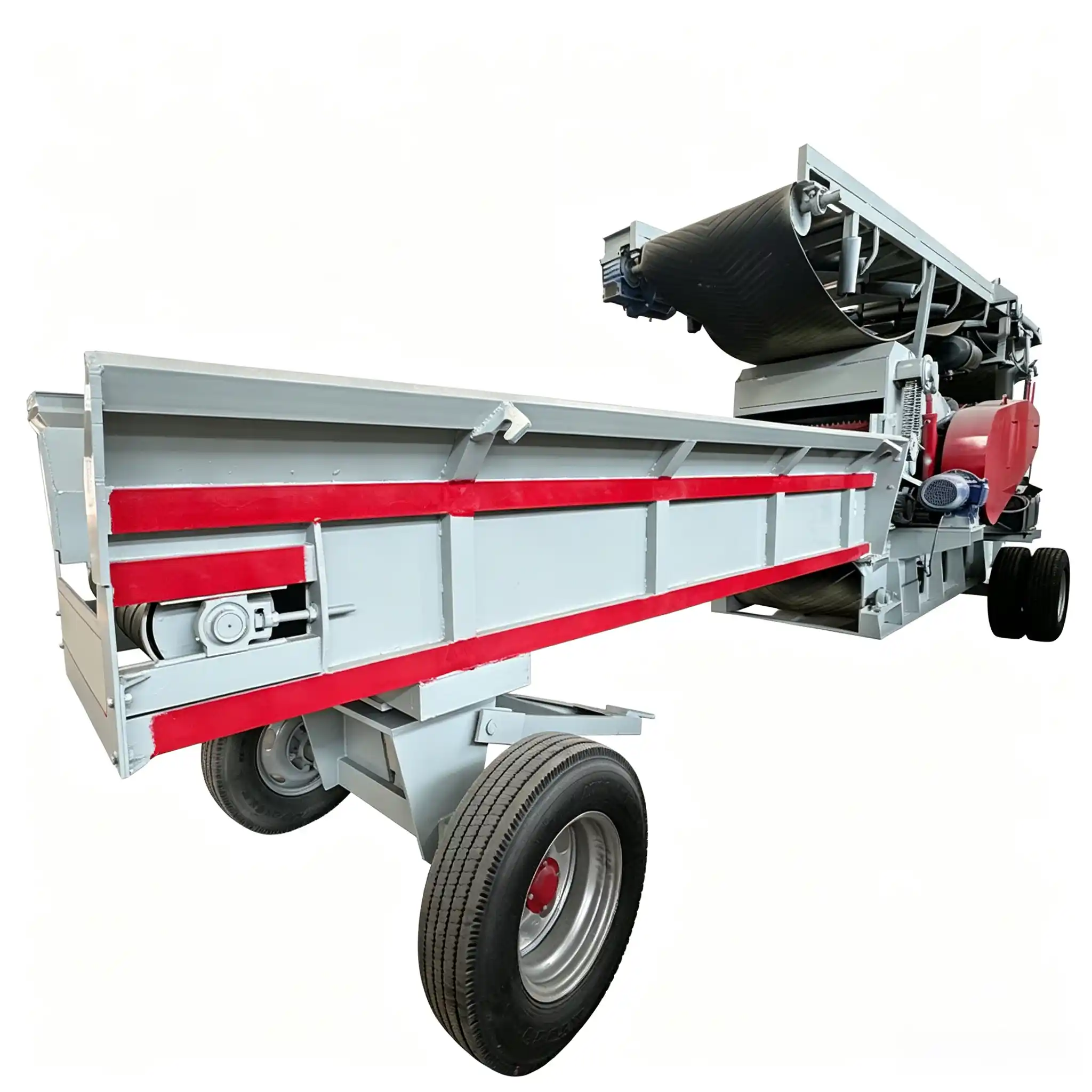

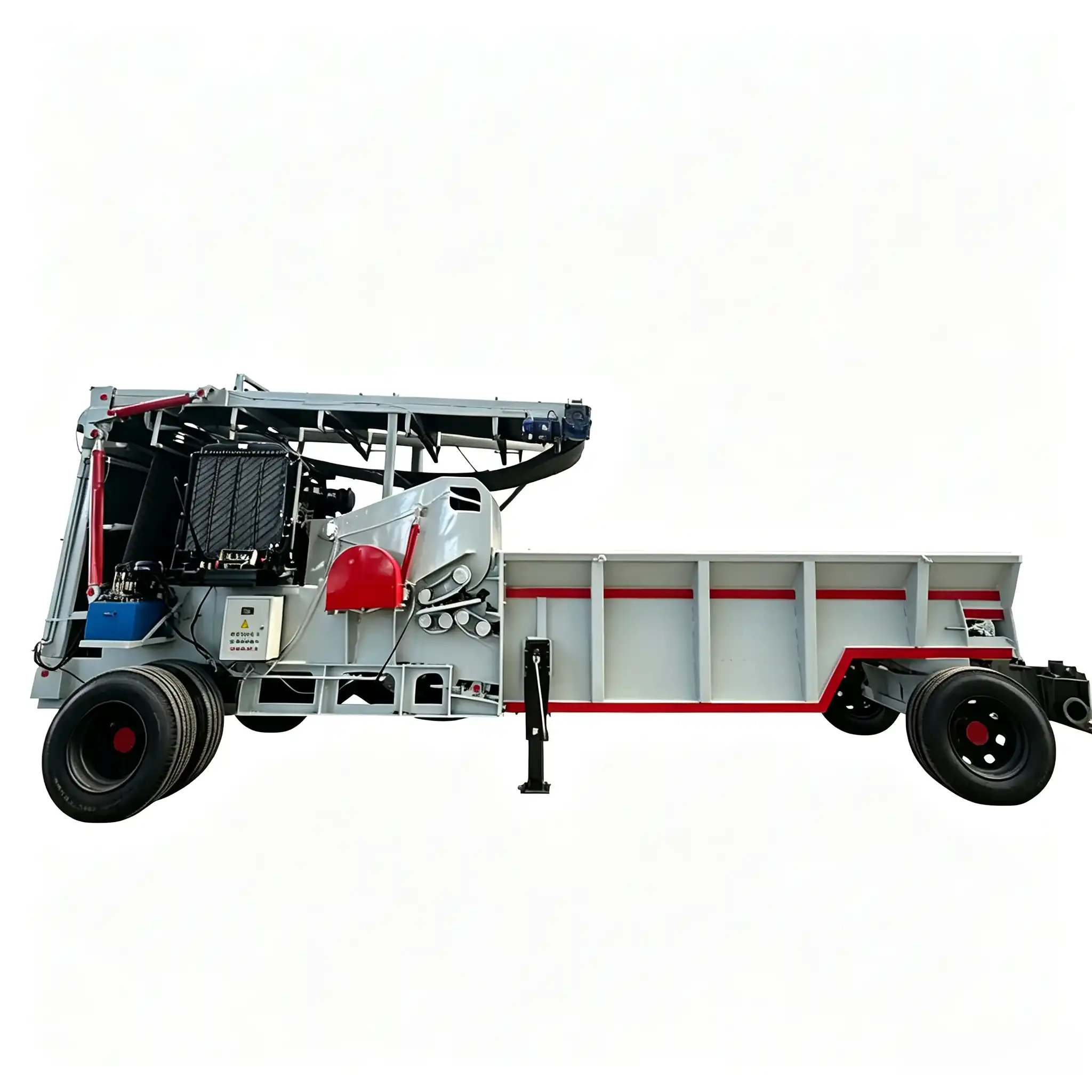

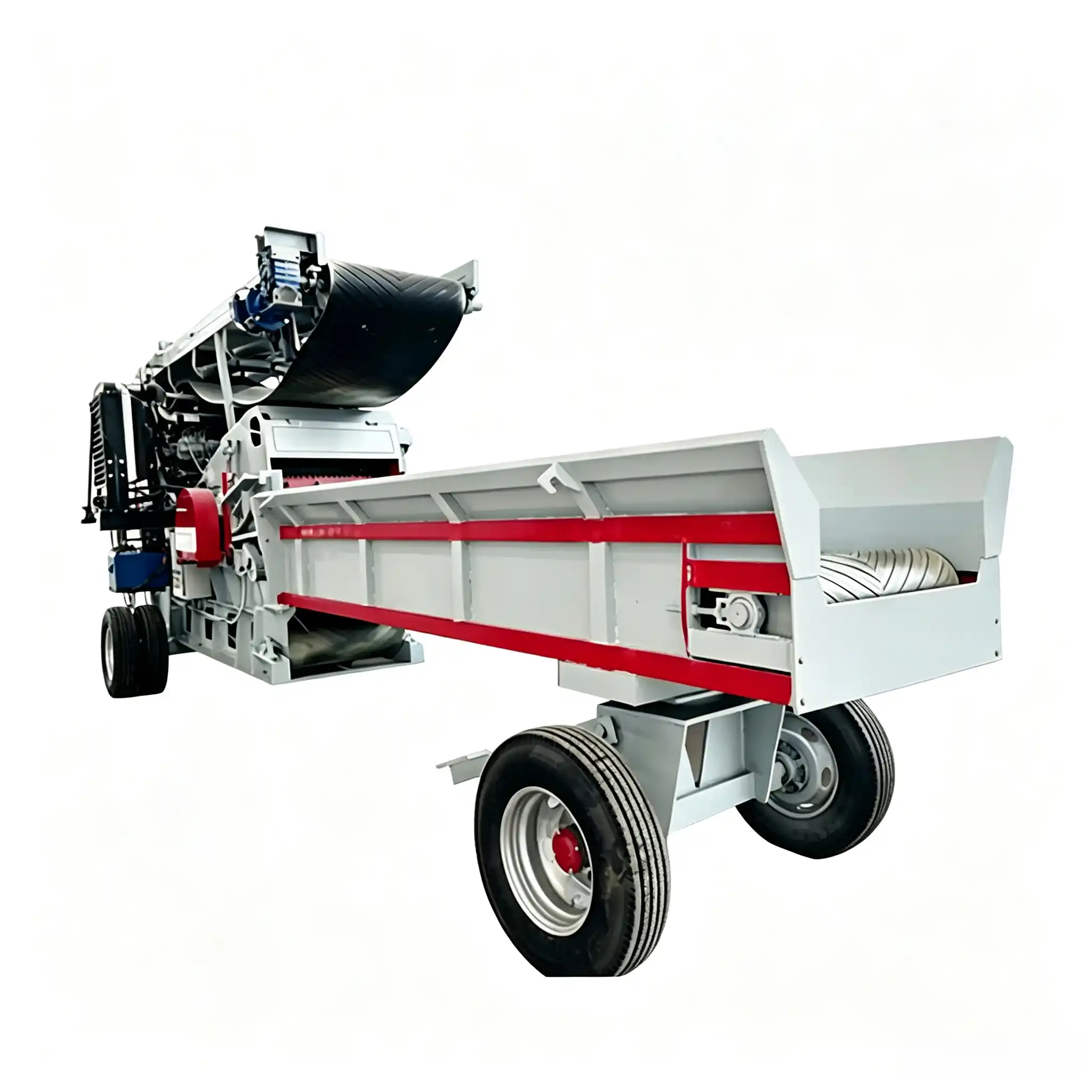

Mobile Integrated Wood Crusher

Mobile Integrated Wood Crusher is designed for large-scale wood and garden waste crushing. This 20-25t/h large wood crushing machine features a traction mobile chassis and automatic feeding system for biomass plants, forestry, municipal waste treatment, and landscaping projects. The traction type comprehensive wood grinder provides high-capacity mobile processing.

Features

  • High efficiency
  • Diesel powered
  • Automatic conveyor feeding
  • Heavy-duty mobile design
  • Adjustable output size
  • Continuous operation

Technical Data

Model: Mobile Integrated Wood Crusher

Drive Type: Diesel Engine

Blade Configuration: 4 Heavy-Duty Alloy Steel Flying Blades + Counterattack Liner

Main Shaft Speed: 960 r/min

Feed Inlet Size: 1700 × 600 mm

Capacity: 20–25 T/H

Output Size: 5–50 mm Adjustable

Feeding System: Automatic Chain Plate Conveyor Feeding

Chassis Type: Heavy-Duty Traction Mobile Chassis

Support System: Hydraulic Support Legs

Structure: Heavy-Duty Manganese Steel Welded Frame

Discharge System: Automatic Discharge Conveyor

Applications

  • Biomass Power Plant
  • Large Forestry Farm
  • Municipal Waste Processing
  • Landscaping Projects
  • Wood Recycling
  • Biomass Fuel Production

System

Mobile Integrated Wood Crusher provides a high-capacity mobile crushing solution with automatic feeding, adjustable output, and efficient material handling for industrial wood recycling.

Let us tailor a solution for you.



    Drive type

    Diesel Engine

    Max Feed Size

    ≤47.24" Inch

    Power

    260 HP

    Capacity

    10–18 t/H

    Make the crushing process easier.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

    High-Power Industrial Diesel Engine + Hydraulic Auxiliary Drive Heavy Mobile Wood Processor

    This large trailer-mounted wood chipper crusher is equipped with a high-power industrial diesel engine as the main power source, outputting ultra-high cutting torque to process large-diameter logs, whole bundles of branches and wood waste continuously. The matched independent hydraulic system drives the feeding conveyor, support outriggers and discharge mechanism. The dual power system operates stably with strong overload capacity, requiring no external power supply. It is fully suitable for remote forest farms, large biomass processing projects and mobile wood recycling operations.
    Root wood crusher machine processing tree roots, stumps, and biomass waste into reusable wood materials

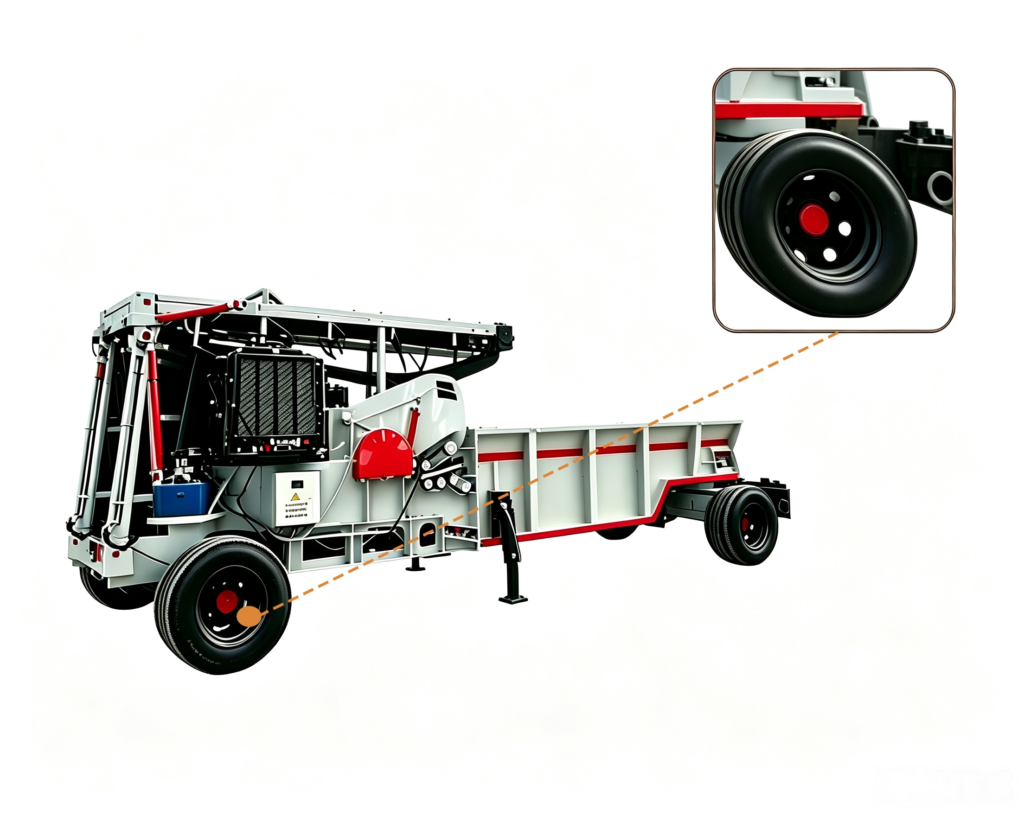

    Heavy-Duty Dual-Axle Trailer Chassis With Hydraulic Outriggers Highway Towable

    Built on a heavy-load dual-axle trailer chassis with standard towing interface, the machine can be towed by trucks or tractors on public roads for fast cross-regional transfer. Equipped with hydraulic support outriggers, it achieves stable leveling and fixation during operation to offset strong vibration. The fully integrated structure requires no disassembly during transportation, perfectly adapting to multi-point mobile operations such as forest thinning, municipal green waste clearing and on-site wood resource utilization projects.
    Bamboo sawdust crusher processing bamboo stalks, bamboo waste, and biomass materials into fine sawdust

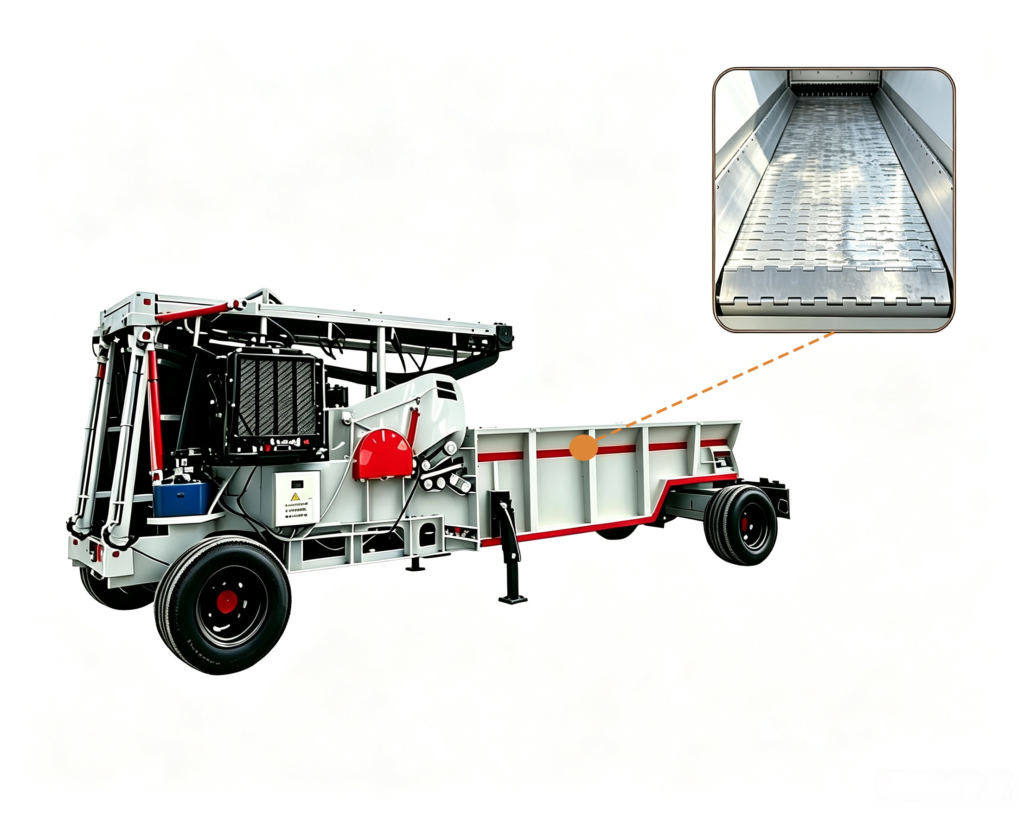

    Integral Long Hopper Conveyor Feeding + High Lift Discharge High Throughput Automation

    The extra-long integrated feeding hopper with built-in conveyor belt automatically conveys large-diameter logs and bundled branches into the cutting chamber, eliminating manual one-by-one feeding and greatly reducing feeding labor and downtime. The top high-lift discharge device throws finished wood chips directly into transport trucks without intermediate transfer. Fully automatic feeding and discharging greatly improves hourly output and reduces comprehensive costs for large-scale wood volume reduction and resource processing.
    Branch sawdust crusher processing tree branches, wood waste, and biomass materials into fine sawdust efficiently

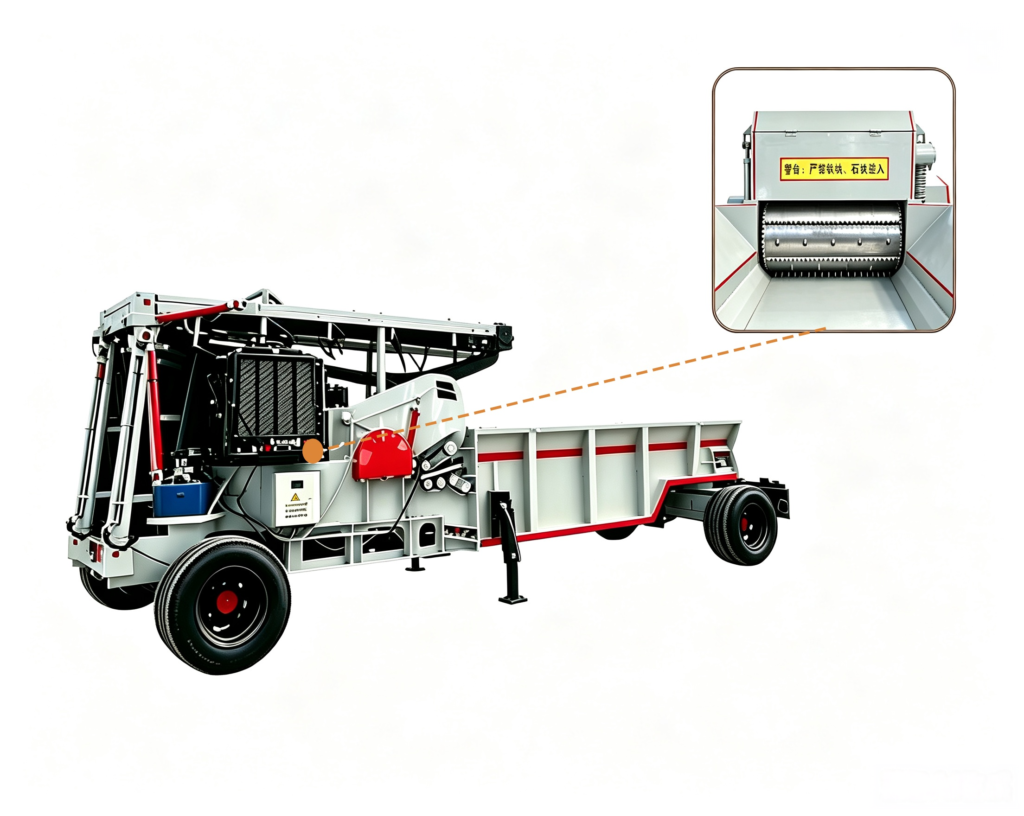

    Heavy-Duty Forged Steel Cutter Roller Crushing System with Adjustable Output Size

    The core processing assembly adopts a heavy-duty forged steel cutter roller structure with 16 pieces of thickened high-manganese alloy steel blades, featuring excellent wear resistance and impact toughness. It completes log chipping and branch crushing in one pass, with uniform finished particle size adjustable from 30mm to 120mm, fully meeting the raw material standards of biomass power generation, papermaking, wood-based panel and organic fertilizer industries. The forced roller feeding structure prevents material jamming, and the fully enclosed bin ensures safe and reliable operation.
    Log sawdust crusher machine processing wood logs, branches, and biomass materials into fine sawdust efficiently

    Specifications

    Model 1600 Mobile Integrated Wood Crusher
    Drive Type 260HP 6-cylinder Water-cooled Diesel Engine Drive
    Drive System Hydraulic + Belt Combined Heavy-duty Transmission System
    Cutter Roller Structure Heavy-duty Forged Steel Cutter Roller for Continuous Crushing Operation
    Blade Quantity 16pcs High Manganese Alloy Steel Wear-resistant Blades
    Cutter Roller Speed 850rpm Low-speed High-torque Crushing Operation
    Feed Hopper Width 1400mm Extra-wide Feeding Hopper
    Maximum Feed Size ≤1200mm (≤47.24 Inch) Whole Trees, Logs and Large Wood Materials
    Feeding System Hydraulic Chain Plate Automatic Feeding System with Stable Material Conveying
    Processing Capacity 10–18 Tons/Hour High-capacity Wood Crushing Performance
    Finished Output Size 30–120mm Adjustable Wood Chip Size
    Discharge System High-lift Belt Conveyor Discharge System with Adjustable Discharge Angle
    Mobility System Heavy-duty Tandem Axle Trailer Chassis, Dual Tires, Hydraulic Support Legs, Highway Towable Design
    Overall Dimension 7800 × 2450 × 3200mm
    Machine Weight 11500kg
    Applicable Materials Whole Tree Trunks, Stumps, Roots, Wood Pallets, Construction Wood Waste, Bamboo, Furniture Scrap
    Application Forestry Waste Recycling, Demolition Sites, Biomass Energy Projects, Large-scale Wood Processing Plants
    Core Advantages Mobile On-site Crushing, Handles Ultra-large Wood Materials, Hydraulic Automatic Feeding, High Production Capacity, Suitable for Industrial Biomass Processing
