Portable Multi-Power Chaff Cutter

SKU ECO-Chaff-Mob-Dsl Categories , , , , ,
Multi-Power Chaff Cutter
Multi-power chaff cutter with 220V electric / battery / diesel / gasoline power options, adopts 2/3/4 optional alloy blades, 3–3.8T/H capacity, supports dry and fresh grass cutting with portable design, suitable for small farms, livestock sheds and field feed processing.
Technical Data
Model: Multi-Power Chaff Cutter
Power Options: 220V Electric / Battery / Diesel / Gasoline
Blade Configuration: Alloy Blade, 2/3/4 Blade Options
Main Shaft Speed: 1420 r/min
Capacity: 3–3.8 T/H
Maximum Feeding: Full Bundled Straw and Corn Stalks
Cutting Type: Dry and Fresh Grass Cutting
Overall Size: Approx. 65 × 50 × 70 cm
Machine Weight: 32–34 kg
Structure: Heavy-Duty Steel Plate Welded Frame
Feeding System: Wide Inclined Feed Hopper
Discharge System: Side Inclined Automatic Outlet
Applications
Livestock Feed Processing, Small Farms, Cattle and Sheep Feeding, Straw Recycling, Agricultural Waste Processing

Let us tailor a solution for you.



    Get technical table

    Drive type

    Electric/Diesel

    Branch Limit

    ≤3.15" Inch

    Power

    5.5 KW / 8 HP

    Capacity

    1-2.5 t/H

    Make forage processing more efficient.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

    Dual Power Compatibility for Flexible Scenarios

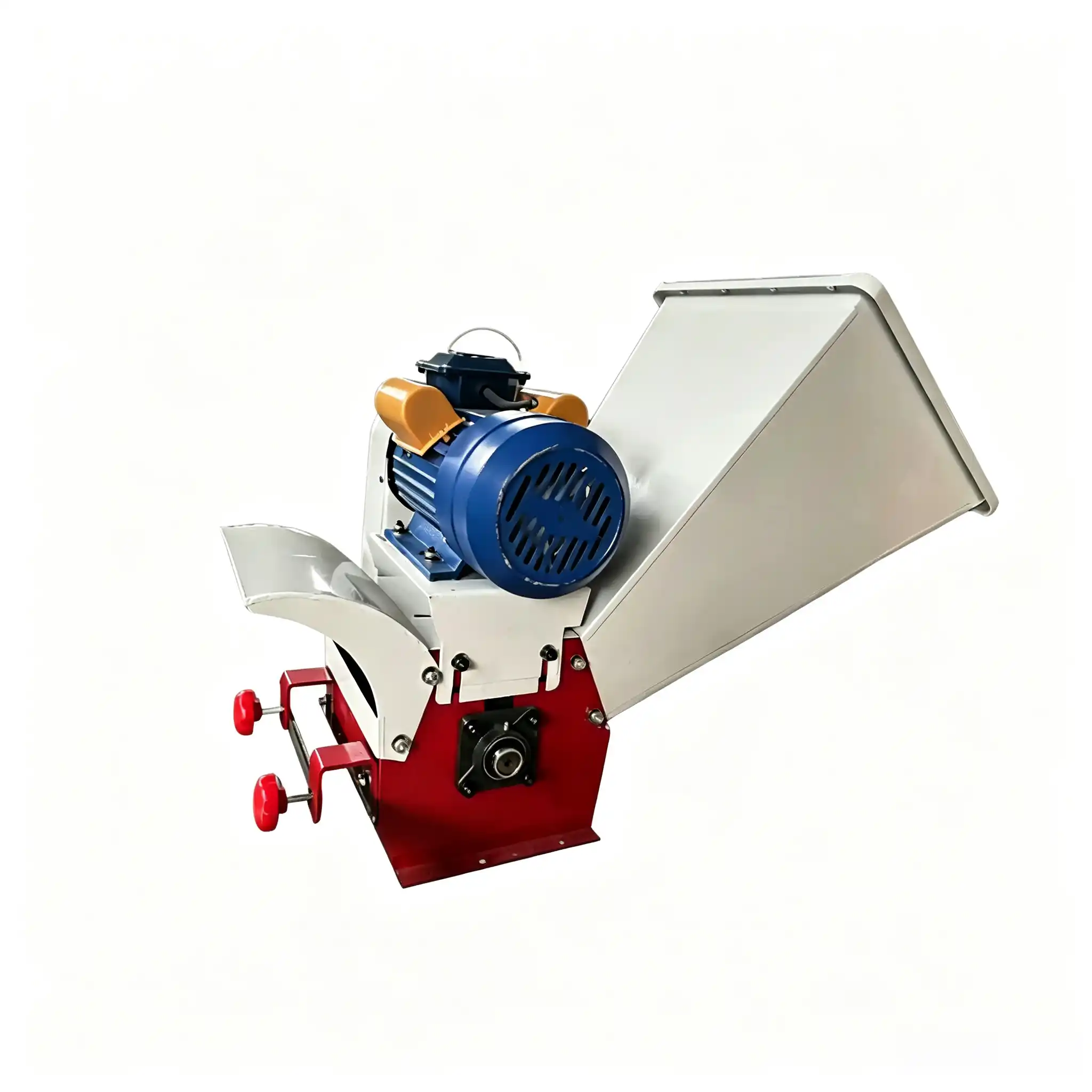

    This portable chaff cutter supports both 5.5kW three-phase electric motor and 8HP diesel engine drive, adapting to grid-connected farms and off-grid rural sites. The belt drive system delivers stable transmission and low maintenance cost, meeting diversified forage processing demands.

    Sawdust crusher for woodworking processing wood scraps, sawdust, and timber waste into reusable materials

    Portable Mobile Design for Flexible Transfer

    Built with a reinforced lightweight steel frame and equipped with wear-resistant rubber moving wheels, the machine can be easily moved between farmlands and workshops. Its compact structure takes little space, ideal for small and medium-sized farms and decentralized processing scenarios.

    Sawdust crusher for timber industry processing logs, wood chips, and timber waste into reusable biomass materials

    Automatic Roller Feeding with Smooth Operation

    The feeding inlet is fitted with automatic conveying rollers, which evenly deliver straw, hay and corn stalks into the cutting chamber, effectively reducing jamming risk. The simple feeding operation lowers labor intensity and improves continuous processing efficiency.

    Sawdust crusher for sawmill processing wood waste, sawdust, chips, and timber residues into reusable materials

    Adjustable Cutting Length with Uniform Output

    The high-strength steel blade set achieves clean and efficient cutting. The chaff length can be flexibly adjusted from 10mm to 80mm by gear shifting, matching the feeding needs of cattle, sheep and other livestock. The side discharge design ensures smooth and fast material output.



    Sawdust crusher for furniture factory processing wood scraps, MDF waste, and furniture residues into reusable materials

    Specifications

    Model Portable Multi-Power Chaff Cutter
    Power Options 5.5 kW Electric Motor / 8 HP Diesel Engine
    Rated Voltage (Electric) 380V, 50Hz, Three Phase
    Transmission Type Belt Drive
    Blade Quantity 6 pcs High-Strength Steel Blades
    Cutting Length 10–80 mm Adjustable
    Maximum Feed Diameter ≤80 mm
    Feed Inlet Size 400 × 250 mm
    Processing Capacity 1–2.5 T/H
    Feeding Method Automatic Roller Feeding
    Discharge Method Side Direct Discharge
    Frame Structure Portable Steel Frame with Rubber Moving Wheels
    Overall Dimension 1450 × 750 × 1200 mm
    Machine Weight 210 kg
    Applicable Materials Corn Stalks, Straw, Hay, Grass, Sorghum Stalks
    Application Fields Livestock Breeding, Silage Production, Small Farming, Forage Processing
    Core Advantages Multi-Power Adaptation, Portable Mobile Design, Adjustable Cutting Length, Stable Operation, Easy Maintenance
