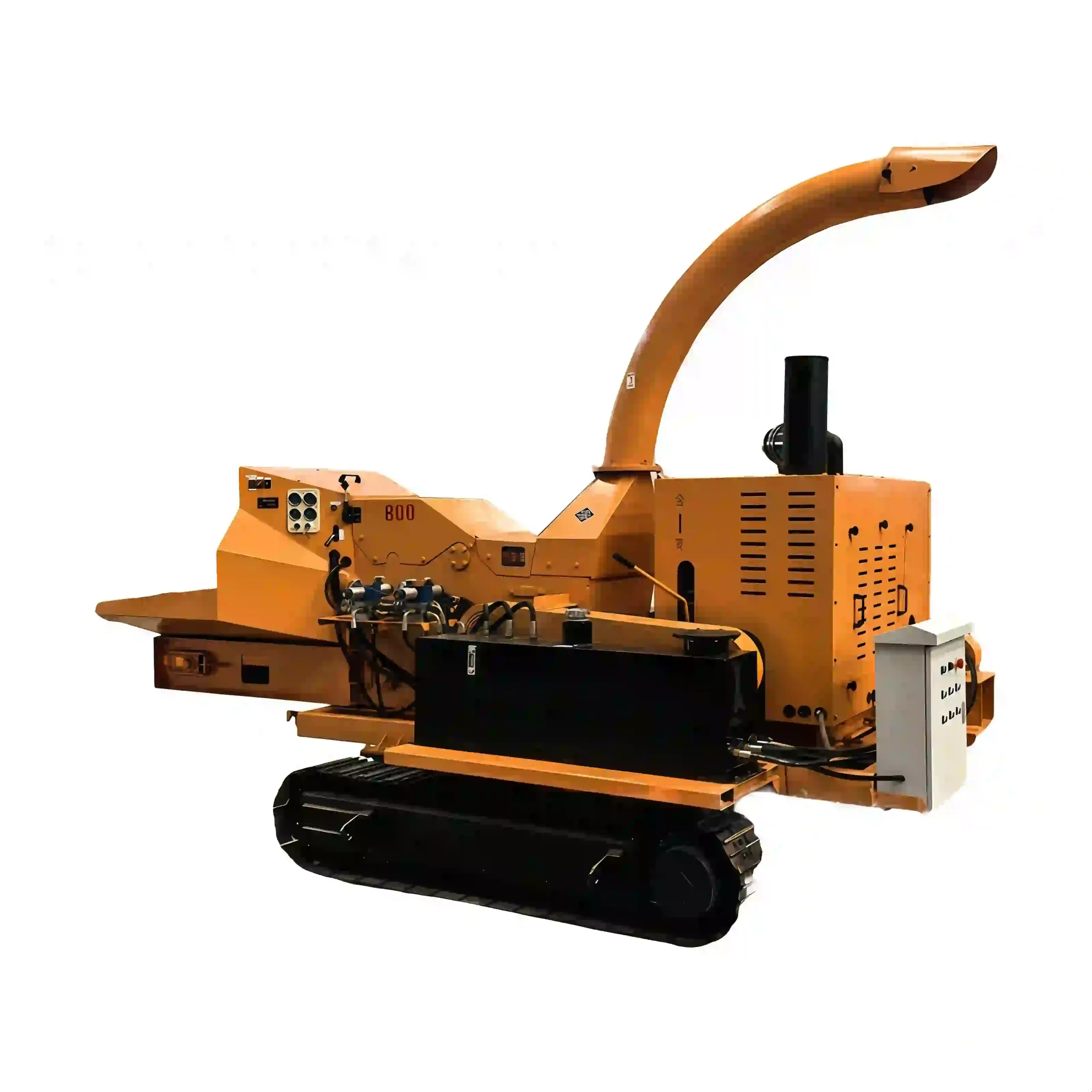

Large tracked wood shredder processing logs, branches, and heavy wood waste with crawler mobility for forestry and biomass recycling

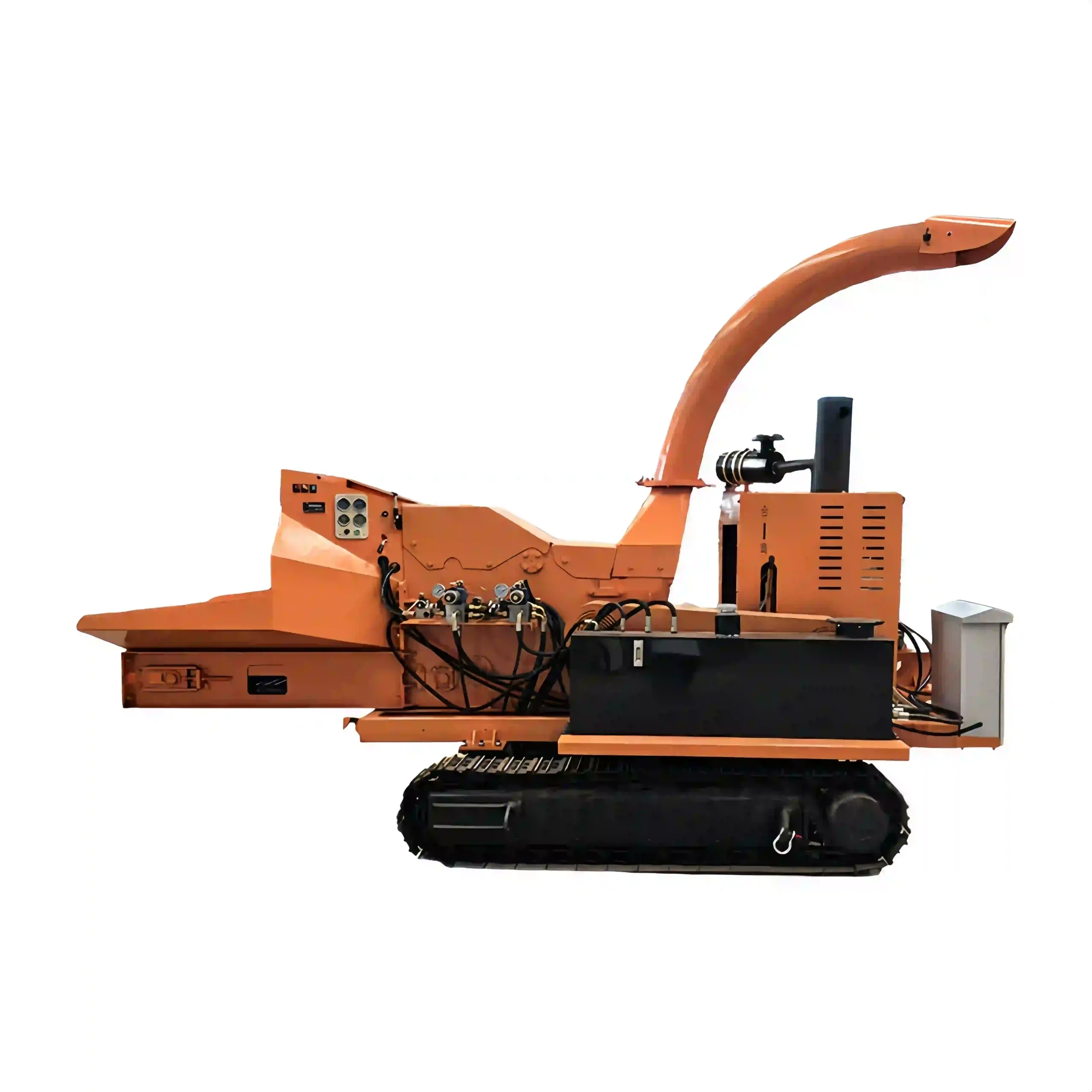

Heavy duty self-propelled tracked wood chipping machine processing large branches, logs, and wood waste in forestry and biomass applications

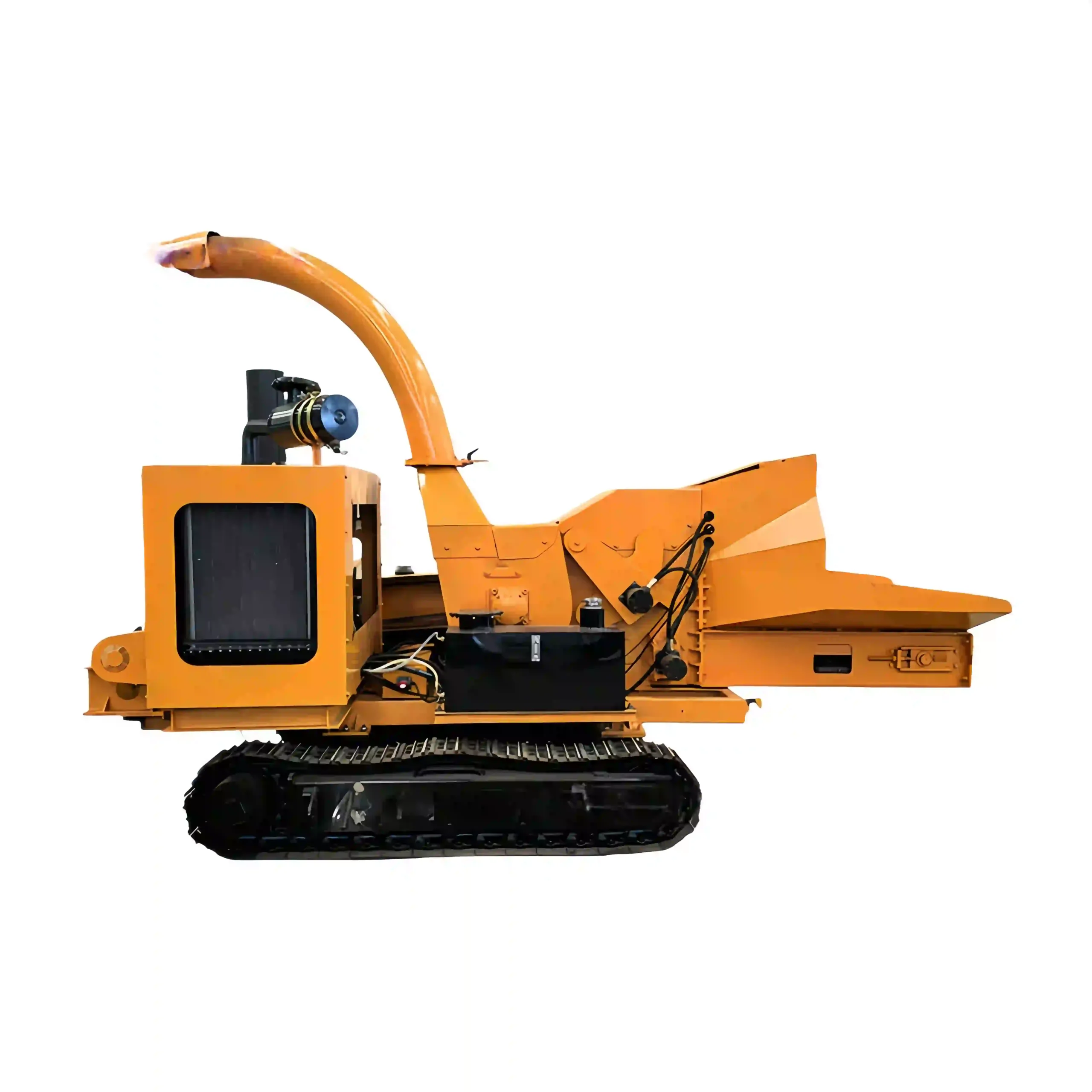

Industrial large capacity crawler wood chipper for orchard processing branches, pruning waste, and wood residues into biomass chips

Model 6158 Track-Mounted Chain-Feed Wood Chipper

SKU ECO-6158-TRK-Dsl Categories , , , ,

Chain-Feed Wood Chipper
Industrial engineering grade self-propelled tracked wood chipper with diesel drive and rubber crawler system, adopts automatic chain plate feeding with 4 alloy steel flying blades plus 1 bottom blade, delivers 5–5.5 T/H chipping capacity with 20–30mm uniform output chips, equipped with 360° adjustable high-level discharge chute, performs stably on mountains, muddy forests and uneven terrain, suitable for forestry, commercial landscaping, wood processing plants and biomass energy industries.

Technical Data
Model: 6158 Chain-Feed Wood Chipper
Machine Type: Industrial Engineering Grade Tracked Wood Chipper
Drive Type: Diesel Engine
Moving Type: Rubber Crawler Self-Propelled
Feeding System: Automatic Chain Plate Feeding
Feed Inlet Size: 1000 × 480 mm
Blade Configuration: 4 Alloy Steel Flying Blades + 1 Bottom Blade
Capacity: 5–5.5 T/H
Main Shaft Speed: 2600 r/min
Output Size: 20–30 mm
Discharge Structure: High-Level Rotatable Discharge Chute, 360° Adjustable

Applications
Forestry, Commercial Landscaping, Wood Processing Plants, Biomass Energy, Agricultural Waste Recycling

Let us tailor a solution for you.



    Get technical table

    Drive type

    Diesel Engine

    Max Feed Diameter

    ≤7.87" Inch

    Power

    40-50HP

    Capacity

    3–5 t/H

    Make the chipping process easier.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

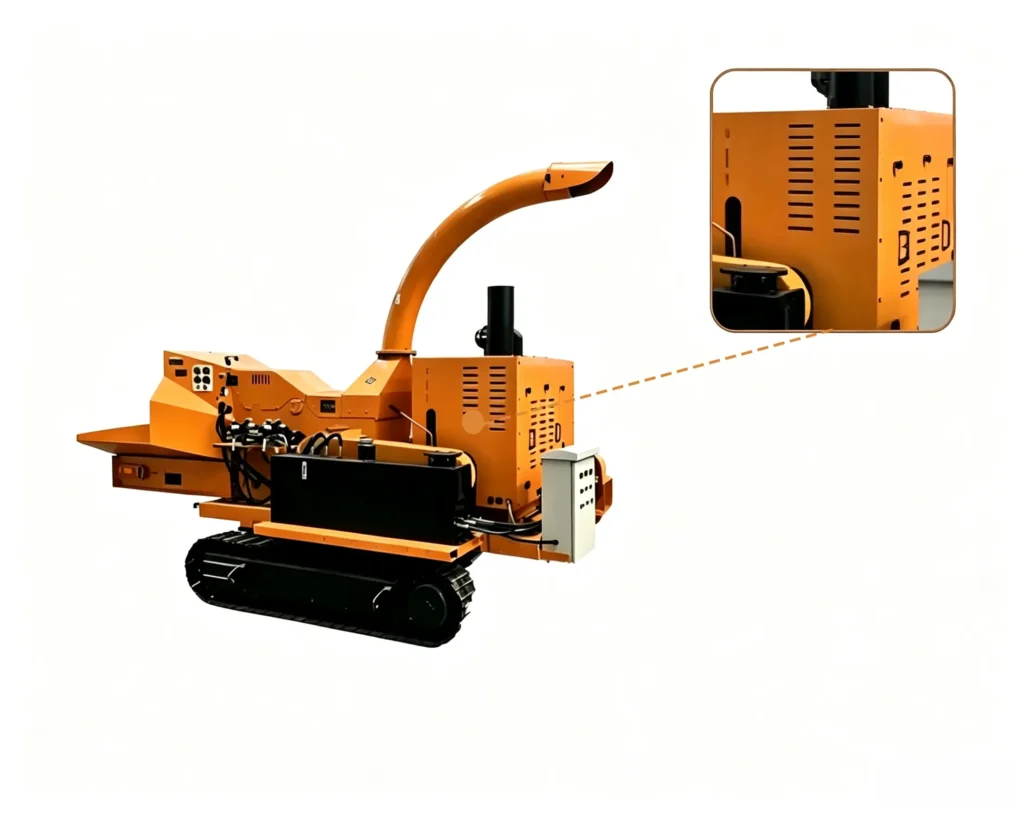

    High-Torque Diesel Engine with Independent Power

    Equipped with a high-performance V-twin air-cooled diesel engine, it delivers stable and strong power for both cutting and crawler walking. The self-contained power system requires no external power grid, perfectly adapting to remote mountain areas, forest farms and off-grid operation sites, supporting long hours of continuous work.
    Sawdust crusher for sustainable energy processing biomass waste into renewable fuel materials

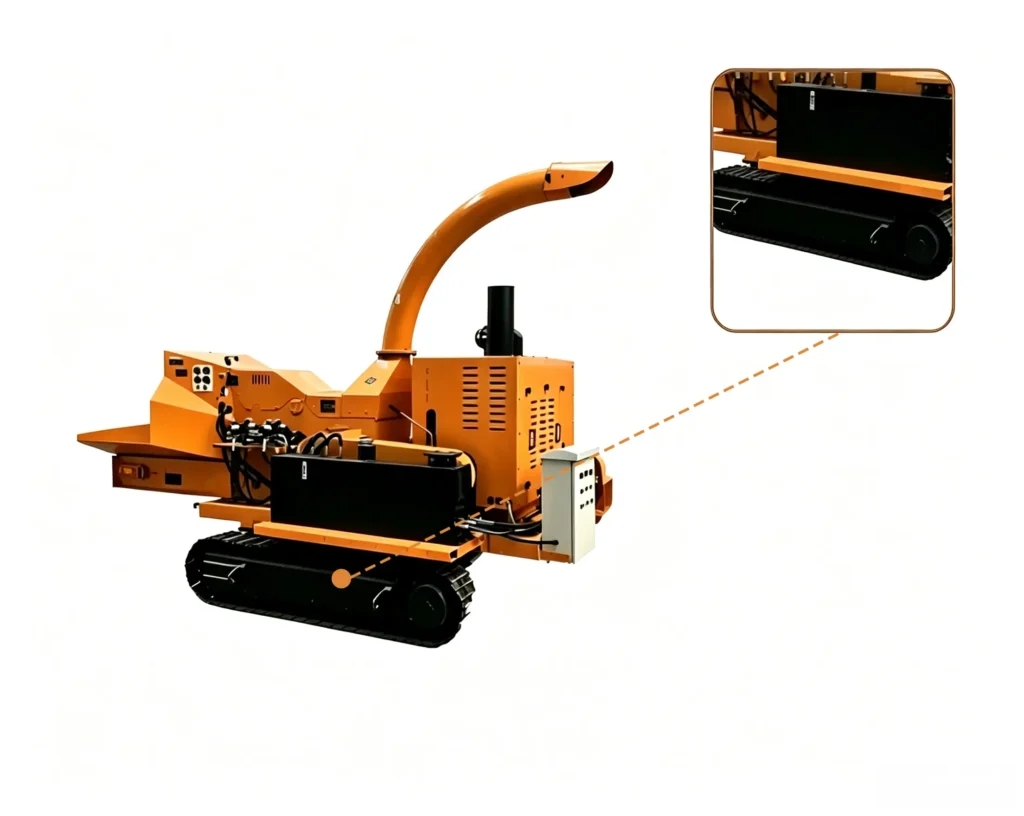

    Self-Propelled Rubber Crawler for All-Terrain Operation

    The wide thickened rubber crawler has large ground contact area and low ground pressure, enabling free travel on slopes, muddy roads, orchards and uneven terrain. It supports wireless remote control walking, with forward, backward and steering functions, no towing vehicle required, highly suitable for mountain forest maintenance and scattered wood waste processing.
    Sawdust crusher for circular economy processing wood waste and biomass residues into reusable renewable resources

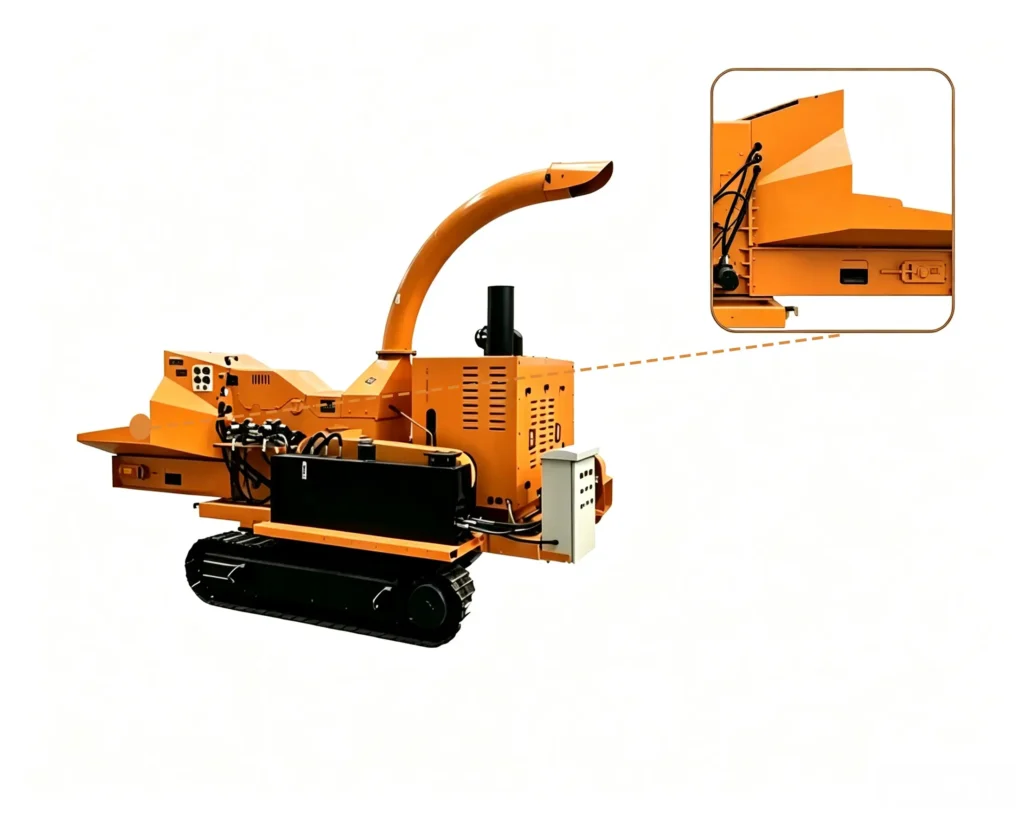

    Hydraulic Chain Plate Feeding for High Throughput

    The automatic chain conveyor feeding system with hydraulic drive realizes steady continuous material conveying without manual pushing, greatly reducing labor intensity. The feeding speed is 0-25m/min adjustable, with forward/reverse control to effectively avoid jamming. The wide feeding inlet adapts to bundled branches and small logs, improving processing efficiency for large-scale vegetation cleaning.
    Sawdust crusher for waste management processing wood waste, green waste, and biomass residues into reusable materials

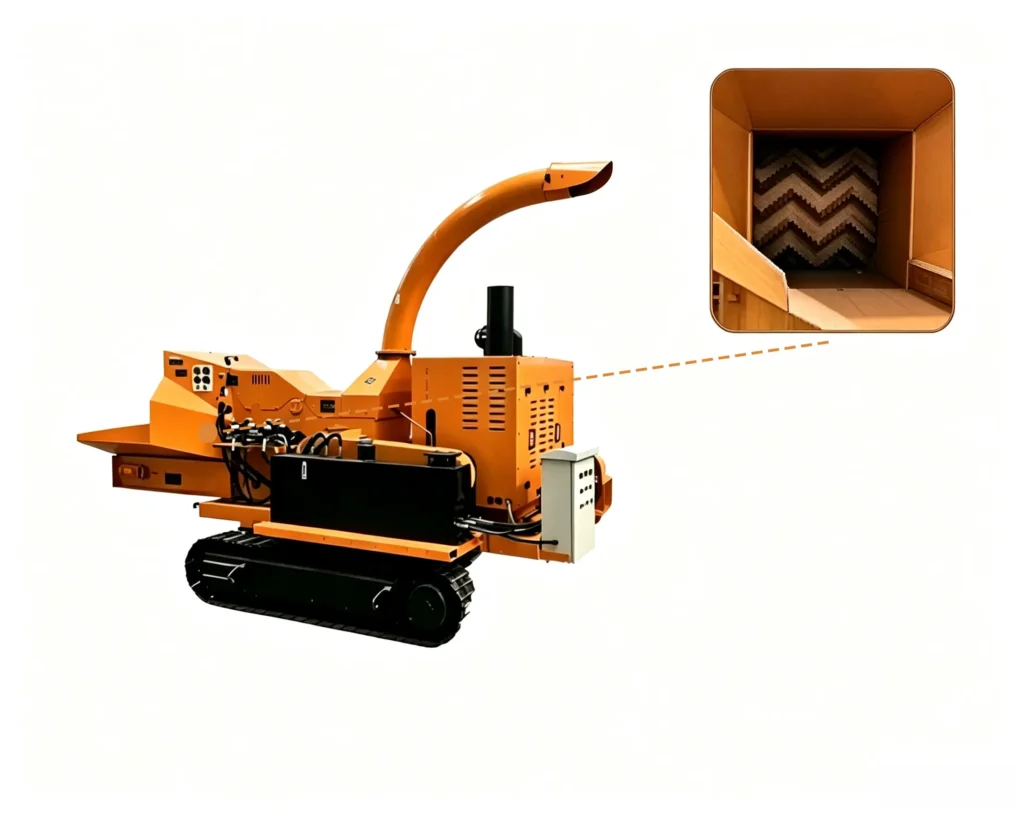

    Alloy Blade Cutting System with Adjustable Discharge

    The core cutting chamber adopts 4 pieces of alloy steel flying blades plus 1 bottom blade, with excellent wear resistance and impact strength. It produces uniform 10–35mm wood chips, and the 360° rotatable high-level discharge chute with hydraulic adjustable deflector allows flexible direction adjustment, supporting direct loading into transport vehicles.
    Sawdust crusher for eco industry processing wood waste and biomass materials into sustainable recycled resources

    Specifications

    Model 6158 Track-Mounted Chain-Feed Wood Chipper
    Power Type V-twin 4-stroke Air-cooled Diesel Engine
    Engine Power 40–50 HP (29.4–37kW)
    Starting System Electric Start
    Fuel Tank Capacity 20 L
    Hydraulic Oil Tank 40 L
    Travel System Rubber Crawler Self-propelled, Wireless Remote Control
    Travel Speed 0–5 km/h
    Track Width 230 mm
    Track Ground Length 1200 mm
    Drive System Hydraulic Clutch + Multi V-belt
    Cutter Disc Structure Disc Type Chipper Disc
    Blade Configuration 4 Alloy Steel Flying Blades + 1 Bottom Blade
    Main Shaft Speed 2000 r/min
    Feeding System Hydraulic Chain Conveyor Forced Feeding
    Feed Speed 0–25 m/min Adjustable
    Feed Conveyor Length 1500 mm
    Feed Inlet Size 1000 × 480 mm
    Maximum Feed Diameter 200 mm (≤7.87" Inch)
    Processing Capacity 3–5 t/H
    Output Chip Size 10–35 mm Adjustable
    Discharge System 360° Rotatable High-level Chute, Hydraulic Adjustable Deflector
    Discharge Height 2800 mm
    Frame Structure Heavy-duty Industrial Steel Welded Frame
    Safety Features Emergency Stop Button + Remote Emergency Stop, Feed System Safety Interlock, Full Cutting Chamber Guard, Track Travel Safety Lock, Hydraulic System Pressure Protection, Engine Overheat/Low Oil Protection, CE Certified Industrial Components
    Overall Dimension 3200 × 1300 × 2000 mm
    Operating Weight 1200 kg
    Applicable Materials Logs, Branches, Forestry Waste, Bamboo, Agricultural Waste
    Application Forestry, Mountain Landscaping, Biomass Energy, All-terrain Operation, Large-scale Green Waste Recycling
