Model 500 Blade Type Sawdust Crusher

SKU ECO-500-1-Stat-Elec Categories , , , ,

Blade Type Sawdust Crusher
22kW blade type sawdust crusher with blade cutting fine grinding structure, 800–1000kg/h capacity and 2–30mm adjustable output size, adapts to materials with moisture content ≤40%, suitable for wood processing factories, mushroom cultivation bases and biomass material production.
Technical Data
Power: 22 kW
Voltage: 380V Three Phase
Spindle Speed: 1440 r/min
Capacity: 800–1000 kg/h
Maximum Feeding Size: ≤490 mm
Output Size: 2–30 mm Adjustable
Moisture Adaptability: ≤40%
Crushing System: Blade Cutting Fine Grinding
Feeding System: Wide Top Hopper Feeding
Discharge System: Pneumatic Pipe Discharge with Dust Collection
Overall Size: 2.17 × 1.44 × 1.85 m
Machine Weight: 900 kg
Structure: Heavy-Duty Steel Welded Frame + Wear-Resistant Crushing Chamber
Applications
Sawdust Production, Wood Waste Recycling, Mushroom Substrate Processing, Biomass Fuel Preparation, Straw Crushing, Coconut Shell Crushing

Let us tailor a solution for you.



    Get technical table

    Drive type

    Electric

    Max Feed Size

    ≤4.72" Inch

    Power

    22 kW

    Capacity

    0.8–1.2 t/H

    Make the crushing process easier.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

    High Torque Three-Phase Electric Motor Driven Sawdust Crusher

    This industrial sawdust crusher is equipped with a heavy-duty 22kW three-phase electric motor, delivering stable strong torque through belt transmission for continuous fine sawdust processing. It features low energy consumption, stable running speed and strong overload resistance, capable of long-time continuous operation for wood waste recycling and sawdust production.

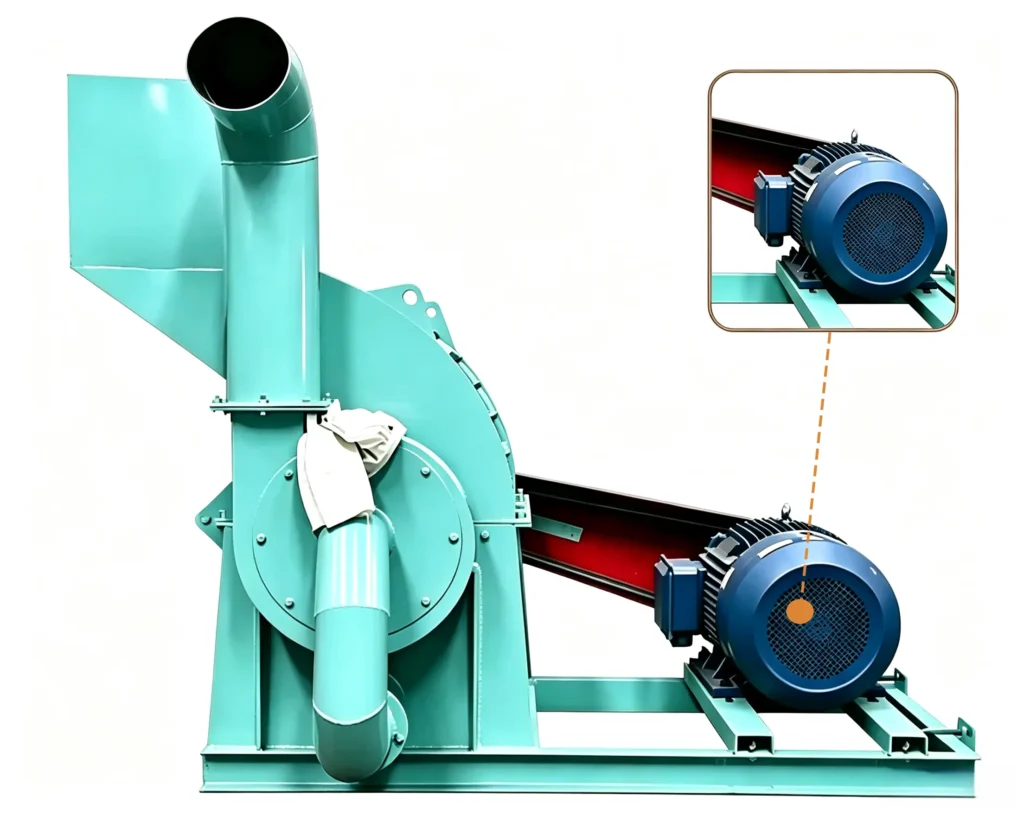

    Automatic feeding wood crusher processing logs, branches, and biomass waste with continuous auto feeding system

    Heavy-Duty Welded Steel Frame for Stable Fixed Installation

    The machine adopts an integrated thick steel welded frame with high structural rigidity, which effectively offsets vibration generated during high-speed blade rotation. The skid base design supports direct ground placement or anchor bolt fixing, suitable for wood processing workshops, mushroom bases and biomass production sites.

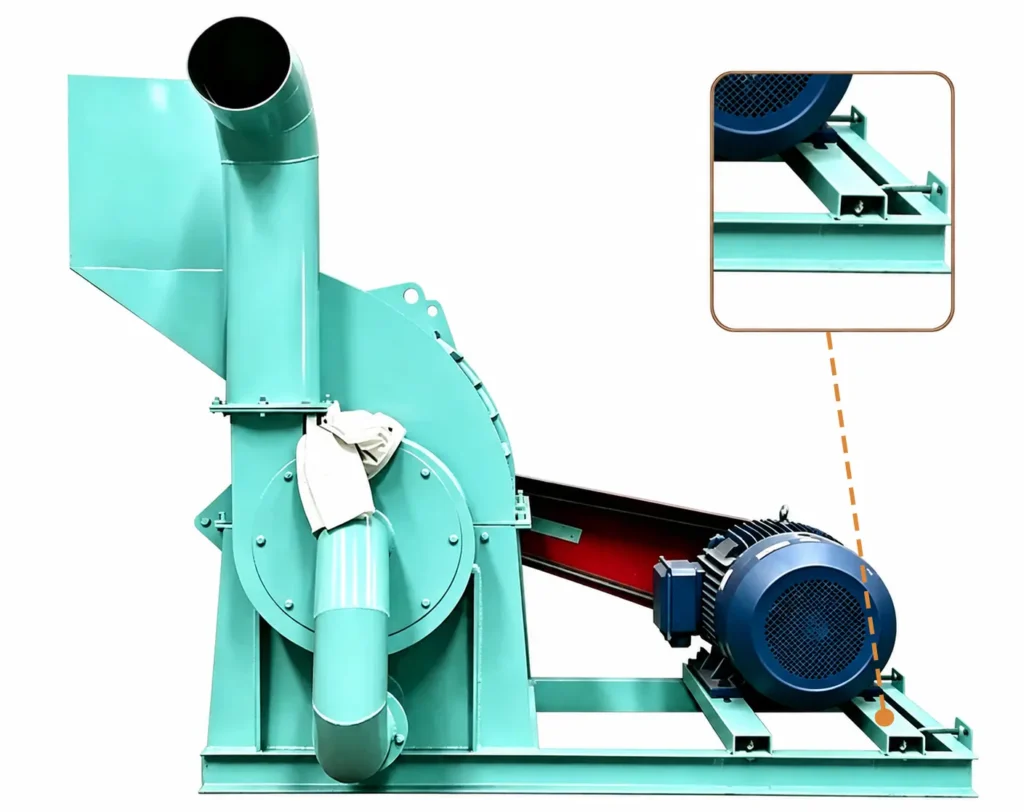

    Continuous wood crusher processing logs, branches, and biomass waste with nonstop crushing operation for industrial production

    Wide Top Hopper Feeding + Pneumatic Dust Collection Discharge

    The wide inclined top feeding hopper allows smooth bulk feeding of wood materials without blockage. Built-in pneumatic conveying system automatically discharges finished sawdust through pipes, with integrated dust collection structure to control dust overflow. One-step feeding and discharging eliminates manual collection work, greatly improving processing efficiency

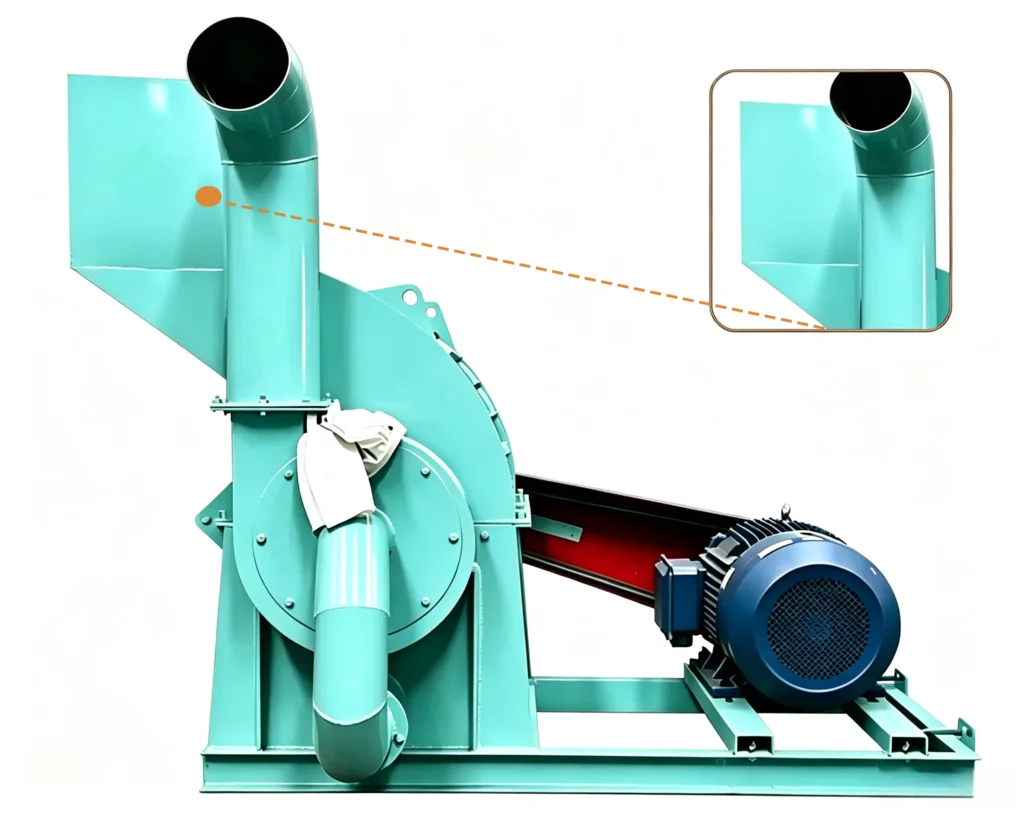

    Low energy wood crusher processing logs, branches, and biomass waste with energy efficient crushing system

    Precision Blade Cutting System for Adjustable Sawdust Output

    The core crushing chamber adopts a multi-blade cutting structure, processing wood materials into uniform sawdust with adjustable particle size from 2mm to 30mm. The wear-resistant blades ensure long service life and consistent finished quality, fully meeting the raw material standards of mushroom cultivation, biomass fuel and organic fertilizer industries.

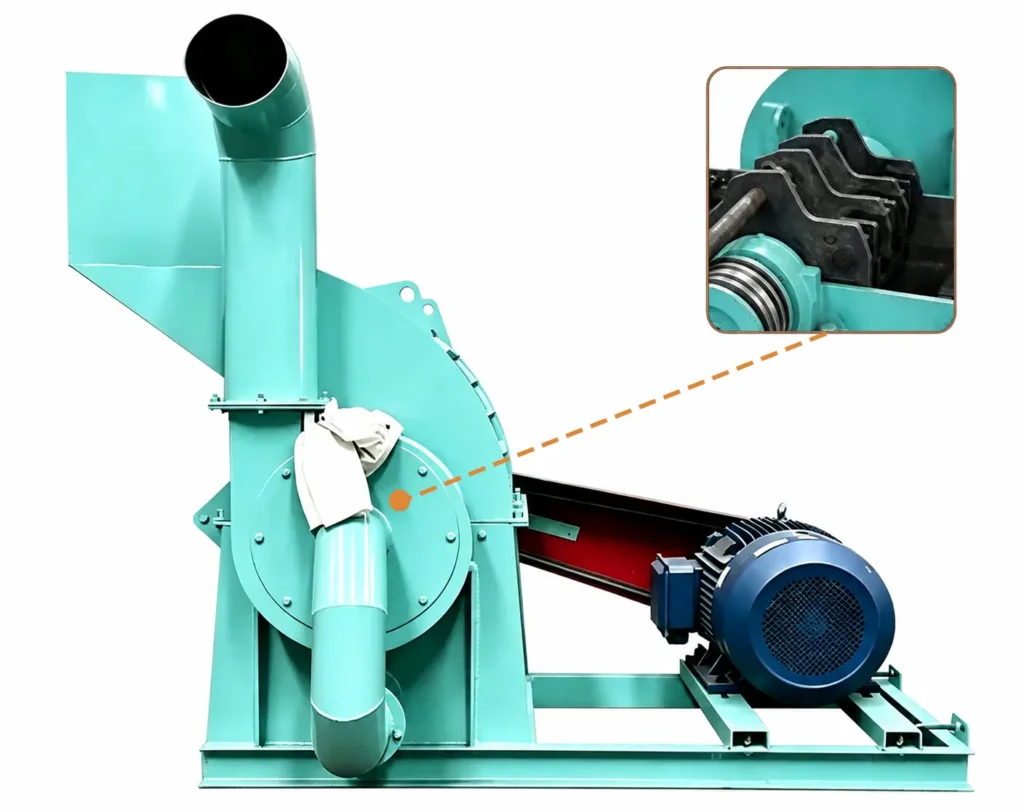

    Energy saving sawdust crusher processing wood chips and biomass materials with low power consumption technology

    Specifications

    Model 500 Blade Type Sawdust Crusher
    Main Motor Power 22kW Three Phase Electric Motor
    Rated Voltage 380V, 50Hz, Three-phase
    Spindle Speed 1440 r/min
    Crushing Structure Multi-blade Cutting Fine Grinding
    Blade Configuration 6pcs Wear-resistant Alloy Steel Blades
    Maximum Feed Diameter ≤120 mm
    Feed Inlet Width 490 mm
    Output Particle Size 2–30mm Adjustable
    Raw Material Moisture ≤40%
    Processing Capacity 0.8–1.2 t/H
    Feeding System Wide Inclined Top Hopper Feeding
    Discharge System Pneumatic Pipe Discharge with Dust Collection
    Frame Structure Heavy-Duty Steel Welded Frame + Wear-Resistant Chamber
    Overall Dimension 2170 × 1440 × 1850mm
    Machine Weight 900kg
    Applicable Materials Logs, Branches, Wood Waste, Straw, Coconut Shell
    Application Sawdust Production, Mushroom Cultivation, Biomass Fuel, Wood Waste Recycling
