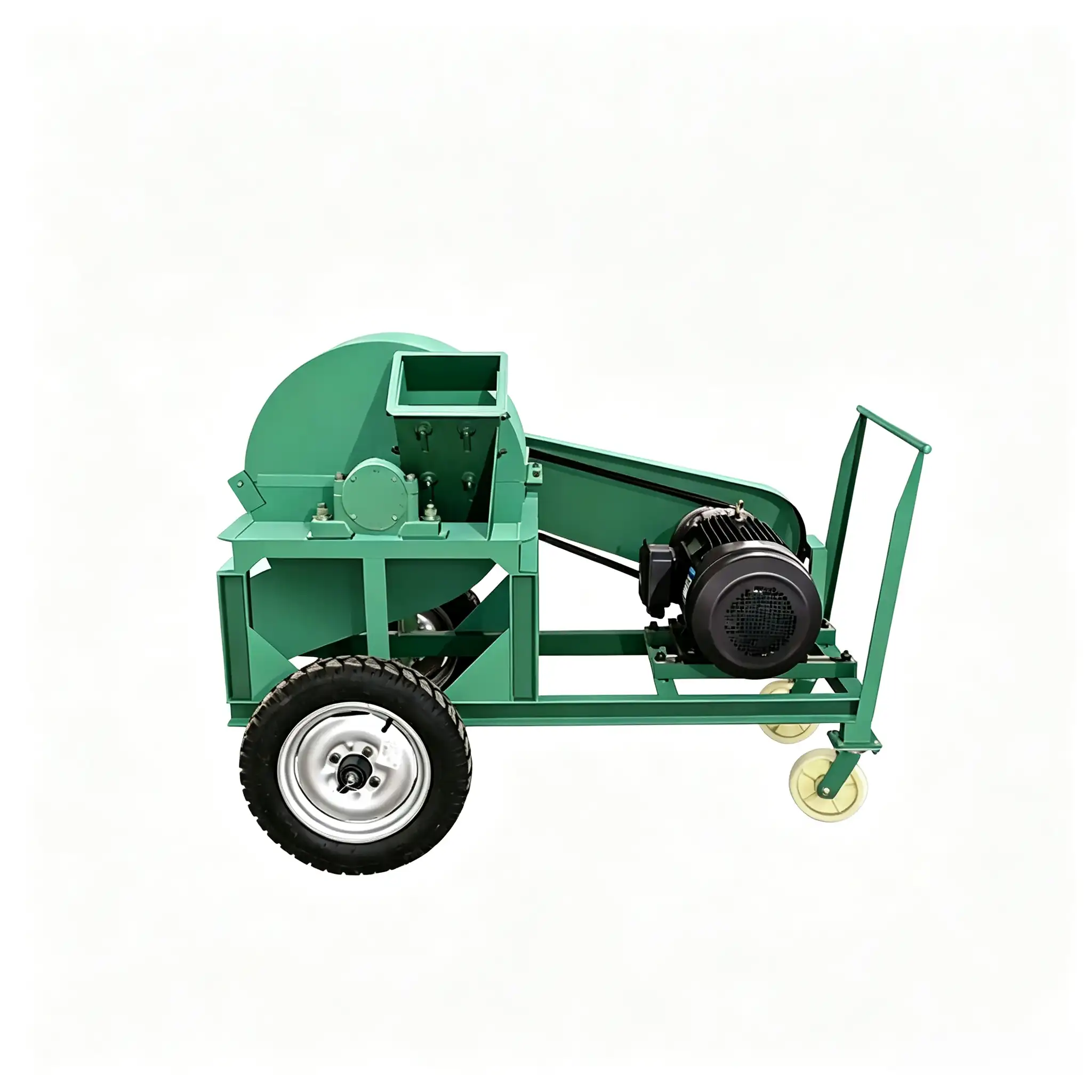

Model 1200 Mobile Disc Wood Crusher

SKU ECO-1200-Mob-Elec Categories , , , ,

Mobile Disc Wood Crusher

Mobile Disc Wood Crusher is designed for medium-scale industrial wood crushing. This 6-8t/h 90kW heavy wood crusher features a heavy-duty disc cutting system and mobile wheel frame. The 1000mm cutter disc wood chipper is suitable for logs, branches, wood scraps, biomass fuel, and mushroom cultivation materials.

Features

  • High efficiency
  • Electric powered
  • Heavy-duty disc cutting
  • Mobile wheel design
  • Continuous operation
  • Easy maintenance

Technical Data

Model: Mobile Disc Wood Crusher

Drive Type: Three-Phase Electric Motor

Power: 90 kW

Voltage: 380V

Cutter Disc Diameter: 1000 mm

Blade Configuration: 8 Alloy Steel Flying Blades

Maximum Crushing Diameter: ≤400 mm

Feed Inlet Size: 380 × 360 mm

Capacity: 6–8 T/H

Moving Type: Hand-Push Wheel Mobile Frame

Structure: Heavy-Duty Manganese Steel Welded Frame

Discharge System: Side Inclined Automatic Discharge Outlet

Applications

  • Mushroom Cultivation Material
  • Biomass Fuel Production
  • Wood Processing Factory
  • Wood Scrap Recycling
  • Forestry Waste Processing

System

Mobile Disc Wood Crusher provides a flexible wood crushing solution with powerful disc cutting, mobile operation, and efficient output for medium-scale biomass processing.

Let us tailor a solution for you.



    Drive type

    Electric

    Branch Limit

    ≤39.37" Inch

    Power

    15 KW

    Capacity

    1-8 t/H

    Make the crushing process easier.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

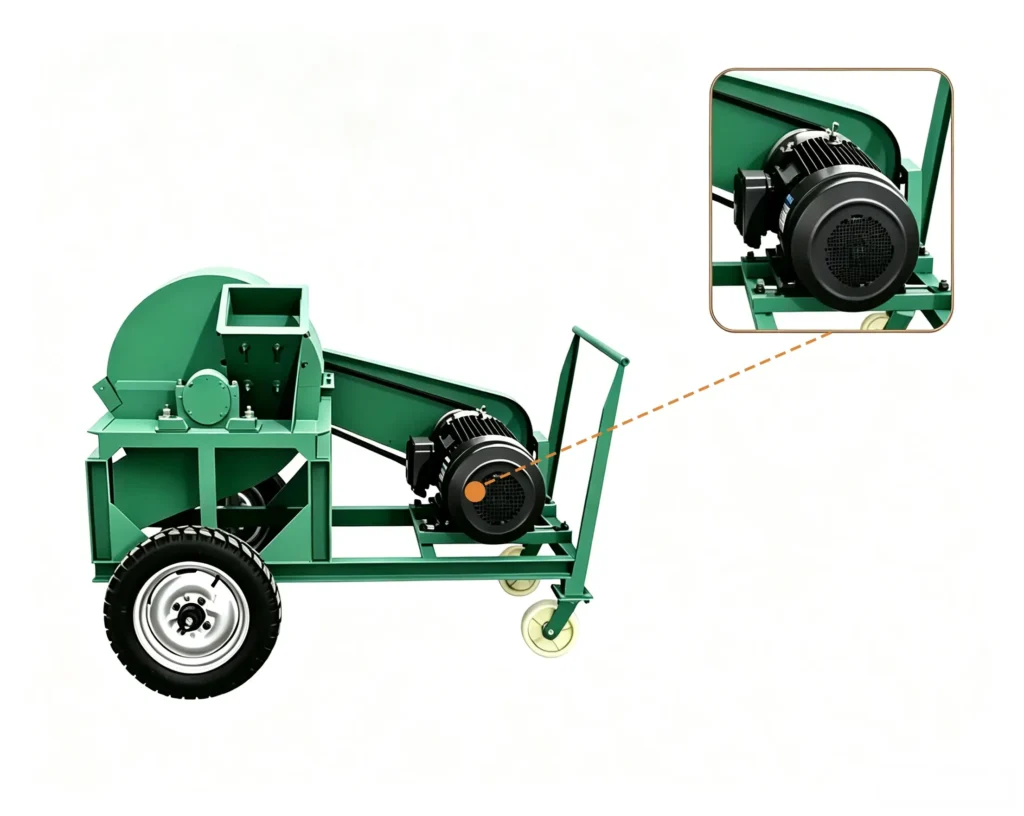

    Three-Phase Electric Motor Driven Mobile Disc Wood Chipper

    This portable wood chipper adopts a three-phase industrial motor as the power source, transmitting stable torque to the disc cutter head through belt drive. It features low energy consumption, smooth operation and reliable overload resistance, capable of continuously chipping small logs, branches and wood scraps into uniform wood chips. Powered by electricity with no exhaust emission, it is suitable for both small fixed workshop processing and outdoor mobile wood recycling operations.
    Mobile sawdust crusher machine processing wood chips, branches, and biomass materials with flexible on-site crushing capability

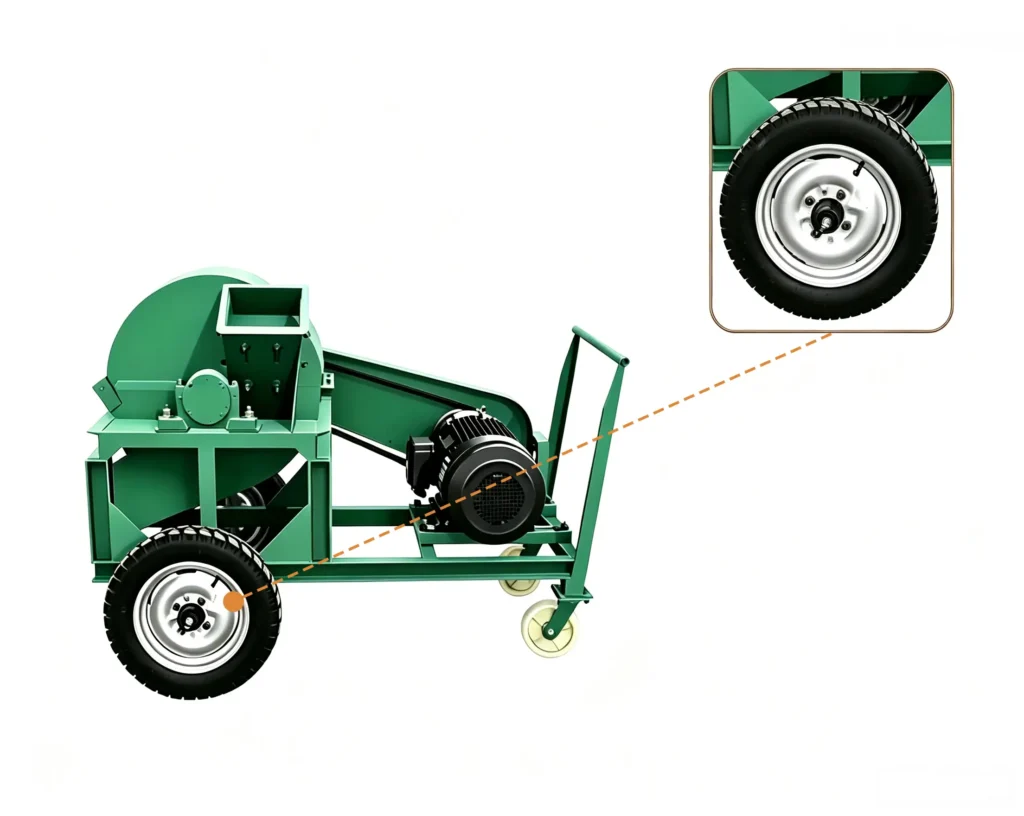

    Hand-Push Frame With Load-Bearing Rear Wheels & Front Casters Flexible Transfer

    Equipped with an ergonomic hand push handle, large anti-skid load-bearing rear wheels and flexible front universal casters, the machine can be easily pushed by one person to move between forest farms, gardens, construction sites and processing workshops. The compact body has a small turning radius, requiring no lifting equipment for site transfer, greatly improving the flexibility of decentralized wood waste processing.
    Motor driven sawdust crusher processing wood chips, branches, and biomass materials with electric motor power system

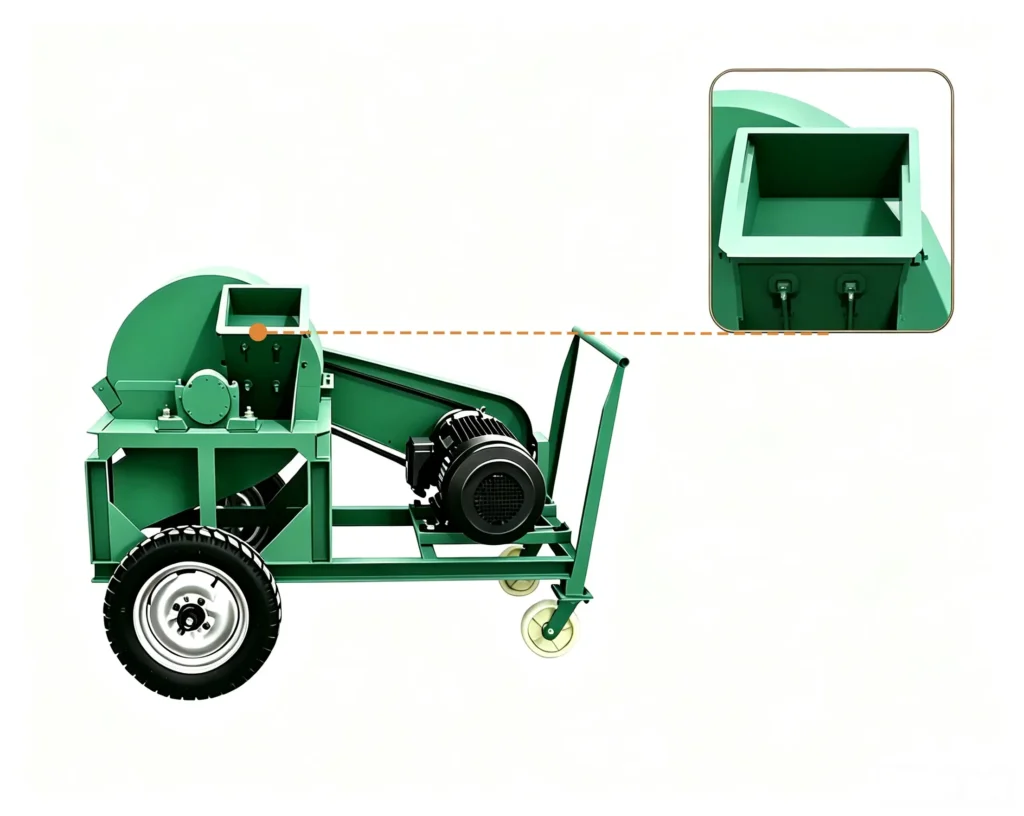

    Top Square Feeding Hopper High-Efficiency Wood Chip Production

    The square top feeding port allows smooth feeding of small wood blocks, branches and wood scraps without jamming. The high-speed rotary disc cutter completes chipping in one pass with stable output. The finished wood chips can be directly used for edible fungus substrate, biomass fuel and garden mulch, greatly reducing wood waste volume and transportation cost.
    Electric sawdust crusher machine processing wood chips, branches, and biomass materials with efficient electric drive system

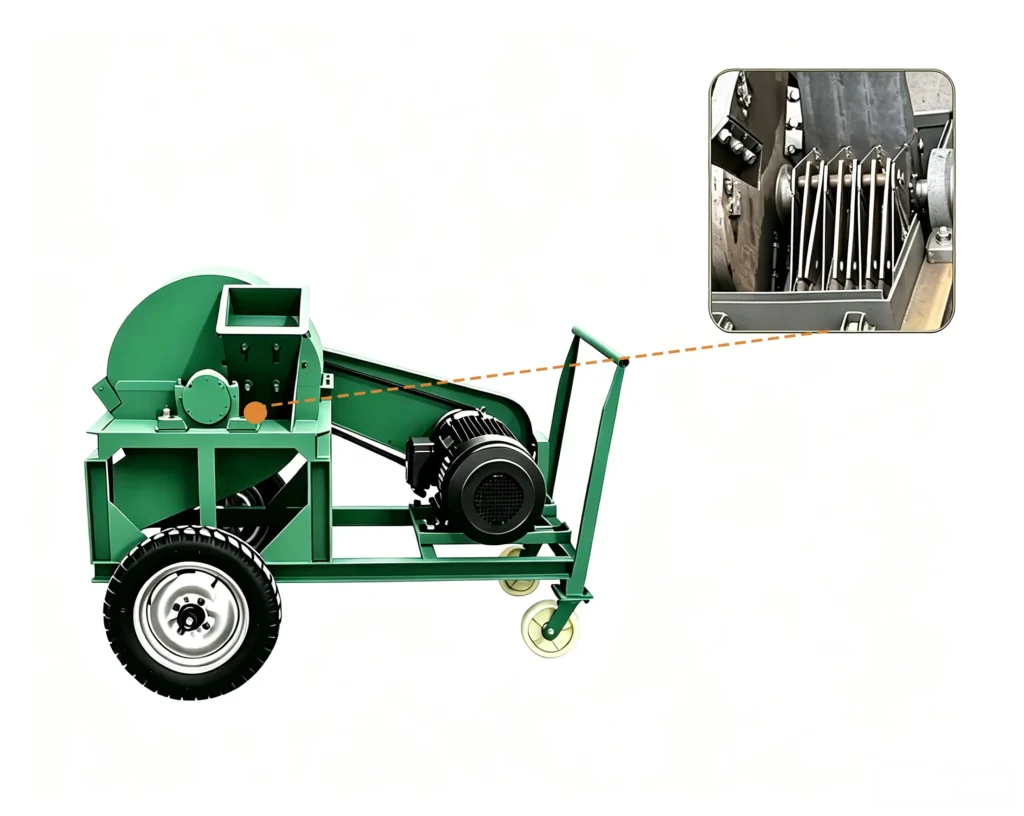

    High Carbon Steel Disc Blade Cutting System With Uniform Output

    The core chipping chamber adopts a disc cutter head fitted with 4 pieces of high carbon steel chipper blades, featuring reliable wear resistance and sharp cutting performance. The machine produces uniform 10–30mm wood chips to meet conventional application requirements. The fully enclosed cutting bin avoids wood chip splashing and ensures safe and stable long-term operation.
    Diesel sawdust crusher machine processing wood chips, branches, and biomass materials with powerful diesel engine drive

    Specifications

    Model Model 1200 Mobile Disc Wood Crusher
    Machine Type Mobile Disc Type Wood Crusher / Biomass Crushing Machine
    Drive Type Three-Phase Electric Motor Drive
    Main Motor Power 90kW Industrial Three-Phase Motor
    Voltage 380V / 50Hz / Three Phase
    Processing Capacity 6–8 Ton/H (Depending on Raw Material Size and Moisture)
    Cutting Disc Diameter 1000mm Heavy-duty Steel Cutter Disc
    Blade Configuration 8pcs Alloy Steel Flying Blades, High Hardness and Wear Resistance
    Maximum Crushing Diameter ≤400mm Large Diameter Logs and Branches
    Feed Inlet Size 380 × 360mm Large Feeding Opening
    Feeding Method Manual Inclined Hopper Feeding
    Finished Material Wood Chips, Biomass Particles and Crushing Materials
    Discharge System Side Inclined Automatic Discharge Outlet
    Mobility System Hand-Push Wheel Mobile Frame for Easy Site Transfer
    Applicable Raw Materials Hardwood Logs, Softwood Logs, Tree Branches, Bamboo, Wood Pallets, Forestry Waste, Biomass Materials
    Recommended Moisture Content ≤25% Raw Material Moisture
    Frame Structure Heavy-duty Manganese Steel Welded Frame
    Surface Treatment Anti-Rust Coating for Long Service Life
    Application Fields Biomass Fuel Production, Wood Pellet Plants, Forestry Waste Recycling, Wood Processing Industry
    Core Advantages Large Diameter Crushing, High Production Capacity, Mobile Structure, Strong Alloy Blade System, Stable Industrial Operation, Easy Maintenance
