Electric Start Diesel Hand-Push Branch Shredder

SKU ECO-BS-Mob-Dsl Categories , , ,

Diesel Hand-Push Branch Shredder

Diesel Hand-Push Branch Shredder is designed for small-scale outdoor branch crushing. This 80mm feeding diesel branch crusher features electric start and wheeled movement for gardens, orchards, farms, and areas without power supply. The 0-5mm fine diesel wood shredder provides efficient branch processing with flexible operation.

Features

  • High efficiency
  • Diesel powered
  • Electric start design
  • Hand-push wheel mobility
  • Outdoor operation
  • Fine chip output

Technical Data

Model: Diesel Hand-Push Branch Shredder

Drive Type: Diesel Engine

Starting System: Electric Start + Manual Pull Start

Starting Motor: 5.5 kW Copper Motor

Voltage: 220V

Blade Configuration: 3 × 65Mn Hardened Steel Blades

Main Shaft Speed: 1100 r/min

Maximum Feeding Diameter: 80 mm

Capacity: 1–1.2 T/H (Hard Wood Branches)
Maximum Capacity: 1–3 T/H (Soft Branches & Straw)

Output Size: 0–5 mm

Overall Size: 100 × 54 × 80 cm

Machine Weight: 52 kg

Feeding System: Large Angle Wide Feed Hopper with Anti-Rebound Plate

Moving Type: Hand-Push Rubber Wheels

Structure: Heavy-Duty Cold Rolled Steel Welded Frame

Discharge System: Side Inclined Discharge Outlet

Applications

  • Garden Branch Recycling
  • Orchard Pruning Waste
  • Small Farm Waste Processing
  • Landscaping Maintenance
  • Composting Material Preparation

System

Diesel Hand-Push Branch Shredder provides a portable diesel crushing solution for outdoor branch recycling with easy movement and efficient fine shredding.

Let us tailor a solution for you.



    Drive type

    Diesel

    Branch Limit

    ≤80mm

    Power

    6.5-13HP

    Capacity

    0.6-1.2 t/h

    Effortlessly process garden and orchard branches into fine mulch for outdoor off-grid scenarios.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

    Diesel Engine Drive & Dual Starting System Reliable Off-Grid Operation

    This portable branch shredder is powered by a high-efficiency diesel engine, delivering strong crushing torque for hardwood branches, shrub prunings and crop straws. It supports both electric start and manual recoil start, works independently without grid power supply, and is perfectly suitable for outdoor orchards, forest farms and scattered greening sites without stable power access.



    Sawdust crusher for board production processing wood chips, sawdust, and biomass materials into board raw materials

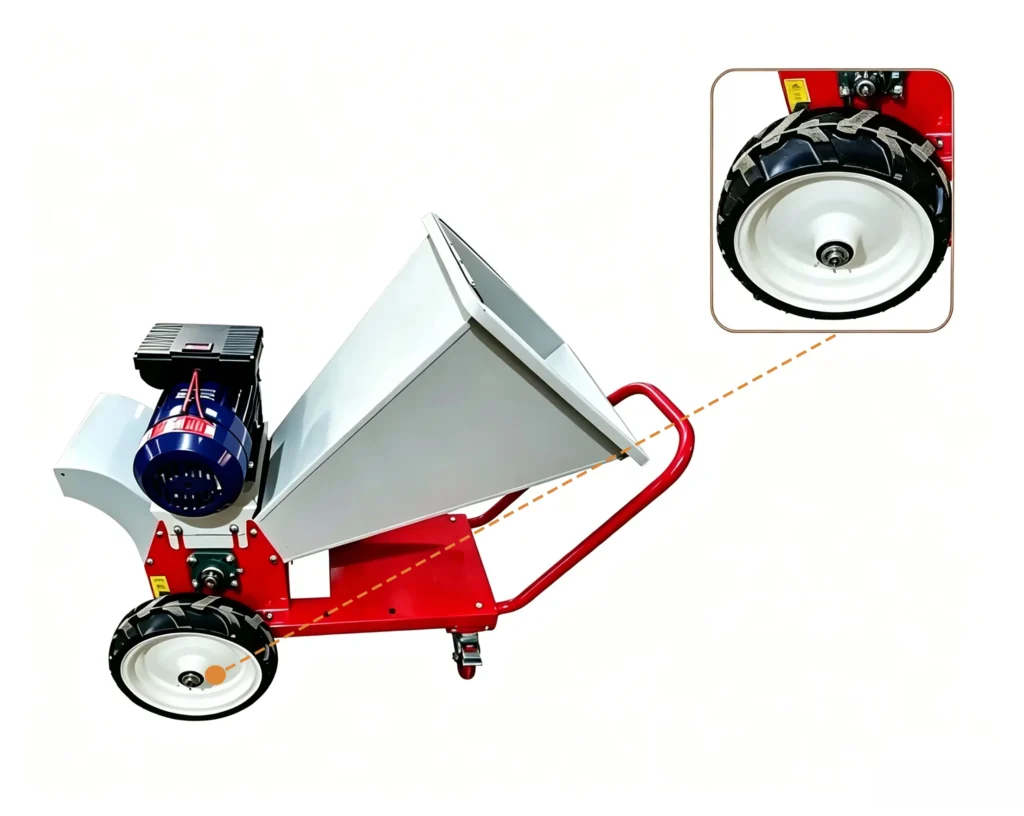

    Hand-Push Wheeled Chassis Flexible Transfer Between Work Sites

    The machine is equipped with wear-resistant rubber walking wheels and an ergonomic push handle, allowing a single operator to move freely between garden rows, orchard plots and uneven ground. The compact body fits through narrow passages, enabling short-distance transfer between scattered work points without additional handling equipment.
    Sawdust crusher for power plant processing wood biomass and waste materials into renewable energy fuel

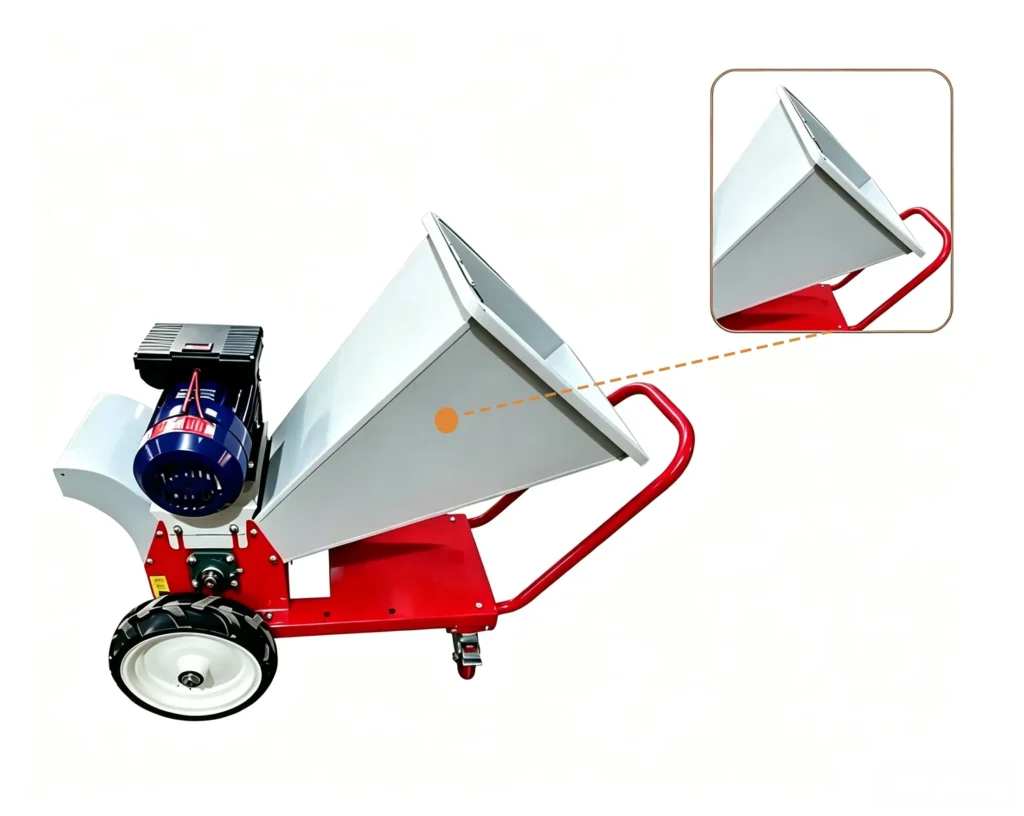

    Wide Angle Feed Hopper Continuous Feeding & High Efficiency Shredding

    Large inclined wide feed hopper with anti-rebound baffle supports bulk branch feeding without frequent pauses, effectively preventing wood debris from bouncing back and ensuring operation safety. The high-speed cutter head finishes shredding in one pass, and the side inclined discharge outlet outputs materials smoothly, greatly reducing garden waste volume and disposal costs.
    Sawdust crusher for paper industry processing wood chips, bamboo, and biomass materials into fiber raw materials

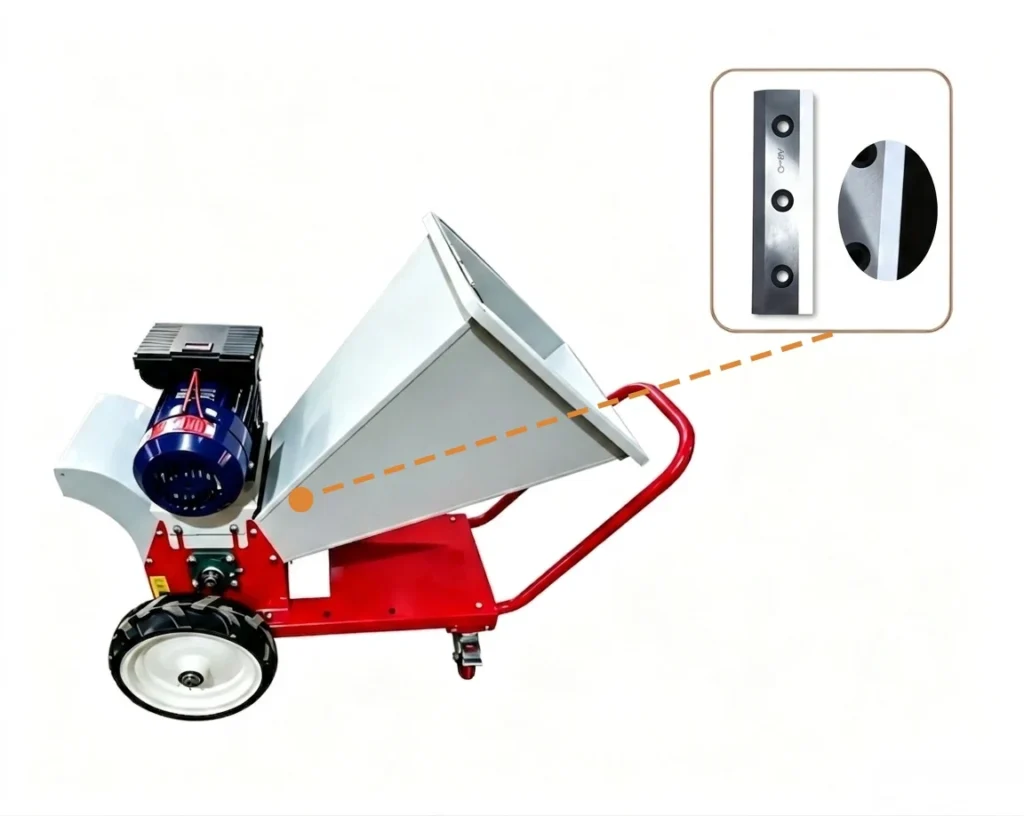

    65Mn Hardened Steel Blades 0-5mm Fine Shredding Output

    The cutting chamber is fitted with 3 pieces of 65Mn hardened steel blades with excellent wear resistance and impact resistance, capable of processing various hardwood and softwood branches. The finished output size is 0-5mm fine mulch, which can be directly used for organic composting, garden mulch and edible fungus substrate. The fully enclosed cutting bin prevents wood chips from splashing during operation.
    Sawdust crusher for biomass plant processing wood waste, chips, and agricultural residues into biomass raw materials

    Specifications

    Model Diesel Hand-Push Branch Shredder
    Processing Capacity 1–1.2 Ton/h (Hard Wood Branches); 1–3 Ton/h (Soft Branches & Straw)
    Drive Type Single Cylinder Air-cooled Diesel Engine
    Starting System Electric Start + Manual Recoil Start
    Starting Motor 5.5kW Pure Copper Starting Motor
    Voltage 12V DC
    Rated Power 4.8–9.7kW (6.5–13HP)
    Blade Configuration 3 × 65Mn Hardened Steel Blades
    Main Shaft Speed 1100 r/min
    Maximum Feed Diameter 80mm
    Feed Hopper Design Wide-angle Feed Hopper with Anti-rebound Plate
    Feed Height 800mm
    Output Size 0–5mm
    Cutting Chamber Material Heavy-duty Q235 Steel Plate Construction
    Mobility System Hand-push Design with 10-inch Pneumatic Rubber Wheels and Ergonomic Steel Handle
    Applicable Materials Tree Branches, Pruning Waste, Garden Wood Residues, Soft Straw, Orchard Waste
    Application Garden Branch Recycling, Orchard Pruning Waste Treatment, Small Farm Waste Processing, Landscaping Maintenance, Compost Material Preparation
    Overall Dimension 1000 × 540 × 800mm
    Machine Weight 52kg
    Safety Features Emergency Stop Button, Anti-rebound Feed Hopper, Full Cutting Chamber Guard, Belt Drive Safety Cover, Low Oil Protection System
    Core Advantages Diesel-powered Outdoor Operation, Electric Start for Easy Use, Compact Hand-push Design, Fine Crushing Performance, Low Fuel Consumption, Ideal for Orchard and Garden Waste Recycling
