Model 217 Drum wood chipper

SKU ECO-217-Stat-Elec Categories , , , ,

Drum wood chipper
55kW drum wood chipper with 4 high alloy wear-resistant chipper blades and double serrated roller hydraulic forced feeding system, adopts heavy-duty steel plate welded frame for fixed industrial installation, 3–6 T/H capacity with bottom belt conveyor automatic discharge, applicable for hardwood, softwood logs, bamboo, branches, wood pallets and sawmill offcuts, suitable for bamboo processing factories, biomass pellet plants, paper industry and wood processing plants.

Technical Data
Model: 217 Drum Wood Chipper
Drive Type: 55kW Three-Phase Electric Motor
Main Shaft Speed: 1450 r/min
Blade Configuration: 4 High Alloy Wear-Resistant Chipper Blades
Feed Inlet Size: 600 × 220 mm
Maximum Feed Diameter: ≤220mm Logs
Feeding System: Double Serrated Roller Hydraulic Forced Feeding
Capacity: 3–6 T/H
Discharge System: Bottom Belt Conveyor Automatic Discharge
Machine Weight: 3100 kg
Overall Size: 2450 × 1620 × 1580 mm
Structure: Heavy-Duty Steel Plate Welded Frame
Applicable Materials: Hardwood, Softwood Logs, Bamboo, Branches, Wood Pallets, Sawmill Offcuts

Applications
Bamboo Processing Factory, Biomass Pellet Plant, Paper Industry, Wood Processing Factory, Bamboo Waste Recycling, Garden Waste Processing

Let us tailor a solution for you.



    Get technical table

    Drive type

    Electric

    Max Feed Diameter

    ≤8.66" Inch

    Power

    55 kW

    Capacity

    3–6 t/H

    Make the chipping process easier.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

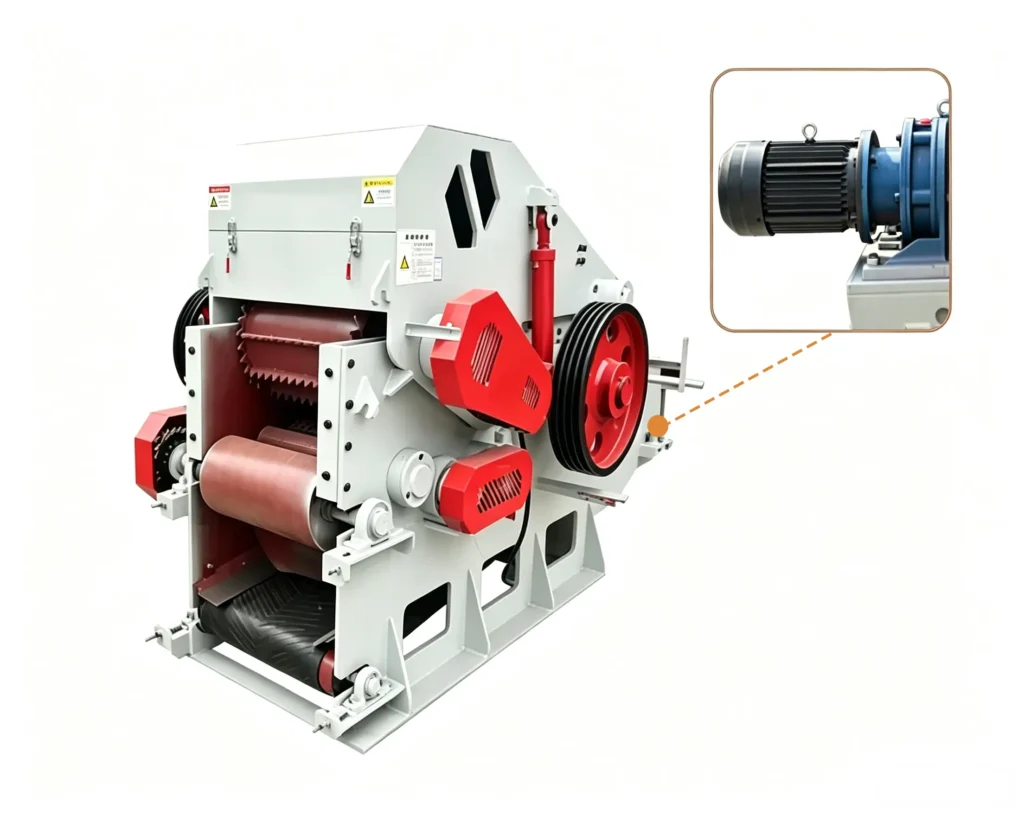

    Heavy-Duty Belt Driven Drum Wood Chipper With Hydraulic Feed System

    This industrial drum wood chipper adopts a large flywheel with multi-groove V-belt as main transmission, matched with a 55kW three-phase industrial main motor with star-delta start, delivering ultra-strong cutting torque. The hydraulic-driven double serrated feed rollers support 0-30m/min stepless speed adjustment, with forward/reverse hydraulic control to prevent material jamming. The stable power design ensures reliable long-time continuous processing of whole logs, thick bamboo and waste wood materials.
    Sawdust crusher for biomass production line processing wood waste into high-quality biomass fuel materials

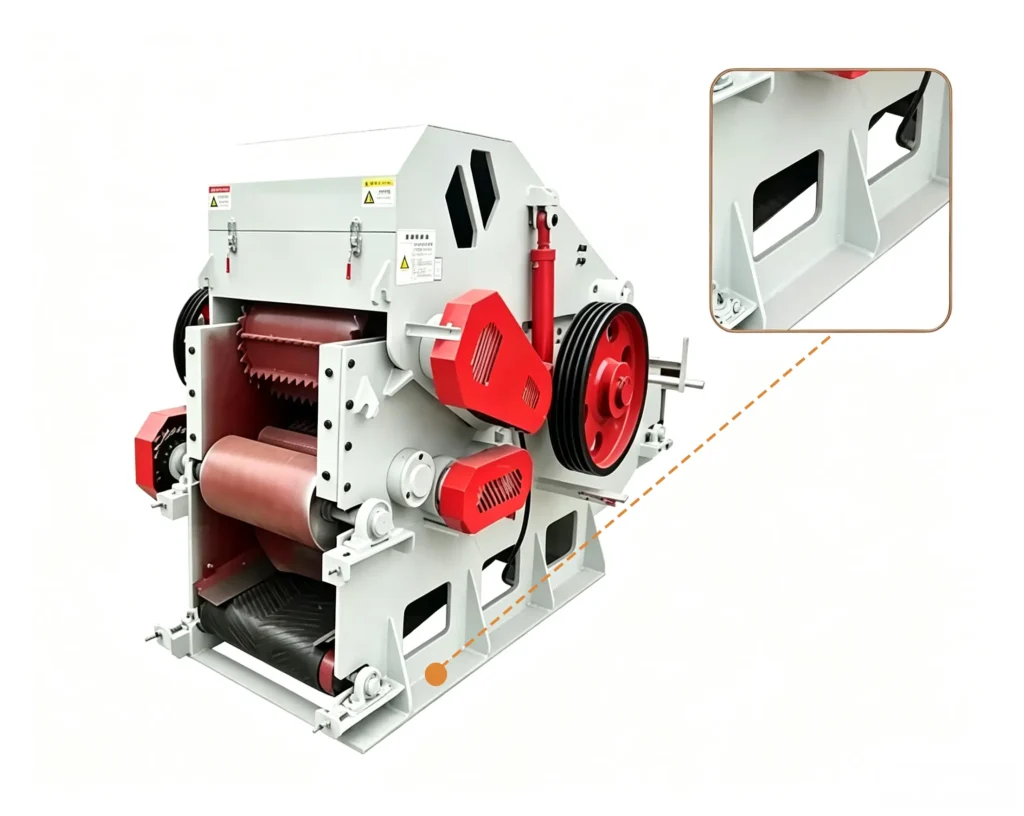

    Integrated Heavy Welded Steel Frame For Fixed Production Line Matching

    The whole machine is made of thick steel plate fully welded integral heavy frame, with ultra-high structural rigidity to resist severe vibration during heavy cutting. It is equipped with 4 anchor bolt mounting feet for stable fixed installation on the workshop ground. It can be connected with upstream log conveyor and downstream screening equipment to form a fully automatic closed wood chipping production line.
    Sawdust crusher for biofuel factory processing wood waste and biomass materials into renewable fuel raw materials

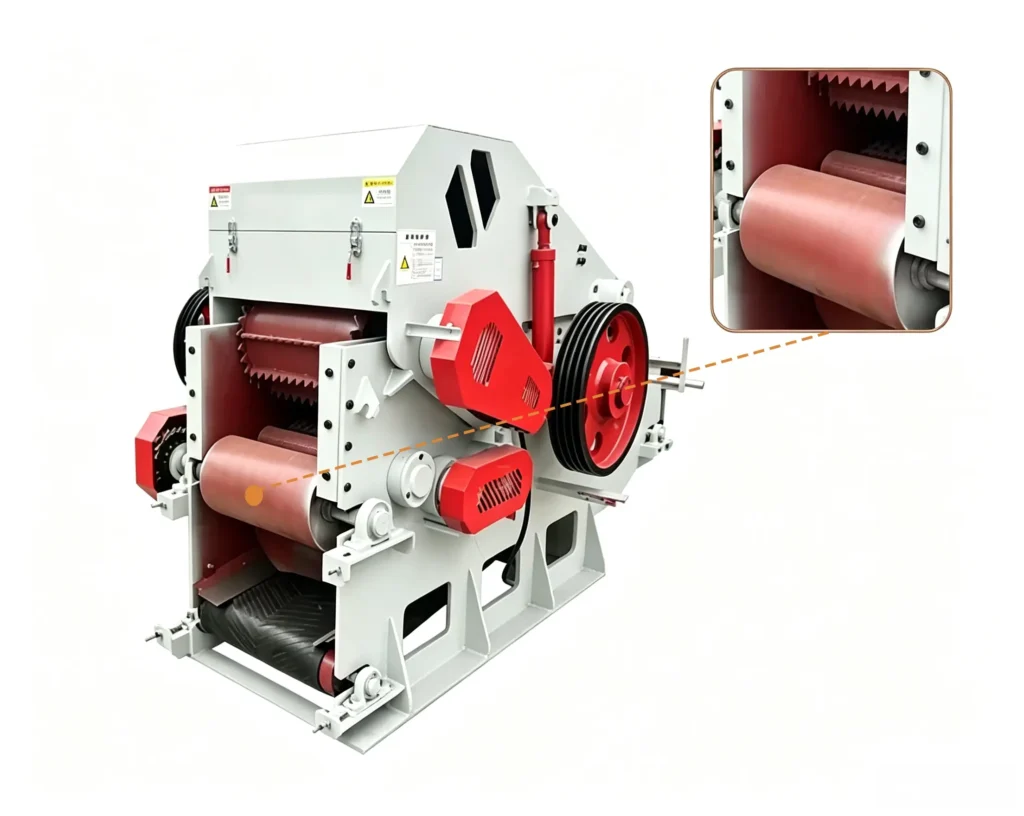

    Forced Roller Feeding + Bottom Belt Discharge For Large Throughput

    Upper and lower serrated feeding rollers clamp logs and bamboo tightly for automatic traction feeding without manual pushing. The finished wood chips are delivered outward automatically by the 3000mm long bottom herringbone anti-skid conveyor belt, with 1800mm discharge height for direct truck loading or docking with subsequent equipment. Large feeding caliber and high-speed drum cutting greatly improve hourly output, widely used in biomass power plants, paper mills and wood panel factories.
    Sawdust crusher for energy plant processing biomass waste, wood chips, and agricultural residues into fuel materials

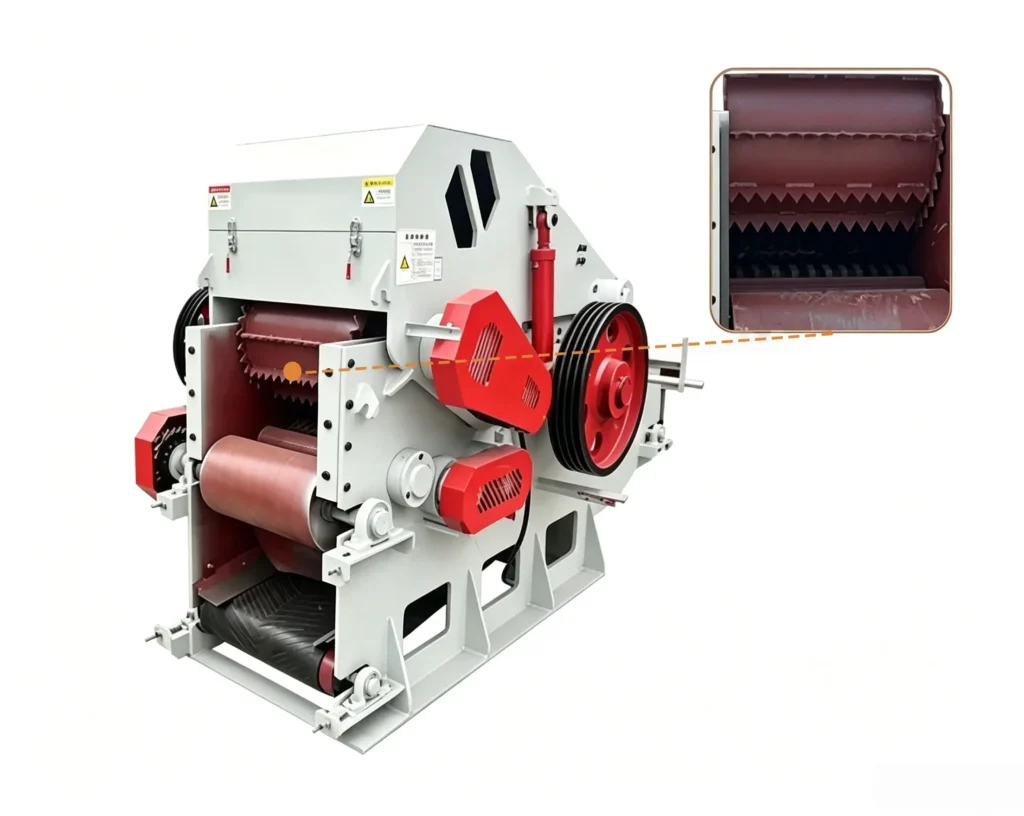

    Dynamic Balanced Alloy Blade Drum Cutter For Uniform Wood Chips

    The core cutting chamber is equipped with a precision dynamic balanced integral cast steel heavy drum cutter head, installed with 4 pieces of thickened quenched high-alloy chipper blades with strong impact resistance and wear resistance. Precision-calibrated cutting angle ensures 15-35mm adjustable uniform wood chip thickness, fully meeting the raw material standards of papermaking, biomass power generation and MDF production. The fully sealed cutting bin reduces dust overflow, and is equipped with multiple safety protections to meet industrial environmental and safety standards
    Sawdust crusher for pellet production line processing wood waste into fine biomass pellet raw materials

    Specifications

    Model 217 Drum Wood Chipper
    Main Motor Power 55kW Three Phase Industrial Motor, 380V/50Hz
    Drive System Heavy-duty Flywheel + Multi-groove V-belt Drive System
    Feed Inlet Size 600 × 220mm
    Maximum Feed Diameter ≤220mm (≤8.7 Inch) Logs and Branches
    Feeding System Hydraulic Double Serrated Roller Automatic Feeding System with Anti-jam Reverse Function
    Cutting Drum Structure Thickened Integral Cast Steel Heavy-duty Drum with Dynamic Balance Treatment
    Blade Configuration 4pcs High Alloy Wear-resistant Chipper Blades
    Drum Rotating Speed 1450 rpm
    Processing Capacity 3–6 Ton/h
    Finished Chip Size 15–35mm Adjustable Wood Chips
    Raw Material Moisture ≤25%
    Discharge System Automatic Bottom Belt Conveyor Discharge System
    Installation Type Stationary Industrial Installation
    Frame Structure Heavy-duty Steel Plate Welded Frame
    Safety Features Emergency Stop Button, Feed Roller Safety Protection, Cutting Chamber Guard, Belt Cover, Motor Overload Protection
    Applicable Materials Hardwood Logs, Softwood Logs, Tree Branches, Bamboo, Wood Pallets, Sawmill Waste
    Application Biomass Pellet Production, Paper Manufacturing, MDF Board Production, Wood Recycling Industry
    Overall Dimension 2450 × 1620 × 1580mm
    Machine Weight 3100kg
    Core Advantages Hydraulic Forced Feeding, Heavy-duty Cast Steel Drum, Uniform Chip Size, Stable Continuous Operation, High Efficiency for Industrial Biomass Processing
