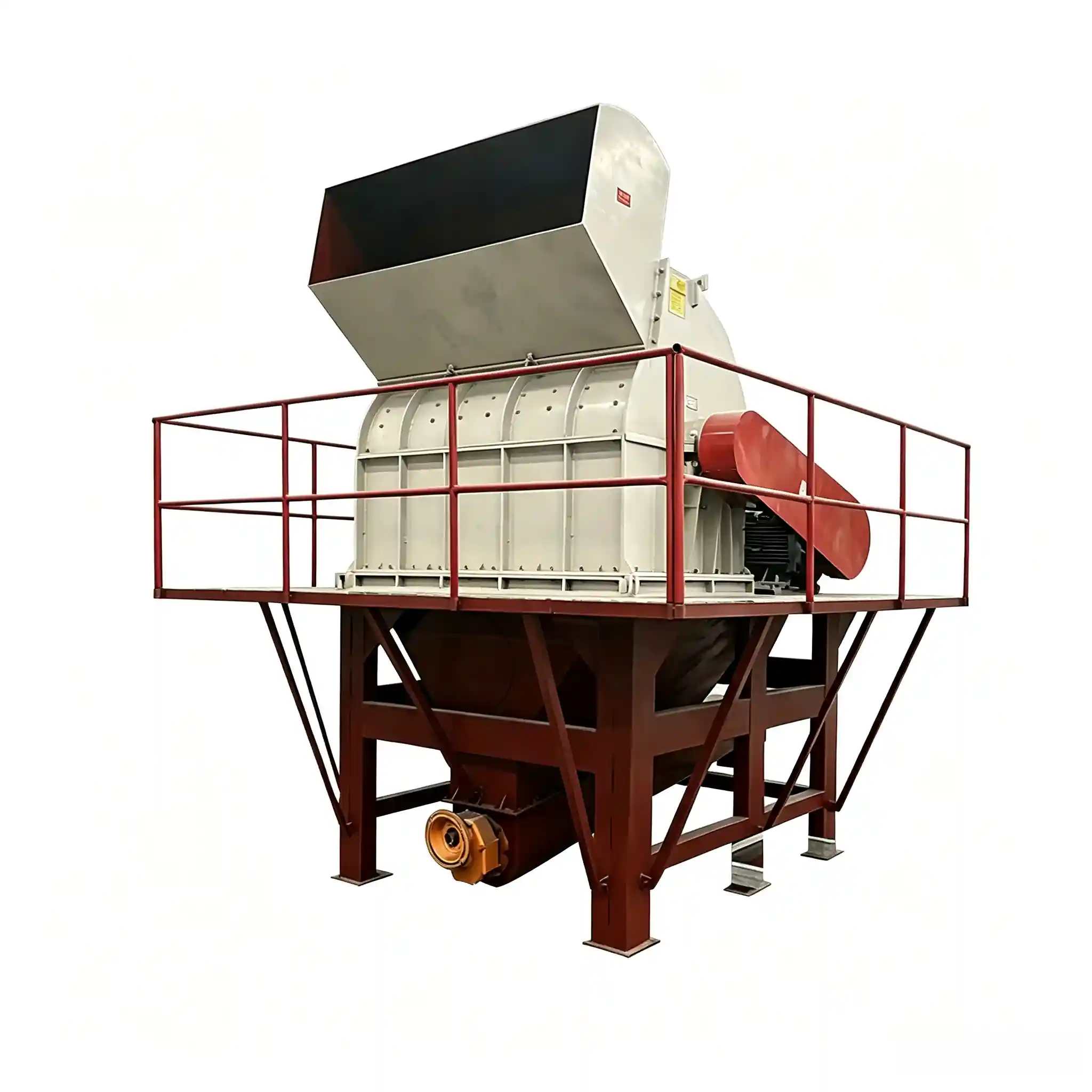

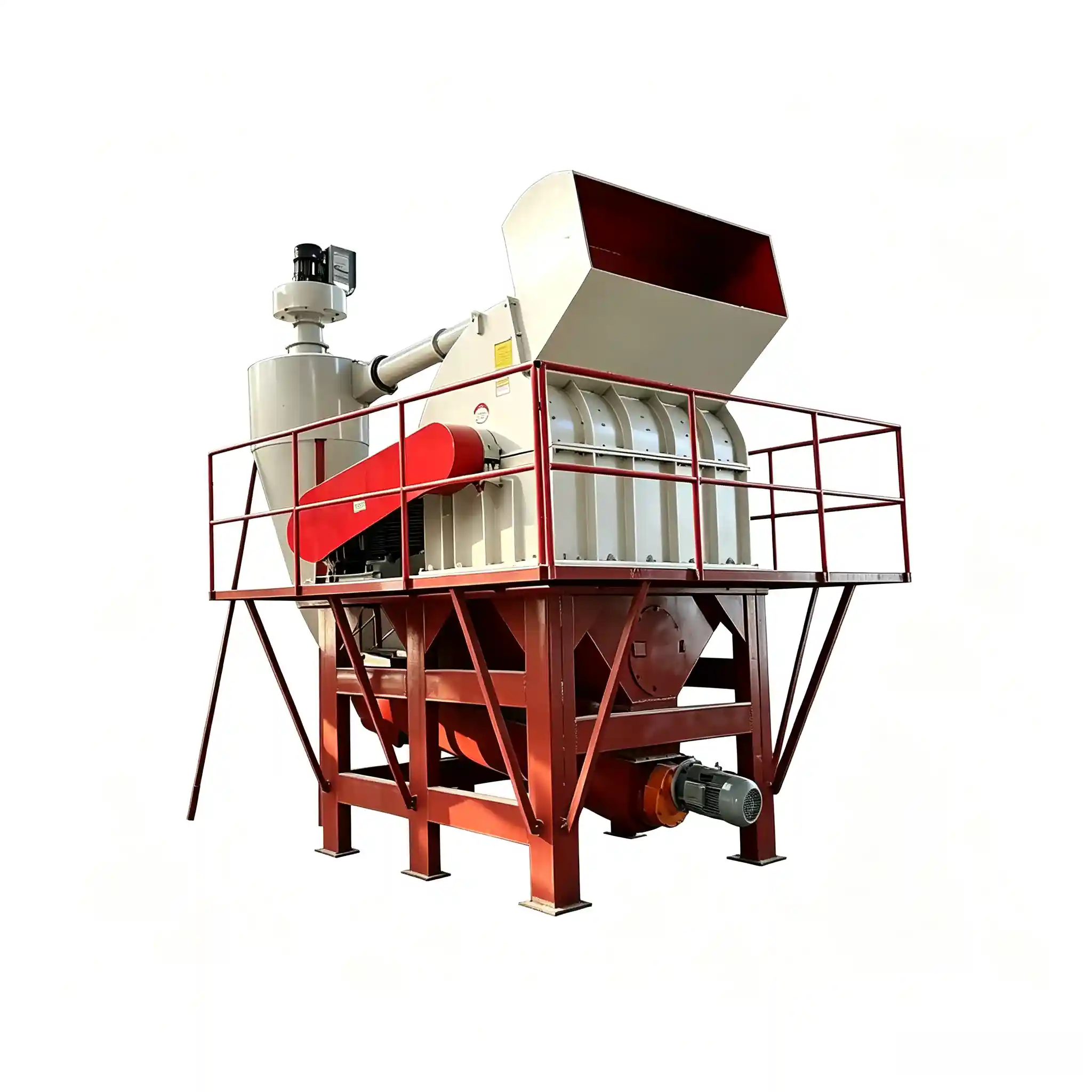

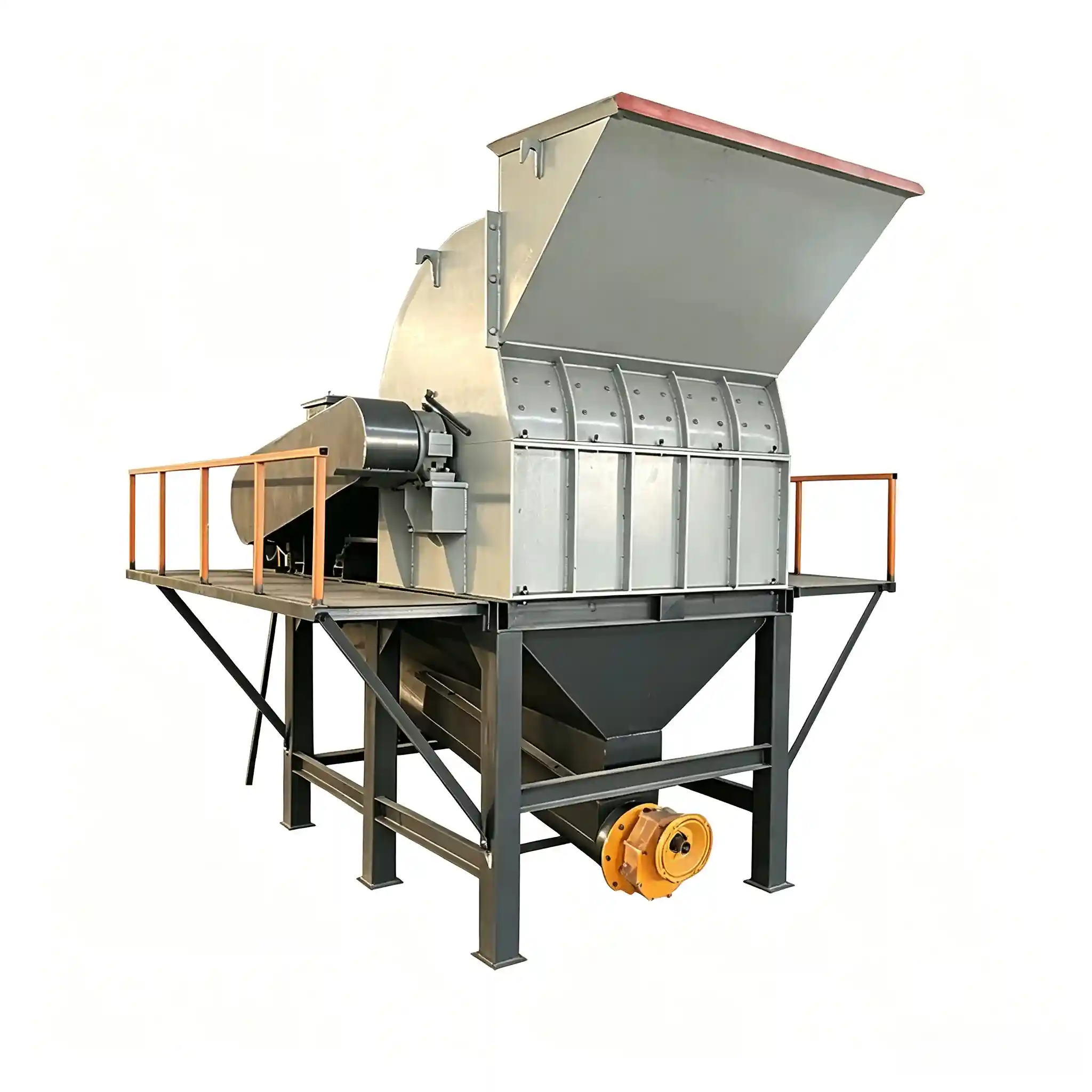

Model 1500 Dual Main Motor Sawdust Crusher

SKU ECO-1500-DM-Stat-Elec Categories , , , ,

Dual Main Motor Sawdust Crusher
150kW dual main motor industrial sawdust crusher with independent air conveying screw discharge system and heavy-duty hammer mill structure, designed for continuous mass production of sawdust from wood, branches, bamboo and furniture waste, suitable for large wood processing plants, biomass energy factories and commercial mushroom cultivation bases.
Technical Data
Total Main Power: 150kW (Dual 75kW main motors)
Power Supply: 380V three-phase industrial power
Main Shaft Rated Speed: 1480 r/min
Discharge System Motors: 11kW blower motor + 5.5kW screw conveyor motor
Standard Capacity: 6–8t/h
Crushing Structure: Heavy-duty hammer mill structure
Frame: Thickened steel welded frame + heavy-duty elevated platform
Customization: Blade configuration, screen size, output capacity, discharge system customizable
Applications
Large Wood Processing, Biomass Energy Production, Commercial Mushroom Cultivation, Wood Branch Crushing, Bamboo Processing, Furniture Waste Recycling

Let us tailor a solution for you.



    Get technical table

    Drive type

    Electric

    Max Feed Diameter

    ≤11.81" Inch

    Power

    45kW × 2

    Capacity

    6–8 t/H

    Make large-scale sawdust production efficient and continuous.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

    Dual 45kW Main Motors with High Torque Parallel Drive

    This industrial sawdust crusher adopts dual 45kW heavy-duty three-phase motors with parallel transmission design, delivering ultra-strong crushing torque and stable power output. The dual-drive structure effectively shares load impact, reduces single motor wear, and supports 24-hour continuous operation, perfectly matching large sawdust production lines and biomass power plant raw material processing.

    Wood recycling machine processing waste wood, pallets, logs, and timber scraps into reusable biomass materials

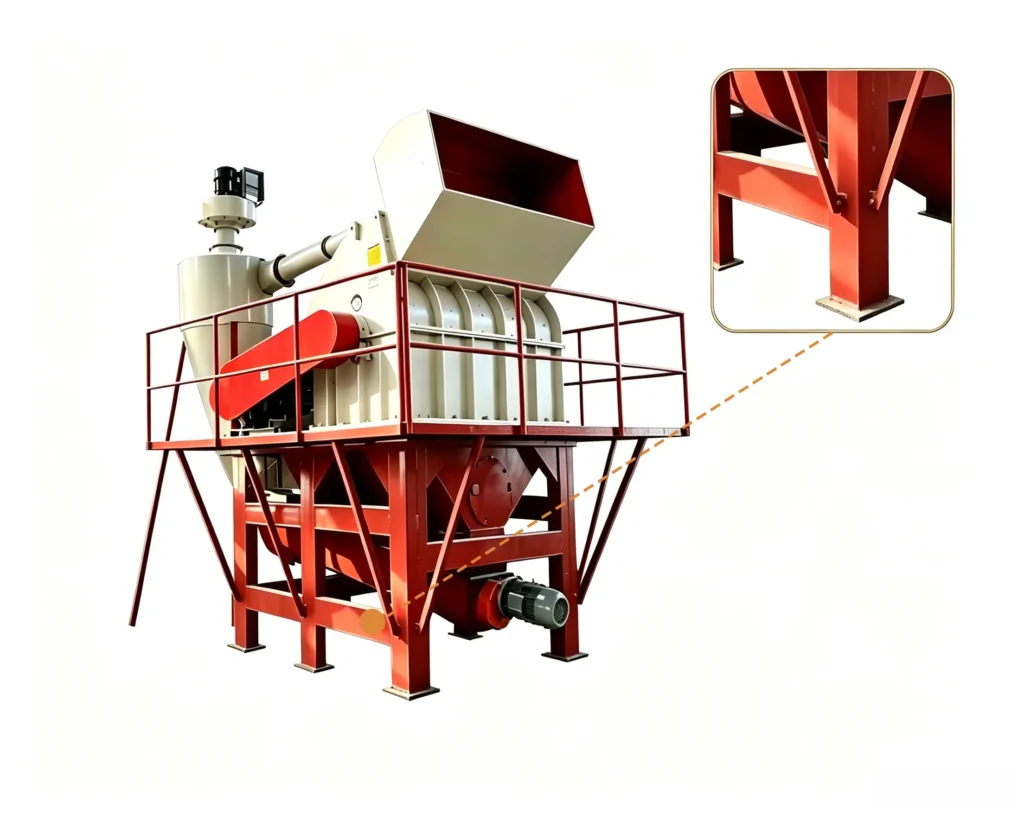

    Elevated Heavy Frame with Safety Operation Platform

    The whole machine is built on an elevated heavy-duty steel welded frame with high structural rigidity and strong vibration resistance. It is equipped with a full-surround safety guardrail and operation platform, facilitating daily inspection, blade replacement and maintenance. The 8-point heavy anchor bolt fixation ensures stable operation under long-term heavy load, with low failure rate and long service life.

    Wood processing machine crushing and preparing logs, branches, timber waste, and biomass materials for industrial use

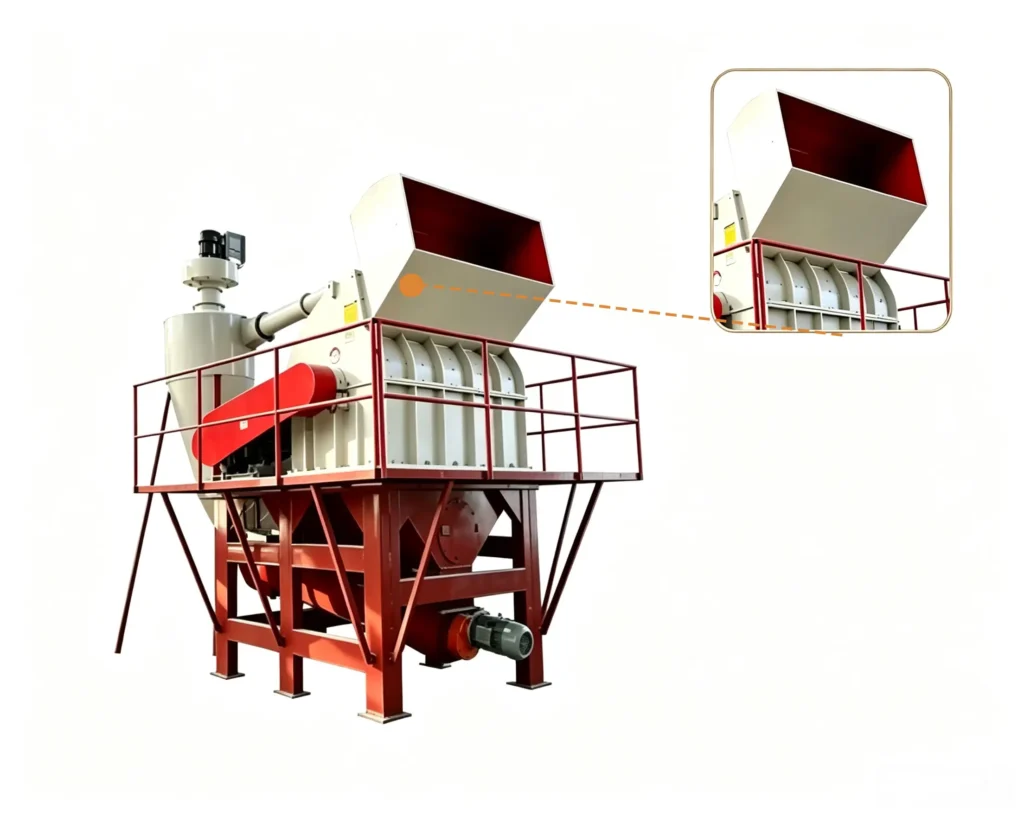

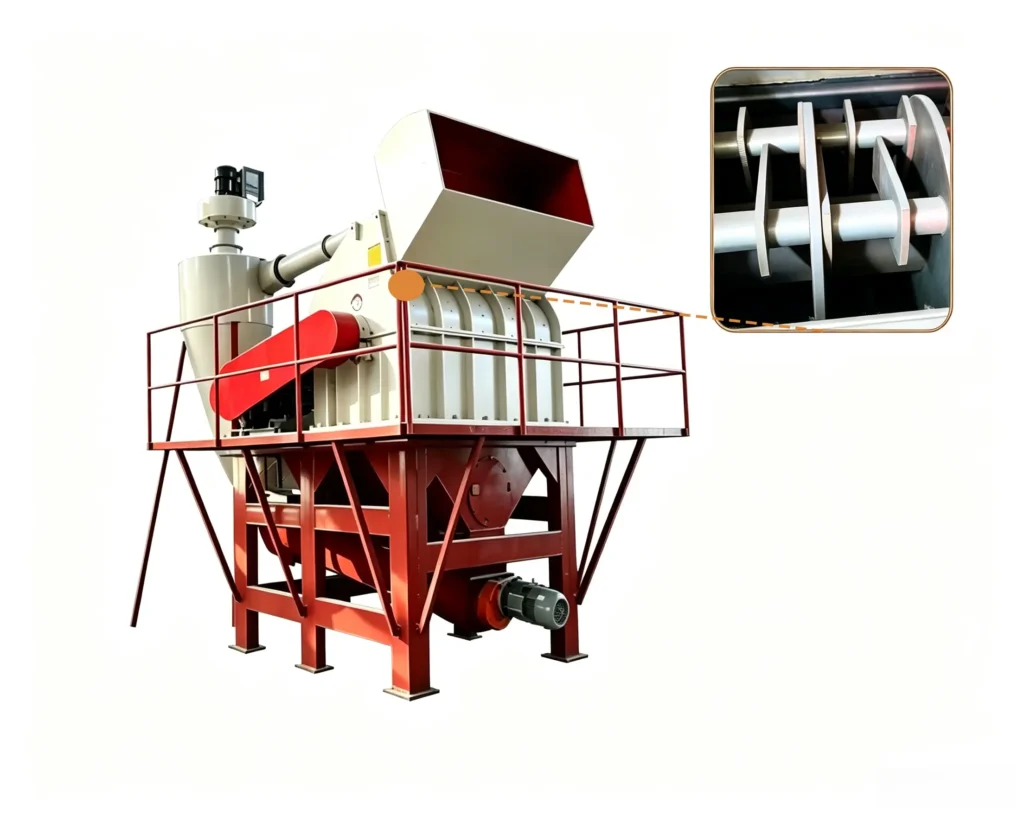

    Gravity Feed Hopper + Combined Blade & Hammer Grinding

    The extra wide top hopper supports bulk feeding by forklift or manual work, with smooth material falling and no jamming. The crushing chamber adopts cutting blade primary crushing + hammer blade secondary grinding structure, processing wood raw materials into uniform sawdust efficiently. The replaceable screen controls output size from 1mm to 10mm, meeting different raw material fineness requirements.

    Wood crushing system processing logs, branches, timber waste, and biomass materials with complete recycling equipment

    Cyclone Separator + Air Conveying Automatic Discharge

    The discharge system adopts high-efficiency cyclone separator with air conveying design, which automatically collects and discharges finished sawdust through airflow, realizing continuous closed production with less dust. The high-position discharge port can be directly connected to packaging or storage equipment, greatly improving production efficiency and reducing manual collection labor.



    Tree branch sawdust crusher processing branches and green waste into fine sawdust for biomass recycling applications

    Specifications

    Model 1500 Dual Main Motor Sawdust Crusher
    Drive Type Dual Main Motor Parallel Drive
    Total Power 90 kW (45 kW × 2)
    Rated Voltage 380V, 50Hz, Three-Phase
    Start Method Dual Auto-coupling Start
    Feed Inlet Size 700 × 700 mm
    Maximum Feed Diameter ≤300 mm (≤11.8 inch)
    Crushing Structure 8 Cutting Blades + 64 Hammer Blades
    Rotor Speed 1000 RPM
    Processing Capacity 6-8 T/H
    Output Size 1-10 mm Adjustable (Replaceable Screen)
    Feeding System Extra Large Top Gravity Feed Hopper
    Discharge System Cyclone Separator + Air Conveying Discharge
    Frame Structure Elevated Heavy Steel Frame with Operation Platform & Guardrail
    Installation Type Stationary Fixed Installation
    Overall Dimension 2800 × 2000 × 3200 mm
    Operating Weight 4500 kg
    Applicable Materials Logs, Branches, Wood Scraps, Wood Blocks, Bamboo Waste
    Application Fields Industrial Sawdust Lines, Biomass Power Plants, Wood Powder Processing, Wood Waste Recycling Centers
    Core Advantages Dual Motor High Torque, Large Capacity, Elevated Platform, Cyclone Dust-controlled Discharge, Heavy-duty Durable Structure
