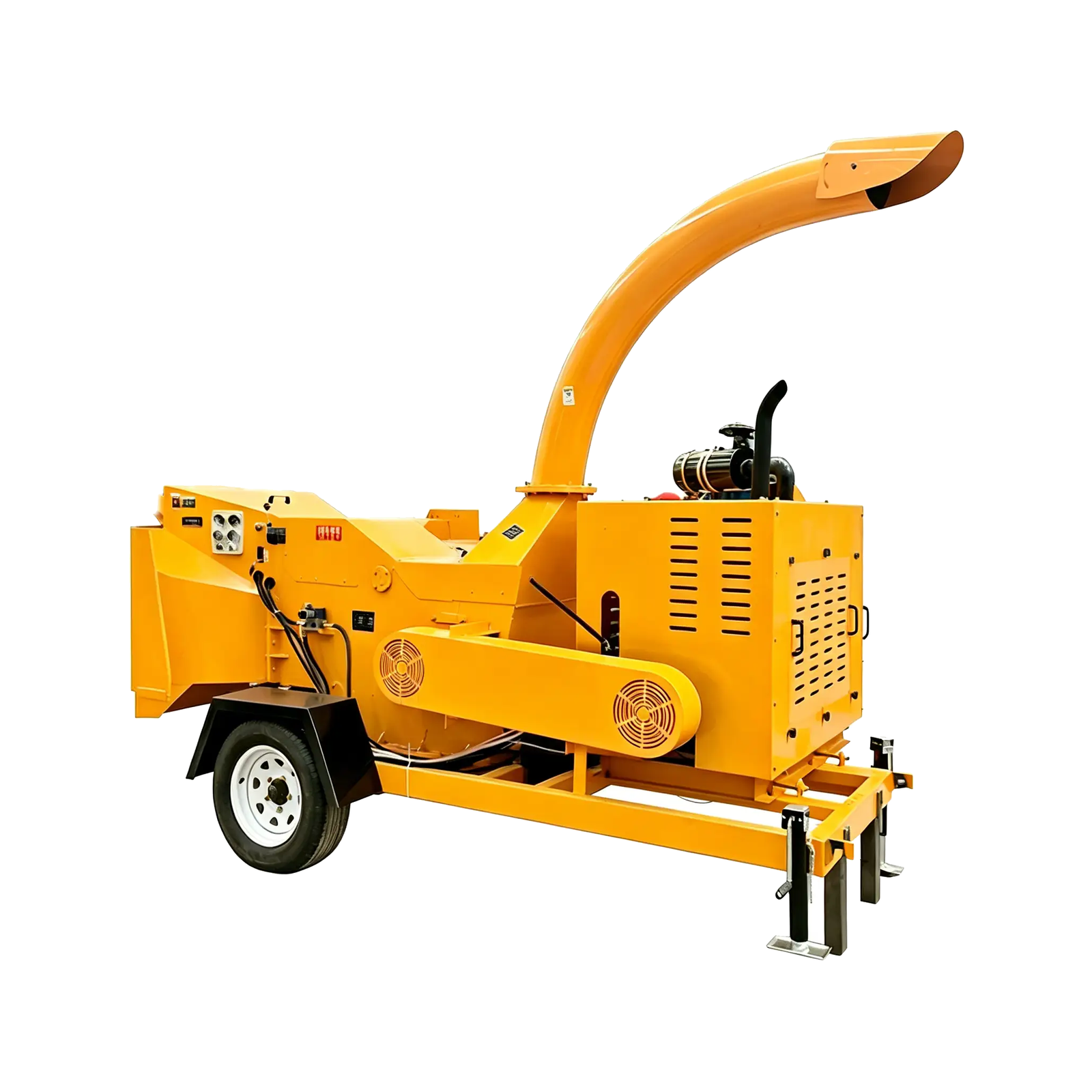

Model 6158 Diesel Engine Branch Chipper
The Model 6158 is specially designed for efficient wood processing, delivering powerful performance and stable output.
- Power Configuration: 80 HP / 102 HP (Diesel Engine)
- Drive System: Diesel Engine Powered
- Production Capacity: Approx. 3–5 tons/hour (3–5 T/H)
- Max Processing Diameter: 25 cm (≈ 9.84 inch)
- Applications:
- Compost
- Mulch
- Engineered Boards
- Further Processing Uses:
- Charcoal
- Biomass Pellets
- Animal Feed
- Organic Fertilizer
Let us tailor a solution for you.
Drive type
Fuel engine
Branch Limit
≤9.84" Inch
Power
80 HP / 102 HP
Capacity
3–5 t/h
Make the crushing process easier.
Features & Advantages

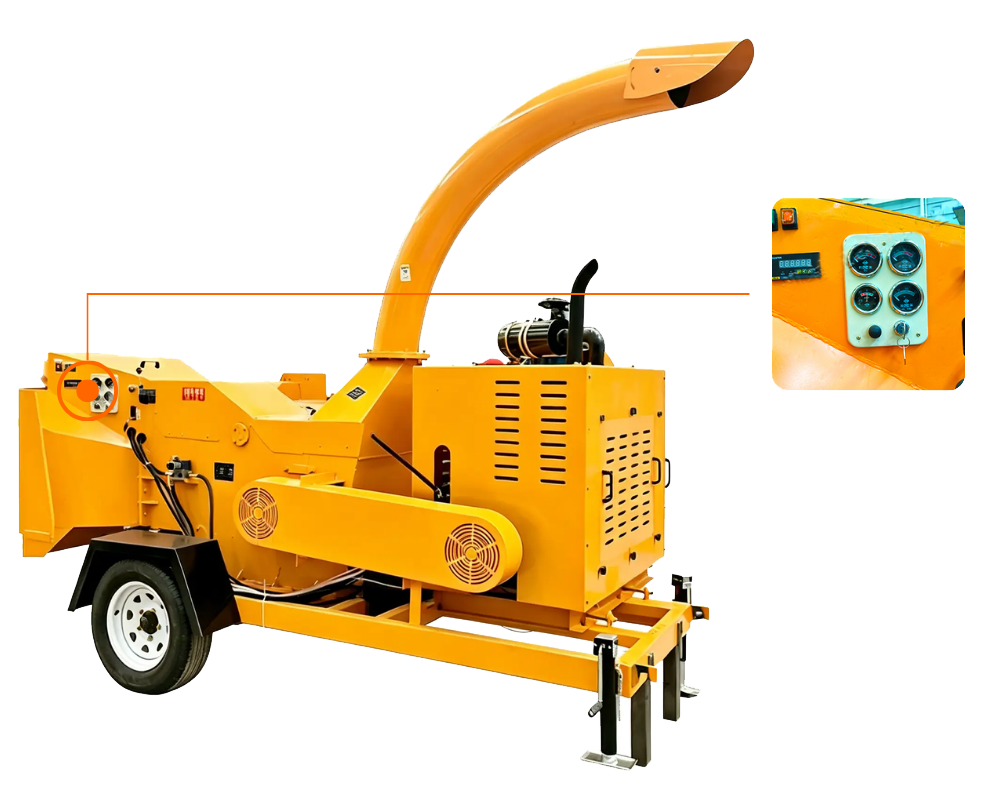

Digital display control system
It adopts an intelligent feeding system: when the engine load is high, the feeding automatically stops; when the engine load decreases, the feeding automatically resumes.

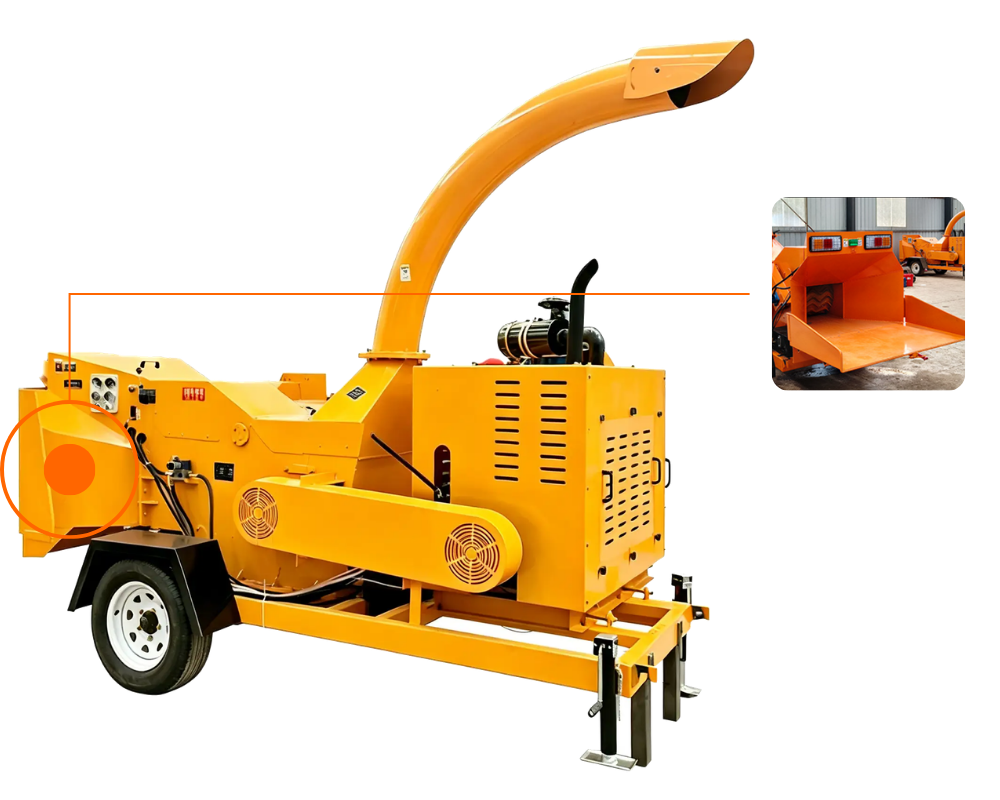

Large-diameter worktable
1.35 m large-diameter worktable Allows two operators to feed material simultaneously for operation

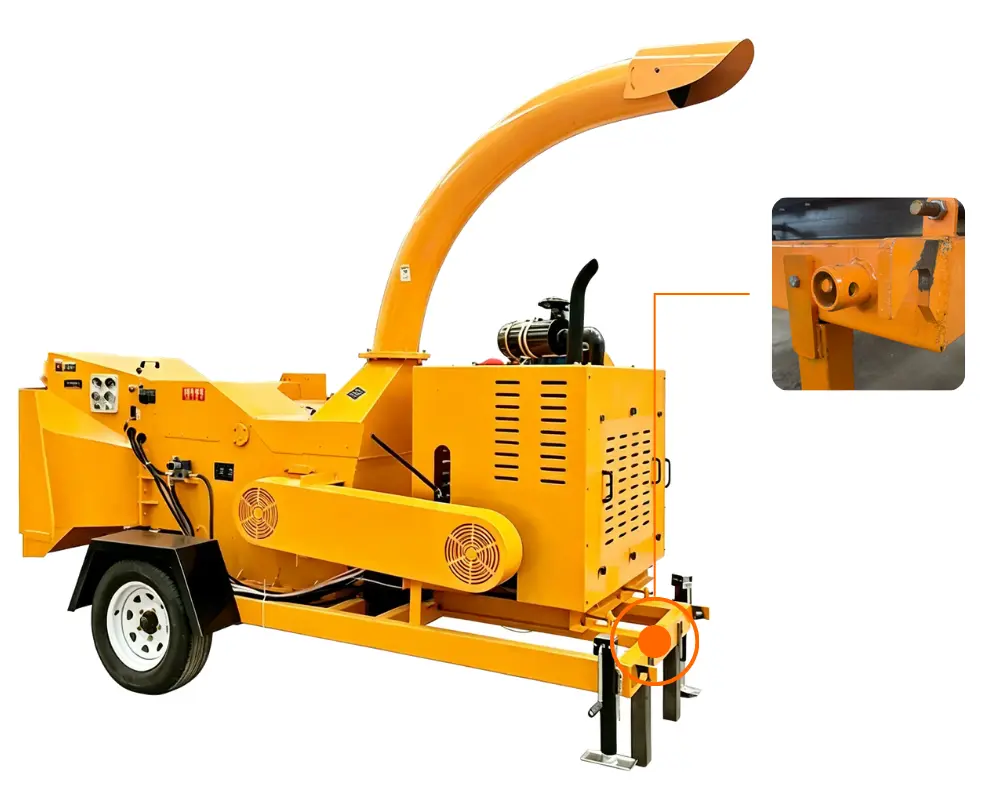

Towable design for flexible and efficient operation.
Supports quick towing for easy relocation across different job sites. No disassembly required, improving transport efficiency and flexibility. Ideal for forestry, parks, and multi-location operations.

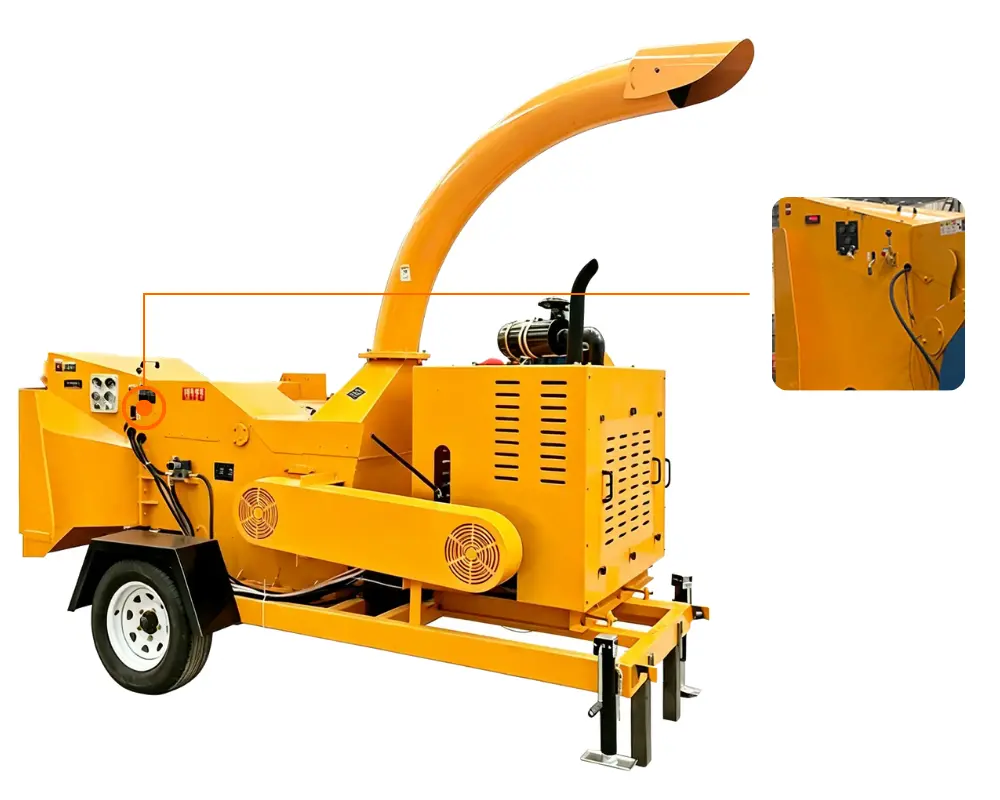

Integrated Safety Control Design
Front-mounted throttle and shutdown handle in one unit for easy operation and quick emergency stop, enhancing safety and control.
Specifications
Basic Equipment Information
| Model | 6158 Wood Chipper Machine |
| Power Capacity | 80HP / 102HP |
| Power Type | Diesel Engine / Electric Motor |
| Machine Weight | Approx. 2.25 tons |
Performance
| Output Capacity | 3–5 t/h |
| Max Branch Diameter | < 250 mm |
| Material Moisture | No Limit (Branches) |
Feeding System
| Feed Opening | 1300 × 720 mm |
| Feed Throat | 460 × 400 mm |
| Roller Diameter | 450 mm |
| Roller Type | M-Type Wave |
| Drive | Hydraulic Motor |
| Control | Forward / Reverse / Stop |
Cutting System
| Blade Setup | 4 Moving + 1 Fixed |
| Blade Length | 240 mm |
| Cutting Disc | 560 mm |
| Speed | 2300 r/min |
Discharge System
| Direction | 360° Adjustable |
| Throw Height | 7000 mm |
| Pipe Type | One-piece Formed |
Power & Electrical
| Power | 80HP / 102HP |
| Battery | 24V 85Ah |
| Start Method | Electric Start |
Hydraulic System
| Tank Capacity | 40 L |
| Roller Drive | Hydraulic Motor |
Control System
| Smart System | Digital Display |
| Overload Protection | Auto Stop Feeding |
| Auto Recovery | Auto Resume |
| Control Handle | Throttle + Stop |
Structure & Configuration
| Dimensions | 3400 × 1850 × 2600 mm |
| Lighting | Rear + Feed Light |
| Jack | Foldable Manual |
| Trailer Height | Adjustable |
| Customization | Supported |
