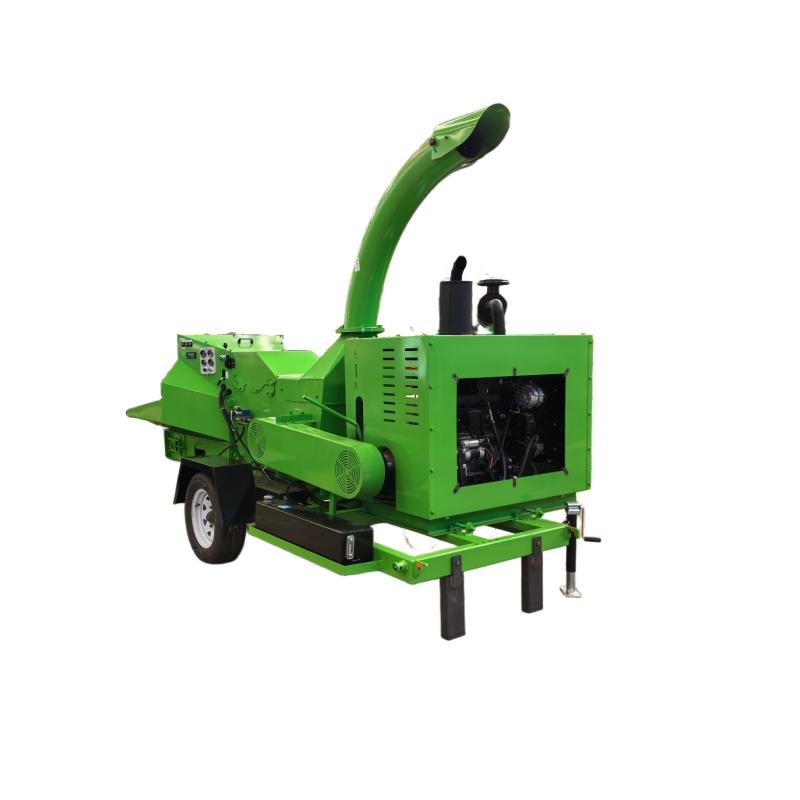

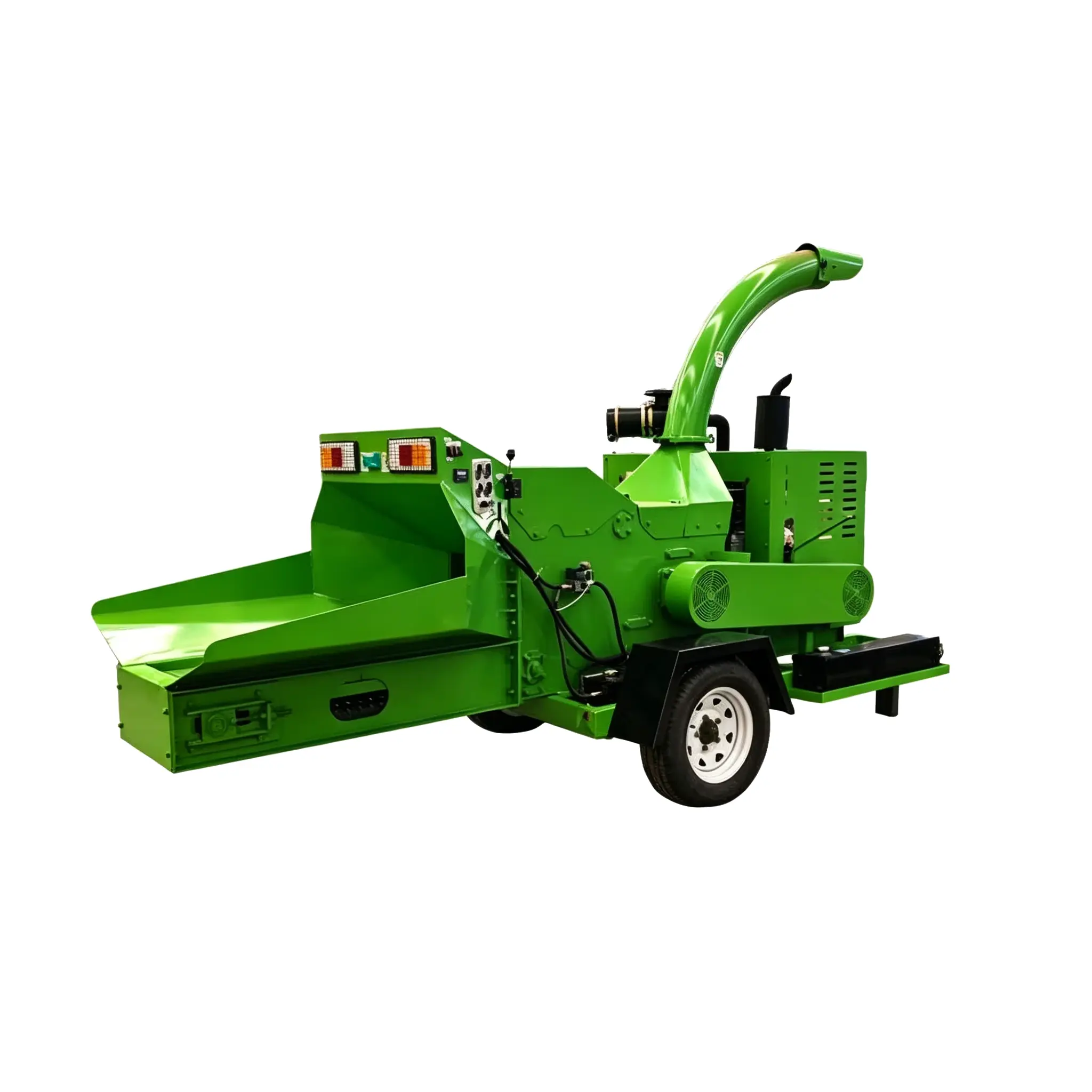

Model 6140 Electric Branch Chipper
The Model 6140 is engineered for efficient wood processing, offering strong power and reliable, consistent output.
Power Configuration: 40 kW (Electric Motor)
Drive System: Electric Motor Powered
Production Capacity: Approx. 1–1.55 tons/hour (1–1.5 T/H)
Max Processing Diameter: 12 cm (4.72 inches)
Applications:
- Compost
- Mulch
- Engineered Boards
Further Processing Uses:
- Charcoal
- Biomass Pellets
- Animal Feed
- Organic Fertilizer
Let us tailor a solution for you.
Drive type
Electric
Branch Limit
≤4.72" Inch
Power
40 KW
Capacity
1–1.5 t/h
Make the crushing process easier.

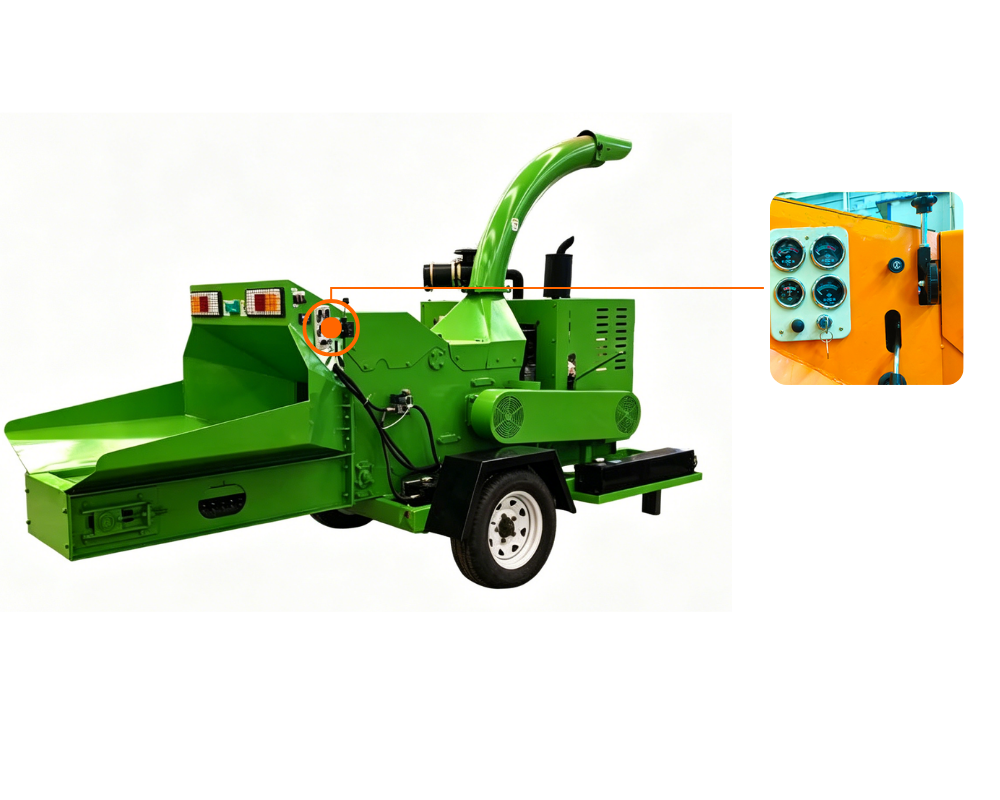

Digital display control system
It adopts an intelligent feeding system: when the engine load is high, the feeding automatically stops; when the engine load decreases, the feeding automatically resumes.

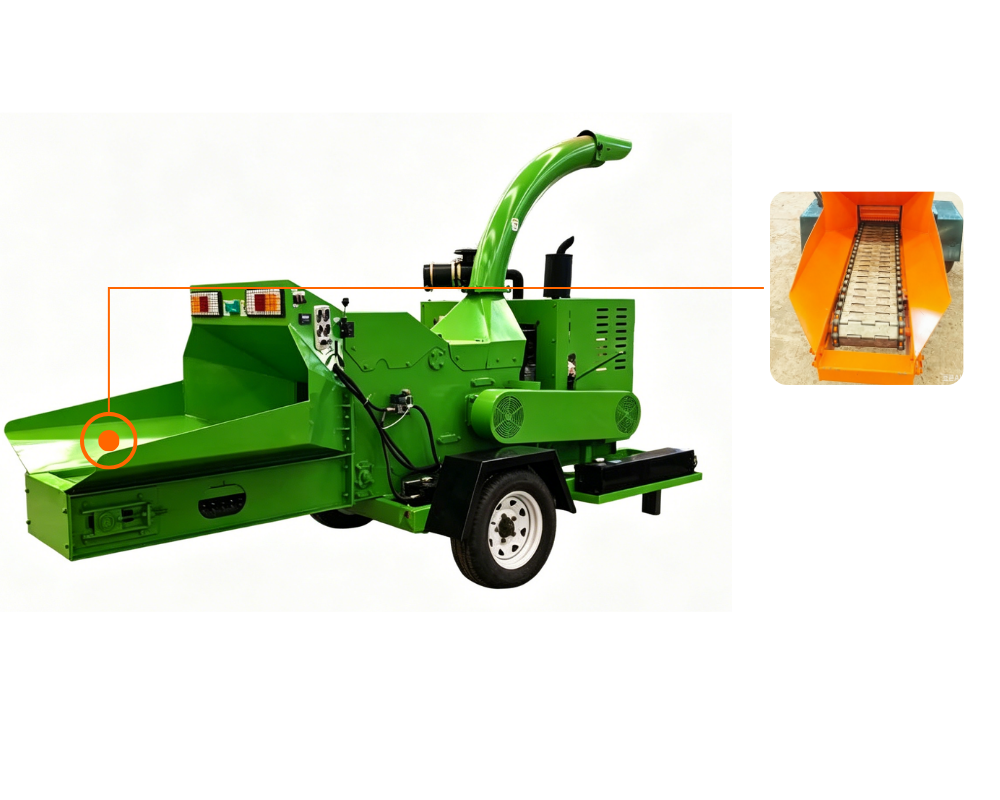

Chain Plate Feeding
Stainless Steel 201 Chain Plate (2.75 mm Thickness) The chain plate continuously conveys materials, ensuring stable and consistent feeding into the shredder, while preventing sudden accumulation or idling, improving overall feeding efficiency and operational stability.

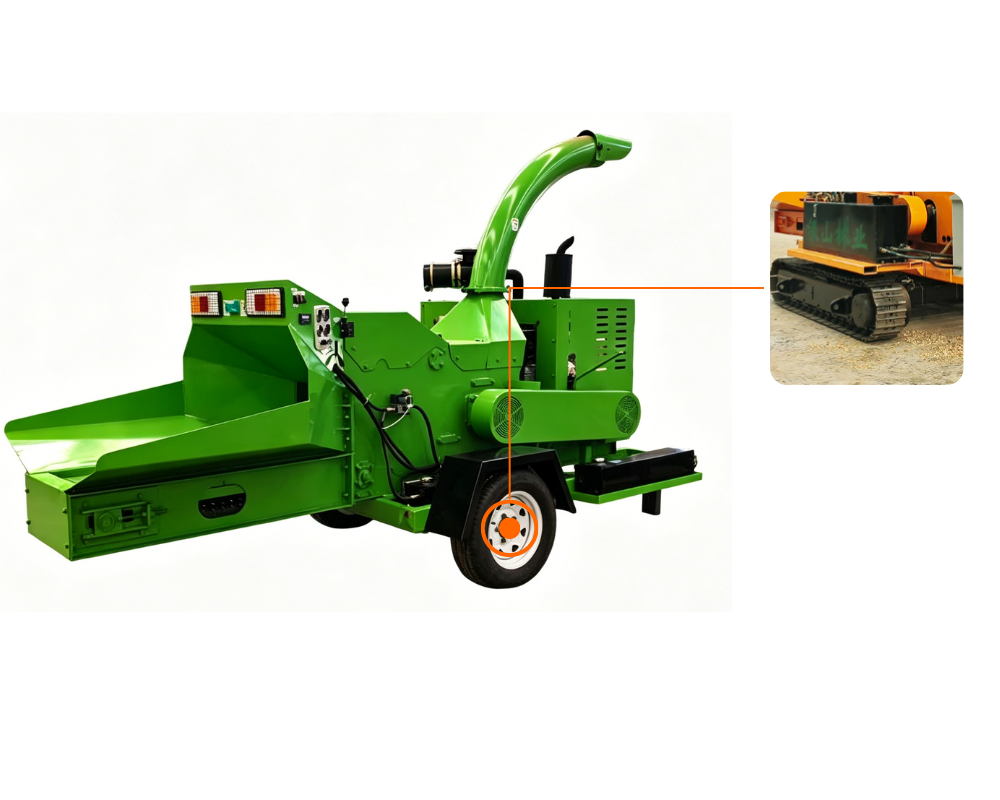

Custom Track-Mounted Travel System
Adopting a track-mounted mobility design, it offers excellent terrain adaptability and stability, enabling flexible operation in complex conditions such as mountains, forests, and muddy environments, significantly enhancing application range and working efficiency.

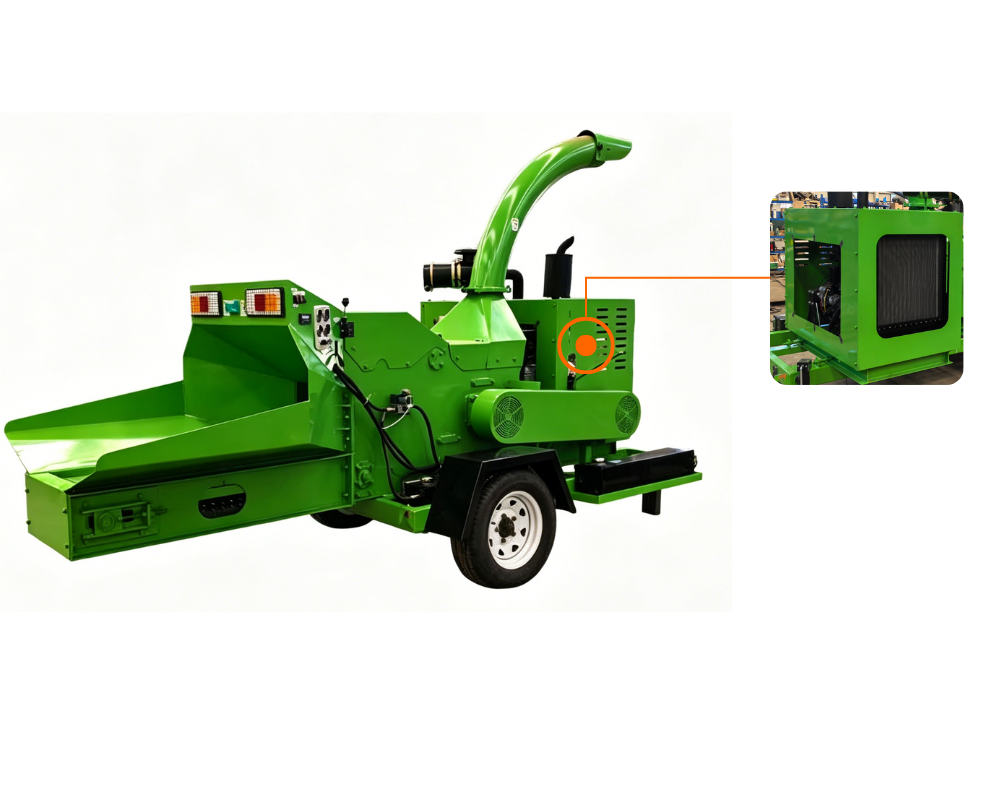

Full Machine Protective Cover Design
Featuring a comprehensive protective cover structure, it effectively shields key components from dust, debris, and external impact, improving operational safety and extending service life while ensuring stable and efficient long-term performance.
Features & Advantages
Specifications
Basic Equipment Information
| Model | Model 6140 Electric Branch Chipper |
| Type | Electric Motor Driven |
| Overall Dimensions | L2320mm × W1400mm × H1860mm |
| Net Weight | Approx. 750 kg |
| Customization | Supports special requirement customization |
Performance
| Output Capacity | 3–5 t/h |
| Max Branch Diameter | < 250 mm |
| Material Moisture | No Limit (Branches) |
Feeding System
| Feed Roller Diameter | 280 mm |
| Feed Chute Size | 310 mm × 200 mm |
| Feed Inlet Size | 600 mm × 450 mm |
| Feed Gear | Forward — Reverse — Stop, manual 3-speed |
| Feed Lighting | Equipped with feed illumination lamp |
Cutting System
| Cutter Roller Diameter | 300 mm |
| Number of Blades | 4 movable blades, 1 fixed blade |
| Blade Length | 155 mm |
Discharge System
| Discharge Direction | 360° Quick Adjustment Device |
Power & Electrical
| Engine Power | 40 kW |
| Generator Power | 750 W |
| Battery | 12 V 85 Ah |
| Starting Method | Electric Start |
Hydraulic System
| Feed Roller Power | Hydraulic Motor |
| Hydraulic Oil Tank Capacity | 24 L |
Control System
| Throttle & Shut-off Control | Front-mounted integrated throttle & engine stop lever |
Structure & Configuration
| Tire Size | 165/70R13 |
| Rim | 13-inch Steel Rim |
| Other Features | Tail light, foldable hand crank jack, adjustable towing height |
