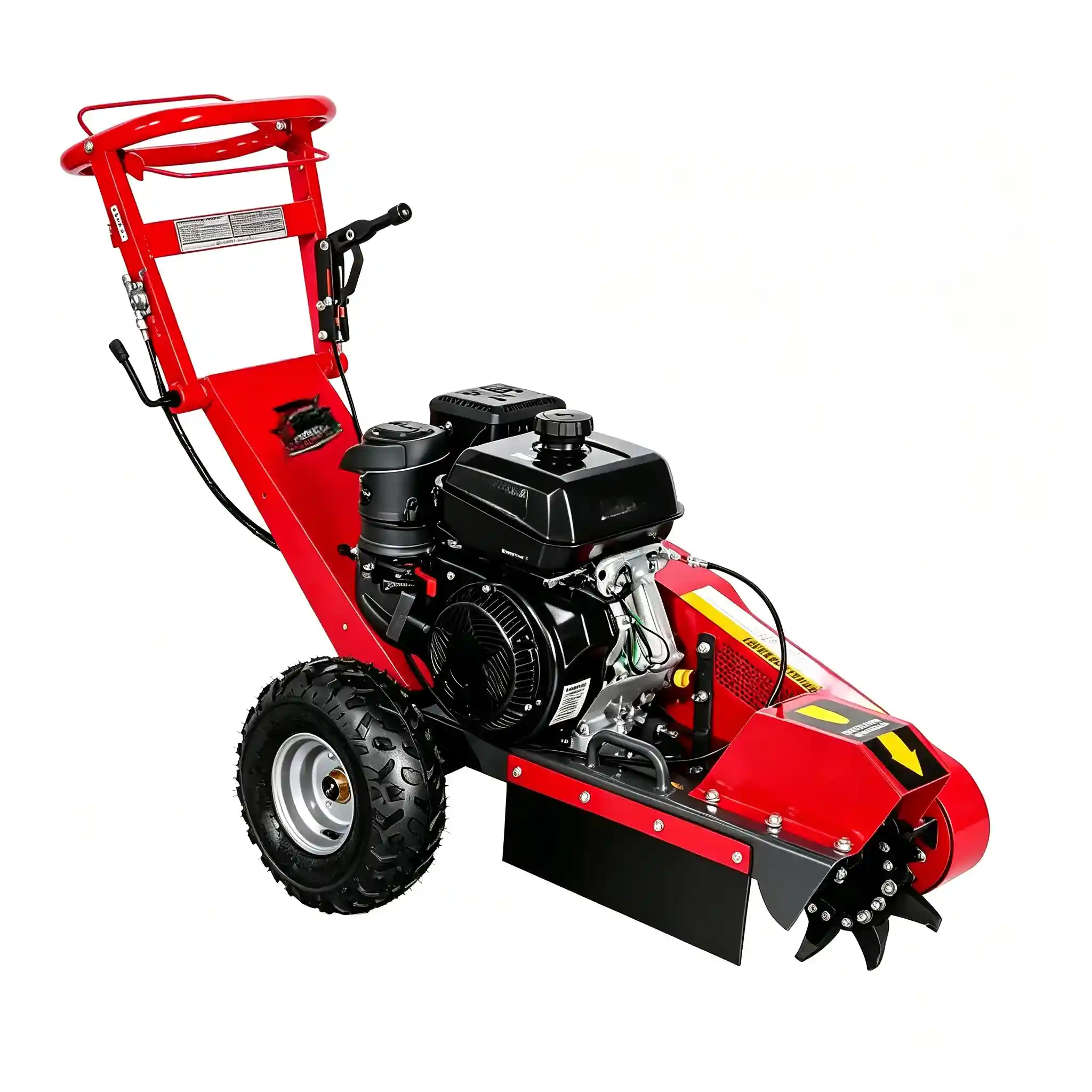

Walk-behind stump cutter removing tree stumps and roots with portable design for landscaping and forestry maintenance

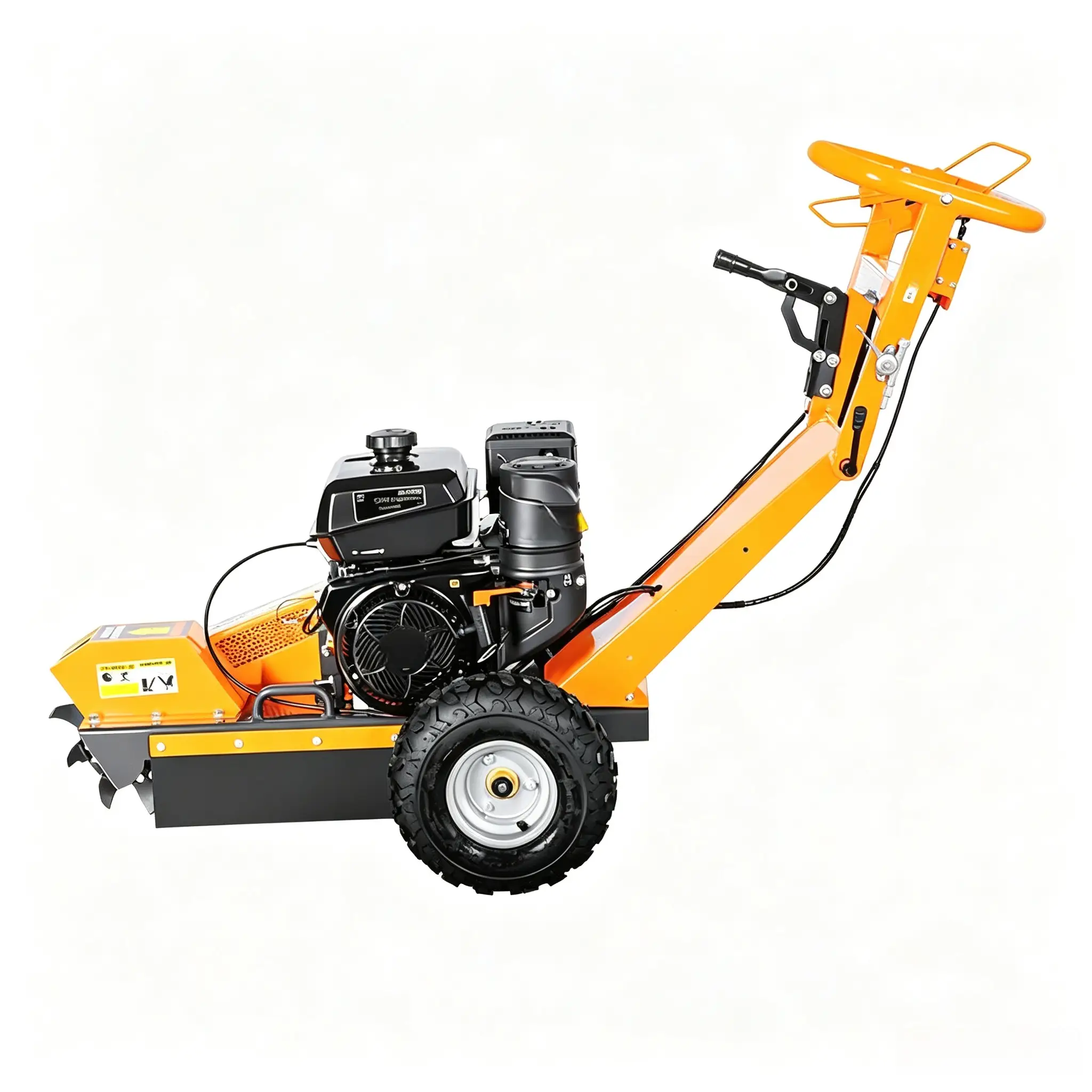

3.6L fuel tank portable stump grinder removing tree stumps and roots with gasoline power for landscaping applications
235mm deep underground stump cutter removing tree stumps and roots below ground level for landscaping and forestry maintenance

Model 15 4-Stroke Gasoline Stump Grinder

SKU ECO-SG15-Mob-Gas Categories , , , ,

Gasoline Stump Grinder
15HP 420cc gasoline stump grinder with single cylinder four stroke OHV engine and 9-tooth alloy steel cutting wheel, grinds underground and above-ground stumps into fine wood chips, hand push design suitable for landscaping, forestry, municipal green projects and outdoor stump removal operations.
Technical Data
Engine Power: 15HP Gasoline Engine
Engine Type: Single Cylinder Four Stroke OHV
Engine Displacement: 420cc
Fuel Tank Capacity: 3.6L
Oil Capacity: 0.6L
Cutting Wheel: 9-Tooth Alloy Steel Wheel
Cutting Wheel Thickness: 90mm
Grinding Depth Below Ground: 235mm
Grinding Height Above Ground: 600mm
Operation Type: Hand Push Control
Wheel System: Anti-slip Off-road Tires
Overall Size: 1700 × 750 × 1100mm
Net Weight: 112kg
Package Size: 1060 × 800 × 650mm
Gross Weight: 127kg
Structure: Heavy-duty Steel Welded Frame + Protective Guard
Applications
Tree Stump Removal, Tree Root Grinding, Garden Landscaping, Forestry Maintenance, Municipal Green Waste Processing, Outdoor Land Clearing

Let us tailor a solution for you.



    Get technical table

    Drive type

    Gasoline 4-Stroke

    Grinding Depth

    ≤9.25" Inch

    Power

    15 HP

    Grinding Height

    ≤23.6" Inch

    Make the grinding process easier.

    Hammer mill sawdust machine processing wood chips, branches, and biomass materials into fine sawdust for production use
    Wood hammer crusher machine processing logs, branches, and biomass materials into wood chips and fine particles
    Hammer crusher for biomass processing wood waste, branches, straw, and agricultural residues into fine biomass materials
    Rotary wood crusher machine processing logs, branches, and biomass waste into wood chips and reusable materials

    Features & Advantages

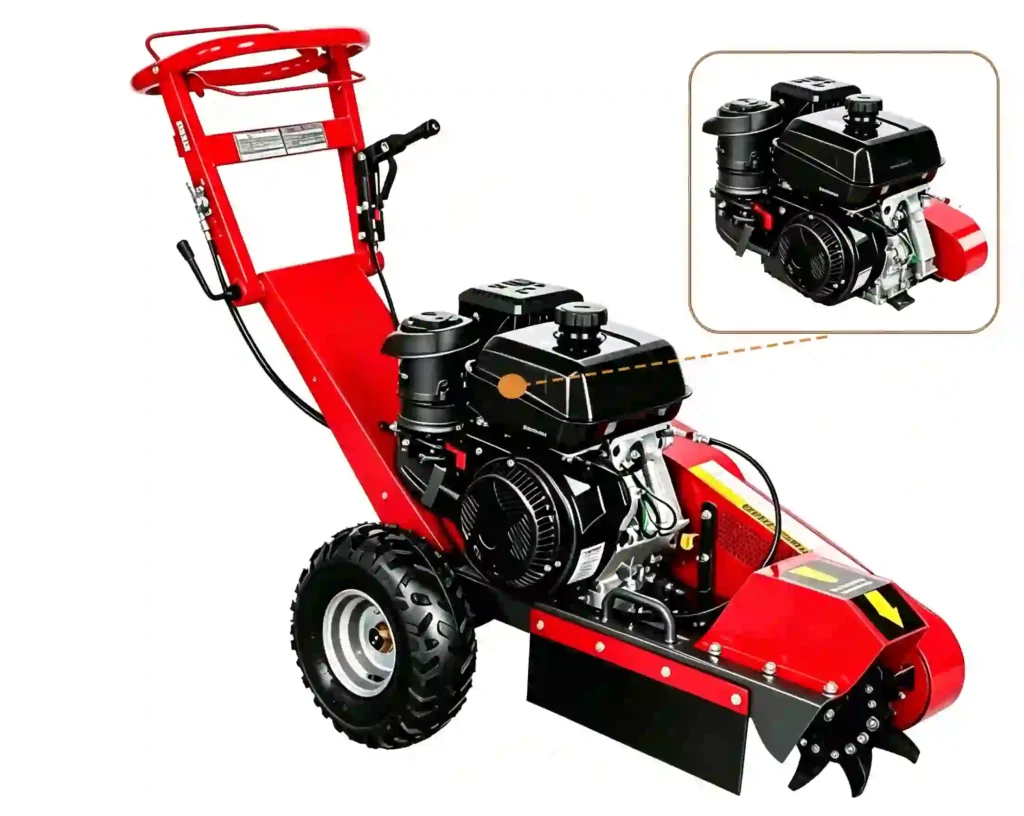

    15HP Heavy-Duty 4-Stroke Gasoline Engine

    This professional stump grinder is equipped with a 15HP single-cylinder four-stroke OHV gasoline engine, delivering strong and stable grinding torque for hardwood stumps of various diameters. The reliable recoil start system ensures smooth operation in off-grid outdoor sites, perfectly adapting to garden landscaping, municipal greening and orchard stump clearing projects.




    Blade wood crusher machine processing logs, branches, and biomass waste with sharp cutting blades for efficient crushing

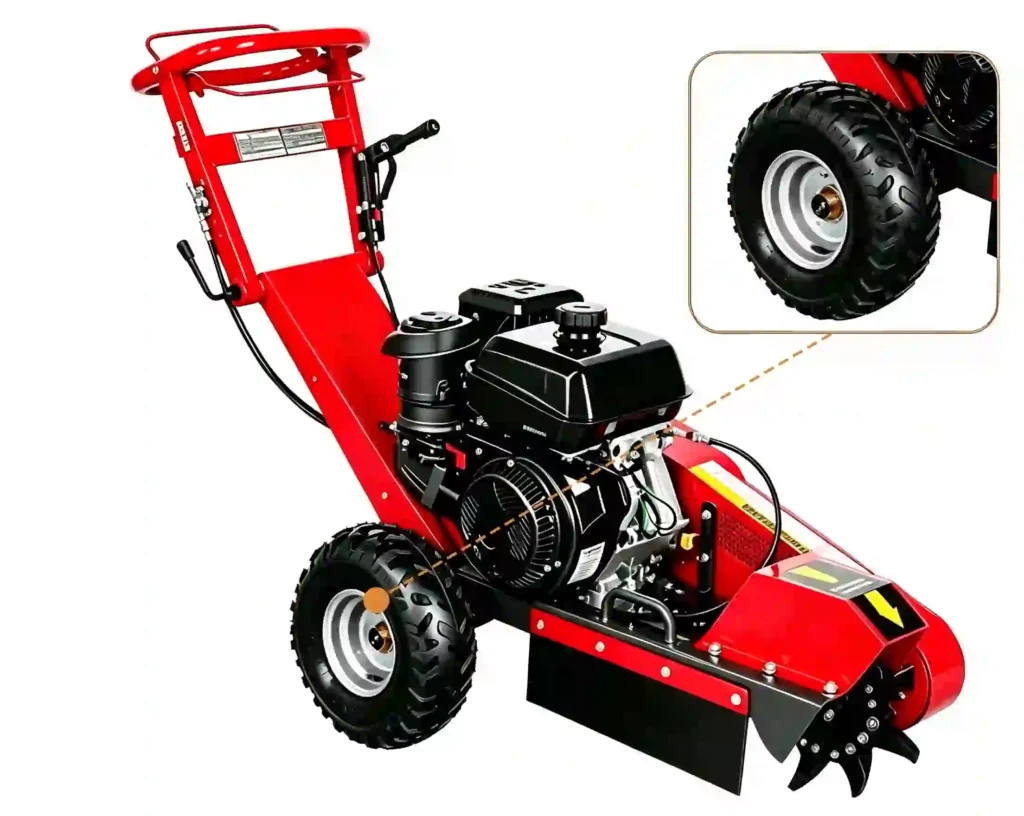

    Compact Hand-Push Chassis with All-Terrain Wheels

    Built with a heavy-duty steel welded frame and 16-inch deep-tread anti-slip rubber wheels, this portable stump grinder offers excellent maneuverability and terrain adaptability. It can easily access narrow yards, orchard rows and garden paths. One operator can push and transfer the machine flexibly, with manual disc brake for safe parking on slopes.





    Disc wood crusher machine processing branches, logs, and biomass waste with disc cutting system for efficient wood crushing

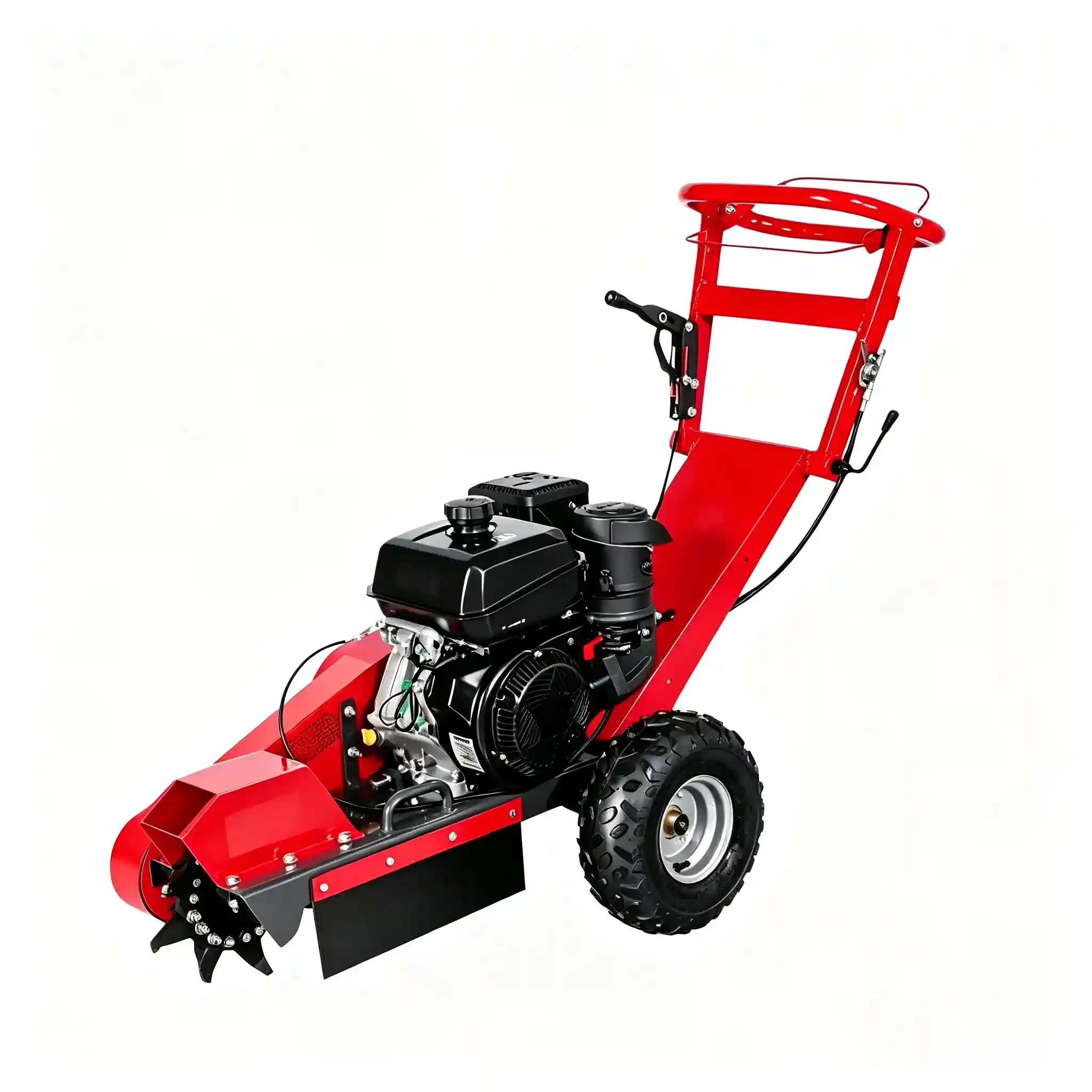

    Efficient Deep Grinding for Complete Stump Removal

    The machine grinds stumps 235mm below ground level in one pass, eliminating the need for labor-intensive digging and uprooting. The high-speed 9-tooth carbide cutting wheel quickly reduces whole stumps into fine wood chips that can be directly backfilled or reused as mulch, greatly cutting labor costs for stump removal projects.






    Rotor wood crusher processing logs, branches, and biomass waste with high-speed rotor crushing system for recycling

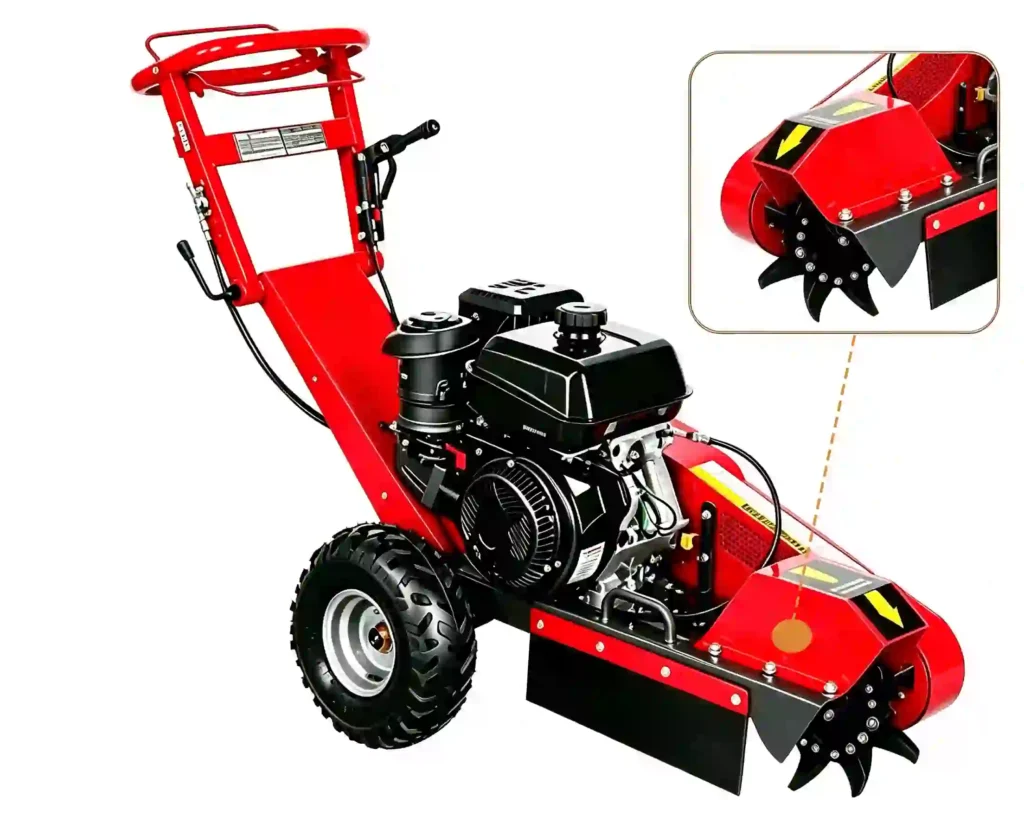

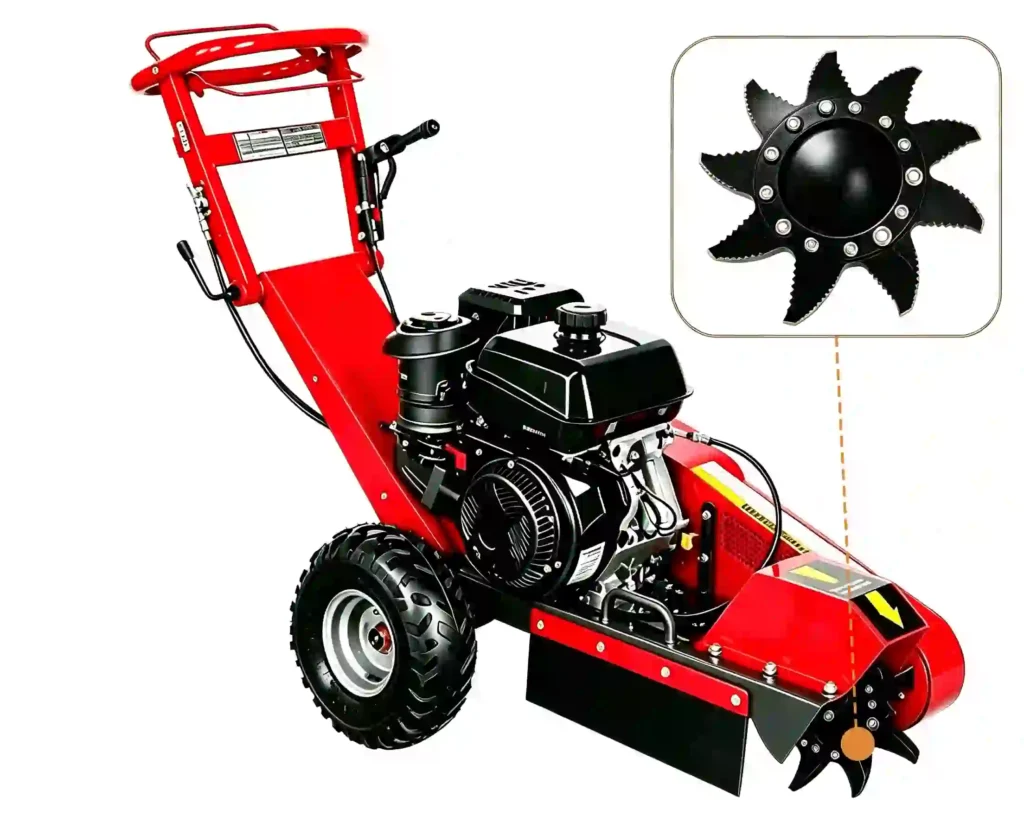

    Carbide-Tipped Cutting Wheel with Durable Performance

    The cutting assembly adopts 9 pieces of high-hardness tungsten carbide teeth mounted on a precision-balanced 350mm cutter wheel, with excellent wear resistance and impact toughness. The adjustable grinding depth allows flexible control, leaving flat and clean ground after operation with no residual protruding stumps.





    Knife type wood crusher processing branches, logs, and biomass materials with sharp knife cutting system for wood chips

    Specifications

    Model 15 4-Stroke Gasoline Stump Grinder
    Engine Type Single Cylinder 4-Stroke OHV Gasoline Engine
    Rated Power 15 HP (11 kW)
    Displacement 420cc
    Start Method Recoil Start (Electric Start Optional)
    Fuel Tank Capacity 3.6 L
    Oil Capacity 0.6 L
    Cutting Wheel 9-Tooth Tungsten Carbide Alloy Wheel
    Cutting Wheel Diameter 350 mm
    Cutting Wheel Thickness 90 mm
    Cutting Wheel Speed 2500 RPM
    Grinding Depth Below Ground ≤235 mm (≤9.25 inch)
    Grinding Height Above Ground ≤600 mm (≤23.6 inch)
    Working Efficiency 1-7 stumps/h (Depends on Stump Size and Hardness)
    Operation Type Hand Push Control
    Wheel System 2 × 16 inch Anti-slip Off-road Tires
    Brake System Manual Disc Brake
    Frame Structure Heavy-duty Steel Welded Frame + Protective Guard
    Overall Dimension 1700 × 750 × 1100 mm
    Net Weight 112 kg
    Package Size 1060 × 800 × 650 mm
    Gross Weight 127 kg
    Application Scenarios Stump Removal, Garden Landscaping, Orchard Maintenance, Forestry Tending, Land Clearing
    Core Advantages Portable Hand Push, Gasoline Self-powered, Deep Grinding, Carbide Durable Teeth, All-terrain Mobility
