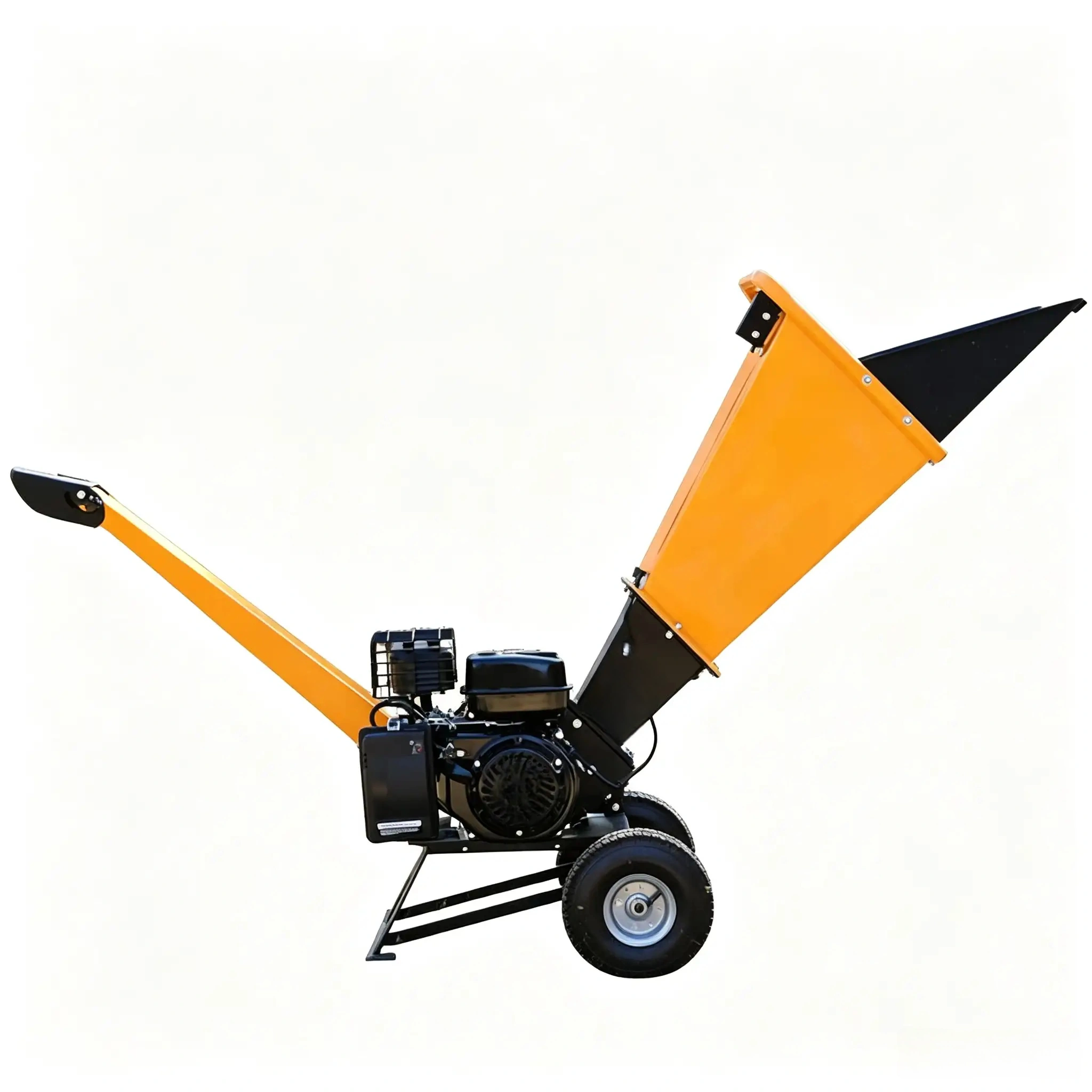

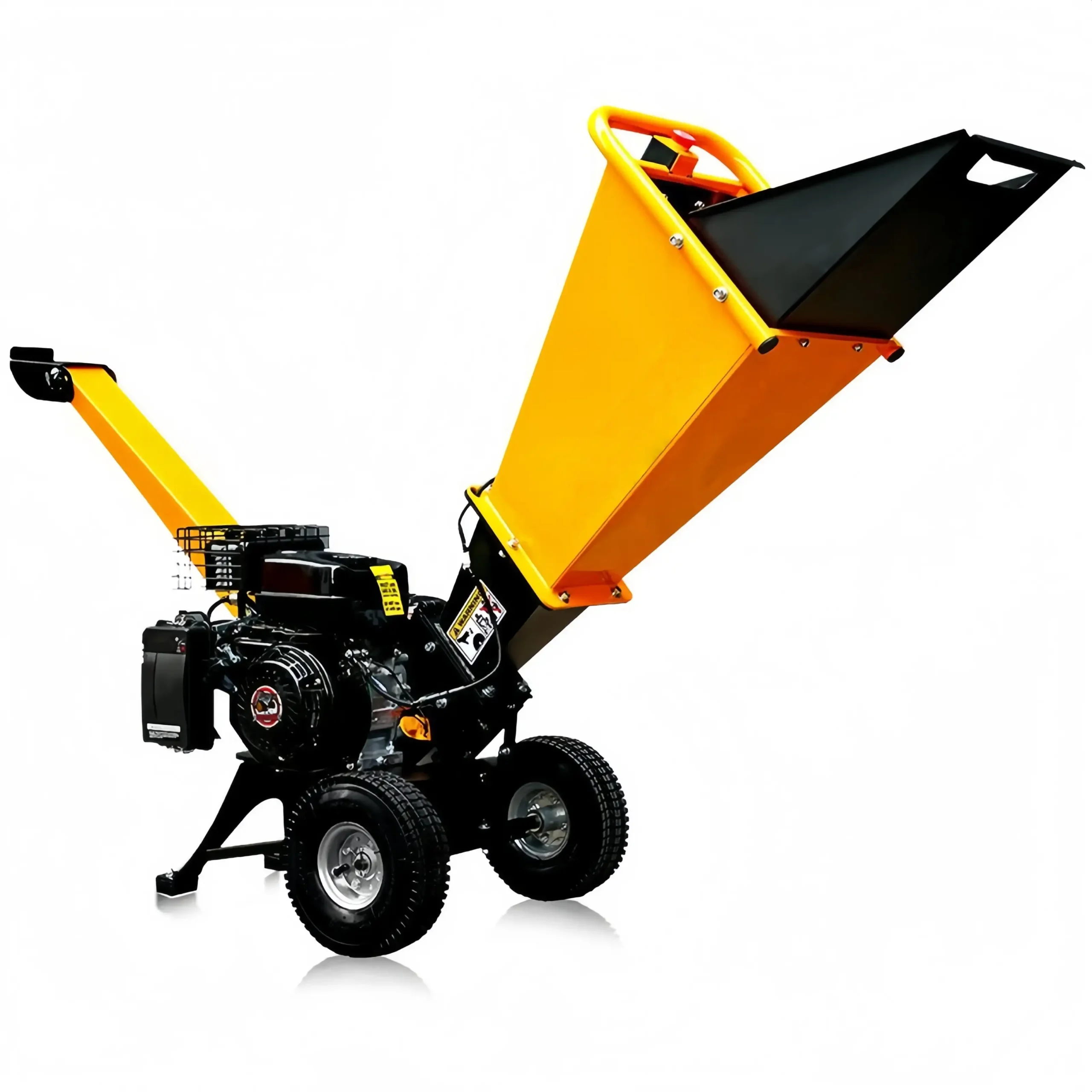

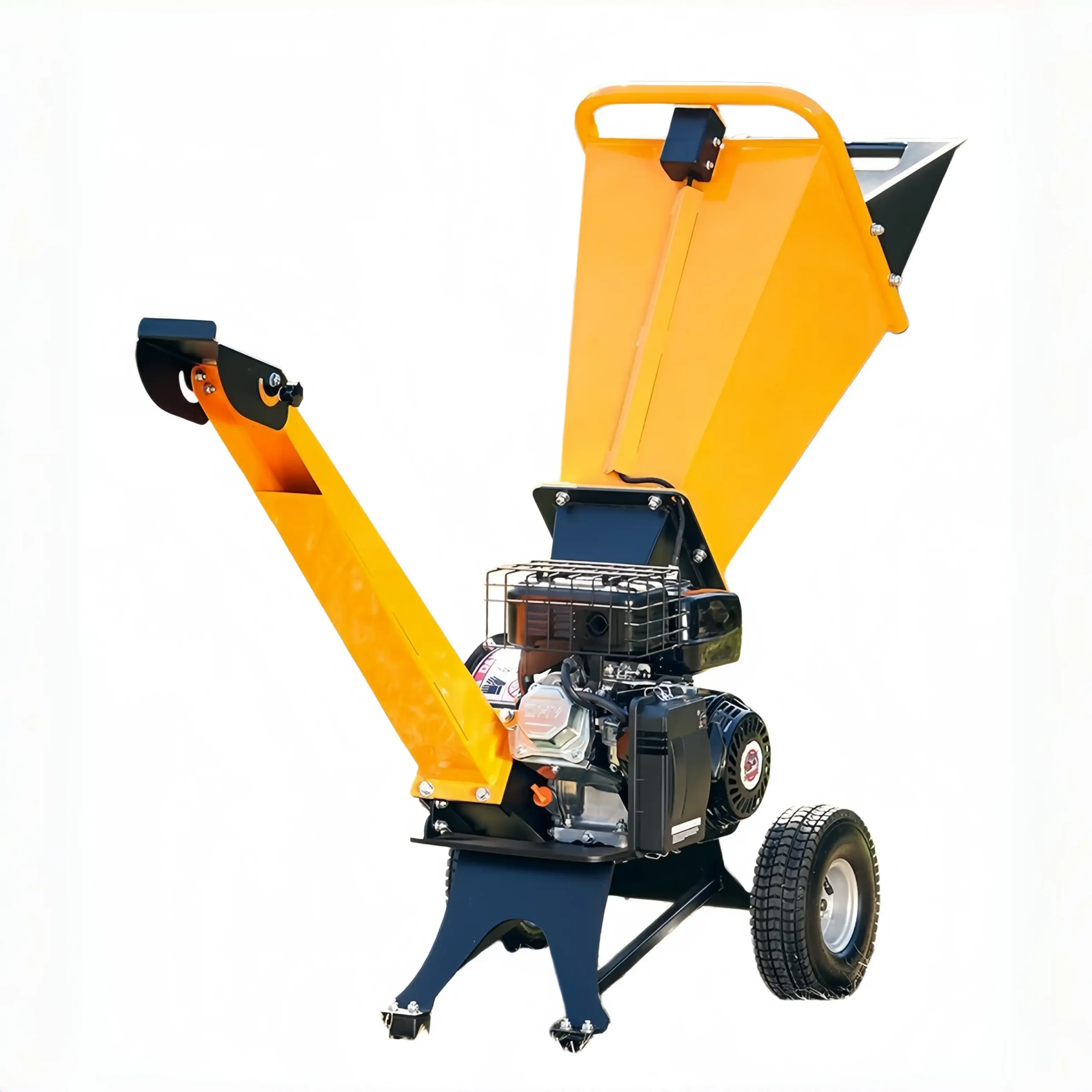

Model 65S Wheel-Type Diesel Wood Chipper Shredder

SKU ECO-65S-WHL-Dsl Categories , , , ,

Wood Chipper Shredder

Wood Chipper Shredder is designed for efficient branch and biomass waste processing. This Gas powered wheeled branch chipper for landscaping is suitable for garden branches, vines, straw, and small logs. The Portable wheel wood chipper with large feed chute provides easy movement and stable crushing performance.

Features

  • High efficiency
  • Diesel powered
  • Two-wheel push design
  • Dual feeding ports
  • Portable operation
  • Stable performance

Technical Data

Model: Wood Chipper Shredder

Power: 7 HP

Engine Displacement: 212 cc

Main Shaft Speed: 2800 r/min

Maximum Crushing Diameter: 2 inch (≈50 mm)

Maximum Branch Diameter: 80 mm

Capacity: 0.6–1.5 T/H

Overall Size: 1890 × 550 × 1230 mm

Drive Type: Diesel Engine

Moving Type: Two-Wheel Push

Feeding Structure: Side Flat Feed Port + Top Wide Feed Hopper

Discharge Structure: Side Extended Discharge Chute

Applicable Materials: Garden Branches, Vines, Straw, Small Logs

Frame Type: Lightweight Split Support Frame

Mobility Configuration: Solid Rubber Wheels

Operation Mode: Manual Push Movement + Mechanical Start/Stop Control

Applications

  • Landscaping
  • Forestry
  • Garden Waste Recycling
  • Biomass Processing
  • Agricultural Waste

System

Wood Chipper Shredder provides a portable crushing solution for branch recycling and biomass processing with flexible movement and efficient output.

Let us tailor a solution for you.



    Drive type

    Diesel Engine

    Branch Limit

    ≤3.15" Inch

    Power

    7 HP

    Capacity

    0.6–1.5 T/H

    Make the chipping & shredding process easier.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

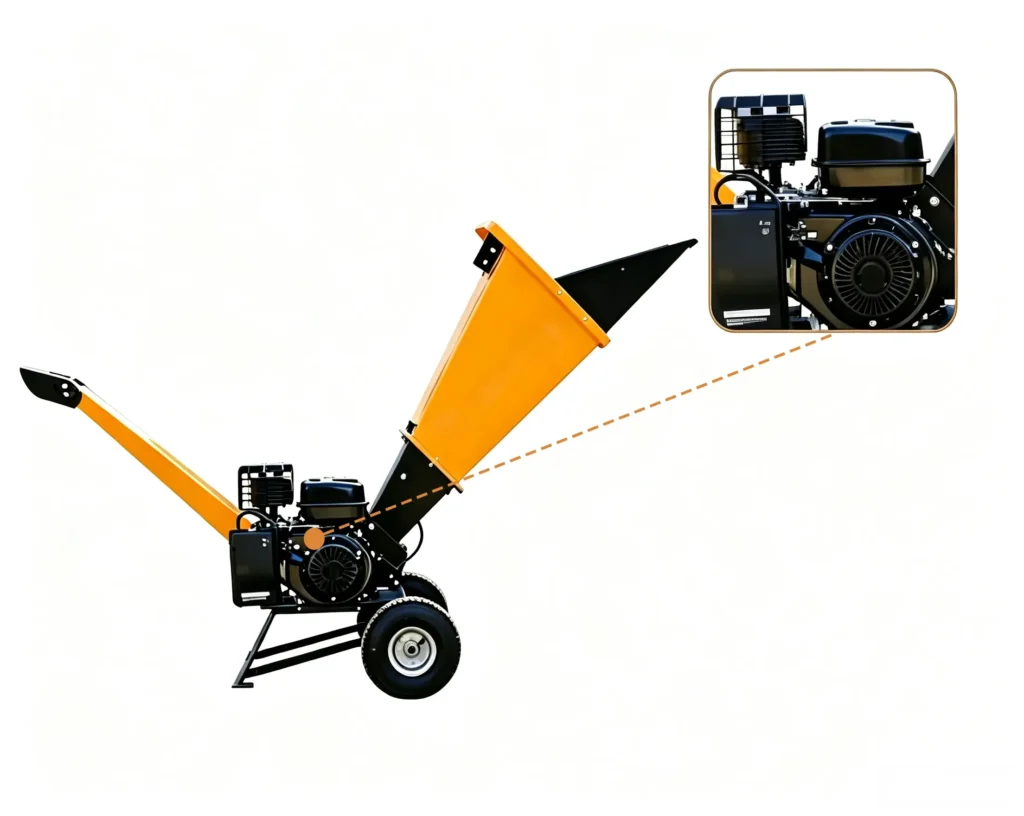

    4-Stroke Diesel Engine with Independent Power

    This portable wood chipper shredder is equipped with a high-efficiency 4-stroke diesel engine as an independent power source, with no power cord restriction and zero reliance on grid power. It delivers strong cutting torque with low fuel consumption and stable startup performance, suitable for private yards, small orchards and community green belts for decentralized green waste disposal.
    Sawdust crusher for organic waste processing converting wood waste and biomass residues into reusable materials

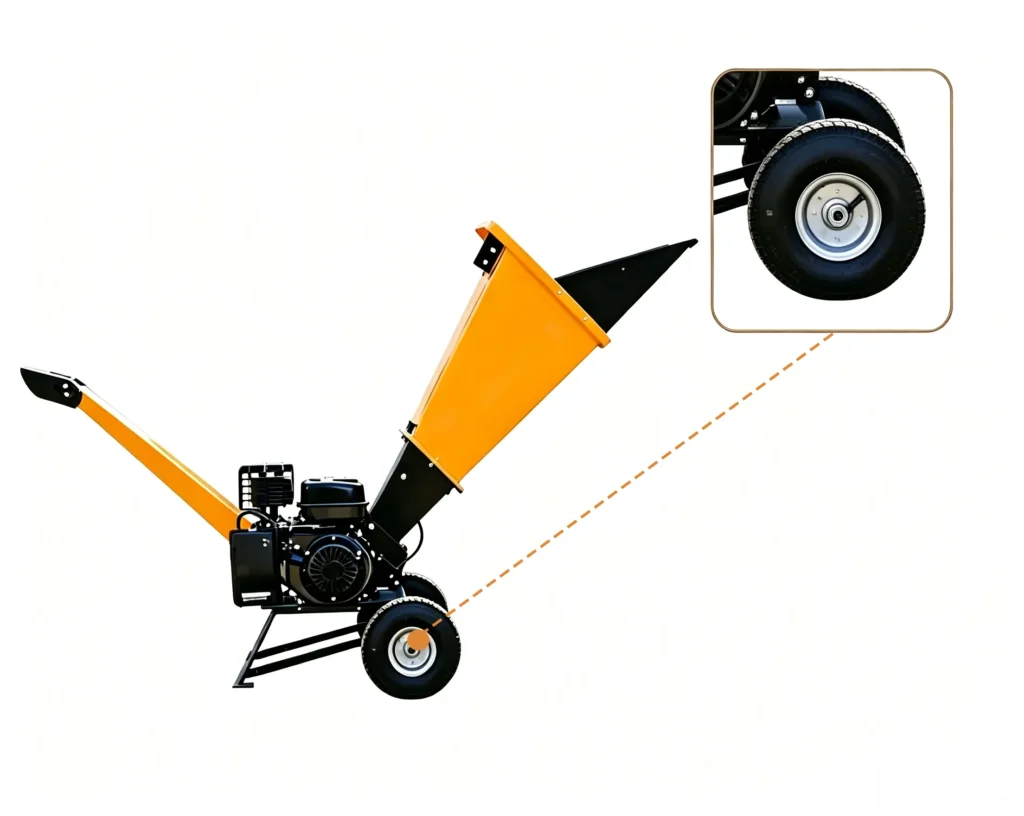

    Two-Wheel Mobile Chassis with Foldable Support

    Two large anti-slip rubber walking wheels reduce pushing resistance, allowing single-person light pushing on lawns, orchard rows and hard pavement. The foldable metal support stand keeps the machine stable during operation, and can be folded for compact storage to save space. The lightweight body is easy to load onto pickup trucks for short-distance cross-yard transport.
    Sawdust crusher for wood waste treatment processing timber waste, branches, and biomass residues into reusable materials

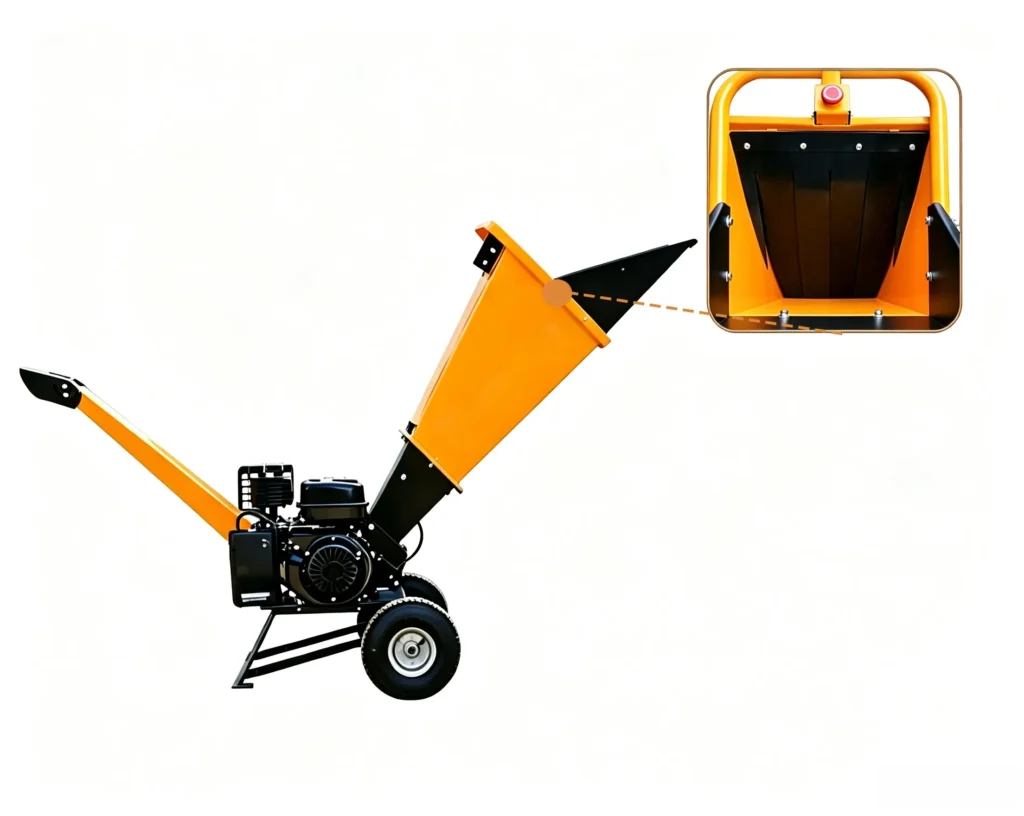

    Dual Feeding Ports for Efficient Versatile Processing

    Adopting a dual-port feeding structure with side flat feed port and top wide feed hopper, the machine adapts to materials of different shapes and sizes. Branches, shrub cuttings, vines and straw can be fed continuously without frequent shutdown. One-pass processing reduces garden waste volume by over 70%, greatly cutting waste hauling frequency and maintenance labor.
    Sawdust crusher for biomass recycling project processing wood waste and agricultural residues into reusable resources

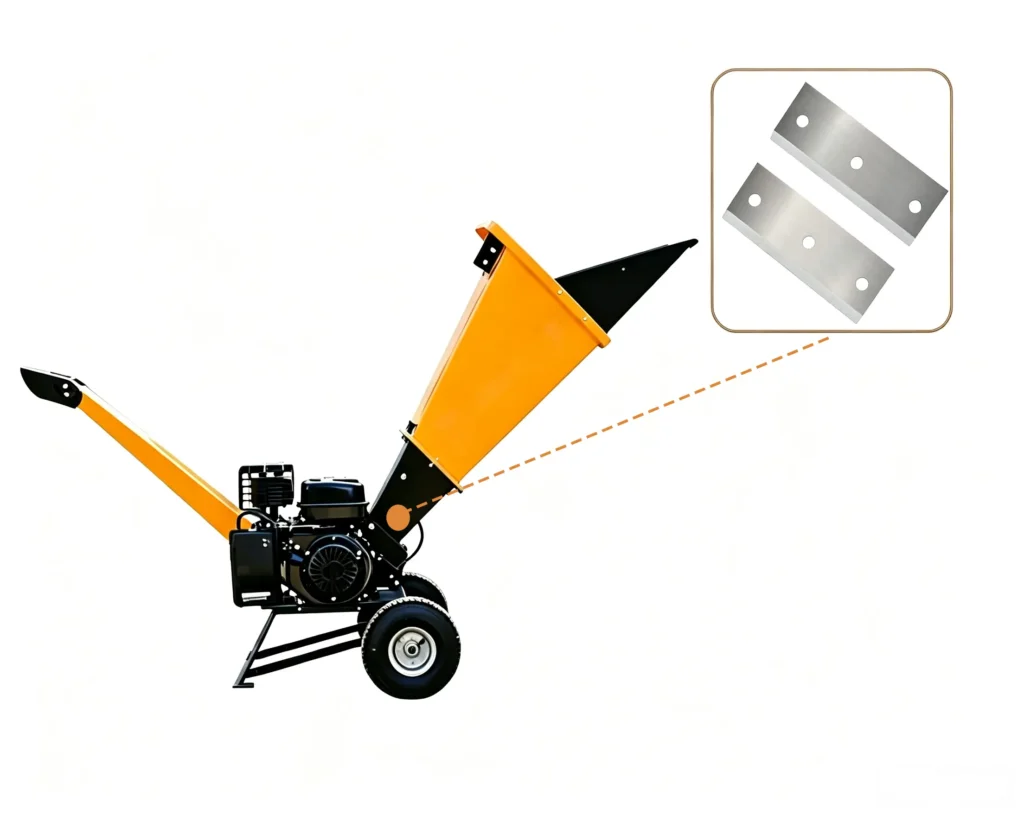

    Alloy Rotary Blade Chamber with Uniform Safe Output

    The fully enclosed cutting chamber is fitted with dynamically balanced thickened alloy rotary blades, featuring sharp cutting edge and excellent wear resistance, capable of processing hardwood branches and dry twigs. The compact structure effectively avoids material jamming, and shredded materials can be directly used as garden mulch or organic compost raw materials. The fully sealed bin prevents debris splashing to ensure operation safety.
    Sawdust crusher for green energy project processing biomass waste into renewable fuel materials

    Specifications

    Model 65S Wheel-Type Diesel Wood Chipper Shredder
    Drive Type Diesel Engine
    Engine Power 7 HP
    Displacement 212 cc
    Main Shaft Speed 2800 r/min
    Max Feed Diameter 80 mm (≤3.15" Inch)
    Processing Capacity 0.6–1.5 T/H
    Feeding Side Flat Port + Top Wide Hopper
    Discharge Side Extended Chute
    Mobility Two-Wheel Push, Solid Rubber Wheels
    Frame Lightweight Support Frame
    Overall Dimension 1890 × 550 × 1230 mm
    Applicable Materials Garden Branches, Vines, Straw, Small Logs
    Application Home Gardening, Landscaping, Waste Recycling, Biomass Processing
