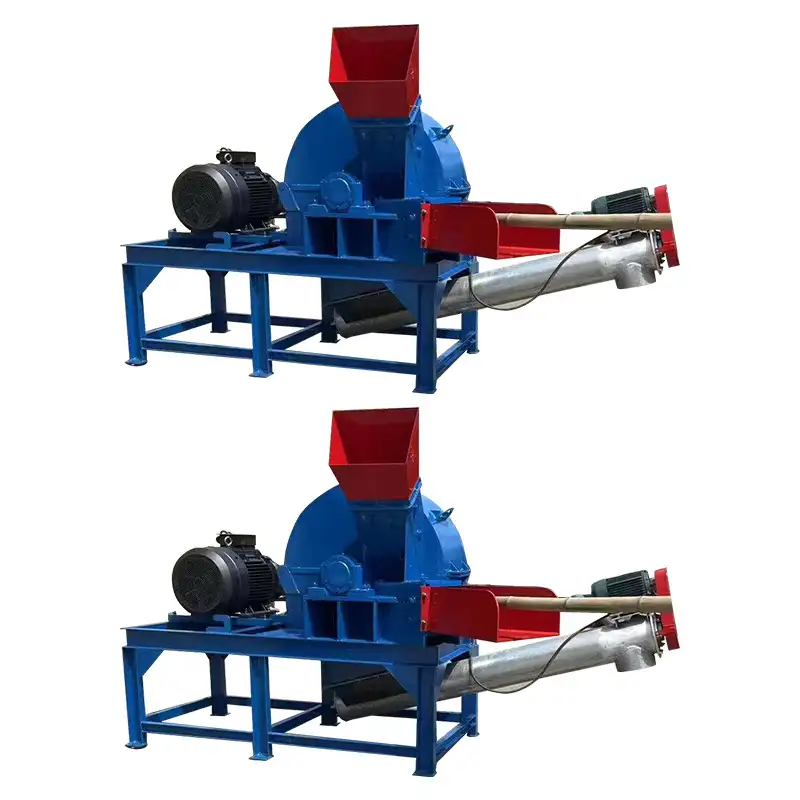

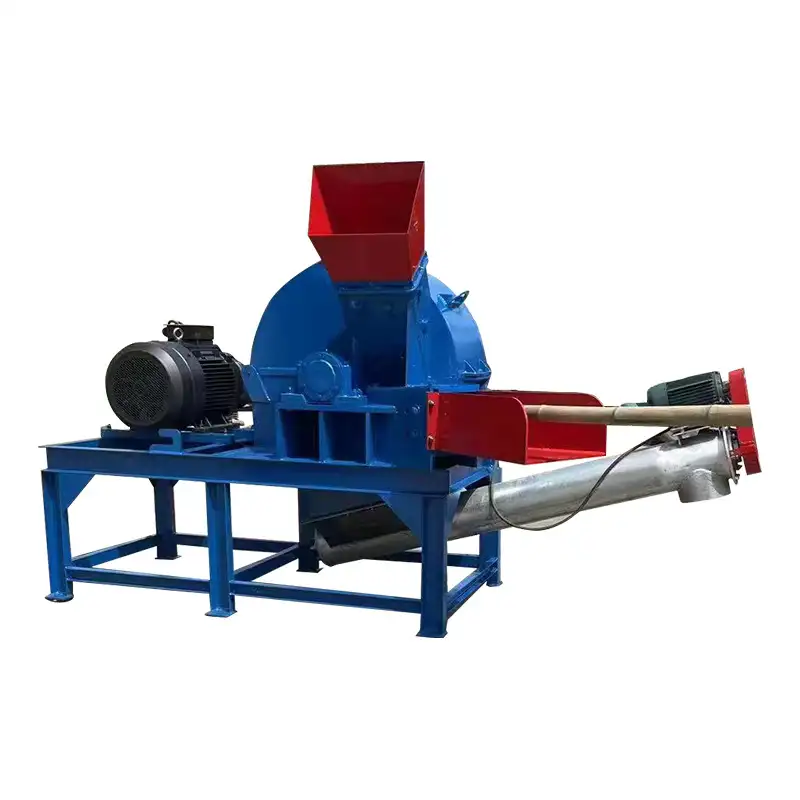

Model 800 Stationary Electric Bamboo Crusher

SKU ECO-800-Stat-Elec Categories , , , ,

Stationary Electric Bamboo Crusher
110kW stationary electric bamboo crusher with 4 alloy blades and heavy-duty steel frame fixed base, features double feed inlet design with low energy consumption for continuous industrial production, 5–10 T/H capacity with screw conveyor automatic output, applicable for bamboo, moso bamboo, bamboo poles, wood waste, timber scraps and shrub branches, suitable for bamboo processing factories, biomass pellet plants, paper industry and bamboo waste recycling.

Technical Data
Model: 800 Stationary Electric Bamboo Crusher
Drive Type: 110 kW Three-Phase Electric Motor
Main Shaft Speed: 1440 r/min
Blade Configuration: 4 Alloy Blades
Feed Inlet Size: 750 × 300 mm
Capacity: 5–10 T/H
Overall Size: 360 × 80 × 90 cm
Structure: Heavy-Duty Steel Frame Fixed Base
Discharge System: Screw Conveyor Automatic Output
Applicable Materials: Bamboo, Moso Bamboo, Bamboo Branches, Bamboo Chips, Bamboo Poles, Wood Waste, Timber Scraps, Shrub Branches

Applications
Bamboo Processing Factory, Biomass Pellet Plant, Paper Industry, Bamboo Waste Recycling, Garden Waste Processing

Let us tailor a solution for you.



    Get technical table

    Drive type

    Electric

    Max Feed Diameter

    ≤7.9" Inch

    Power

    37 KW

    Capacity

    3-5 t/H

    Make the crushing process easier.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

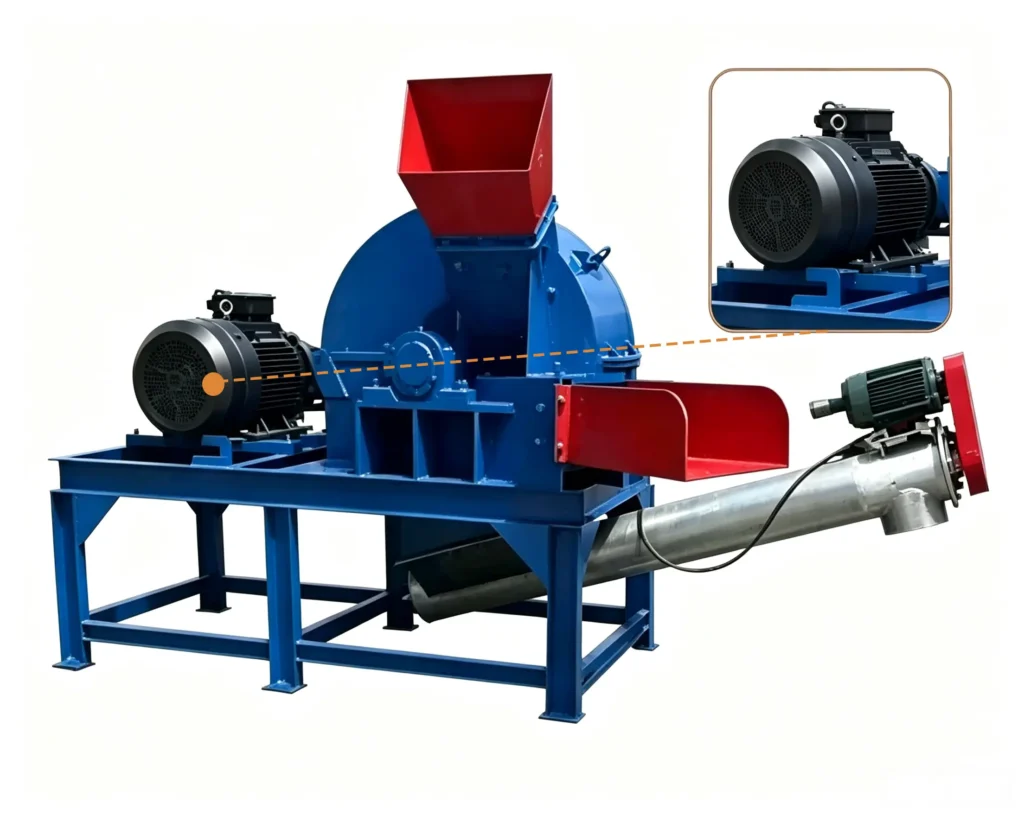

    High-Efficiency Industrial Three-Phase Motor Drive

    This medium bamboo crusher is equipped with a 37kW heavy-duty three-phase electric motor, delivering stable and strong cutting torque through belt drive transmission. It effectively handles hard moso bamboo and wood waste with strong overload resistance, supporting continuous operation for medium-scale bamboo processing and biomass production lines.

    Sawdust crusher for briquette production line processing biomass waste into high-quality briquette raw materials

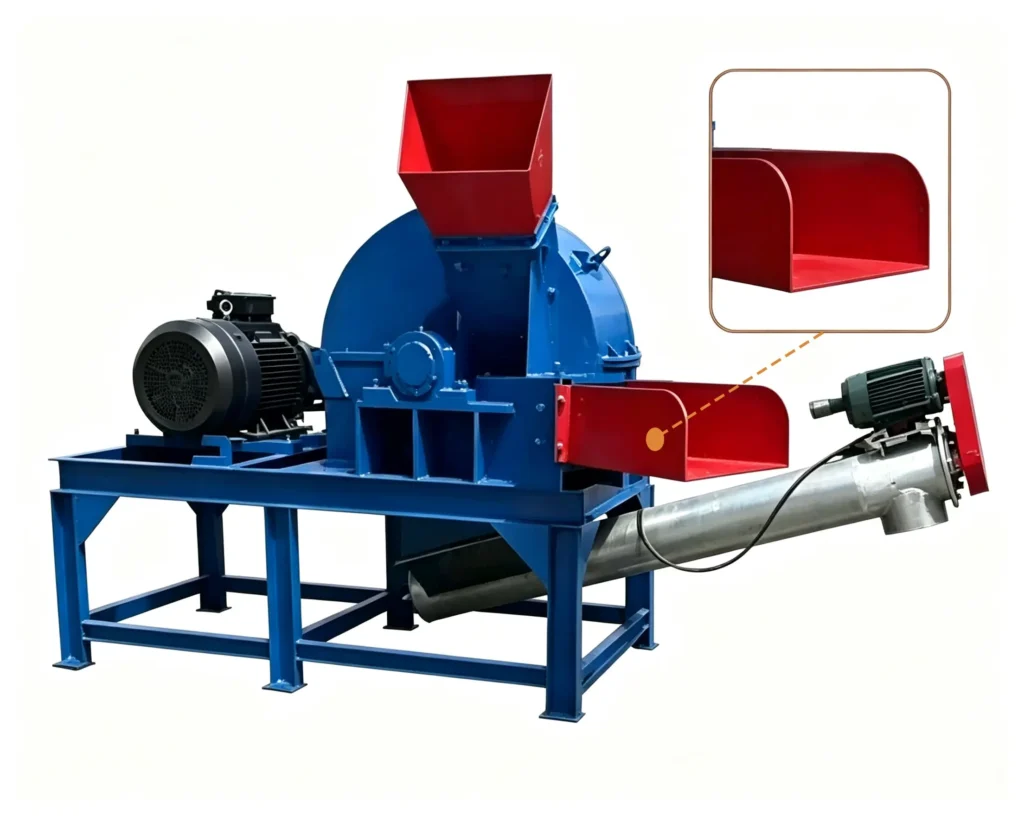

    Double Feed Inlet Design for Wide Material Adaptability

    The machine adopts a unique double feed inlet design: the top square hopper is suitable for short bamboo sections, bamboo scraps and wood waste, while the side horizontal feed port is designed for whole bamboo poles and long branch materials. The flexible feeding method adapts to diverse raw material forms, improving overall processing efficiency.

    Sawdust crusher for industrial recycling processing wood waste, pallets, and biomass residues into reusable materials

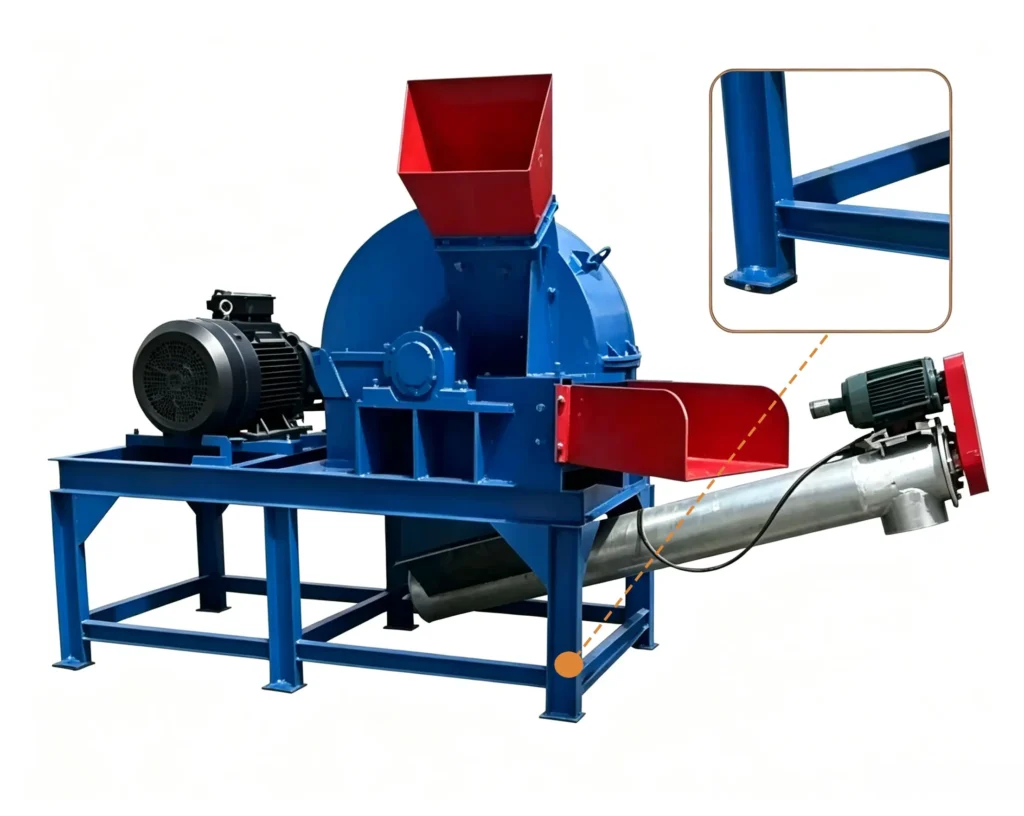

    Heavy-Duty Fixed Steel Frame for Stable Operation

    Built with thickened steel welded fixed frame, the machine features excellent structural rigidity and vibration resistance. The four-leg support structure can be fixed on the workshop ground by anchor bolts, ensuring stable and low-noise operation under long-term load, suitable for fixed factory processing scenarios.

    Sawdust crusher for biomass factory processing wood waste and agricultural residues into renewable biomass materials

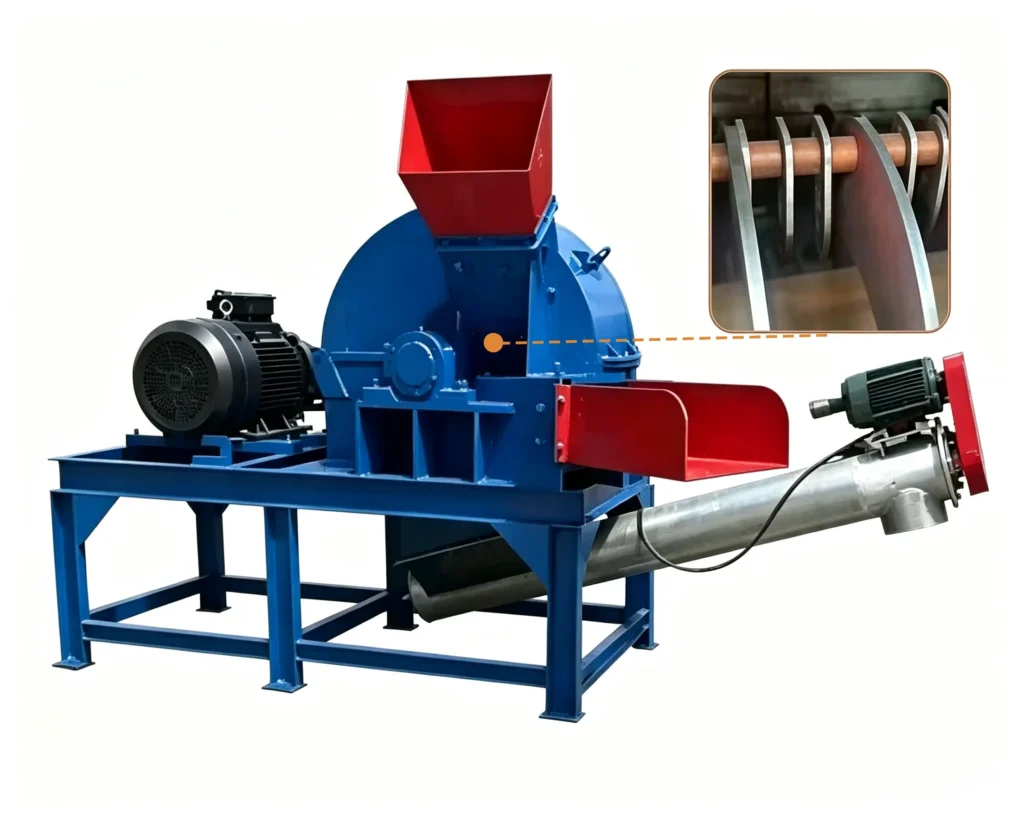

    Alloy Blade Cutting + Screw Conveyor Automatic Discharge

    The core cutting chamber is fitted with 4 pieces of high-strength alloy steel blades, specially optimized for bamboo fiber cutting with sharp and wear-resistant performance. The matched screw conveyor realizes continuous automatic discharge, which can be directly connected with subsequent processing equipment to form a complete production line, reducing manual operation intensity.



    Sawdust crusher for wood pellet factory processing wood waste into fine biomass pellet raw materials

    Specifications

    Model 800 Stationary Electric Bamboo Crusher
    Main Motor Power 37 kW Three-Phase Electric Motor
    Rated Voltage 380V, 50Hz, Three Phase
    Transmission Type Belt Drive
    Cutter Disc Diameter 800 mm
    Main Shaft Speed 1440 r/min
    Blade Configuration 4 pcs Alloy Steel Blades
    Maximum Feed Diameter ≤200 mm (≈7.9" Inch)
    Feed Inlet Form Double Feed Inlets (Top Hopper + Side Horizontal Feed)
    Processing Capacity 3–5 T/H
    Output Chip Size 5–30 mm
    Discharge System Screw Conveyor Automatic Output
    Frame Structure Heavy-duty Steel Welded Fixed Frame
    Overall Dimension 2600 × 1100 × 1700 mm
    Machine Weight 1300 kg
    Applicable Materials Bamboo Poles, Moso Bamboo, Bamboo Branches, Wood Waste, Timber Scraps, Shrub Branches
    Application Fields Bamboo Processing, Biomass Pellets, Paper Industry, Bamboo Waste Recycling, Organic Fertilizer
