Model 6150 Towable Diesel Wood Crusher

SKU ECO-6150-Mob-Dsl Categories , , , ,

Towable Diesel Wood Crusher
6–10t/h towable diesel wood crusher with automatic chain plate feeding and alloy steel flying blades + bottom blade, adopts double axle towable mobile chassis with hydraulic support legs, 10–80mm adjustable output size, no external power supply required, suitable for municipal landscaping waste, medium forestry farms, biomass processing stations and wood recycling.
Technical Data
Drive Type: Diesel Engine
Feeding System: Automatic Chain Plate Feeding
Feed Inlet Size: 650 × 450 mm
Blade Configuration: Alloy Steel Flying Blades + Bottom Blade
Main Shaft Speed: 960 r/min
Capacity: 6–10 T/H
Output Size: 10–80 mm Adjustable
Chassis Type: Double Axle Towable Mobile Chassis
Support System: Hydraulic Support Legs
Structure: Heavy-Duty Manganese Steel Welded Frame
Control System: Integrated Electric Control Unit
Safety System: Overload Protection + Emergency Stop
Discharge System: High-Level Rotatable Discharge Chute
Applications
Municipal Landscaping Waste, Medium Forestry Farms, Biomass Processing Stations, Wood Recycling, Garden Branch Crushing, Biomass Fuel Preparation

Let us tailor a solution for you.



    Get technical table

    Drive type

    Diesel Engine

    Max Feed Diameter

    ≤17.7" Inch

    Power

    80-120 HP

    Capacity

    6–10 t/H

    Make mobile wood crushing efficient and labor-saving

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

    Heavy-Duty Diesel Engine for Independent Outdoor Operation

    This towable wood crusher is equipped with an 80-120HP industrial diesel engine, delivering strong and stable crushing torque for long-time outdoor continuous operation. The self-contained power system requires no external power supply, perfectly adapting to remote forest farms, highway green belts and municipal landscaping sites without grid access.

    Tree waste crusher processing tree branches, logs, trunks, and forestry residues into reusable biomass materials

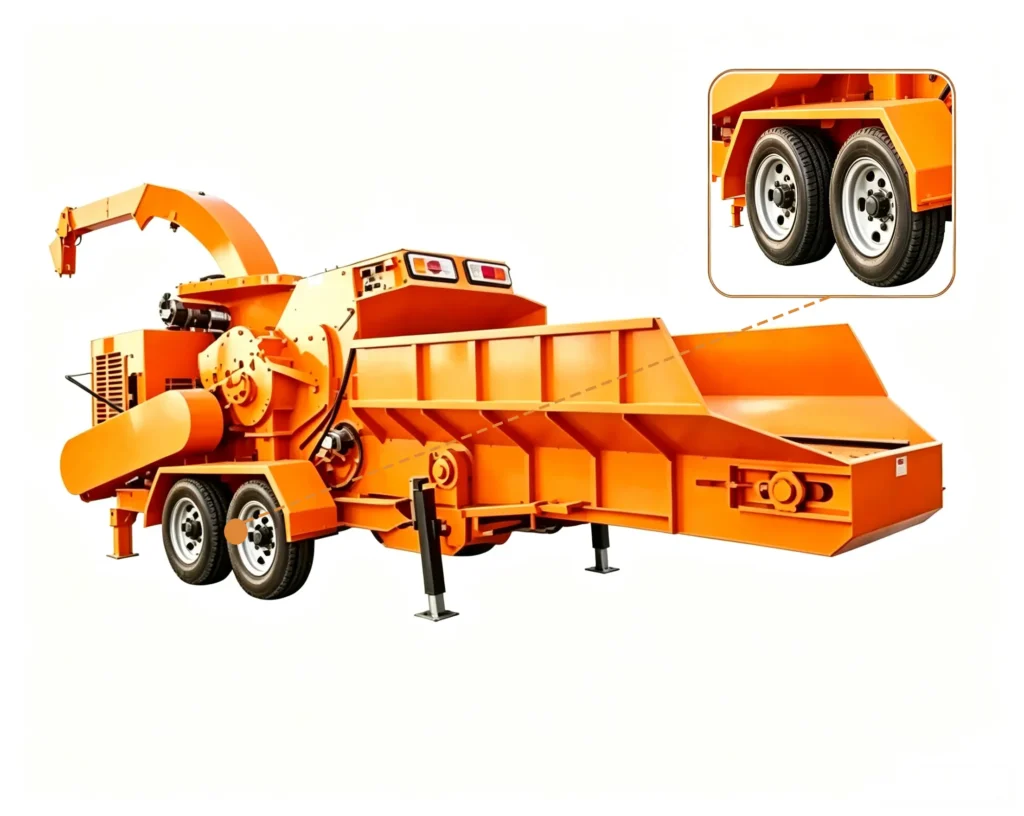

    Double Axle Towable Chassis with Hydraulic Support Legs

    Built on a heavy-duty dual-axle trailer chassis with standard towing interface, the machine can be towed by trucks or tractors for fast cross-site transfer. Hydraulic support outriggers provide stable leveling and vibration damping during operation, ensuring smooth and safe performance in multi-point mobile processing projects.



    Forestry waste crusher processing branches, logs, tree waste, and biomass materials into reusable particles efficiently

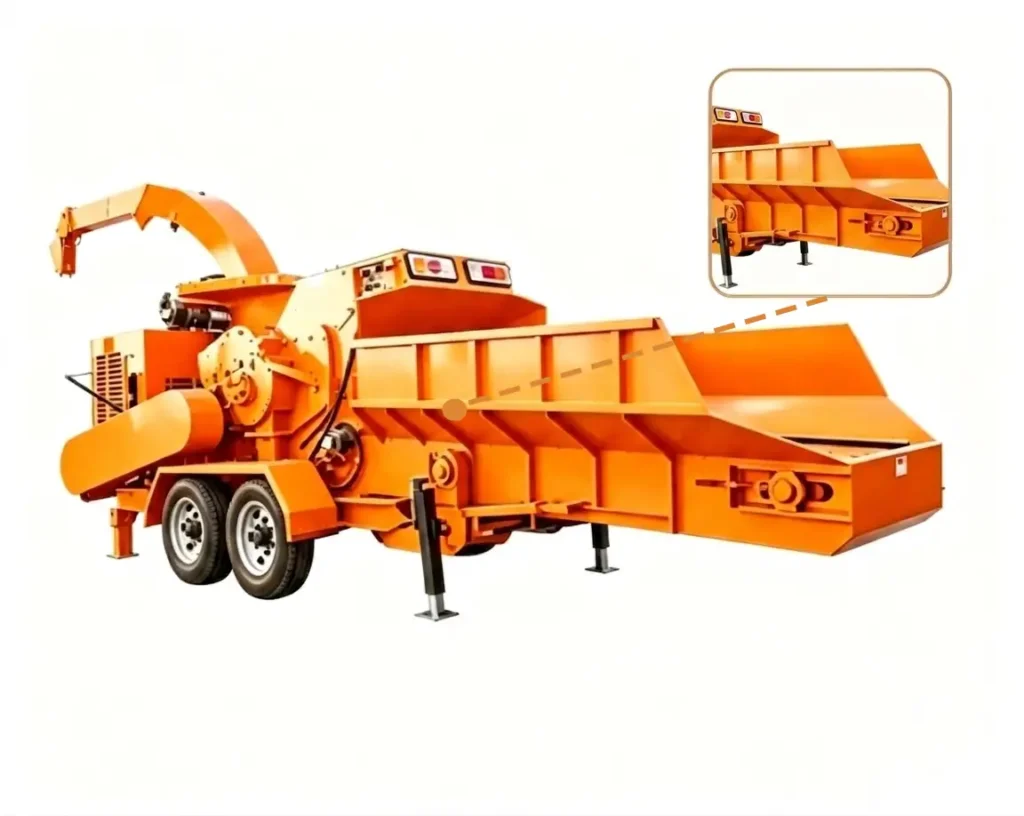

    Automatic Chain Plate Feeding for High Throughput Operation

    The automatic chain plate feeding system realizes steady continuous material conveying without manual pushing, greatly reducing labor intensity and improving operation safety. It is equipped with overload protection and auto reverse function to prevent material jamming, ensuring uninterrupted high-efficiency crushing for large-scale wood waste disposal.

    Wood recycling crusher machine processing wood waste, branches, pallets, and biomass materials into reusable resources

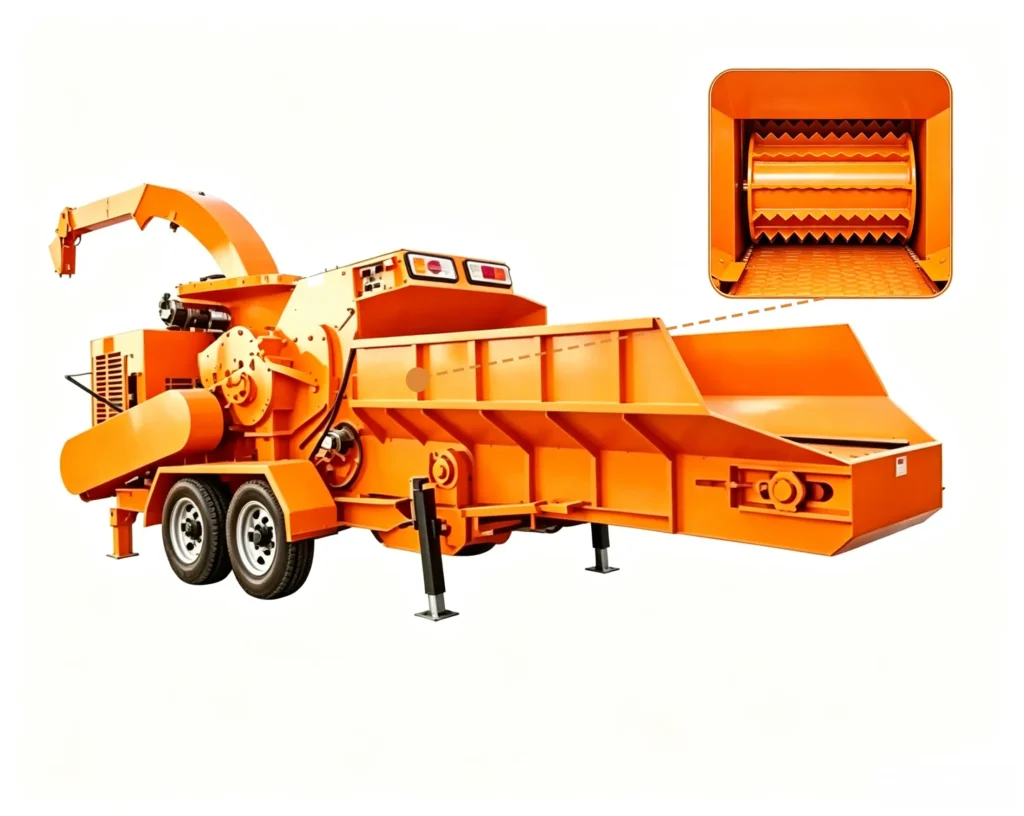

    Alloy Blade Crushing System with Adjustable Output

    The core crushing chamber adopts alloy steel flying blades plus bottom blade structure, with excellent wear resistance and impact strength. The finished particle size is adjustable from 10mm to 80mm via replaceable screens. The 360° rotatable high-level discharge chute supports direct loading into transport trucks, improving discharging flexibility.



    Wood waste grinding machine processing wood scraps, branches, chips, and biomass waste into reusable materials

    Specifications

    Model 6150 Towable Diesel Wood Crusher
    Drive Type Diesel Engine Drive
    Engine Power 80–120 HP (60–90 kW)
    Start Method Electric Start
    Fuel Tank Capacity 120 L
    Feeding System Automatic Chain Plate Feeding
    Feed Inlet Size 650 × 450 mm
    Maximum Feed Diameter ≤450 mm (≤17.7 inch)
    Feed Control Auto Forward/Reverse with Overload Protection
    Blade Configuration Alloy Steel Flying Blades + Bottom Blade
    Main Shaft Speed 960 r/min
    Processing Capacity 6–10 T/H (Depends on Material and Moisture)
    Output Size 10–80 mm Adjustable (Replaceable Screen)
    Discharge System 360° Rotatable High-Level Discharge Chute
    Chassis Type Double Axle Towable Chassis
    Support System Hydraulic Support Legs
    Towing Speed ≤25 km/h
    Structure Heavy-duty Manganese Steel Welded Frame
    Overall Dimension 4200 × 1800 × 2600 mm
    Machine Weight 3200 kg
    Applicable Materials Logs, Branches, Wood Scraps, Bamboo, Biomass Waste
    Application Fields Municipal Landscaping, Forestry Farms, Biomass Processing, Wood Recycling
    Core Advantages Towable Mobile Design, Automatic Feeding, Adjustable Output, Stable Diesel Power, High Efficiency
