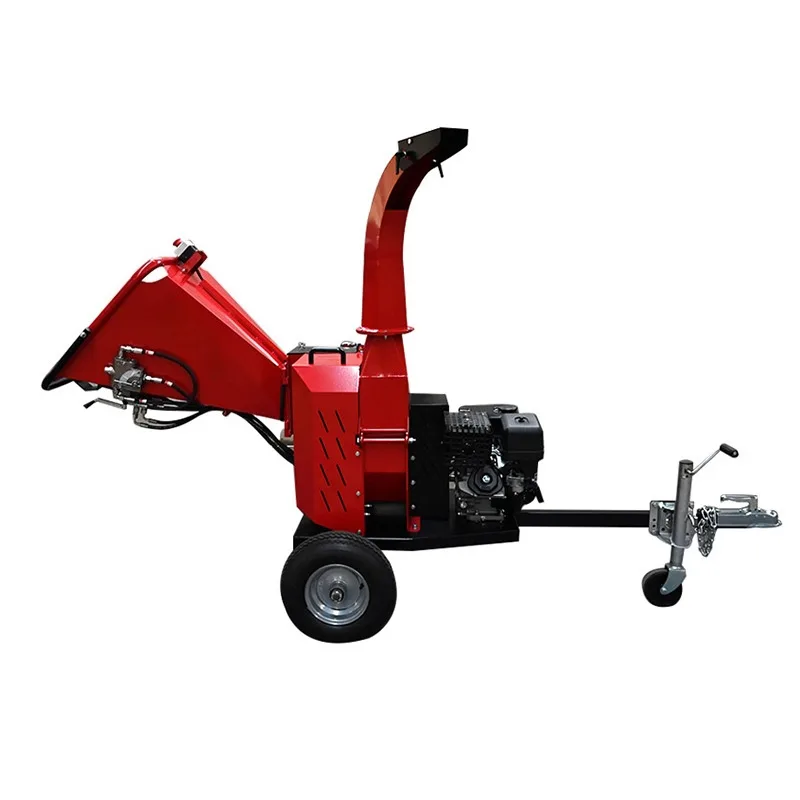

Towable disc type branch chipper processing tree branches and wood waste with mobile towing design for outdoor recycling

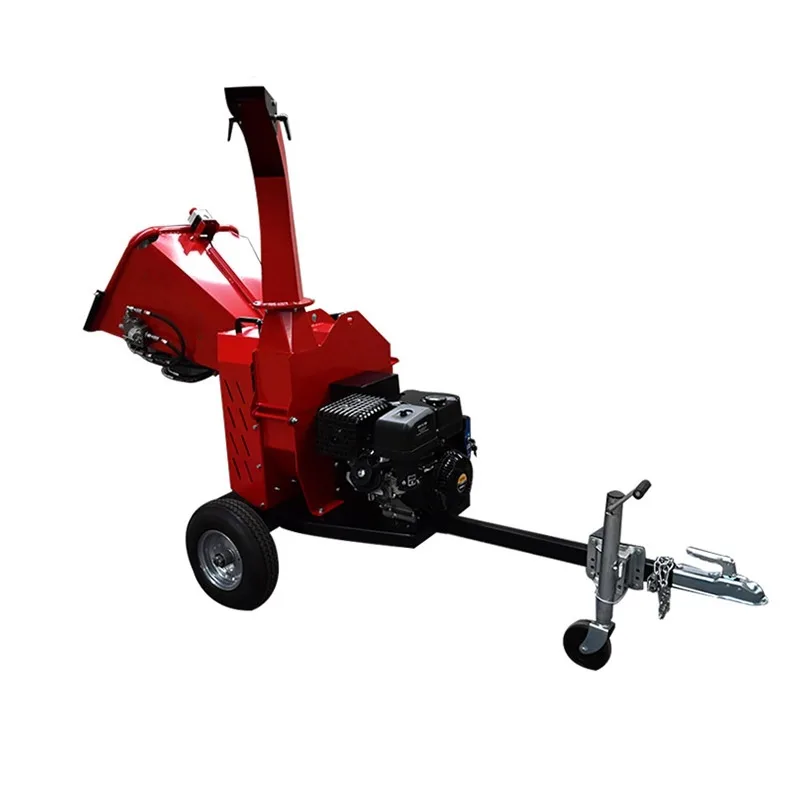

Hydraulic feeding trailer mount wood chipper processing logs and branches with mobile trailer design for forestry operations

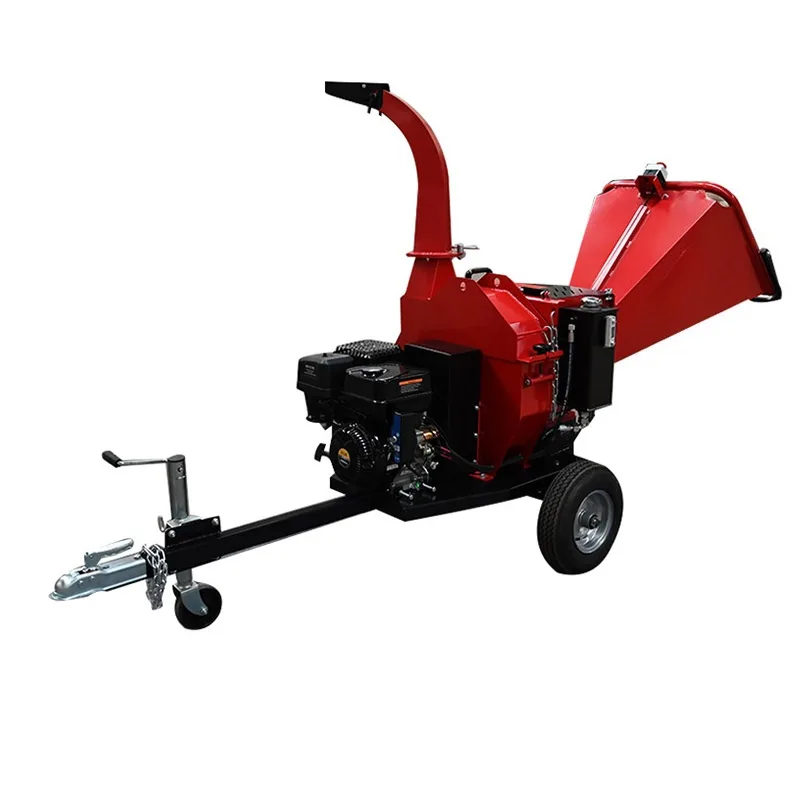

2 moving blades 10 hammers chipper processing branches and wood waste with combined cutting and hammer crushing system

Model 155 Hydraulic Auto Feed Disc Wood Chipper

SKU ECO-155-Tow-Gas Categories , , , ,

Hydraulic Auto Feed Disc Wood Chipper

Hydraulic Auto Feed Disc Wood Chipper is designed for efficient branch and wood waste processing. This 15HP 130mm heavy duty wood shredder adopts a disc cutting system with hydraulic automatic feeding for continuous wood crushing operations. The 11kW belt drive branch crushing machine is suitable for forestry, landscaping, biomass recycling, and organic material processing.

Features

  • Gasoline engine powered
  • Hydraulic automatic feeding system
  • Disc cutting structure
  • Heavy-duty blade system
  • Towing mobile design
  • Continuous operation capability

Technical Data

Model: Hydraulic Auto Feed Disc Wood Chipper

Engine Power: 15HP Gasoline Engine

Power Output: 11kW

Engine Type: Single Cylinder Four Stroke Air-cooled Engine

Engine Speed: 3600rpm

Drive System: Centrifugal Clutch + Belt Drive

Cutting Drum Speed: 2000rpm

Cutting System: 2 Moving Blades + 1 Fixed Blade + 10 Hammer Blades

Maximum Processing Diameter: 130mm

Feeding System: Hydraulic Auto Feed System

Wheel System: 4.8-8 Wear-resistant Rubber Tires

Operation Type: Towing Mobile Operation

Structure: Heavy-duty Steel Welded Frame

Overall Size: 2885 × 1030 × 1735mm

Weight: 301kg

Applications

  • Forestry Branch Processing
  • Garden Waste Recycling
  • Tree Branch Chipping
  • Biomass Material Production
  • Organic Fertilizer Production
  • Landscape Mulch Production

Let us tailor a solution for you.



    Drive type

    Gasoline Engine

    Max Branch Diameter

    ≤5.12" Inch

    Power

    15HP

    Capacity

    2-3 t/H

    Make the chipping process easier.

    Wood crusher exporter supplying industrial wood crushing machines for logs, branches, and biomass waste processing worldwide
    Buy wood crusher machine for processing logs, branches, and biomass waste with efficient industrial crushing performance
    Wood crusher machine quote request for industrial wood processing equipment used for logs, branches, and biomass waste
    Wood crusher machine supplier China providing industrial wood crushing equipment for logs, branches, and biomass waste processing
    Wood crusher manufacturer China producing industrial wood crushing machines for logs, branches, and biomass waste recycling
    China wood crusher machine processing logs, branches, and biomass waste with efficient industrial crushing performance
    Wood crusher machinery processing logs, branches, and biomass waste with efficient crushing performance for industrial applications
    Wood crusher system processing logs, branches, and biomass waste with complete crushing solutions for industrial applications

    Features & Advantages

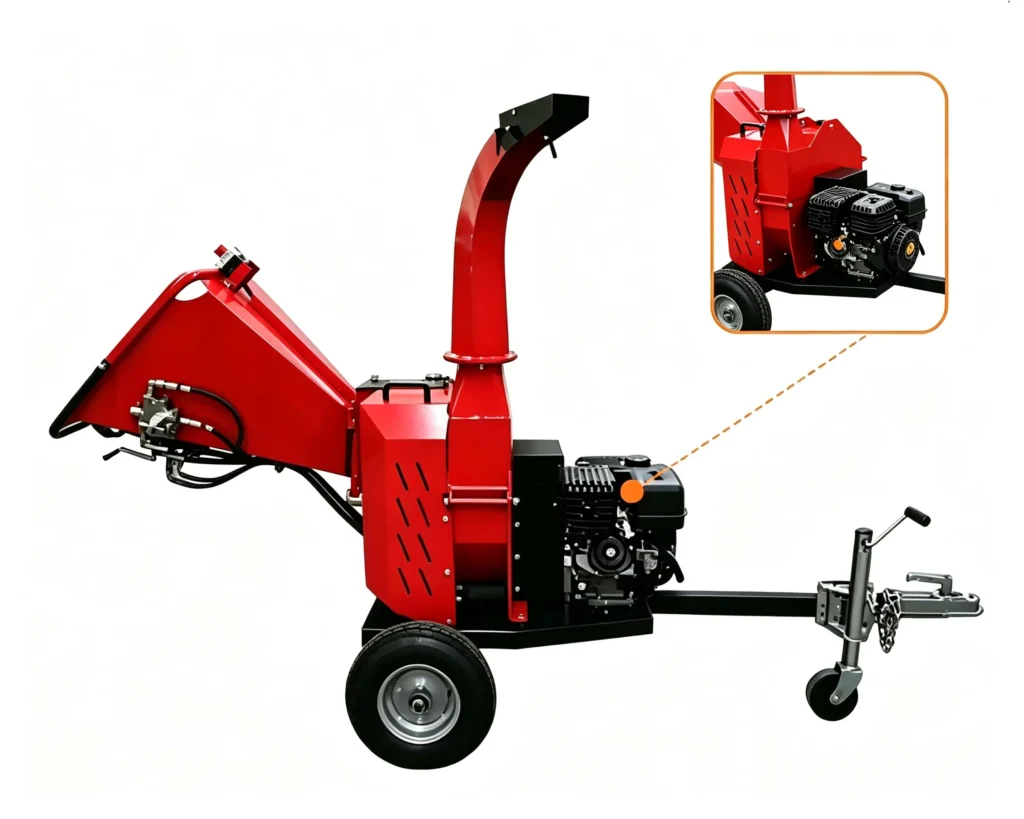

    High-Power Gasoline Engine Drive for Industrial Wood Chipping

    Equipped with a heavy-duty four-stroke gasoline engine, this commercial wood chipper delivers consistent high torque output to handle thick tree branches and hardwood materials with ease. The robust power system ensures stable continuous operation under long-hour workloads, ideal for landscaping, arborist and farm waste management projects.



    Biomass wood crusher processing wood waste, branches, and agricultural residues into biomass materials for renewable energy production

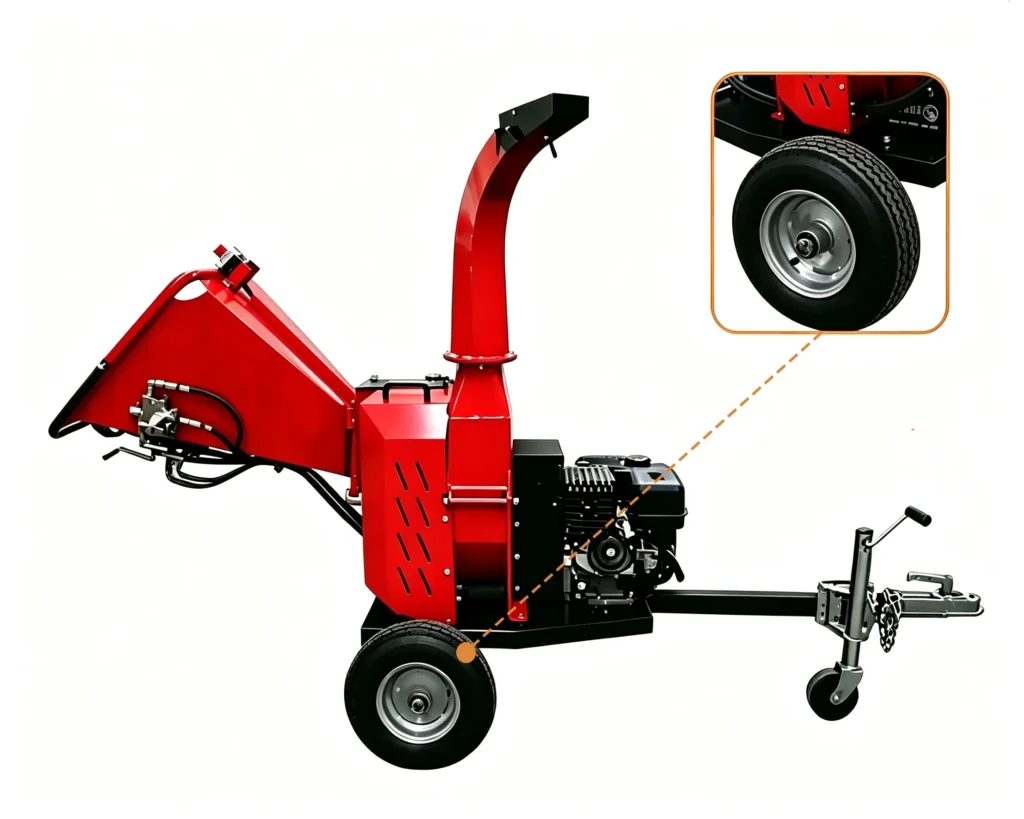

    Towable Wheeled Chassis for Jobsite Flexible Mobility

    Built with a heavy-duty wheeled chassis and standard trailer hitch, this portable wood shredder can be easily towed behind vehicles to move between different work sites. The front support caster wheel with crank handle enables flexible positioning and stable parking on various ground surfaces, greatly improving work deployment efficiency.




    Wood crusher for biomass processing branches, logs, and agricultural waste into renewable biomass materials and fuel resources

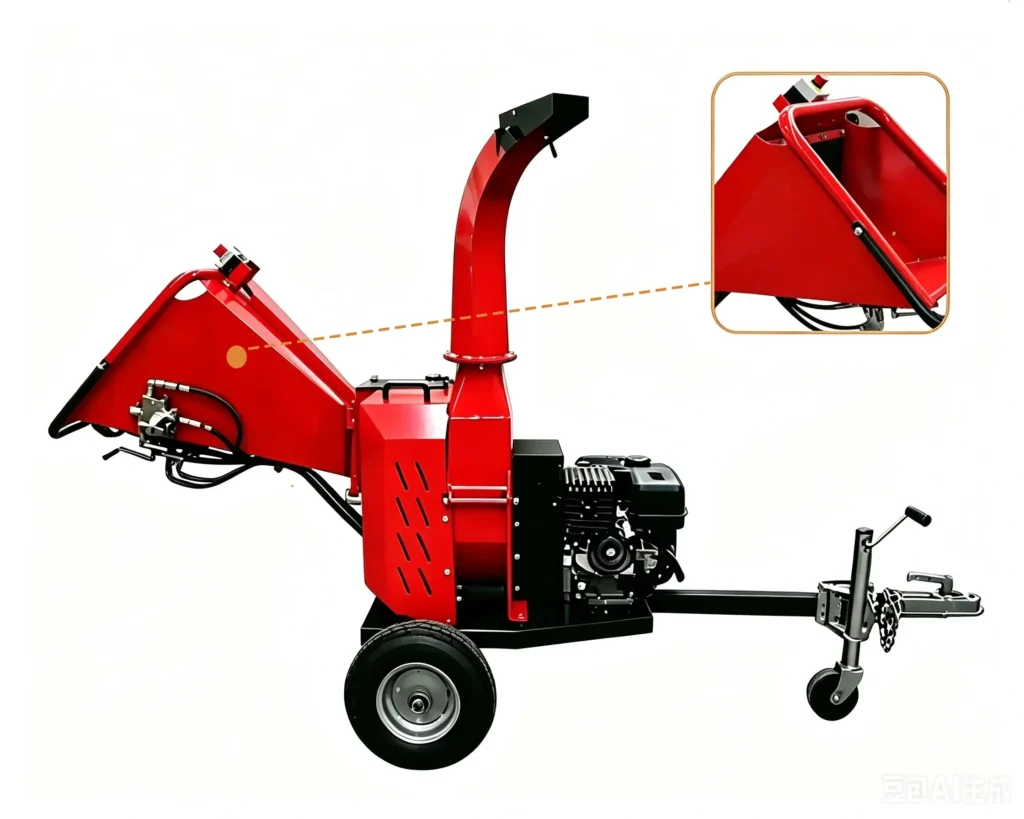

    High-Capacity Branch Feeding for Efficient Waste Reduction

    The large inclined hopper design allows continuous and fast feeding of branches and yard debris, significantly reducing material loading downtime. With high chipping throughput, the machine rapidly converts bulky tree waste into uniform wood chips, cutting down waste volume and lowering transportation and disposal costs for large-scale vegetation clearance jobs.





    Wood crusher for pellet production processing logs, branches, and wood waste into suitable biomass materials for pellet making

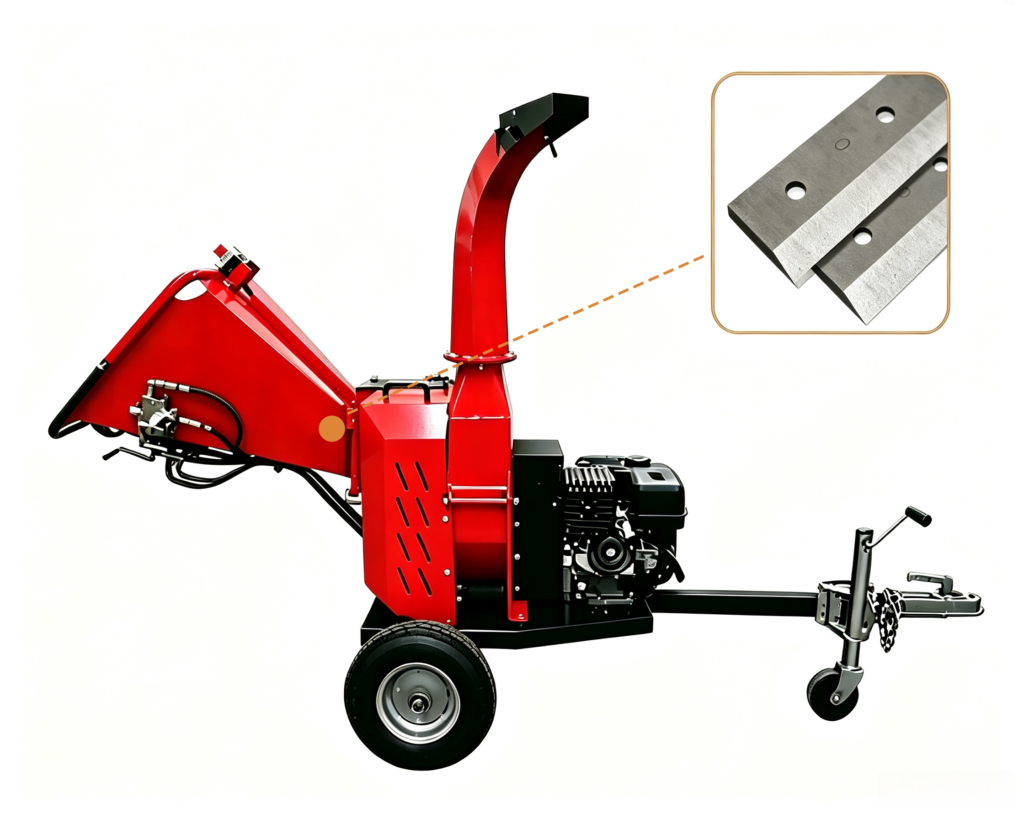

    Heavy-Duty Alloy Blade Chipping System with Discharge Chute

    Featuring hardened alloy steel cutting blades mounted on a precision-balanced rotor, this tree chipper delivers clean and efficient chipping performance for branches up to thick diameters. The adjustable discharge chute directs wood chips to a designated collection area, producing uniform mulch material ideal for garden ground cover and composting applications.



    Wood crusher for biomass fuel processing logs, branches, and wood waste into renewable fuel materials for energy production

    Specifications

    Model 155 Hydraulic Auto Feed Disc Wood Chipper
    Engine Power 15HP Gasoline Engine, 11kW Power Output
    Engine Type Single Cylinder Four Stroke Air-cooled Gasoline Engine
    Engine Speed 3600rpm
    Drive System Centrifugal Clutch + Belt Drive Transmission System
    Cutter Disc Speed 2000rpm High-speed Cutting Disc Rotation
    Cutting System 2 Moving Blades + 1 Fixed Blade + 10 Hammer Blades Combined Cutting System
    Maximum Processing Diameter ≤130mm Branches and Wood Materials
    Feeding System Hydraulic Auto Feed System for Continuous Material Feeding
    Wheel System 4.8-8 Wear-resistant Rubber Tires for Mobile Operation
    Operation Type Towing Mobile Operation, Suitable for Outdoor Work Sites
    Structure Heavy-duty Steel Welded Frame with Reinforced Chassis Structure
    Overall Dimension 2885 × 1030 × 1735mm
    Machine Weight 301kg
    Applicable Materials Tree Branches, Fruit Tree Pruning Waste, Bamboo, Shrubs and Garden Biomass Waste
    Core Advantages Hydraulic Automatic Feeding, Powerful Gasoline Drive, Large Diameter Chipping Capability, Mobile Towing Design, High Efficiency for Orchard and Forestry Waste Processing
