Model 03A Track-Type Wood Shredder All-in-One Machine

SKU ECO-03A-TRK-Dsl Categories , , , ,

Track-Type Wood Shredder All-in-One Machine

Track-Type Wood Shredder All-in-One Machine is designed for efficient wood crushing and recycling. This Self-propelled crawler wood chipper for garden pruning processes branches, garden waste, and wood materials into uniform chips. The Mobile tracked wood shredder with gasoline engine provides flexible operation for forestry, landscaping, and biomass recycling.

Features

  • High efficiency
  • Diesel engine driven
  • Self-propelled crawler design
  • Mobile operation
  • Stable performance
  • Suitable for garden pruning and wood waste recycling

Technical Data

Model: 03A Track-Type Wood Shredder All-in-One Machine

Drive Type: Diesel Engine Driven

Weight: 175 kg

Loading Capacity: 500 kg

Discharge Method: Manual Dumping Hopper

Dumping Angle: 42°

Overall Size: 1560 × 760 × 1060 mm

Crawler Ground Contact Length: 700 mm

Crawler Wheel Center Distance: 425 mm

Hopper Height: 270 mm

Capacity: 1.5 T/H

Output Size: 3–20 mm

Applications

  • Garden pruning waste
  • Forestry waste
  • Branch recycling
  • Biomass processing
  • Landscaping

System

Track-Type Wood Shredder All-in-One Machine works as a mobile wood recycling solution for efficient branch crushing and biomass material processing.

Let us tailor a solution for you.



    Drive type

    Electric/Diesel Engine

    Branch Limit

    ≤120mm

    Power

    7.5-11KW / 13-18HP

    Capacity

    1.2-2.2 t/h

    Make the crushing process easier.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

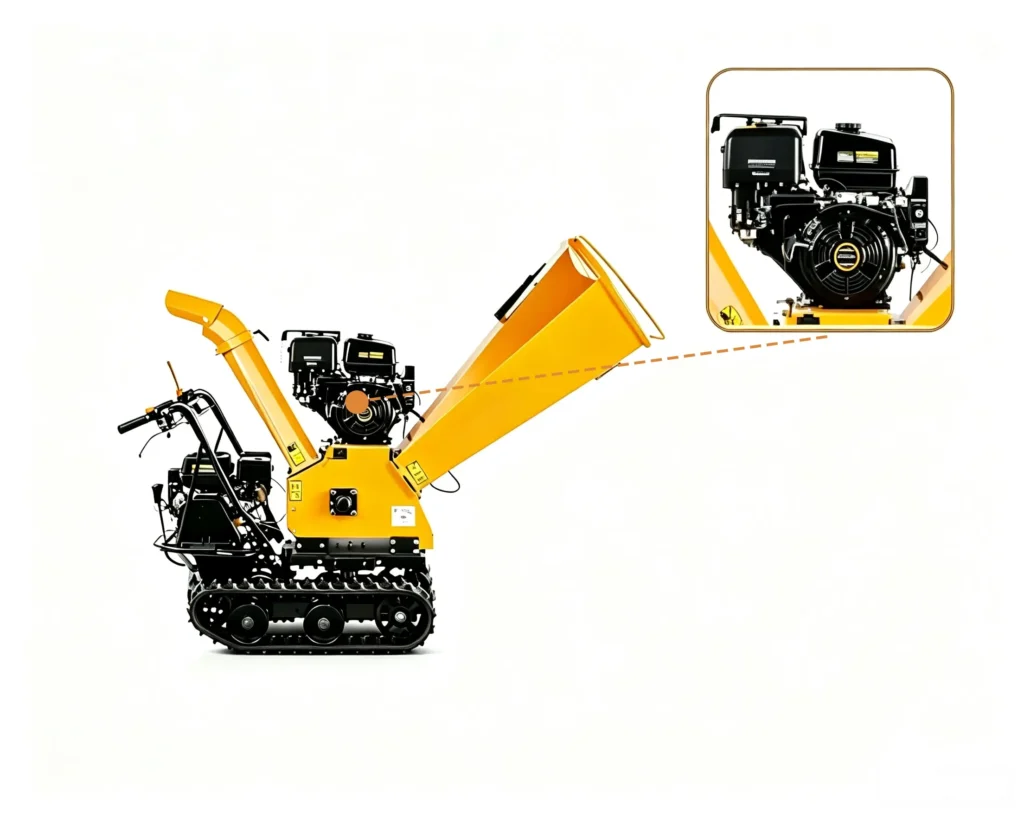

    High-Torque Diesel Power Drive

    This all-terrain mobile shredder is equipped with a high-performance diesel engine, delivering powerful cutting torque for crushing thick branches and hard fruit tree wood. It operates fully independently without grid connection, maintaining stable power output on hillsides, muddy orchards, forest roads and uneven green construction sites, with outstanding overload resistance.
    Sawdust crusher for corn stalk processing crushing corn straw and agricultural biomass waste into reusable materials

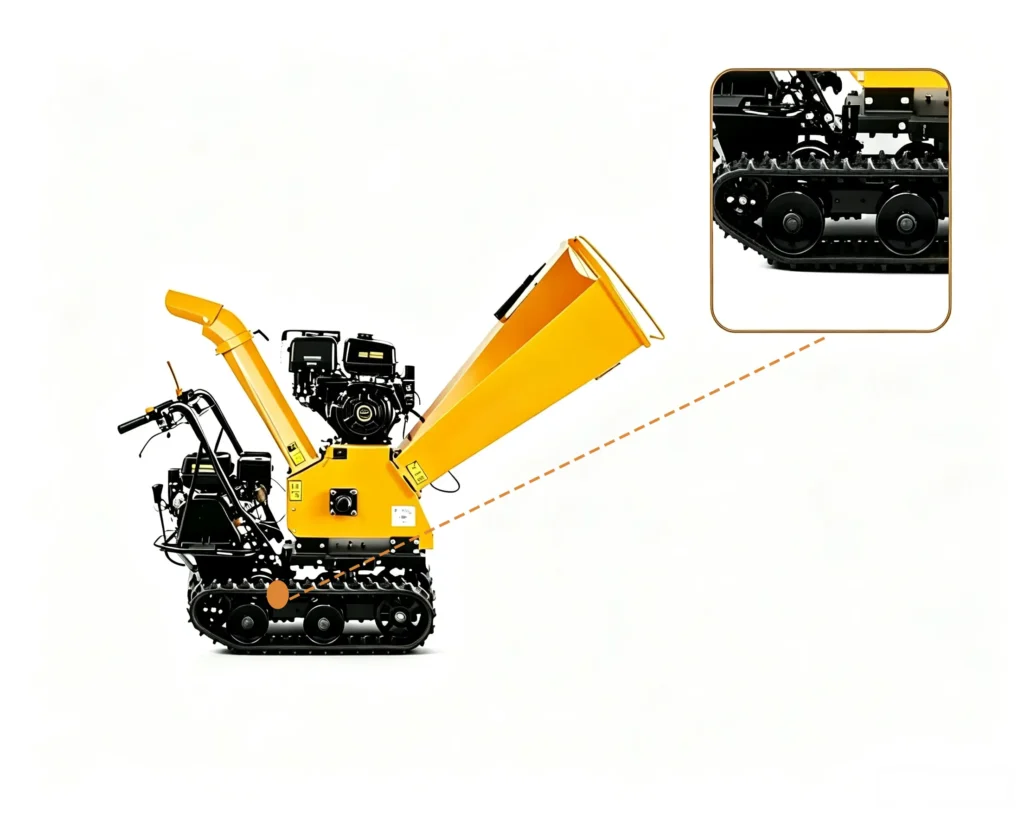

    Anti-Slip Rubber Crawler & Walk-behind Control

    Wide thickened rubber crawler with deep anti-slip patterns features low ground pressure, avoiding sinking or slipping on mud, lawn and sloped terrain. The ergonomic foldable control handrail supports clutch speed adjustment, enabling a single operator to flexibly control forward, backward and steering without a towing vehicle. The integrated structure requires no split disassembly, suitable for scattered mountain forest pruning, roadside green maintenance and orchard branch disposal projects.
    Sawdust crusher for rice husk processing crushing rice husks and agricultural biomass waste into reusable materials

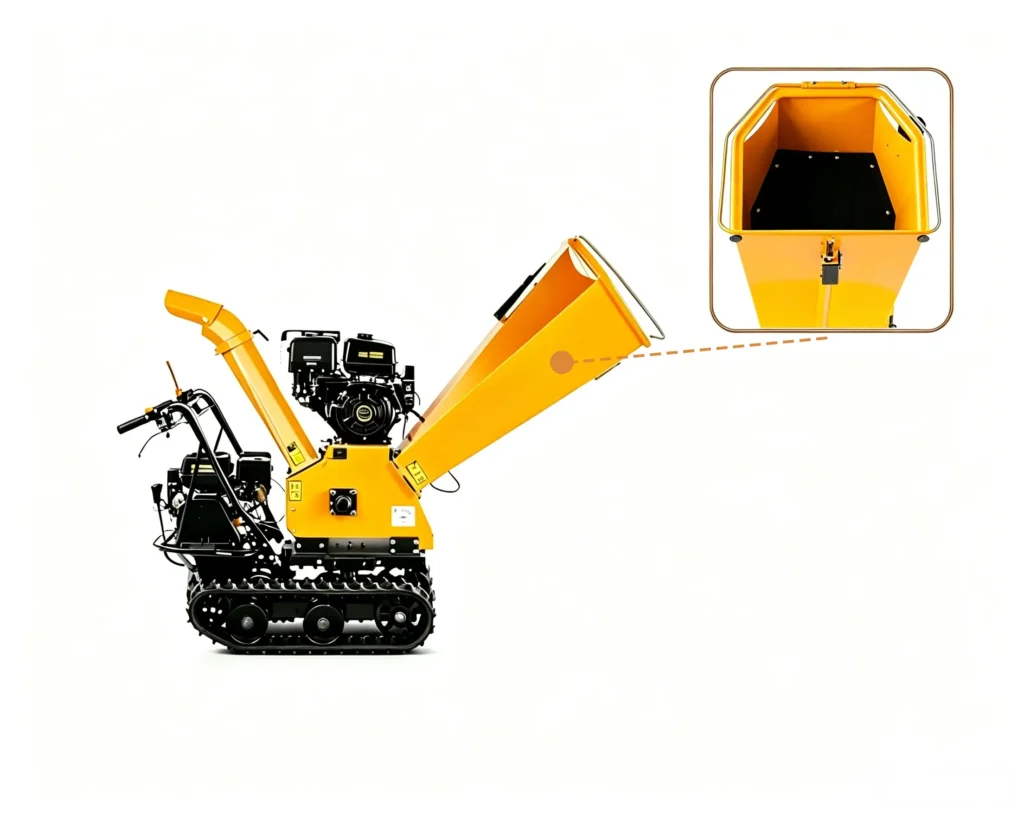

    Large Inclined Feed Hopper + Manual Dump Collection Hopper

    The extra-large inclined feeding hopper allows continuous bulk feeding of saplings, thick branches and shrub waste without frequent shutdown. The matched large-capacity collection hopper stores crushed wood chips uniformly, and supports 42° manual dumping for easy transfer and bagging. The self-propelled design avoids production interruption during position shifting, greatly improving daily processing efficiency for large-scale green waste cleaning.
    Sawdust crusher for agricultural biomass processing straw, crop residues, and plant waste into reusable materials

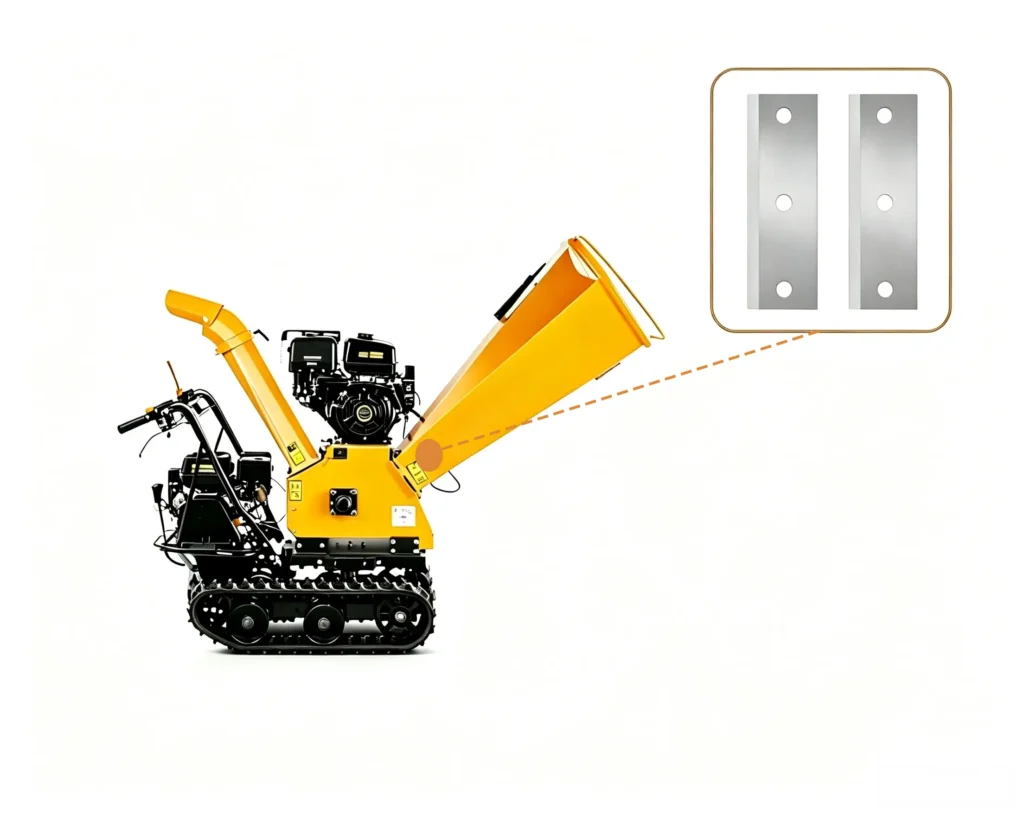

    Hardened Alloy Cutting System & Safe Operation

    The fully sealed cutting chamber is equipped with dynamically balanced thick quenched alloy rotary blades, with excellent wear resistance and impact resistance for processing hard fruit tree branches. The wide feeding channel effectively reduces material jamming risk. The processed uniform fine wood chips can be used for garden mulching, organic compost and biomass fuel raw materials. The fully enclosed bin prevents wood debris splashing to protect operators.
    Sawdust crusher for crop residue processing crushing straw, stalks, and agricultural biomass waste into reusable materials

    Specifications

    Model 03A Track-Type Wood Shredder All-in-One Machine
    Drive Type Diesel Engine Driven
    Processing Capacity 1.5T/H
    Finished Output Size 3–20mm Adjustable
    Loading Capacity 500kg
    Feeding System Manual Dumping Hopper Feeding
    Discharge Method Manual Dumping Discharge Hopper
    Dumping Angle 42°
    Mobility System Crawler Track Walking System
    Crawler Ground Contact Length 700mm
    Applicable Materials Tree Branches, Wood Waste, Bamboo, Garden Waste, Biomass Materials
    Application Orchards, Forestry Areas, Landscaping Waste Treatment and Biomass Processing
    Overall Dimension 1560 × 760 × 1060mm
    Machine Weight 175kg
    Core Advantages Crawler Mobility for Rough Terrain, Diesel Power Supply, Integrated Shredding Design, Adjustable Output Size, Suitable for Outdoor Biomass Processing
