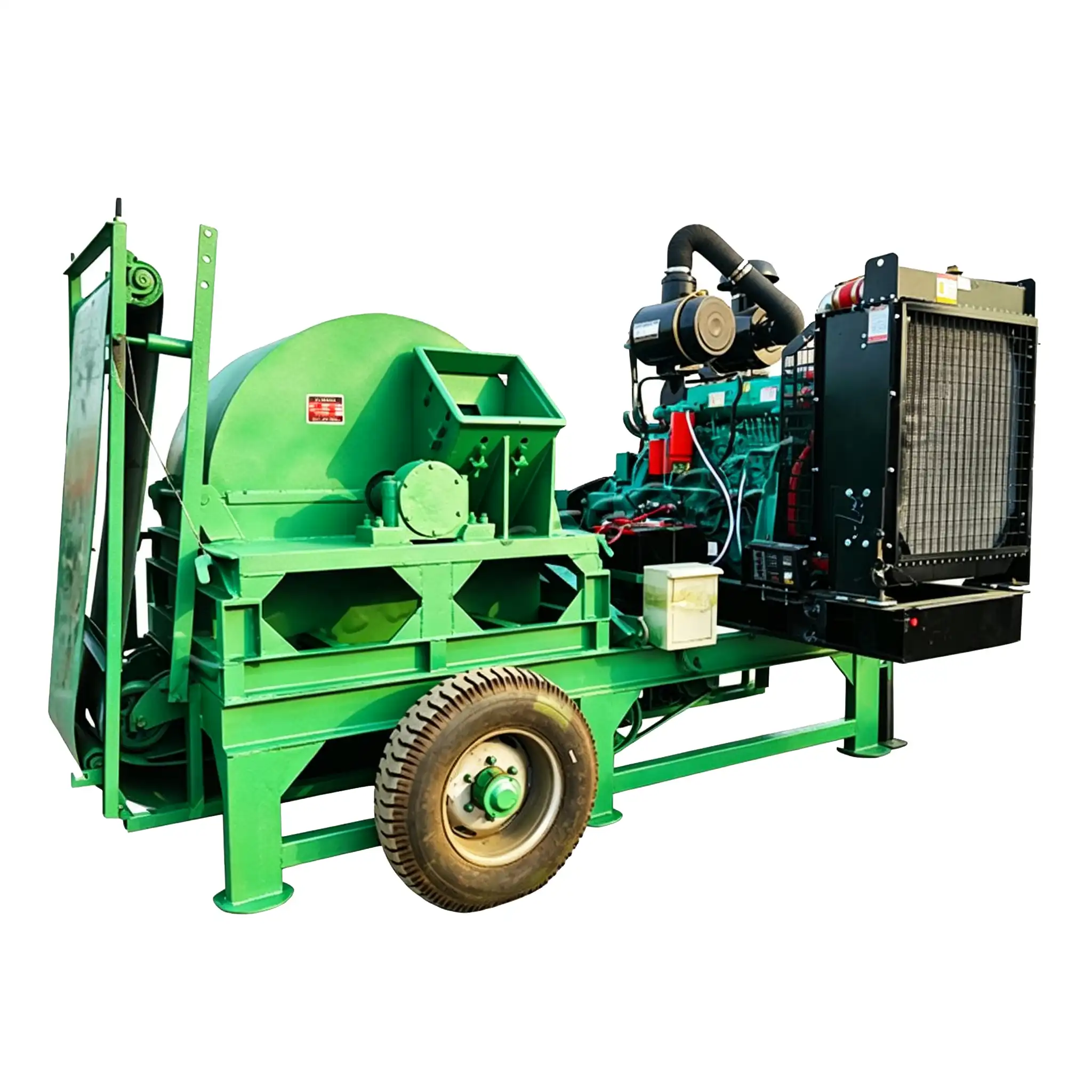

Model 1500 wood sawdust crusher machine

SKU ECO-1500-WSC-ME Categories , , , , ,

Wood Sawdust Crusher Machine
1500 wood sawdust crusher machine with 110–160 kW power and 8-piece blade configuration, adopts 1160 mm disc running at 1200 r/min, delivers 10–12 T/H high capacity for 10–40 cm wood materials, supports electric or diesel drive and fixed or mobile installation, compatible with automatic sawdust screening system for uniform particle output, suitable for forestry waste recycling, biomass energy, mushroom cultivation and wood pellet production.

Technical Data
Model: 1500 Wood Sawdust Crusher Machine
Power: 110–160 kW
Applicable Material Diameter: 10–40 cm
Capacity: 10–12 T/H
Blade Quantity: 8 pcs
Disc Diameter: 1160 mm
Feed Inlet Size: 450 × 430 mm
Main Shaft Speed: 1200 r/min
Drive Options: Electric or Diesel Optional
Installation Type: Fixed or Mobile Use
Matching System: Automatic Sawdust Screening System

Applications
Forestry waste, Biomass energy, Mushroom cultivation, Fertilizer production, Wood pellet production, Paper industry

Let us tailor a solution for you.



    Get technical table

    Drive type

    Electric / Diesel Optional

    Branch Limit

    ≤15.7" Inch

    Power

    110-160 KW / 150–215 HP

    Capacity

    10-12 t/H

    Make the chipping process easier.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system

    Features & Advantages

    Optional Diesel or Electric Drive for Wide Adaptability

    The machine can be flexibly configured with a heavy-duty diesel engine or a three-phase electric motor to adapt to different working environments. The diesel version with towable chassis is suitable for outdoor forestry mobile operations, and the electric version is ideal for fixed workshop production lines, with strong adaptability to different production scenarios.
    Sawdust preparation line including wood crusher and screening system for producing uniform sawdust in biomass and wood processing industry

    Towable Wheeled Chassis for Flexible Cross-Site Transfer

    Mounted on a heavy-duty towable chassis with standard traction interface, it can be towed by vehicles to move between forest farms and processing sites. Equipped with foldable support legs, it ensures stable leveling and fixation during operation, balancing mobility and working stability
    Biomass sawdust making machine processing logs and branches into fine sawdust for biomass energy, pellet production, and forestry applications

    Heavy-Duty Disc Cutting Structure for Durable Performance

    The core crushing unit adopts a 1160mm diameter heavy-duty cast steel cutter disc fitted with 8 pieces of high-strength double-arc alloy steel blades. The integral disc structure features excellent impact resistance and wear resistance, maintaining stable performance under long-term continuous heavy-duty operation
    Standard sawdust production machine processing logs and branches into uniform fine sawdust for biomass energy and wood processing industries

    Efficient Pneumatic Discharge with Uniform Output

    The precision-designed cutting angle produces uniform wood chips and sawdust. With fan-assisted pneumatic discharge, the finished materials are output quickly and smoothly, reducing material blockage and improving continuous production efficiency. It can be matched with a screening system to further optimize particle size uniformity.
    Automatic sawdust screening system separating fine sawdust from wood chips and biomass material in industrial processing line

    Specifications

    Model 1500 Wood Sawdust Crusher Machine
    Machine Type Heavy-duty Disc-type Wood Sawdust Crusher
    Drive Type Diesel Engine (Standard), Electric Motor (Optional)
    Rated Power 110–160kW Diesel Engine / 110–160kW Three-Phase Industrial Motor
    Voltage 380V / 50Hz / Three Phase (Electric Version)
    Starting System Electric Start (Diesel Version) / Soft Start (Electric Version)
    Transmission System Heavy-duty Belt Drive
    Processing Capacity 10–12 Ton/H (Depending on Material Type and Moisture)
    Main Shaft Speed 1200 r/min
    Cutter Disc Diameter 1160mm Heavy-duty Cast Steel Cutter Disc
    Blade Configuration 8pcs Double-arc High-strength Alloy Steel Blades
    Maximum Feed Diameter ≤400 mm Logs and Branches
    Feed Opening Size 450 × 430 mm Large Inclined Feed Inlet
    Feeding Method Inclined Top Hopper Manual Feeding
    Finished Product Size 3–8mm Sawdust / 20–50mm Wood Chips (Adjustable)
    Discharge System Fan-assisted Pneumatic Discharge
    Mobility Towable Wheeled Chassis, Fixed Installation Optional
    Support Legs Foldable Support Legs
    Frame Structure Heavy-duty Thickened Steel Welded Frame
    Machine Weight Approx. 2800 kg
    Recommended Raw Material Moisture ≤25%
    Applicable Materials Logs, Tree Branches, Bark, Bamboo, Wood Processing Residues
    Application Fields Large Sawdust Plants, Biomass Energy, Papermaking, Wood Pellet Production, Wood Recycling
    Core Advantages Towable Mobile Design, High-efficiency Disc Cutting, Large Processing Capacity, Dual Power Options, Durable Alloy Blades, Compatible with Screening System
