Model 500 Stationary Electric Wood Offcut Crusher

SKU ECO-500-Stat-Elec Categories , , , ,

Electric Wood Offcut Crusher
500 electric wood offcut crusher with 4 alloy steel blades and heavy-duty steel plate welded body, adopts fixed installation design for stable operation, 1.5–2 T/H capacity producing 1–5 mm fine uniform sawdust, equipped with side pipe air conveying discharge system, applicable for wood scraps, board waste, small wood blocks, branches, wood boards and solid wood waste, suitable for furniture factory waste recycling, wood processing plants, biomass pellet production and mushroom cultivation material preparation.

Technical Data
Model: 500 Electric Wood Offcut Crusher
Drive Type: Three-Phase Electric Motor
Blade Configuration: 4 Alloy Steel Blades
Main Shaft Speed: 600 r/min
Feed Inlet Size: 290 × 600 mm
Capacity: 1.5–2 T/H
Output Size: 1–5 mm
Structure: Heavy-Duty Steel Plate Welded Body
Discharge System: Side Pipe Air Conveying Discharge
Applicable Materials: Wood Scraps, Board Waste, Small Wood Blocks, Branches, Wood Boards, Solid Wood Waste

Applications
Furniture Factory Waste Recycling, Wood Processing Plant, Biomass Pellet Production, Mushroom Cultivation Material, Wood Waste Recycling

Let us tailor a solution for you.



    Get technical table

    Drive type

    Electric

    Max Feed Thickness

    ≤11.4" Inch

    Power

    15 kW

    Capacity

    1.5–2 t/H

    Make wood offcut grinding efficient and dust-controlled

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

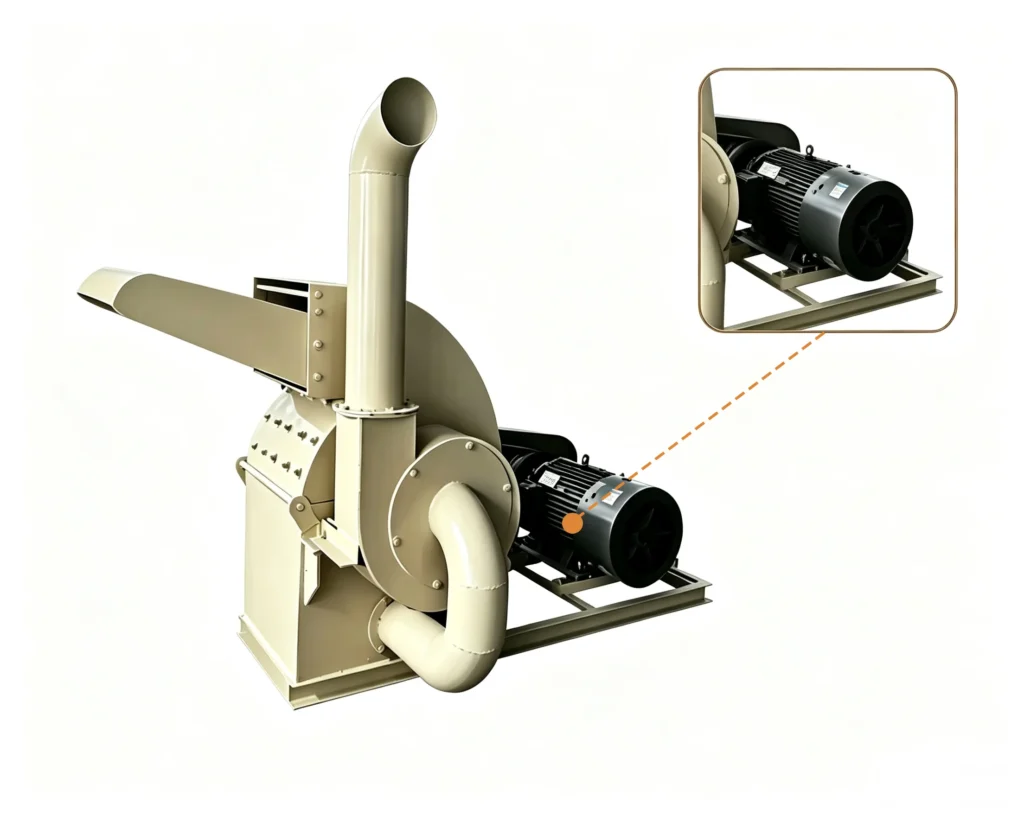

    15kW Industrial Three-Phase Motor with Belt Drive

    This wood offcut crusher is driven by a 15kW three-phase industrial motor with belt transmission, delivering stable torque and good overload buffer performance, effectively reducing motor damage caused by material jamming. It is suitable for long-time continuous operation in furniture factories and wood processing workshops.

    Sawdust crusher for construction waste wood processing lumber scraps, wood debris, and recycled biomass materials

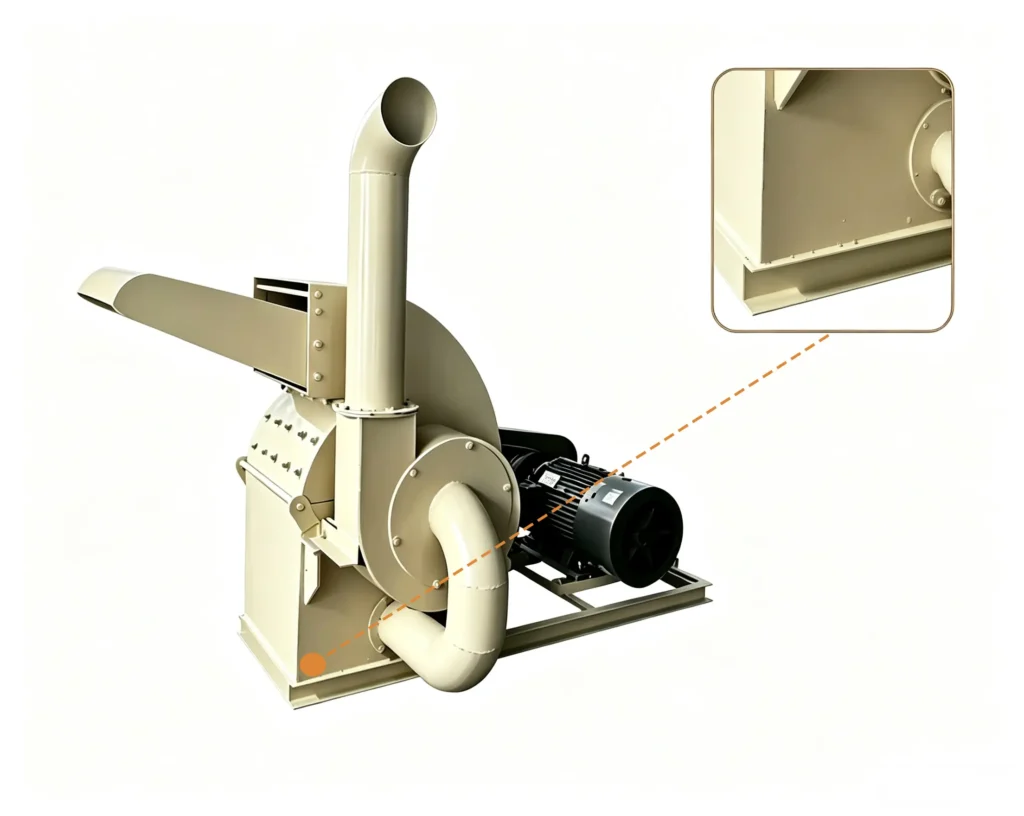

    Heavy-Duty Steel Plate Body with Stationary Fixed Structure

    The whole machine adopts thick steel plate welded structure with high rigidity and strong vibration resistance, suitable for long-term fixed installation in production workshops. The reinforced frame ensures stable operation under continuous heavy load, with low failure rate and long service life.

    Sawdust crusher for landscape waste processing branches, tree trimmings, and garden waste into reusable biomass materials

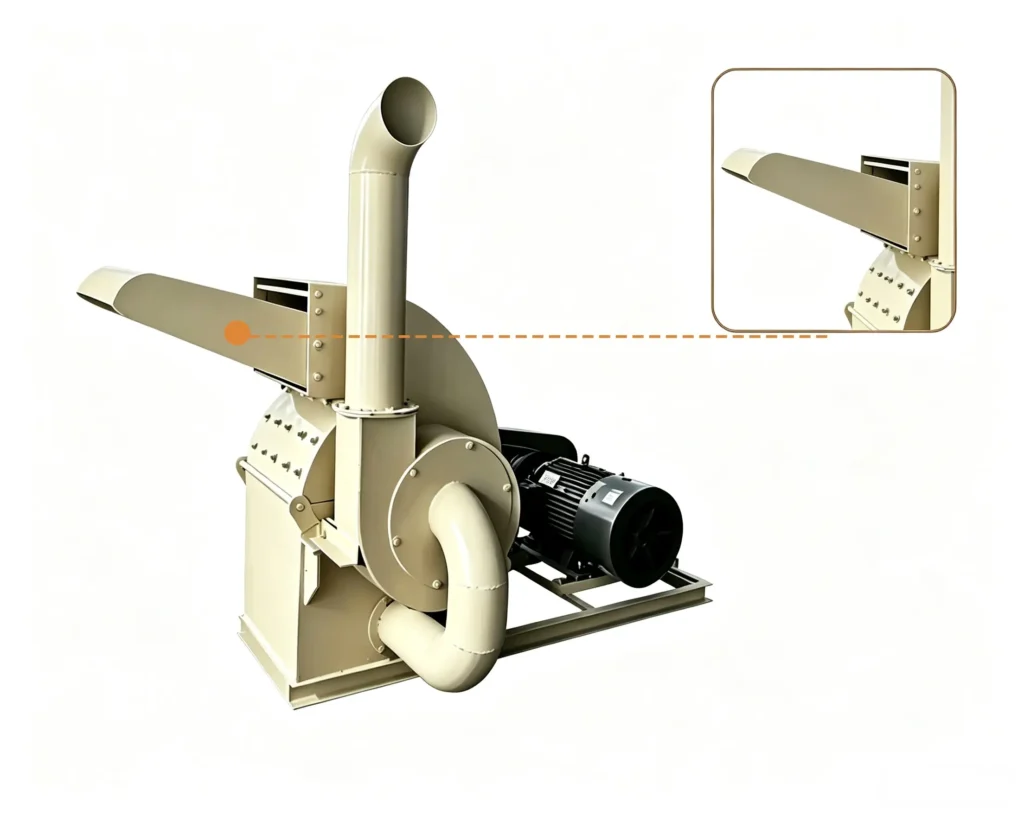

    Multi-Blade Cutting + Screen Controlled Fine Output

    The crushing chamber is equipped with 4 pieces of alloy steel cutting blades with hammer grinding structure, processing wood waste into uniform fine sawdust through cutting and impact grinding. The replaceable screen controls output size from 1mm to 5mm, meeting different raw material requirements for biomass pellets and mushroom substrate.



    Sawdust crusher for waste wood processing crushing wood scraps, pallets, branches, and biomass waste into reusable materials

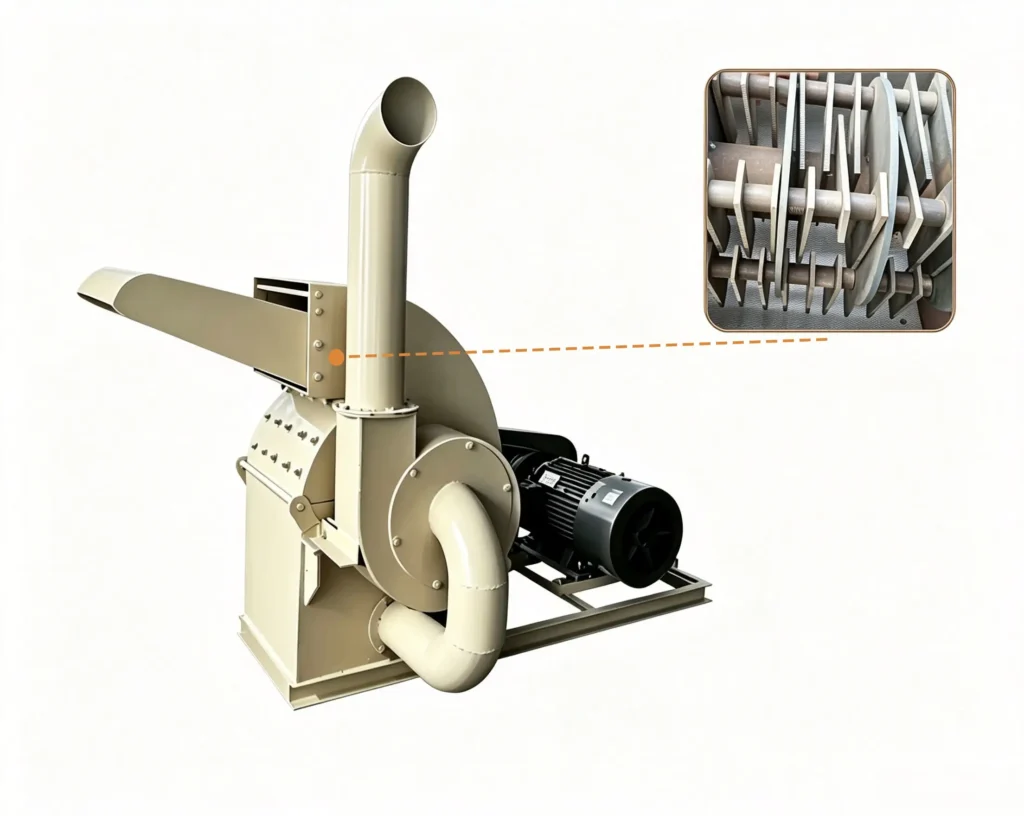

    Alloy Blade Cutting System for Uniform Fine Sawdust Output

    The core cutting chamber is equipped with 4 pieces of hardened alloy steel blades, processing wood waste into uniform fine sawdust with particle size of 1–5mm. The precision-balanced main shaft ensures stable low-vibration operation, and finished sawdust can be directly used as biomass fuel, mushroom substrate and organic fertilizer raw material.
    Sawdust crusher for green waste recycling processing branches, leaves, and garden wood waste into reusable materials

    Specifications

    Model 500 Electric Wood Offcut Crusher
    Machine Type Stationary Industrial Wood Sawdust Crusher
    Drive Type Three-Phase Electric Motor + Belt Drive
    Main Motor Power 15 kW
    Rated Voltage 380V / 50Hz / Three Phase
    Main Shaft Speed 1400 r/min
    Cutting System Alloy Steel Blades + Hammer Grinding + Screen
    Blade Configuration 4pcs Alloy Steel Blades
    Feed Inlet Size 290 × 600 mm
    Maximum Feed Thickness ≤290 mm
    Output Size 1–5 mm Adjustable (Replaceable Screen)
    Processing Capacity 1.5–2 T/H (Depends on Material and Moisture)
    Feeding Method Wide Inclined Hopper Manual Feeding
    Discharge System Side Pipe Air Conveying Automatic Discharge
    Frame Structure Heavy-duty Steel Plate Welded Body
    Installation Type Stationary Fixed Installation
    Overall Dimension 1350 × 900 × 1600 mm
    Machine Weight 420 kg
    Applicable Materials Wood Offcuts, Edge Scraps, Small Branches, Wood Waste, Bamboo
    Application Fields Furniture Factory Waste Recycling, Wood Processing Plants, Biomass Pellet Production, Mushroom Cultivation Material
    Core Advantages Stable Industrial Performance, Fine Uniform Sawdust, Air Conveying Discharge, Heavy-duty Structure, Low Maintenance Cost
