Model 1000 Cyclone Type Electric Wood Crusher

SKU ECO-1000-Stat-Elec Categories , , , ,

Cyclone Type Electric Wood Crusher

Cyclone Type Electric Wood Crusher is designed for medium-scale wood crushing production. This 5-6t/h 8-blade wood grinder adopts a multi-blade cutting structure with cyclone collection discharge. The 3-30mm adjustable wood shredder is suitable for wood factories, biomass fuel plants, mushroom substrate production, and wood waste recycling.

Features

  • High efficiency
  • Electric powered
  • Cyclone dust collection
  • Adjustable output size
  • Continuous operation
  • Industrial fixed installation

Technical Data

Model: 1000 Cyclone Type Electric Wood Crusher
Drive Type: Electric
Power: 37-55 kW Three Phase Industrial Motor
Voltage: 380V
Spindle Speed: 2000 r/min
Capacity: 5–6 T/H
Blade Configuration: 8 Hardened Alloy Steel Fly Knives
Feed Inlet Size: 290 × 290 mm
Maximum Branch Diameter: ≤280 mm (≤11 inch)
Output Size: 3–30 mm Adjustable
Feeding System: Square Hopper Feeding
Discharge System: Cyclone Collector + Screw Conveyor Output
Frame Structure: Heavy-Duty Manganese Steel Welded Frame
Surface Treatment: Anti-Rust Coating

Applications

  • Wood Waste Recycling
  • Biomass Fuel Production
  • Mushroom Substrate Preparation
  • Sawdust Production
  • Garden Waste Processing
  • Wood Processing Factory

System

Cyclone Type Electric Wood Crusher provides an efficient wood crushing solution with durable 8-blade cutting technology, adjustable particle size, and cyclone collection system for stable medium-scale industrial production.

Let us tailor a solution for you.



    Drive type

    Electric

    Branch Limit

    ≤13.78" Inch

    Power

    37-55 KW

    Capacity

    4-7 t/H

    Make the crushing process easier.

    Wood waste crusher machine for crushing wood branches logs pallets into sawdust biomass system
    Wood waste crusher machine industrial equipment for crushing wood branches logs pallets into sawdust
    Wood crushing machine for sale industrial equipment for crushing wood branches logs into sawdust biomass
    Wood crusher for sale industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crusher china industrial machine for crushing wood branches logs into sawdust biomass system
    Wood crush reclaimed lumber industrial machine for recycling old wood beams pallets into sawdust system
    Wood chips crusher machine for crushing wood chips branches logs into sawdust biomass system
    Wood milling machine processing wood materials into fine particles, sawdust, and biomass powder for industrial applications

    Features & Advantages

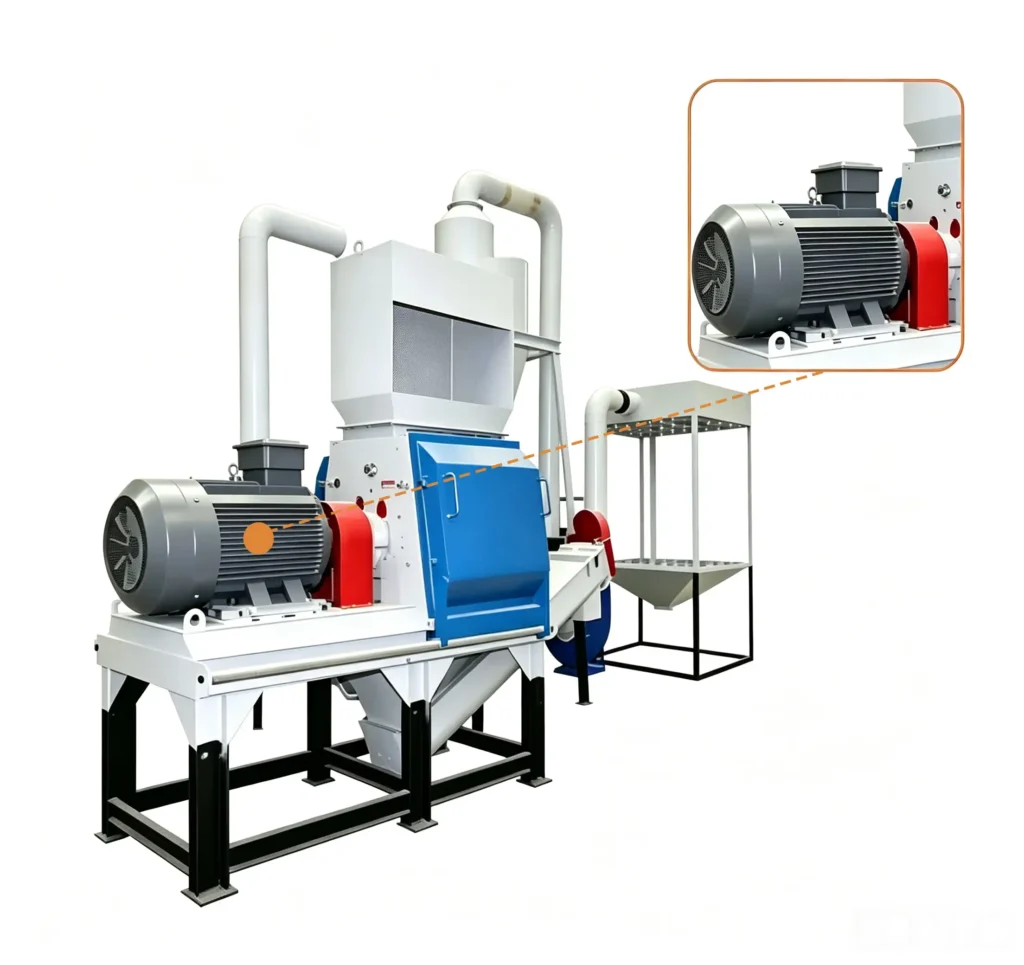

    High-Power Industrial Three-Phase Motor Drive Biomass Hammer Mill Unit

    This machine is driven by a heavy-duty three-phase industrial motor, delivering constant high torque for continuous crushing of logs, branches and wood scraps. The stable power output supports long-hour uninterrupted heavy-load operation for wood processing factories and biomass fuel plants.
    Industrial wood grinding equipment processing wood chips, logs, and biomass materials into fine particles and sawdust

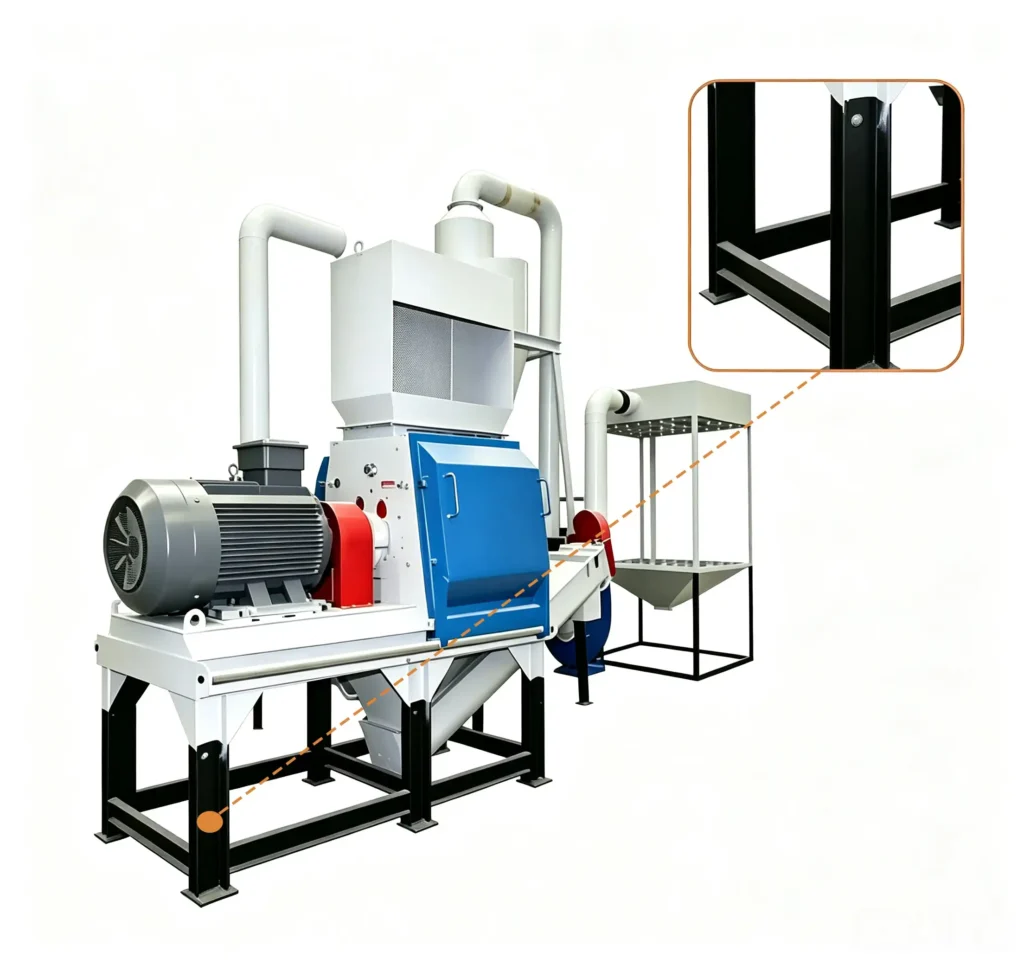

    Integrated Heavy Welded Steel Stand for Assembly Line Fixed Installation

    The whole machine adopts an integrated thick manganese steel welded frame with high structural rigidity, effectively offsetting vibration generated by high-speed rotor operation. The flat base feet can be fixed with anchor bolts, suitable for centralized wood processing production lines and closed workshop layout.



    Motor driven sawdust crusher processing wood chips, branches, and biomass materials with electric motor power system

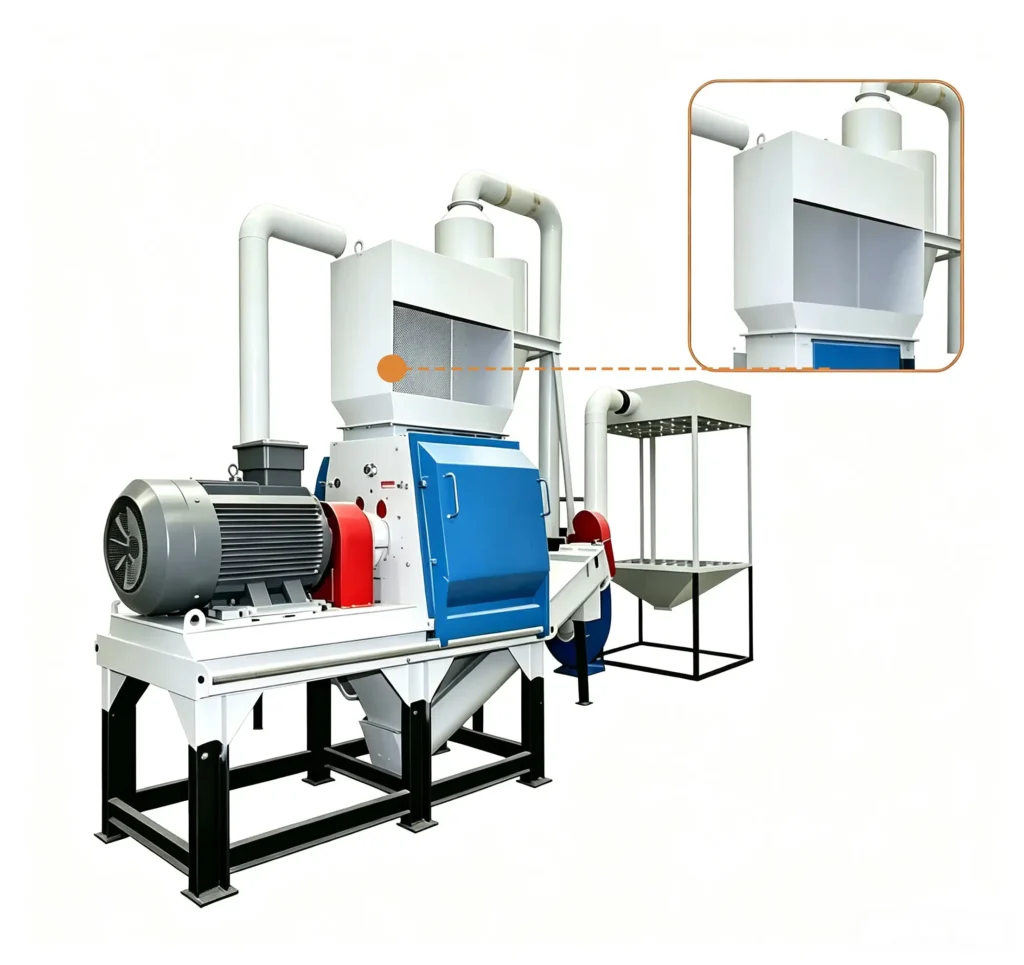

    Top Hopper Feeding + Cyclone Collection for Efficient Processing

    The large square top hopper supports bulk continuous feeding without frequent manual filling. After cutting and crushing, materials are conveyed by air flow to the cyclone collector for automatic discharging, with dust suppressed inside the closed system. It integrates crushing and dust collection in one unit, reducing intermediate handling links and improving hourly output.
    Electric wood crusher machine processing logs, branches, and biomass waste with efficient motor driven crushing system

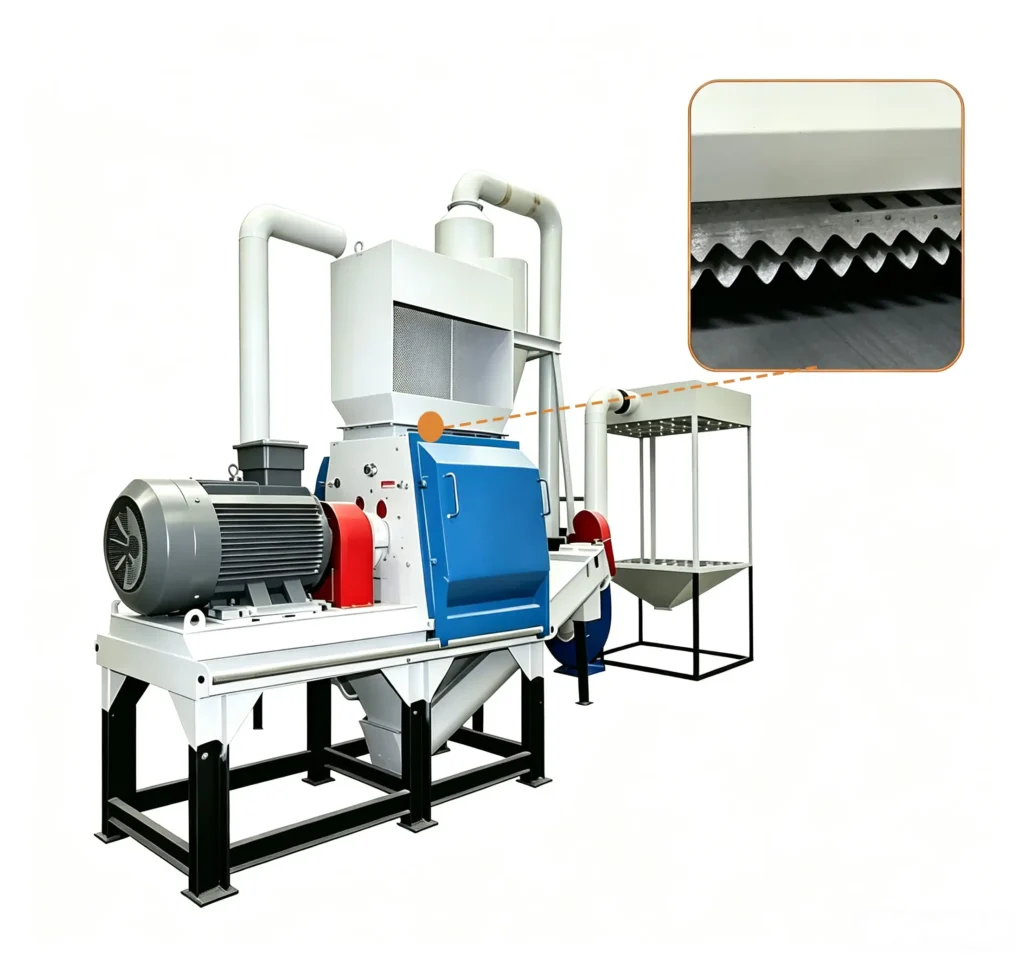

    Wear-Resistant Alloy Blade Cutting System with Adjustable Output

    The core crushing chamber is equipped with 8 pieces of thickened quenched alloy steel fly knives, featuring outstanding impact resistance and wear resistance to crush hard wood evenly. The output particle size can be freely adjusted within 3-30mm to meet different production needs. The fully sealed crushing chamber avoids material splashing, ensuring uniform finished products for pellet, mushroom substrate and organic fertilizer production.
    Diesel wood crusher machine processing logs, branches, and biomass waste with powerful diesel engine drive system

    Specifications

    Model 1000 Cyclone Type Electric Wood Crusher
    Machine Type Industrial Biomass Wood Crusher / Hammer Type Wood Pulverizer
    Drive Type Electric Motor Drive
    Main Motor Power 37–55kW Three Phase Industrial Motor
    Voltage 380V / 50Hz / Three Phase
    Processing Capacity 5–6 Ton/H (Depending on Raw Material Type and Moisture)
    Spindle Speed 2000 r/min High-speed Rotor System
    Cutting System High-speed Fly Knife Cutting Structure
    Blade Configuration 8pcs Hardened Alloy Steel Fly Knives, Wear-resistant and Replaceable Design
    Feed Inlet Size 290 × 290mm Square Feeding Opening
    Maximum Feeding Diameter ≤280mm (≤11 inch) Wood Branches and Logs
    Finished Product Size 3–30mm Adjustable Wood Chips / Sawdust
    Screen System Replaceable Screen Design for Adjustable Output Particle Size
    Feeding System Large Square Hopper Feeding System, Suitable for Logs, Branches and Biomass Materials
    Discharge System Cyclone Collector + Screw Conveyor Automatic Discharge System
    Dust Collection System Cyclone Separation System Reduces Dust Emission and Improves Working Environment
    Applicable Raw Materials Logs, Tree Branches, Bamboo, Wood Chips, Pallets, Furniture Waste, Sawdust, Agricultural Biomass
    Recommended Moisture Content ≤25% Raw Material Moisture
    Frame Structure Heavy-duty Manganese Steel Welded Frame
    Surface Treatment Anti-Rust Coating for Long-term Outdoor Operation
    Operation Mode Continuous Industrial Processing Operation
    Application Fields Biomass Fuel Production, Wood Pellet Production Line, Mushroom Substrate Processing, Wood Recycling Industry
    Core Advantages High Capacity Processing, Large Feeding Opening, Adjustable Output Size, Cyclone Dust Collection, Stable Continuous Operation, Low Maintenance Cost
