Name: Model 600 Sawdust Crusher - JUNRONGECO
SKU: ECO-600-SC-ME

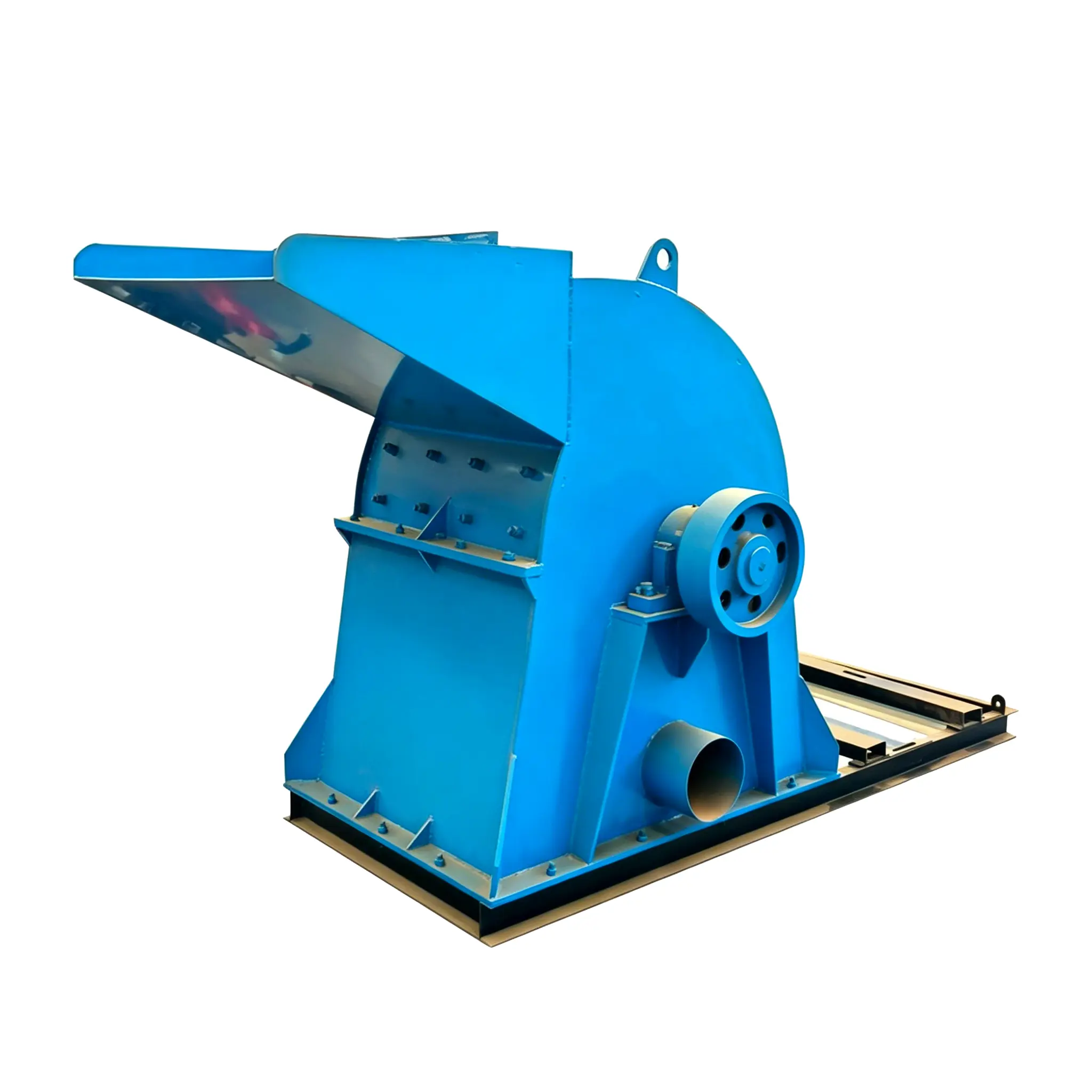

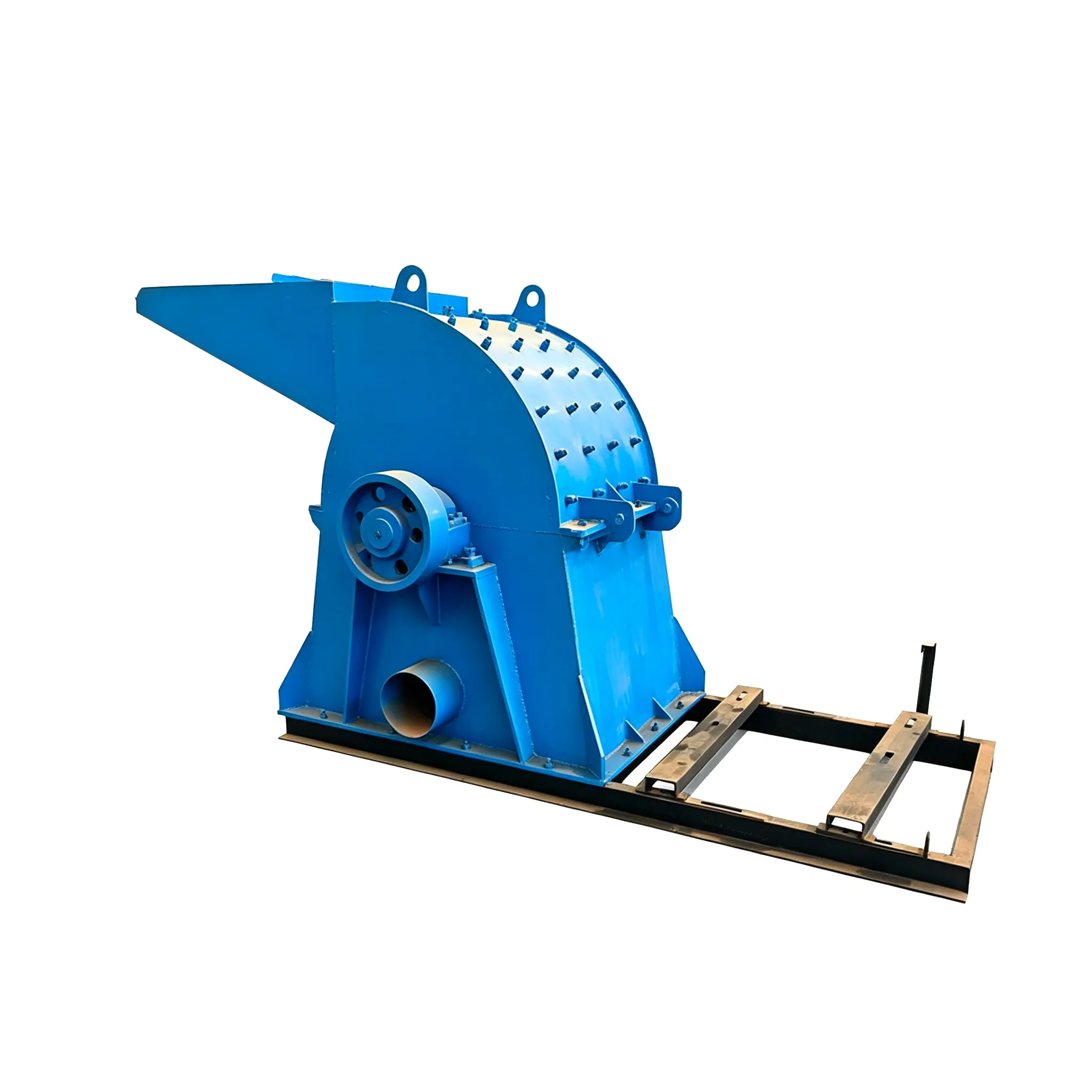

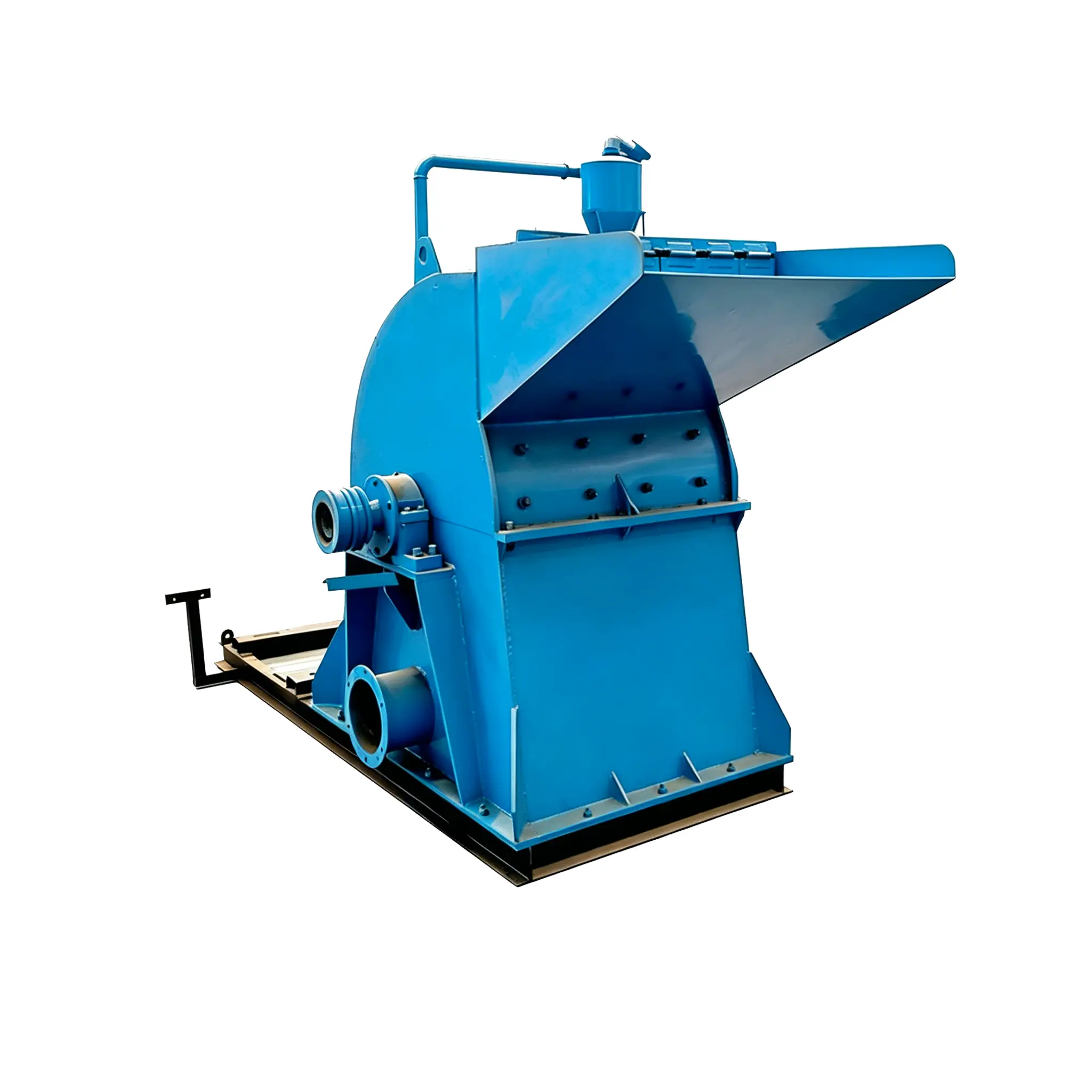

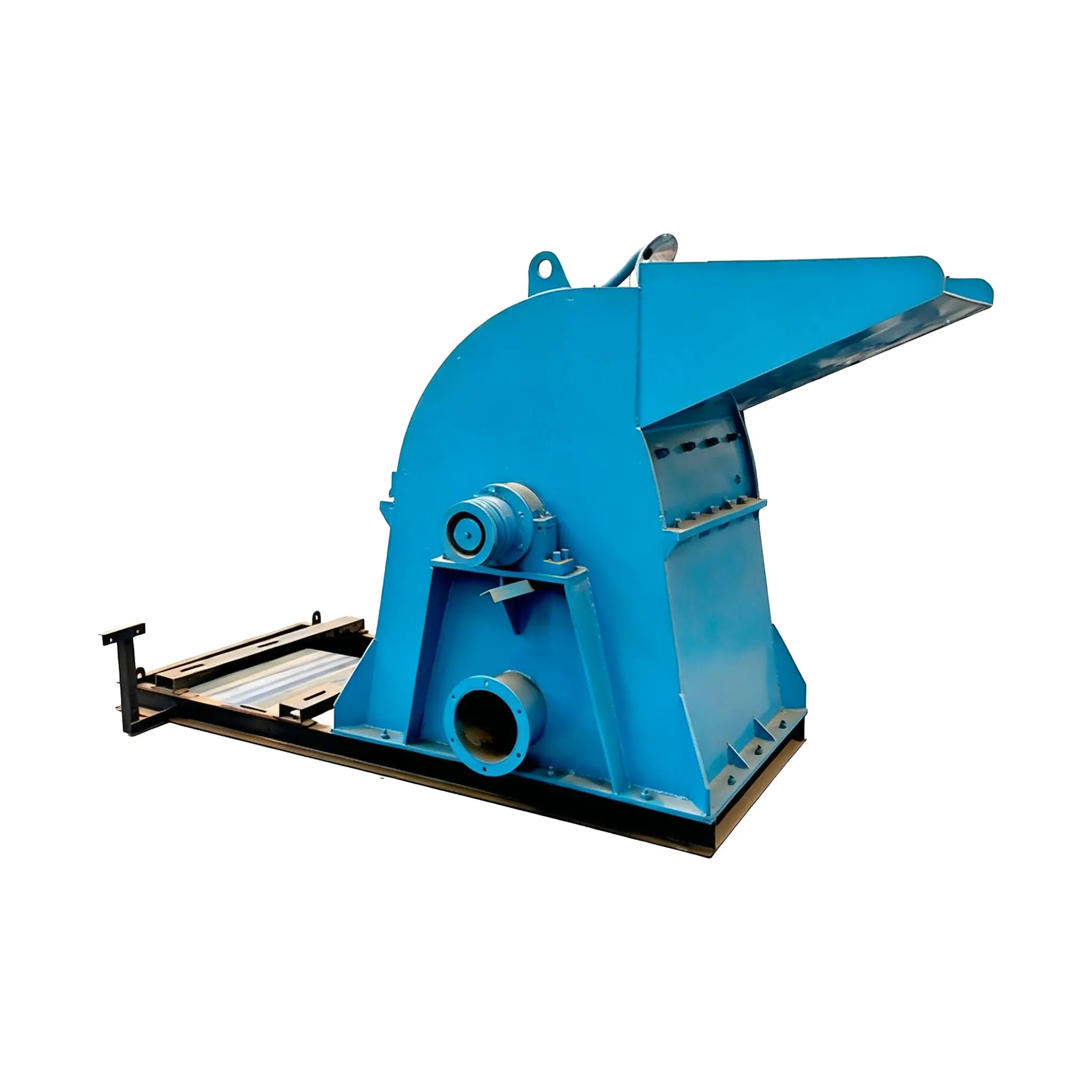

Model 600 Sawdust Crusher is engineered for efficient wood processing, delivering strong performance and stable output. Equipped with a forced-feed system and a high-power electric motor, it can process branches, wood chips, and various raw materials into uniform sawdust, making it ideal for biomass utilization and recycling applications.

Key Specifications
Power Configuration: 37 kW
Drive System: Electric Motor Driven
Production Capacity: Approx. 1 ton/hour
Max Processing Diameter: < 80 mm (≈ 3.15 inches)

Applications
Sawdust Production | Mulch / Landscaping Material | Biomass Feedstock Preparation

Further Processing Uses
Charcoal Production | Biomass Pellets | Livestock Bedding | Organic Fertilizer / Composting

Drive type

Electric

Branch Limit

≤3.15" Inch

Power

37 KW

Capacity

1 t/H

Make the crushing process easier.

Features & Advantages

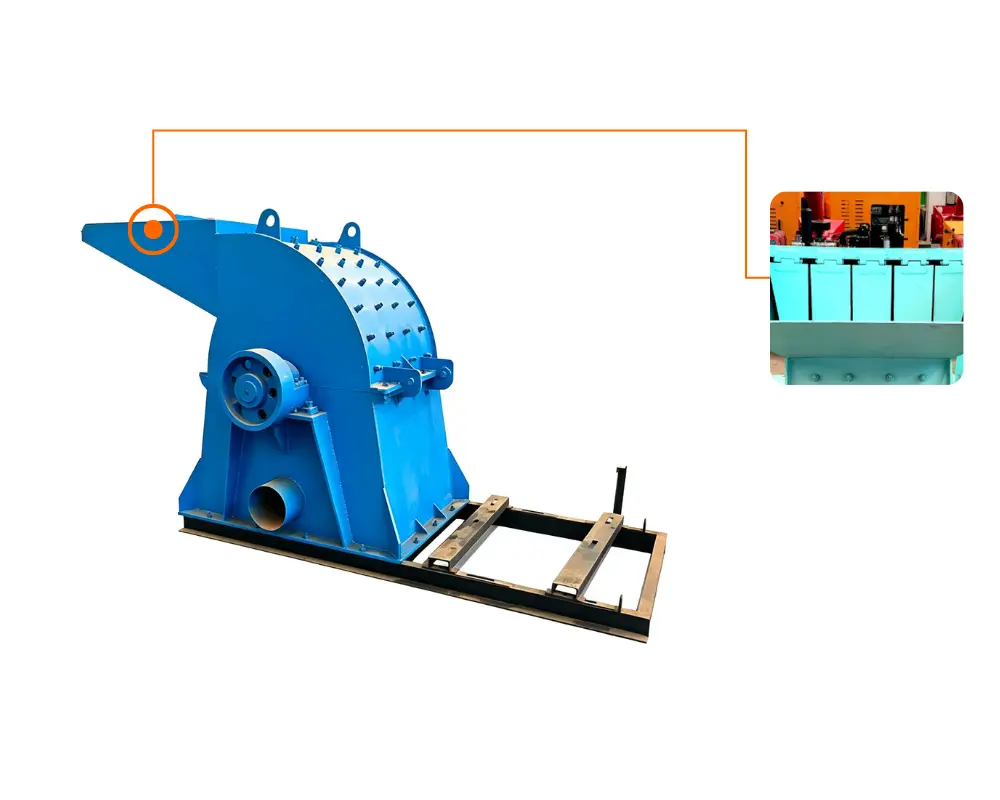

Feeding System Optimization

Designed with an enlarged and widened feeding inlet, the machine allows for easier material loading and smoother operation. This optimized feeding structure reduces manual effort, improves feeding efficiency, and significantly enhances overall working performance.

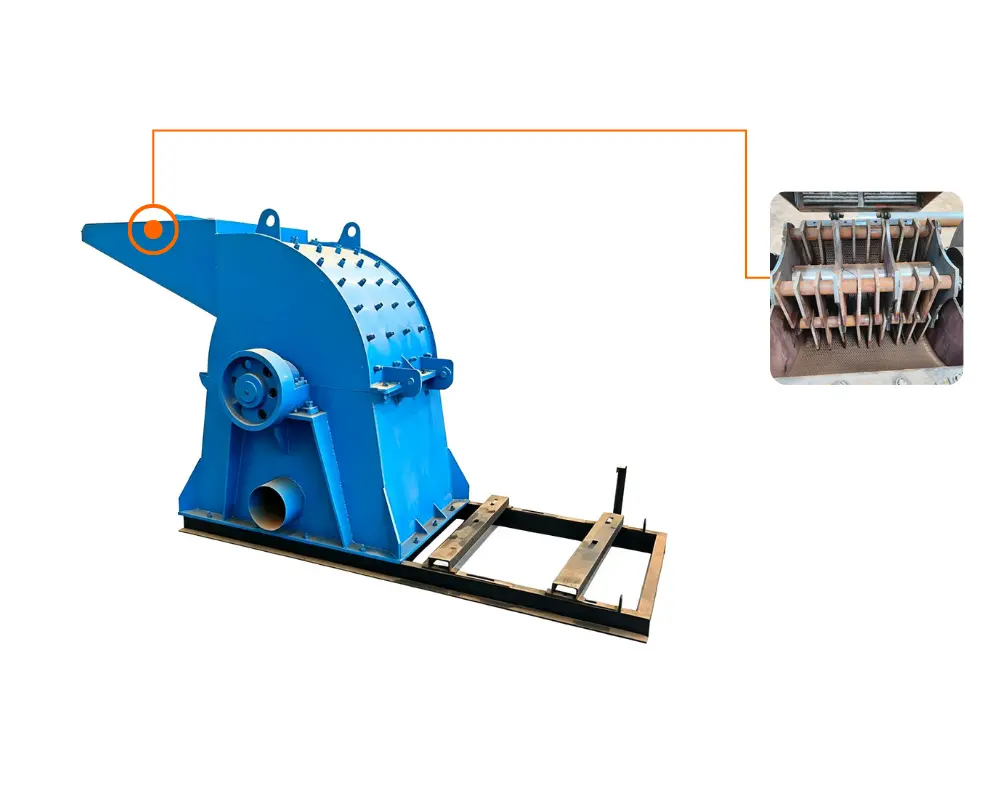

Thickened Hammer – Durable, Low-Wear, Easy Maintenance

The thickened hammer is made from robust materials, ensuring low wear and long service life. Its durable design makes maintenance quick and convenient, helping to reduce downtime and improve operational efficiency.

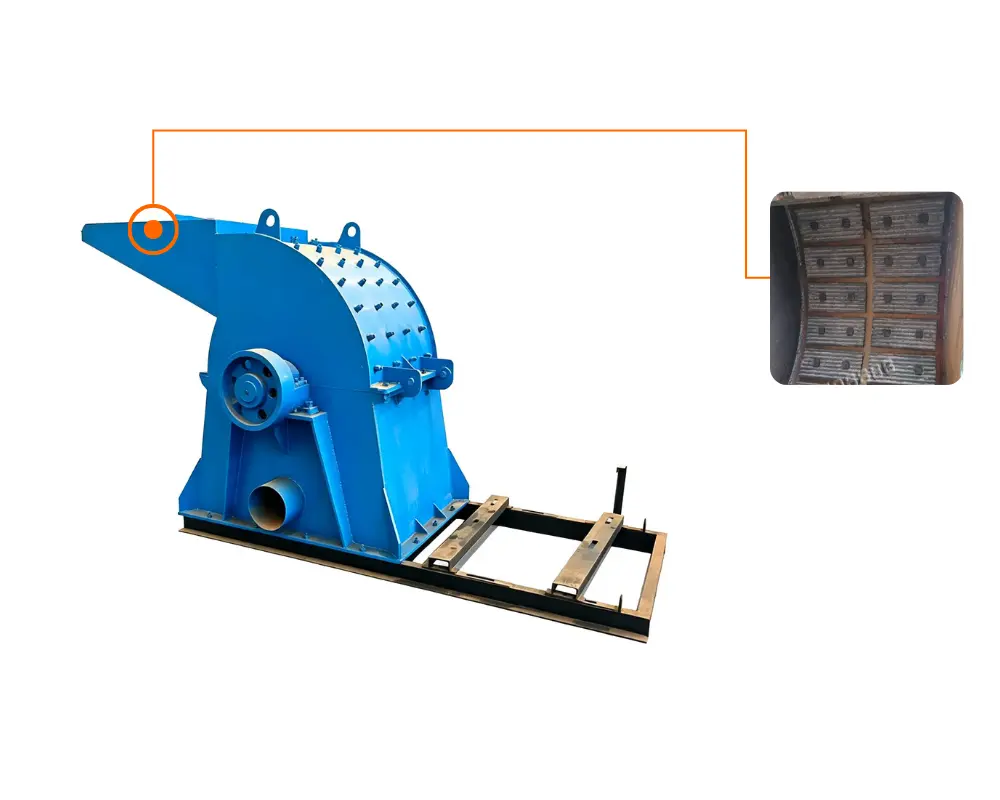

Manganese Steel Liner – Thick, Shock-Resistant, Low-Wear

The 25mm-thick manganese steel liner provides excellent shock absorption and vibration resistance, while its wear-resistant design ensures minimal material loss over time. Ideal for heavy-duty operations, it helps maintain performance and prolongs equipment life.

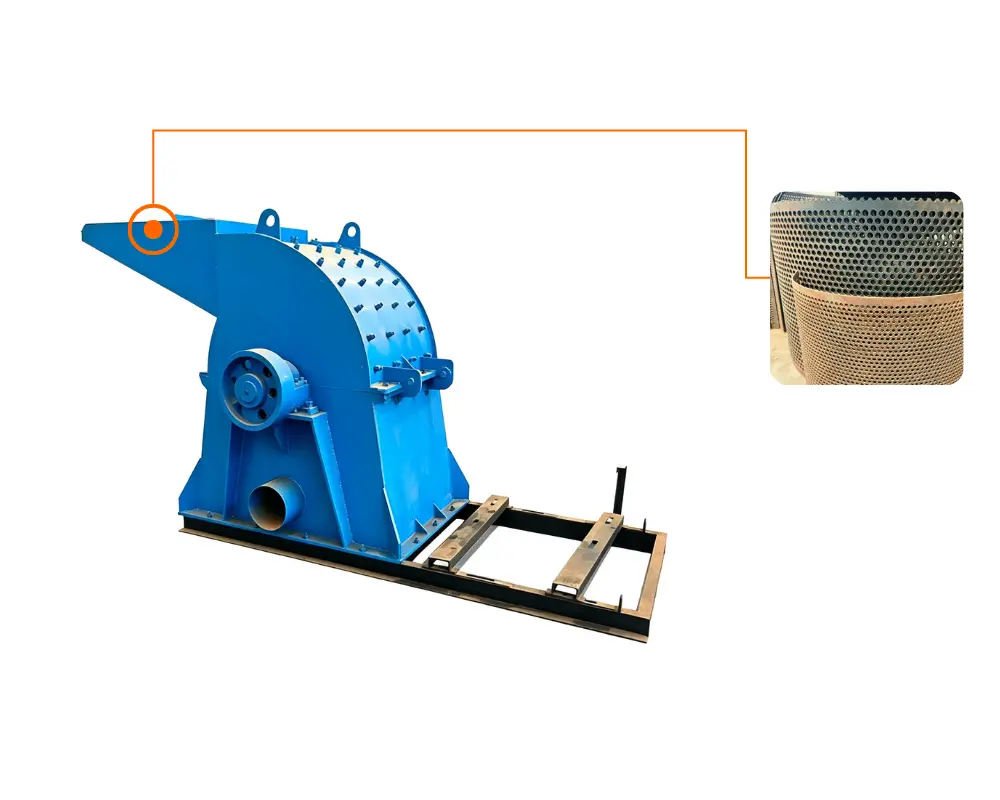

Screen System

Equipped with a high-strength screen, the system features an adjustable screen design that allows flexible control of discharge size. This enables the machine to produce different particle sizes according to processing requirements, improving material adaptability and application range.

Specifications

General Information

Item	Specification
Model	Model 600 Sawdust Crusher
Power Configuration	37 kW
Drive System	Electric Motor Driven
Production Capacity	Approx. 1 ton/hour
Max Processing Diameter	<80 mm (≈ 3.15 inches)
Dimensions (L×W×H)	4350 × 1050 × 1870 mm
Machine Weight	1600 kg
Transmission Type	Belt Drive

Rotor and Hammer

Item	Specification
Rotor Diameter	660 mm
Main Shaft Speed	2600 r/min
Hammer Quantity	36 pcs
Hammer Size	190 × 70 × 10 mm
Hammer Pin Shaft	45# Steel, High-Frequency Heat Treatment

Feed and Material Handling

Item	Specification
Feeding Method	2 m Conveyor Feeding
Feeding Inlet Size	600 × 280 mm
Feeding Throat Size	600 × 180 mm
Roller Motor Power	3 kW
Conveyor Motor Power	2.2 kW

Liner and Screen

Item	Specification
Liner Thickness	25 mm
Liner Material	Manganese Steel or Cast Steel
Screen Size	Optional 8–30 mm

Dust Collection and Airflow

Item	Specification
Discharge Method	Independent Blower (7.5 kW)
Dust Collection	Bag-Type Dust Collector (10 Bags)

Motors and Gearboxes

Item	Specification
Start Method	Control Cabinet Start
Main Reducer Model	BWD2-35-3
Roller Reducer Model	BLD3-35-4

Optional Configuration

Item	Specification
Optional Configuration	Airlock Discharger (Windproof Type, Optional)
