Name: Model 600 Forced-Feed Sawdust Crusher - JUNRONGECO
SKU: ECO-600-FFSC-ME

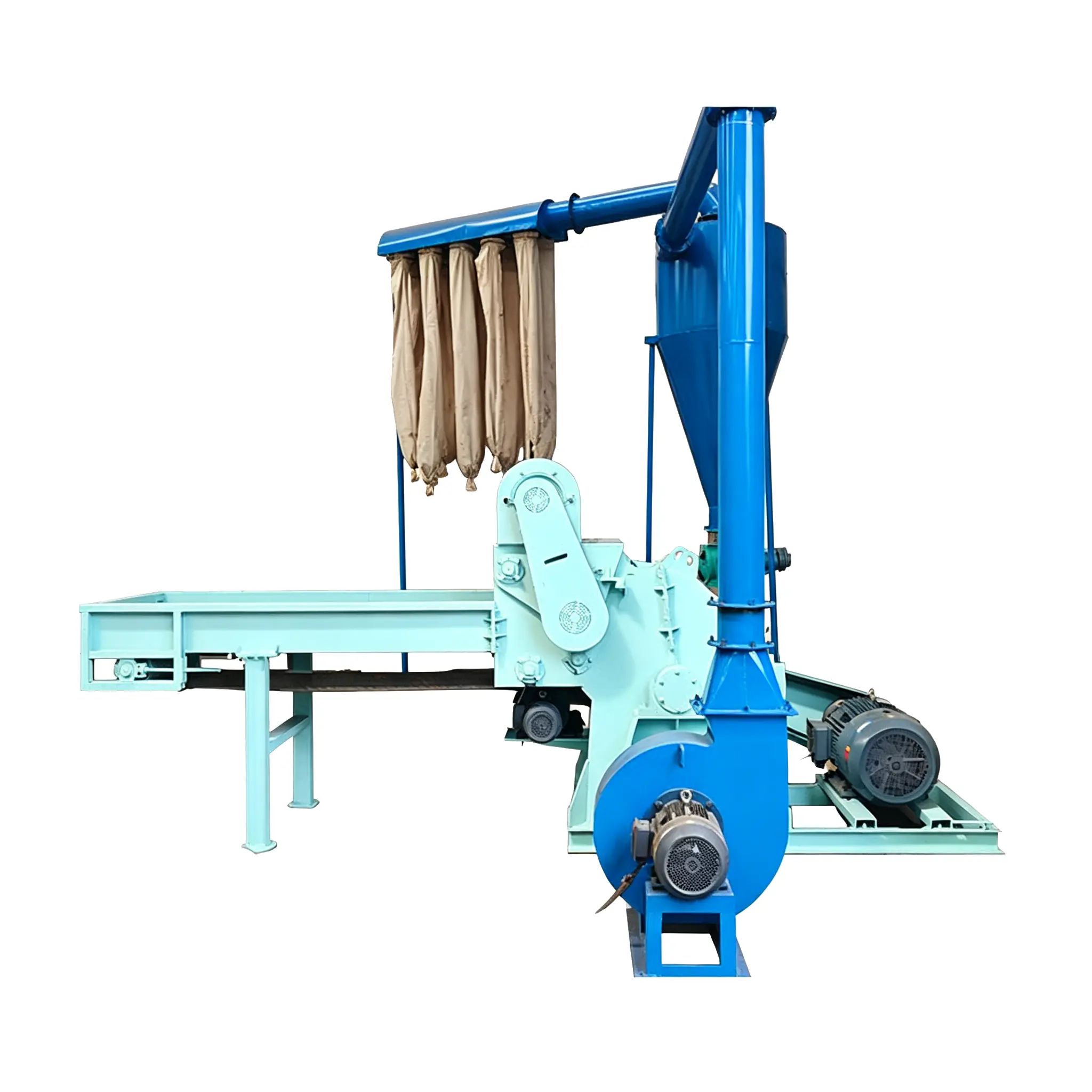

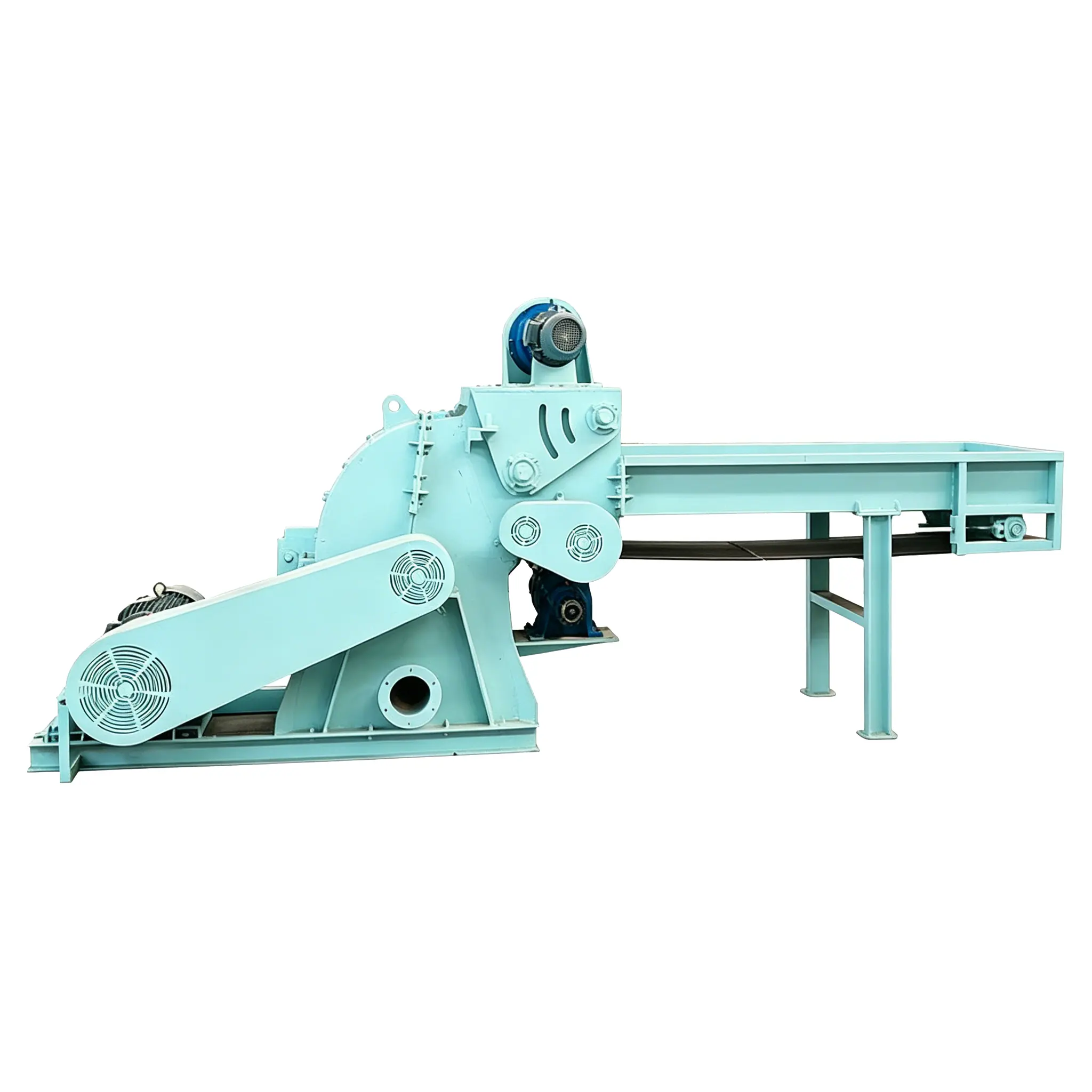

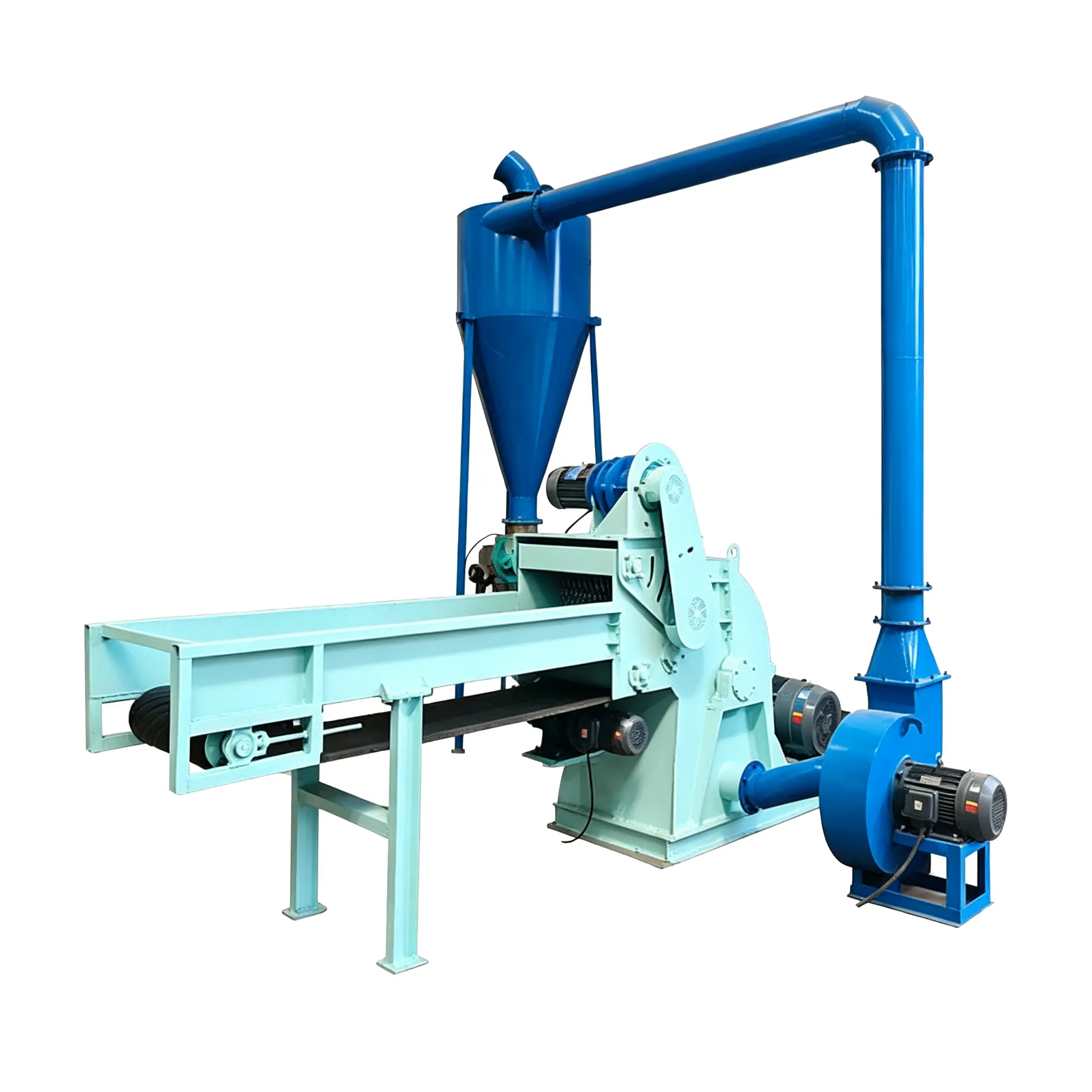

Model 600 Forced-Feed Sawdust Crusher is designed for efficient wood processing, delivering strong performance and stable output. Equipped with a forced-feed system and a powerful electric motor, the machine processes branches, wood chips, and raw materials into uniform sawdust, making it ideal for biomass and recycling applications.

Key Specifications
Power Configuration: 37 kW
Drive System: Electric Motor Driven
Production Capacity: Approx. 1 ton/hour
Max Processing Diameter: <80 mm (≈ 3.15 inches)

Applications
Sawdust Production | Mulch / Landscaping Material | Biomass Feedstock Preparation

Further Processing Uses
Charcoal Production | Biomass Pellets | Livestock Bedding | Organic Fertilizer / Composting

Drive type

Electric

Branch Limit

≤3.15" Inch

Power

37 KW

Capacity

1 t/H

Make the crushing process easier.

Features & Advantages

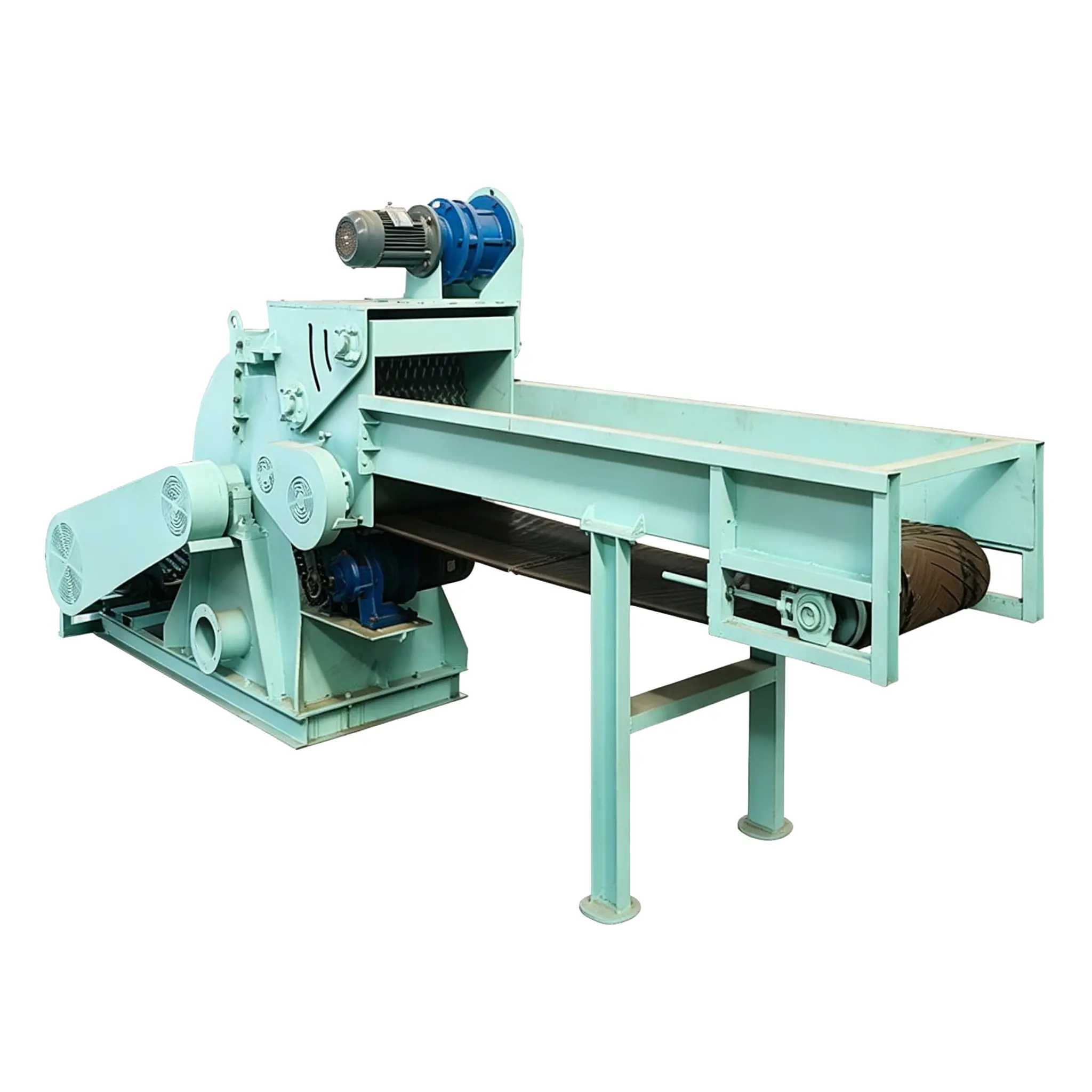

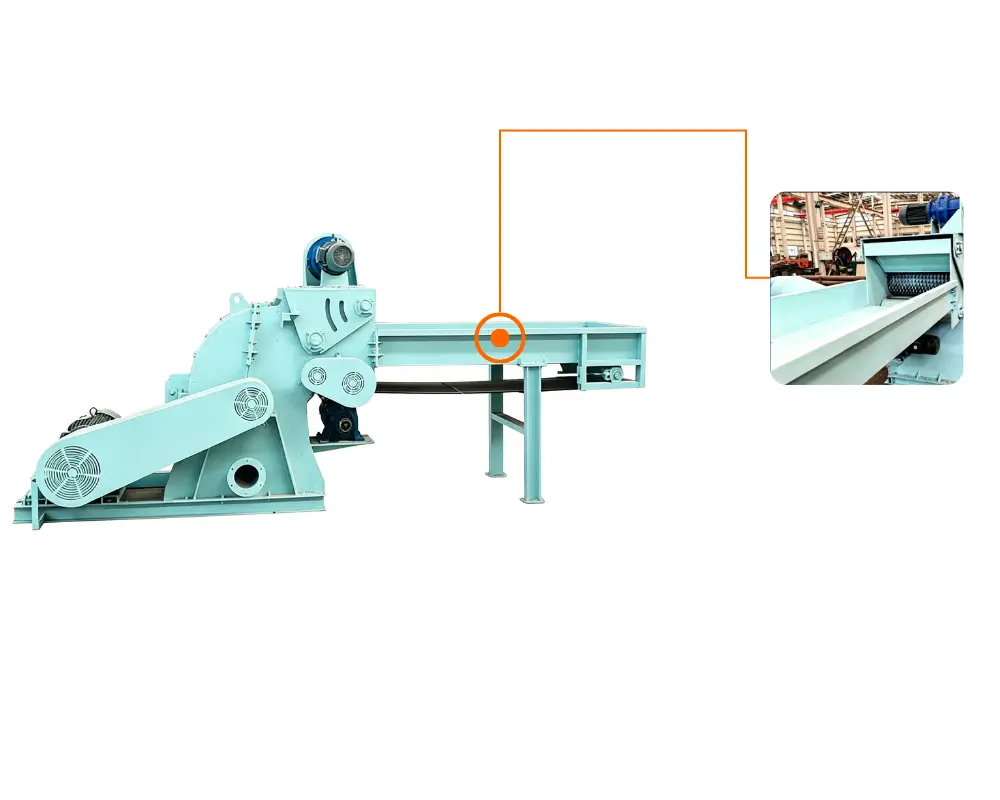

Extended Feed Port – Easy Loading for Higher Efficiency

The extended feed port design allows for effortless material input, reducing manual labor. It simplifies the loading process, making operations faster and more convenient, and helps to increase overall work efficiency in your production or laboratory setup. This feature is ideal for improving workflow and saving time on repetitive tasks.

High-Concentricity Feed Roller for Shaft Processing

The feed roller is specifically designed for whole-shaft processing, providing superior concentricity for precise and stable feeding.
Its design reduces feeding load, ensuring smoother operation, less wear, and longer service life.
Perfect for applications that demand accurate, efficient, and reliable material handling along the entire shaft.

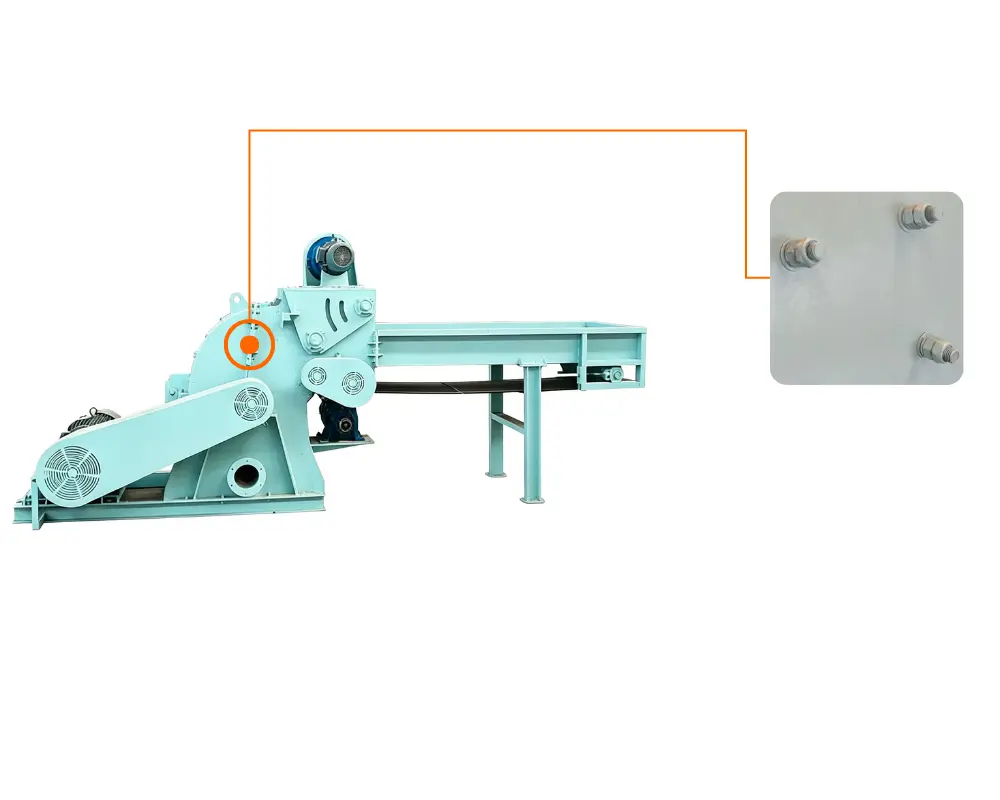

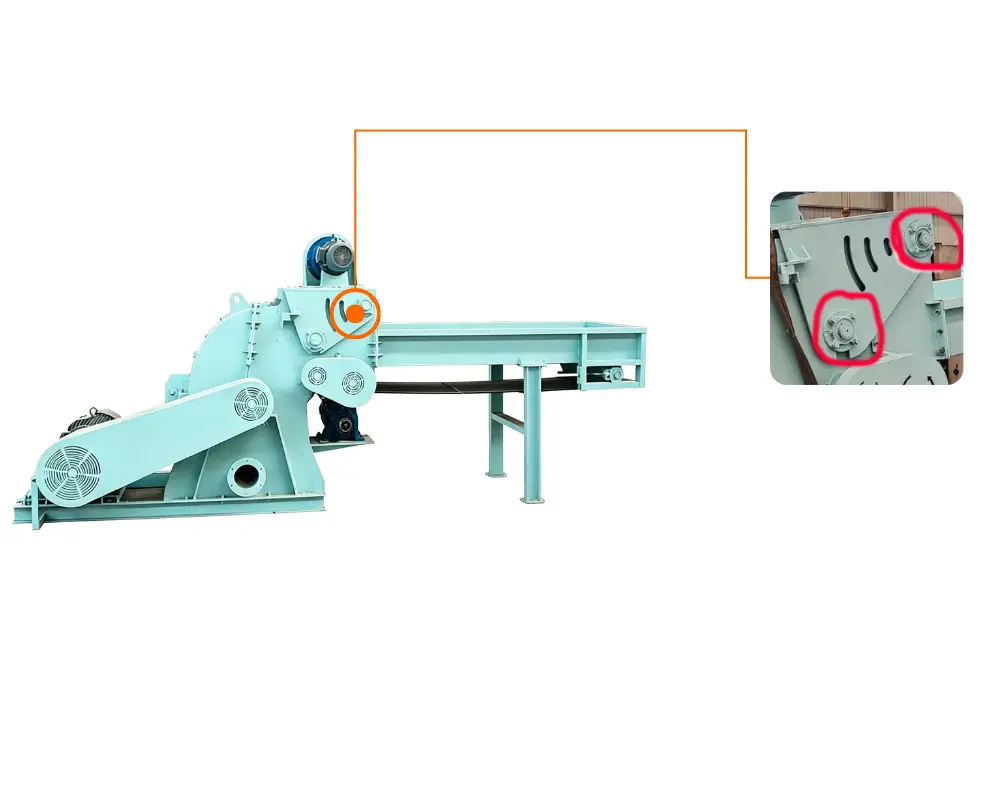

Back Plate Secured with Locking Bolts for Stable Operation

Attention to detail ensures no looseness in operation.

The back plate screws use cup-shaped bolts, which are first tightened and then reinforced with self-locking nuts to prevent the wear plate from loosening.

Designed for durability and reliable performance under continuous use.

Screen System

Equipped with a high-strength screen, the system features an adjustable screen design that allows flexible control of discharge size. This enables the machine to produce different particle sizes according to processing requirements, improving material adaptability and application range.

Specifications

General Information

Item	Specification
Model	Model 600 Forced-Feed Sawdust Crusher
Power Configuration	37 kW
Drive System	Electric Motor Driven
Production Capacity	Approx. 1 ton/hour
Max Processing Diameter	<80 mm (≈ 3.15 inches)
Dimensions (L×W×H)	4350 × 1050 × 1870 mm
Machine Weight	1600 kg
Transmission Type	Belt Drive

Rotor and Hammer

Item	Specification
Rotor Diameter	660 mm
Main Shaft Speed	2600 r/min
Hammer Quantity	36 pcs
Hammer Size	190 × 70 × 10 mm
Hammer Pin Shaft	45# Steel, High-Frequency Heat Treatment

Feed and Material Handling

Item	Specification
Feeding Method	2 m Conveyor Feeding
Feeding Inlet Size	600 × 280 mm
Feeding Throat Size	600 × 180 mm
Roller Motor Power	3 kW
Conveyor Motor Power	2.2 kW

Liner and Screen

Item	Specification
Liner Thickness	25 mm
Liner Material	Manganese Steel or Cast Steel
Screen Size	Optional 8–30 mm

Dust Collection and Airflow

Item	Specification
Discharge Method	Independent Blower (7.5 kW)
Dust Collection	Bag-Type Dust Collector (10 Bags)

Motors and Gearboxes

Item	Specification
Start Method	Control Cabinet Start
Main Reducer Model	BWD2-35-3
Roller Reducer Model	BLD3-35-4

Optional Configuration

Item	Specification
Optional Configuration	Airlock Discharger (Windproof Type, Optional)
