Model 6140 Diesel Engine Branch Chipper
The Model 6140 is specially designed for efficient wood processing, delivering powerful performance and stable output.
Power Configuration: 54 HP (Diesel Engine)
Drive System: Diesel Engine Powered
Production Capacity: Approx. 1–1.55 tons/hour (1–1.5 T/H)
Max Processing Diameter: 12 cm (4.72 inches)
Applications:
- Compost
- Mulch
- Engineered Boards
Further Processing Uses:
- Charcoal
- Biomass Pellets
- Animal Feed
- Organic Fertilizer
Let us tailor a solution for you.
Drive type
Fuel engine
Branch Limit
≤4.72" Inch
Power
54 HP
Capacity
1–1.5 t/h
Make the crushing process easier.
Features & Advantages
Digital display control system
It adopts an intelligent feeding system: when the engine load is high, the feeding automatically stops; when the engine load decreases, the feeding automatically resumes.

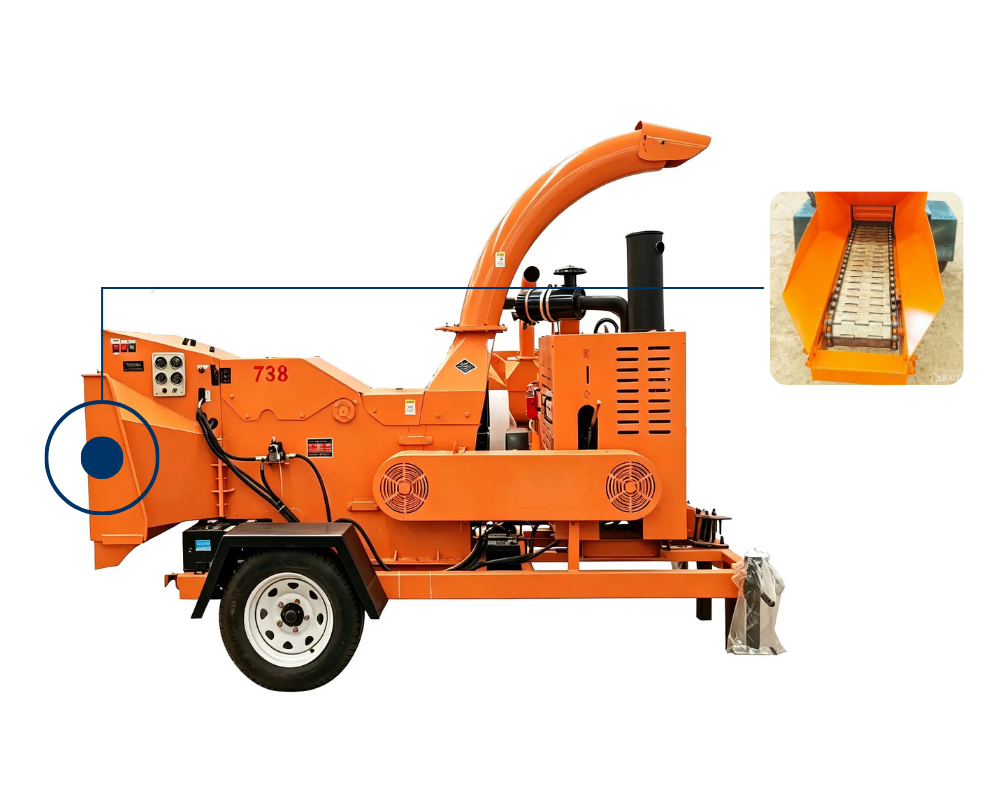

Chain Plate Feeding
The chain plate continuously conveys materials, ensuring stable feeding to the shredder and preventing sudden accumulation or idling.

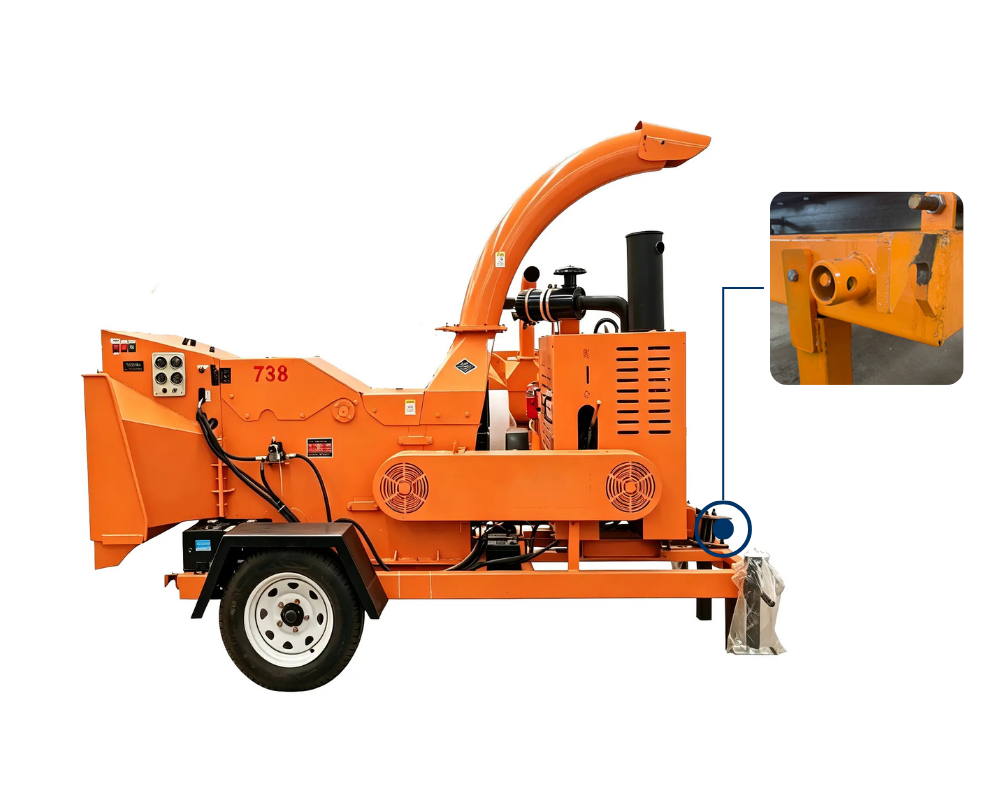

Towable design for flexible and efficient operation.
Supports quick towing for easy relocation across different job sites. No disassembly required, improving transport efficiency and flexibility. Ideal for forestry, parks, and multi-location operations.
Integrated Safety Control Design
Front-mounted throttle and shutdown handle in one unit for easy operation and quick emergency stop, enhancing safety and control.
Specifications
Basic Equipment Information
| Model | Model 6140 Diesel Engine Branch Chipper |
| Type | Diesel Engine Powered |
| Overall Dimensions | L2320mm × W1400mm × H1860mm |
| Net Weight | Approx. 750 kg |
| Customization | Supports special requirement customization |
Performance
| Capacity | 1–1.5 t/h |
| Processing Branch Diameter | ≤120 mm |
| Crushing Level | Coarse Crusher |
Feeding System
| Feed Roller Diameter | 280 mm |
| Feed Chute Size | 310 mm × 200 mm |
| Feed Inlet Size | 600 mm × 450 mm |
| Feed Gear | Forward — Reverse — Stop, manual 3-speed |
| Feed Lighting | Equipped with feed illumination lamp |
Cutting System
| Cutter Roller Diameter | 300 mm |
| Number of Blades | 4 movable blades, 1 fixed blade |
| Blade Length | 155 mm |
Discharge System
| Discharge Direction | 360° Quick Adjustment Device |
Power & Electrical
| Engine Power | 54 HP |
| Generator Power | 750 W |
| Battery | 12 V 85 Ah |
| Starting Method | Electric Start |
Hydraulic System
| Feed Roller Power | Hydraulic Motor |
| Hydraulic Oil Tank Capacity | 24 L |
Control System
| Throttle & Shut-off Control | Front-mounted integrated throttle & engine stop lever |
Structure & Configuration
| Tire Size | 165/70R13 |
| Rim | 13-inch Steel Rim |
| Other Features | Tail light, foldable hand crank jack, adjustable towing height |
