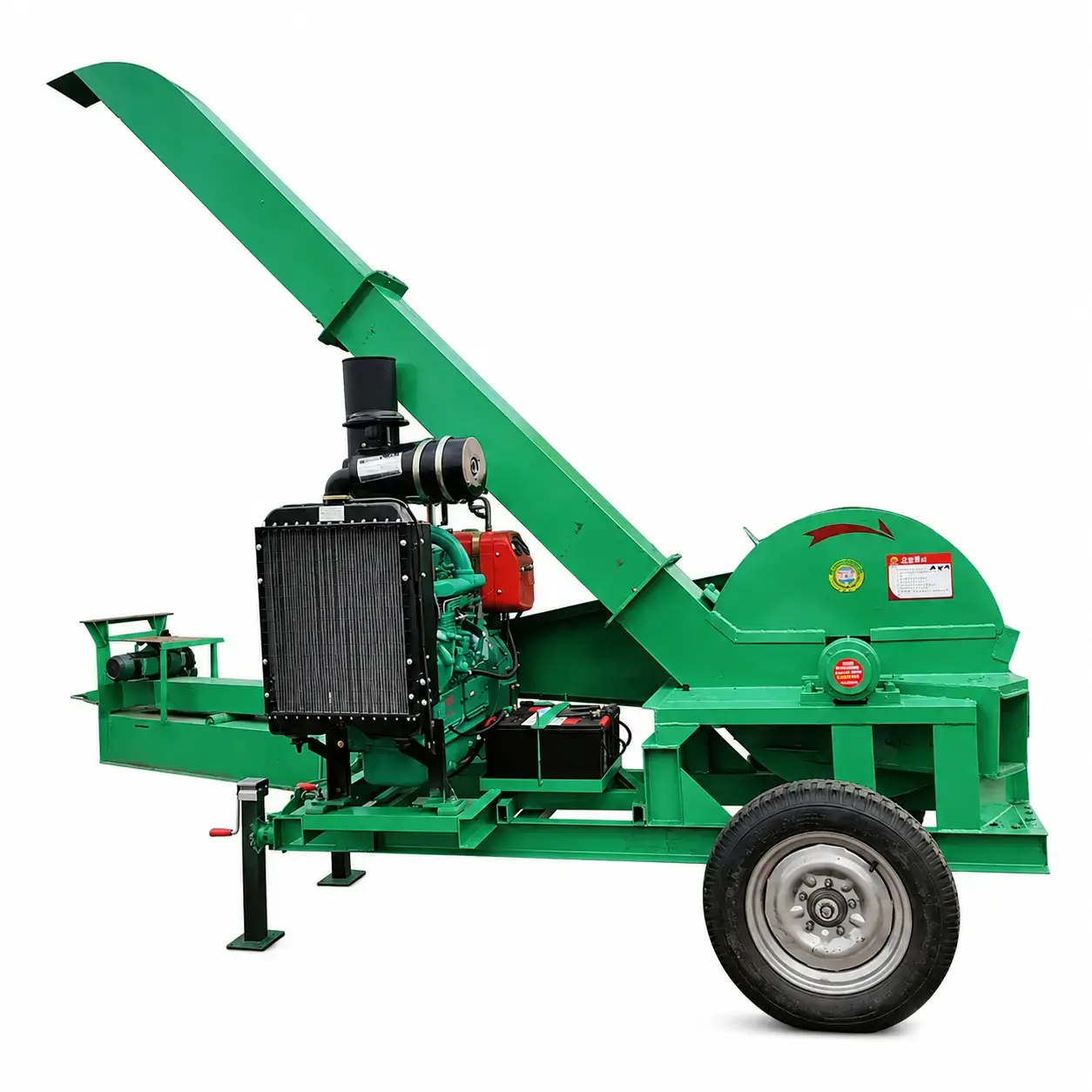

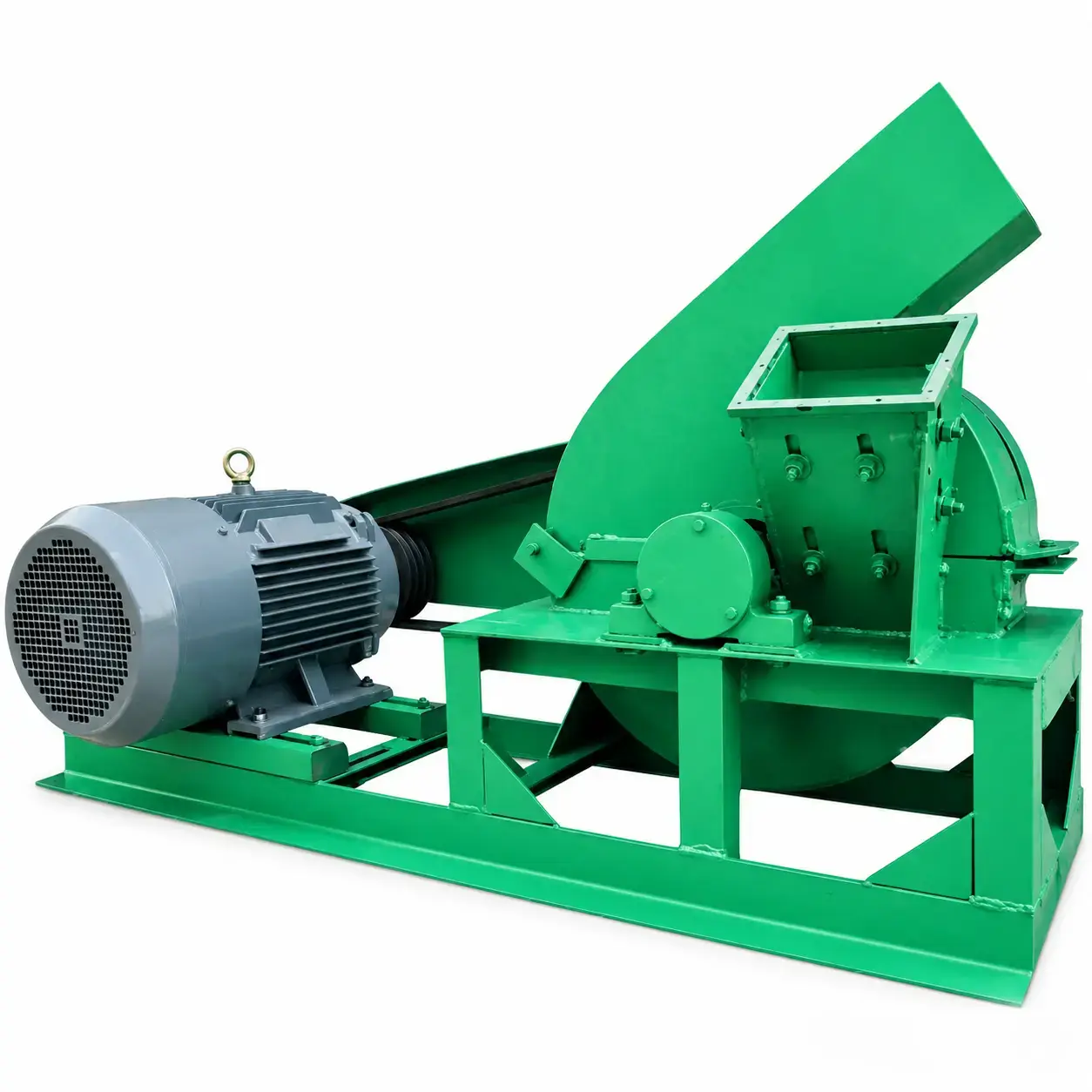

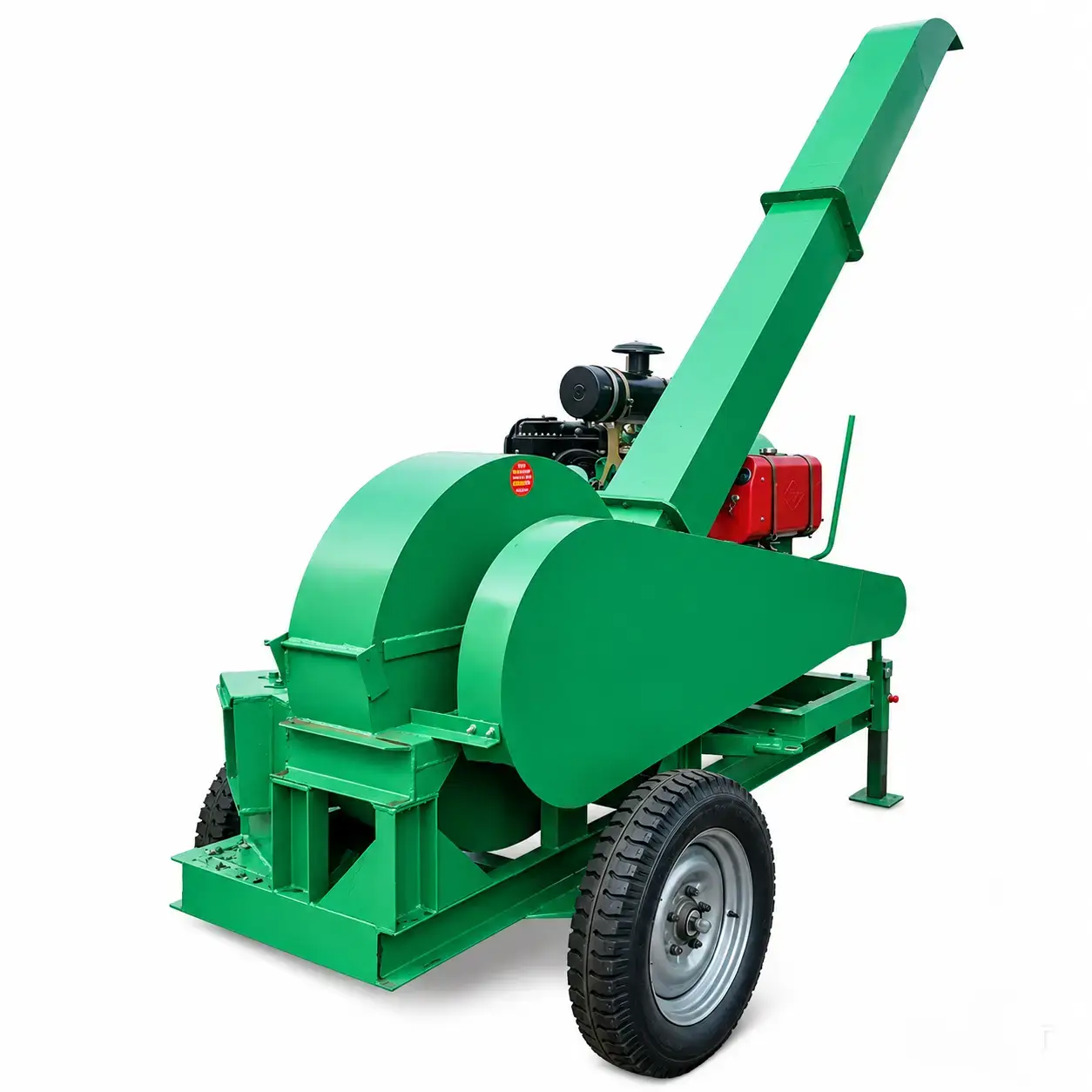

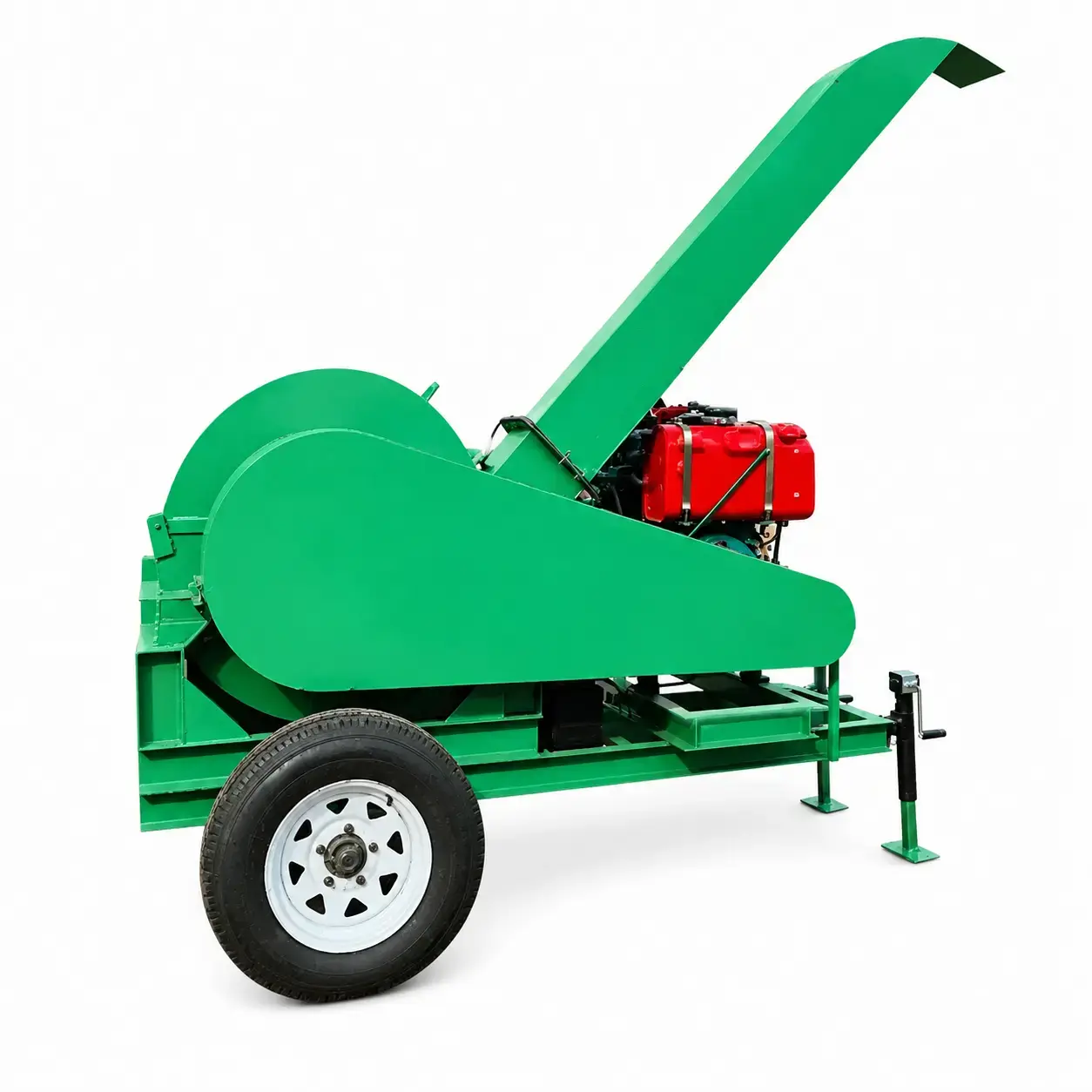

Model 950 Wood Chipper
Let us tailor a solution for you.
Drive type
Electric
Branch Limit
≤7.87" Inch
Power
37-45 KW
Capacity
6-8 t/H
Make the crushing process easier.
Features & Advantages

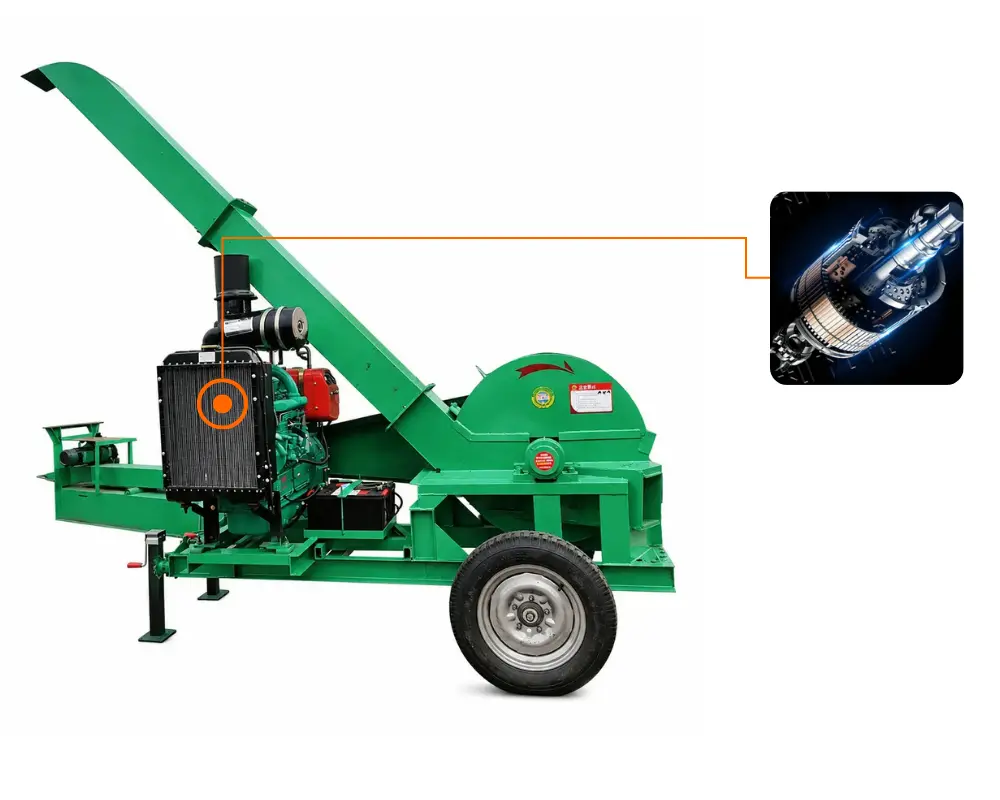

High-Power Motor for Maximum Crushing Efficiency

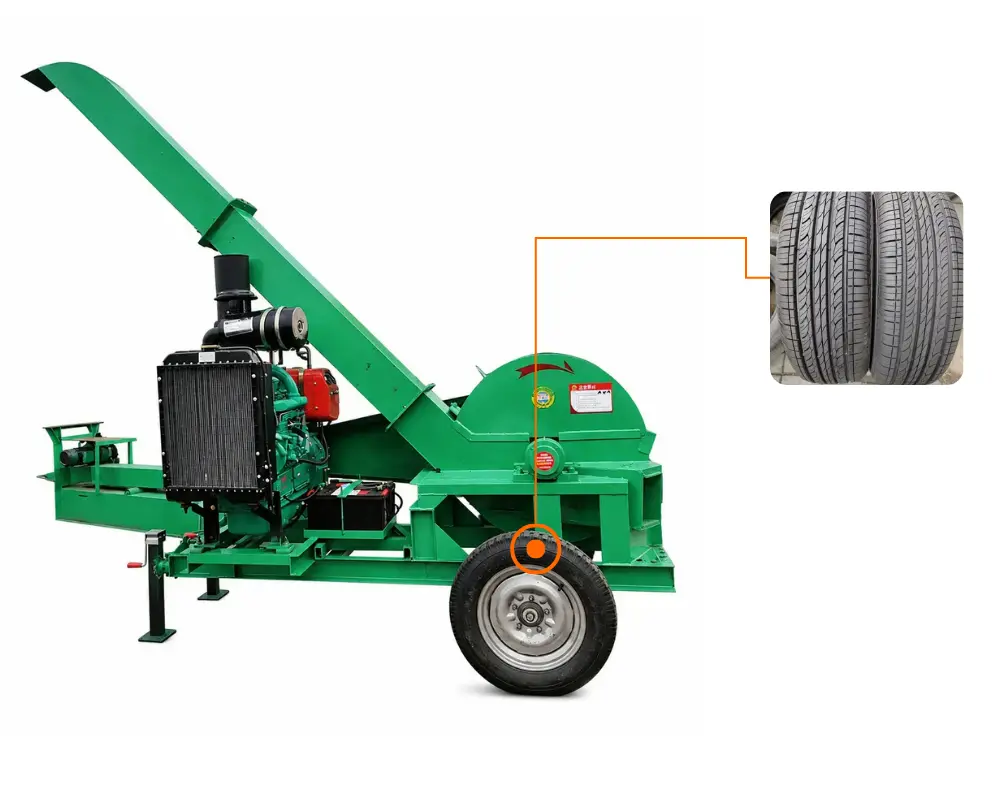

Stable Support Frame with Adjustable Mobility
Solid Support Frame: Equipped with adjustable legs and durable wheels, the solid support frame ensures easy movement, precise positioning, and adaptability across various terrains and work sites.

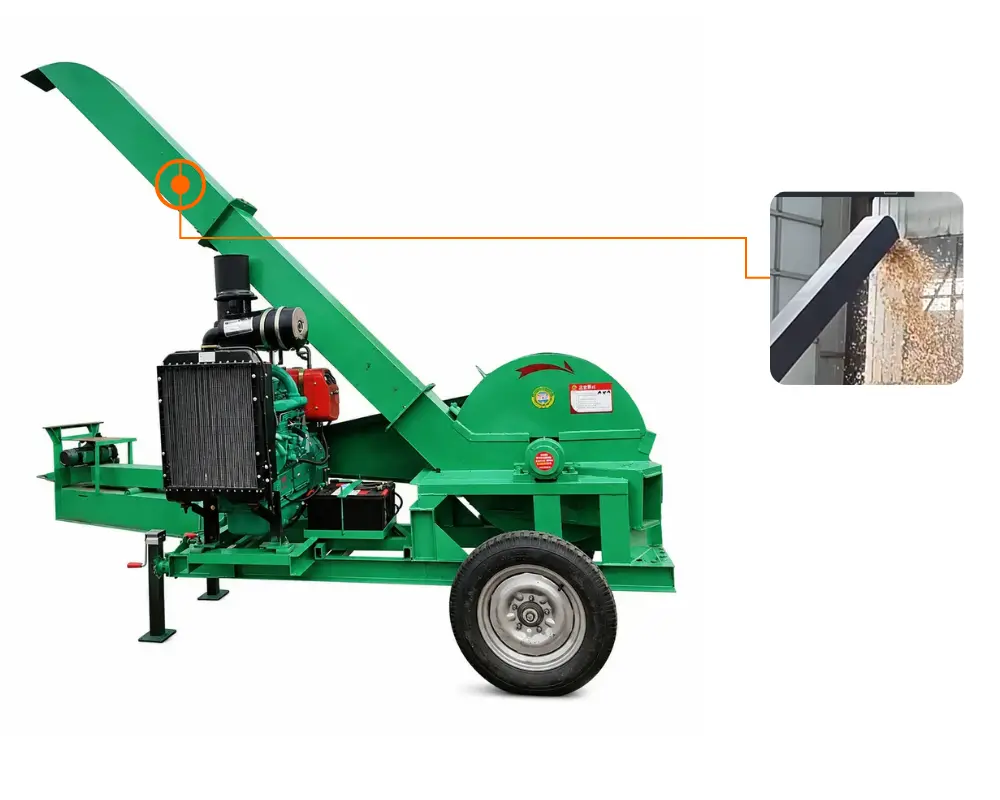

Extended Discharge – Anti-Clog & No Splash
Extended Discharge Pipe: Designed for high-throw output to prevent material blockages, the extended discharge pipe features an anti-clog design for smooth operation. Its no-splash construction keeps the work area clean and safe.
Durable & Wear-Resistant Blades
Specifications
General Information
| Item | Specification |
| Model | Model 950 Wood Chipper |
| Machine Weight | 350–450 kg |
| Dimensions (L×W×H) | 1900×820×1500 mm |
Power & Drive System
| Power (Hp) | 50-60 |
| Motor Power | 37-45 kW (Standard Version) |
| Operating Voltage | 380V, 50Hz, Three-phase |
| Transmission Type | Belt Drive |
Processing Capacity
| Production Capacity | 6–8 ton/hour |
| Finished Chip Length | 20–50 mm (Adjustable) |
| Finished Chip Thickness | 3–8 mm |
| Main Shaft Speed | 550 r/min |
Cutter & Blade System
| Cutter Disc Diameter | 830 mm |
| Blade Size | 250 × 120 × 12 mm |
| Number of Blades | 4 pcs |
| Blade Material | 65 Manganese Steel / Alloy Steel |
Feeding & Discharge
| Feed Opening Size | 250 × 230 mm |
| Feeding Method | Inclined Feeding |
| Discharge Method | Fan-assisted Top Discharge |
Machine Body & Material
| Machine Body Material | Thickened Welded Steel Plate |
Applicable Materials
| Applicable Materials | Logs, Branches, Bark, Bamboo, Straw, etc. |
