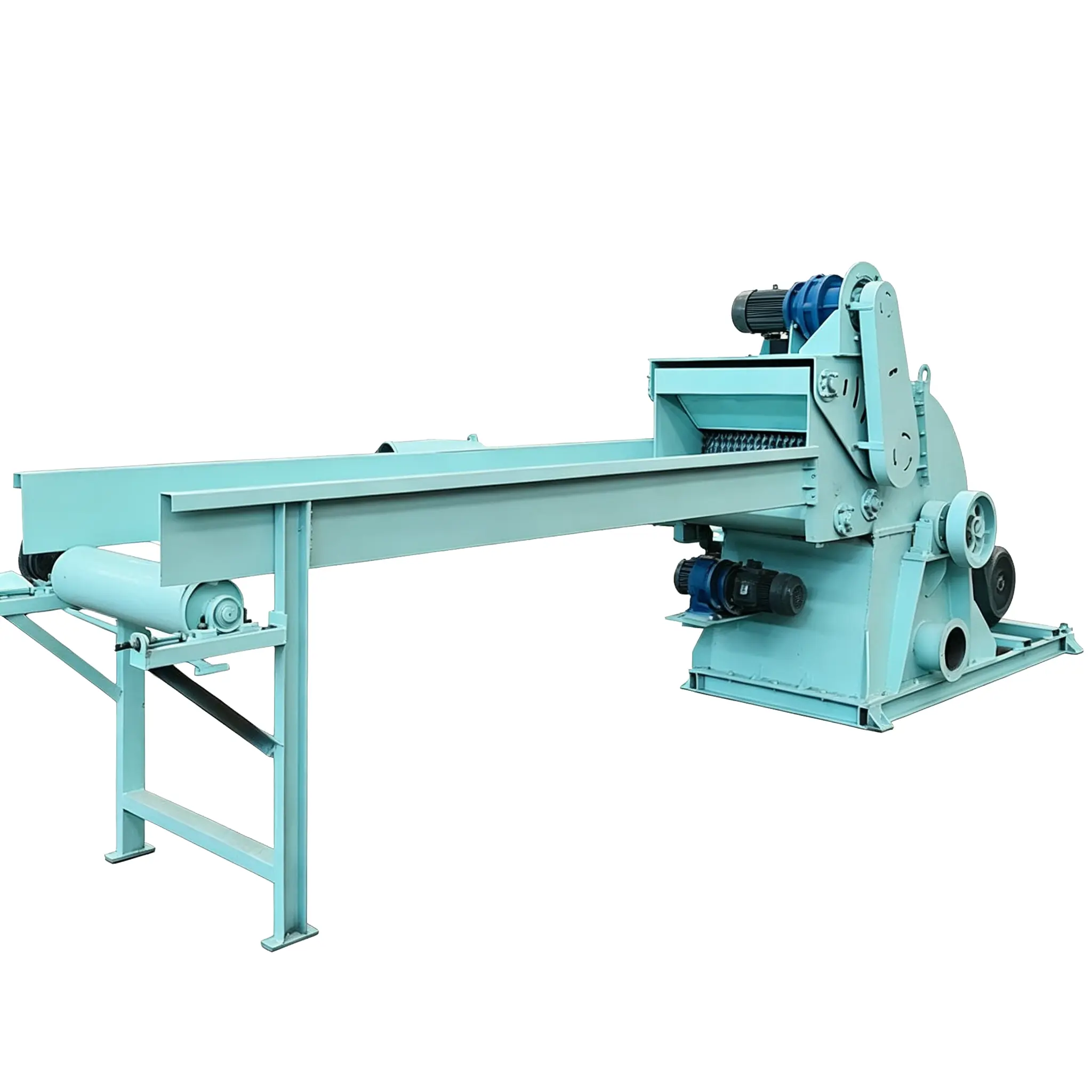

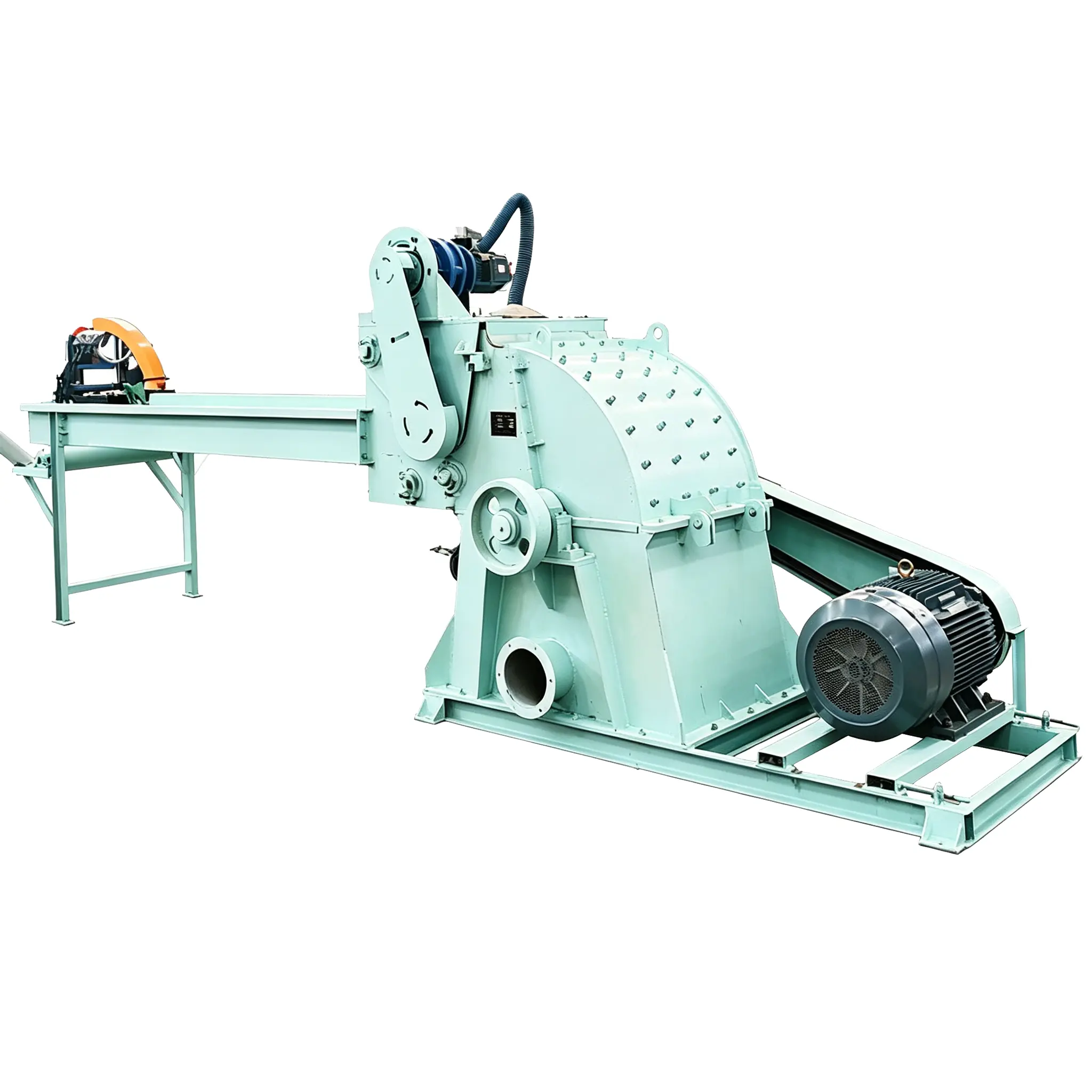

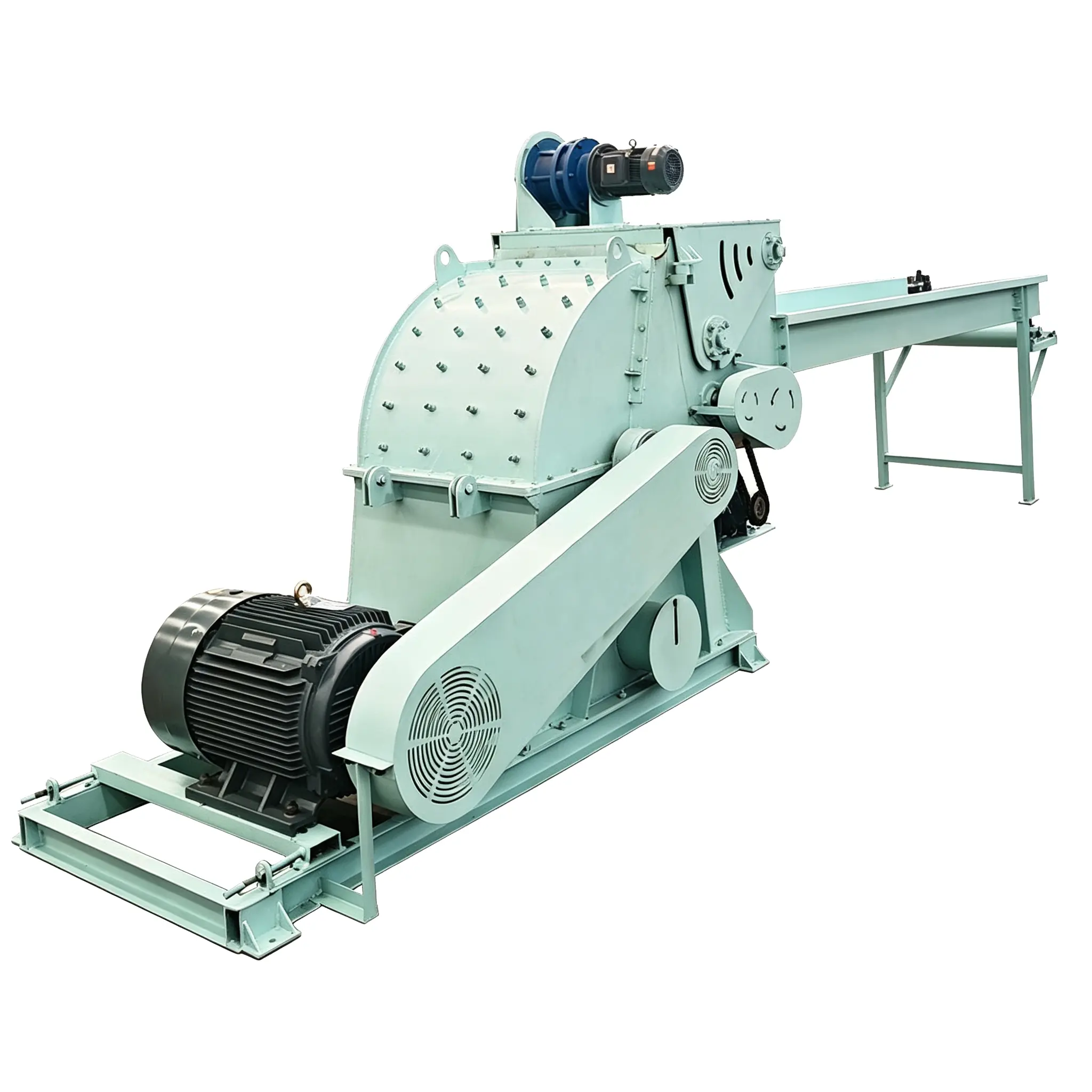

Model 800 Forced-Feed Sawdust Crusher
The Model 800 Forced-Feed Sawdust Crusher is specially designed for high-efficiency wood processing, delivering robust performance and stable output. With a forced-feed system and powerful electric motor, this machine efficiently converts branches, wood chips, and sawdust into uniform particles, suitable for various industrial and biomass applications.
Power Configuration: 55 kW
Drive System: Electric Motor Driven
Production Capacity: Approx. 2–3 tons/hour
Max Processing Diameter: <80 mm (≈ 3.15 inches)
Applications:
Sawdust Production
Mulch / Landscaping Material
Biomass Feedstock Preparation
Further Processing Uses:
Charcoal Production
Biomass Pellets
Livestock Bedding Material
Organic Fertilizer / Composting
Let us tailor a solution for you.
Drive type
Electric
Branch Limit
≤3.15" Inch
Power
55 KW
Capacity
2-3 T/H
Make the crushing process easier.
Features & Advantages

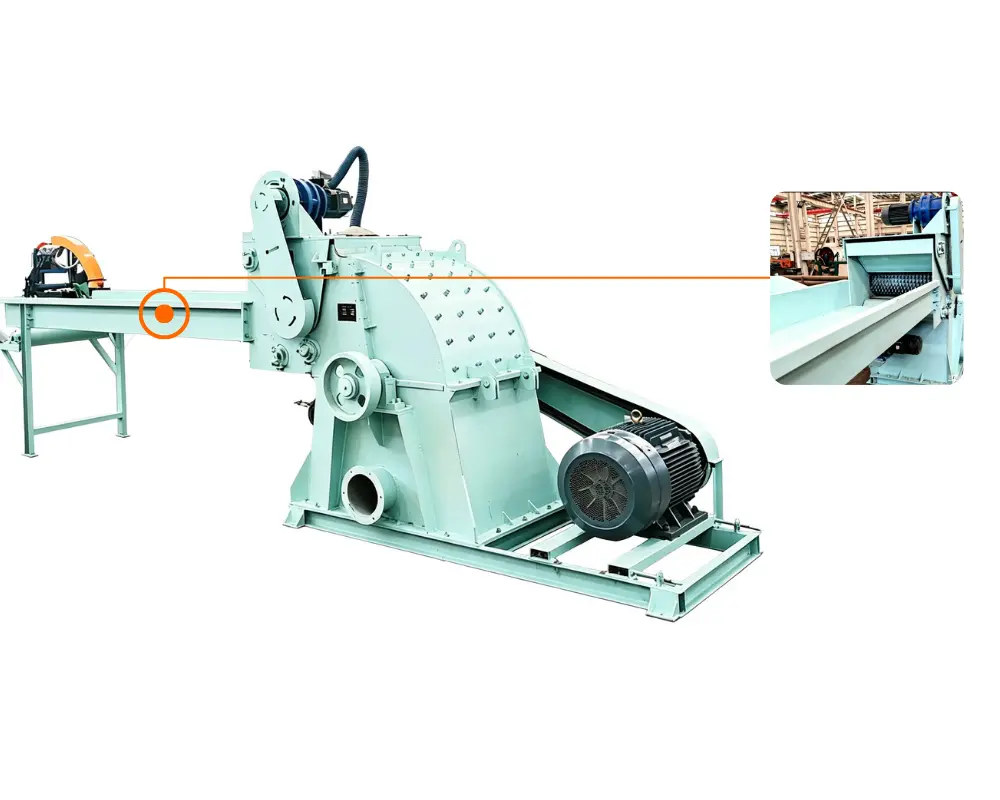

Extended Feed Port – Easy Loading for Higher Efficiency
The extended feed port design allows for effortless material input, reducing manual labor. It simplifies the loading process, making operations faster and more convenient, and helps to increase overall work efficiency in your production or laboratory setup. This feature is ideal for improving workflow and saving time on repetitive tasks.

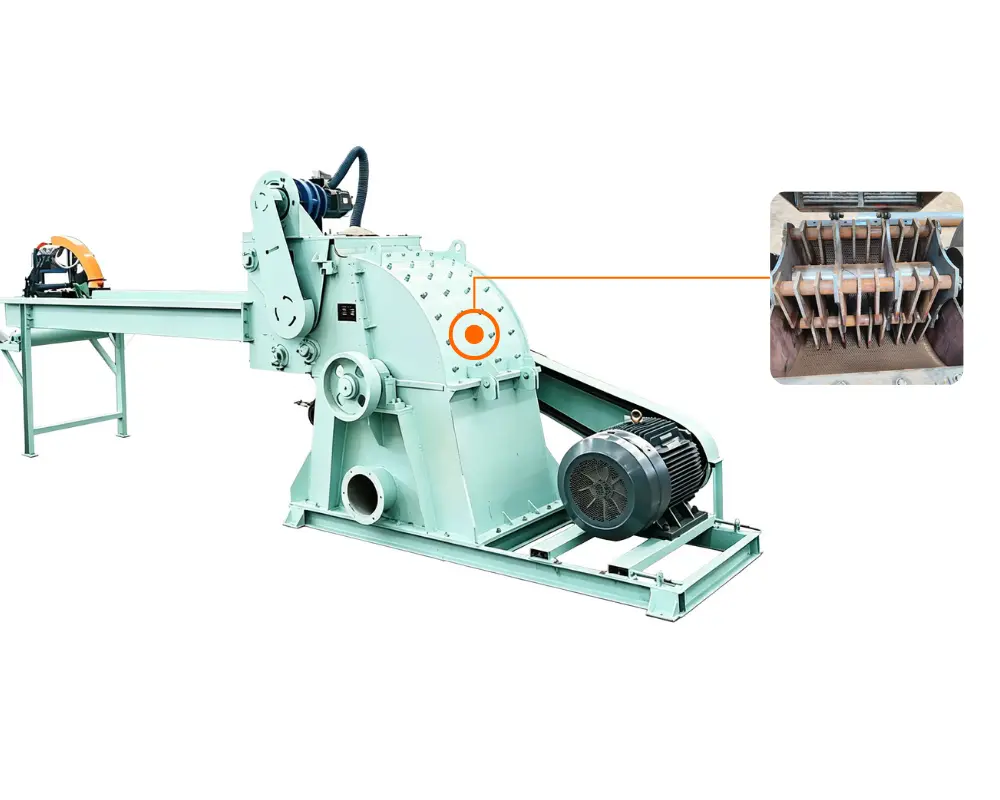

Thickened Hammer – Durable, Low-Wear, Easy Maintenance
The thickened hammer is made from robust materials, ensuring low wear and long service life. Its durable design makes maintenance quick and convenient, helping to reduce downtime and improve operational efficiency.

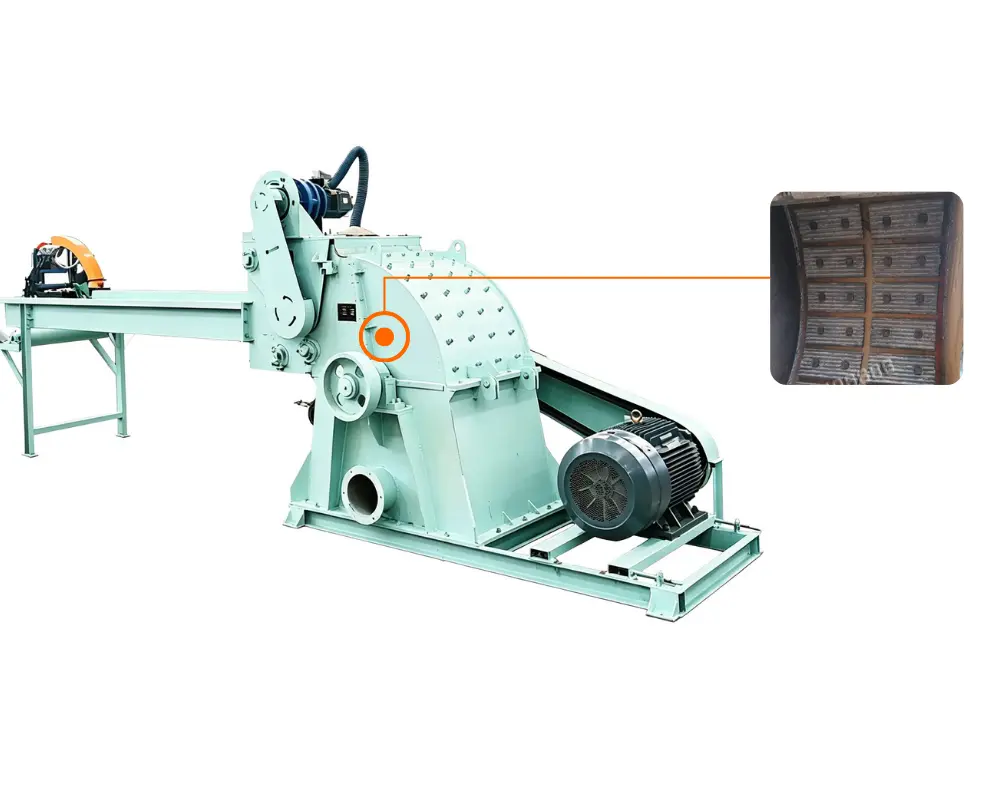

Manganese Steel Liner – Thick, Shock-Resistant, Low-Wear
The 25mm-thick manganese steel liner provides excellent shock absorption and vibration resistance, while its wear-resistant design ensures minimal material loss over time. Ideal for heavy-duty operations, it helps maintain performance and prolongs equipment life.

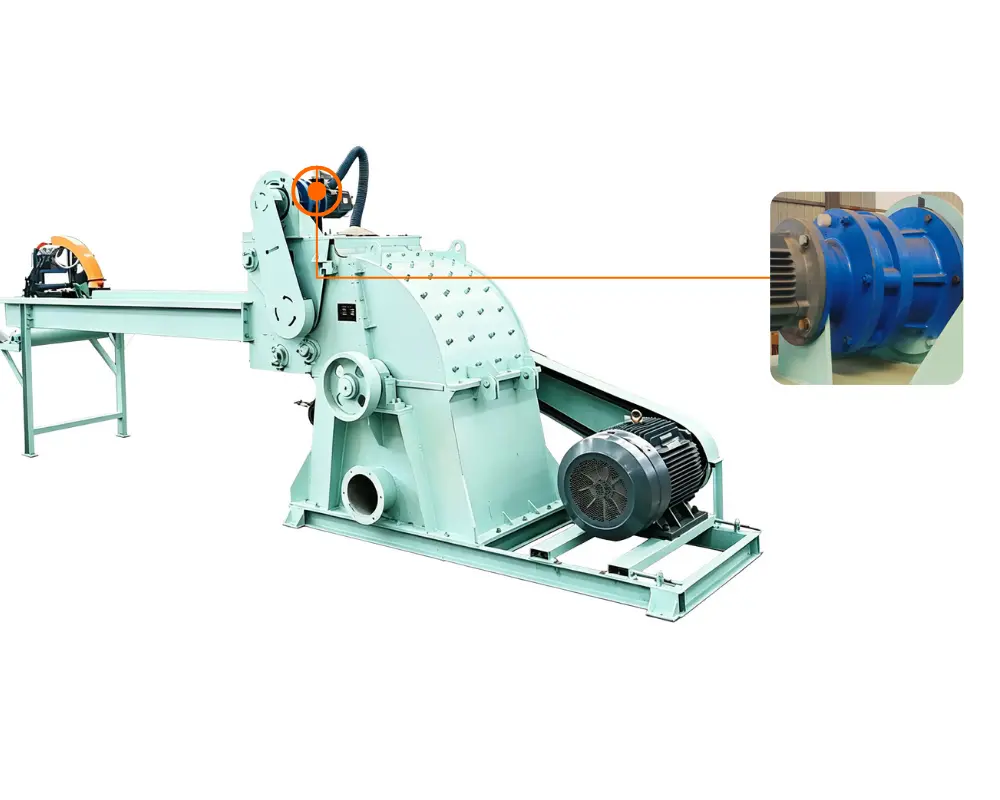

High-Quality Gearbox – Powerful Torque, Durable and Reliable
The machine is built with high-quality materials, ensuring durability and long-lasting performance. Equipped with a Type 3 gearbox, it delivers higher torque and efficient power transmission, making it less prone to damage and highly reliable for demanding operations.
Specifications
General Information
| Item | Specification |
| Model | Model 800 Forced-Feed Sawdust Crusher |
| Power | 55 kW |
| Drive Type | Electric Motor |
| Production Capacity | 2-3 tons/hour |
| Max. Wood Diameter | <80 mm (≈ 3.15 inches) |
| Transmission | Belt Drive |
| Overall Dimensions (L×W×H) | 4650 × 1400 × 2170 mm |
| Total Weight | 1900 kg |
Rotor and Hammer
| Item | Specification |
| Rotor Diameter | 780 mm |
| Main Shaft Speed | 2400 r/min |
| Number of Hammer Blades | 48 pcs |
| Hammer Blade Size | 230 × 70 × 10 mm |
| Hammer Pin Material | 45# Steel, High-Frequency Quenched |
Feed and Material Handling
| Item | Specification |
| Feed Inlet Size | 800 mm |
| Feed Throat Size | 800 mm |

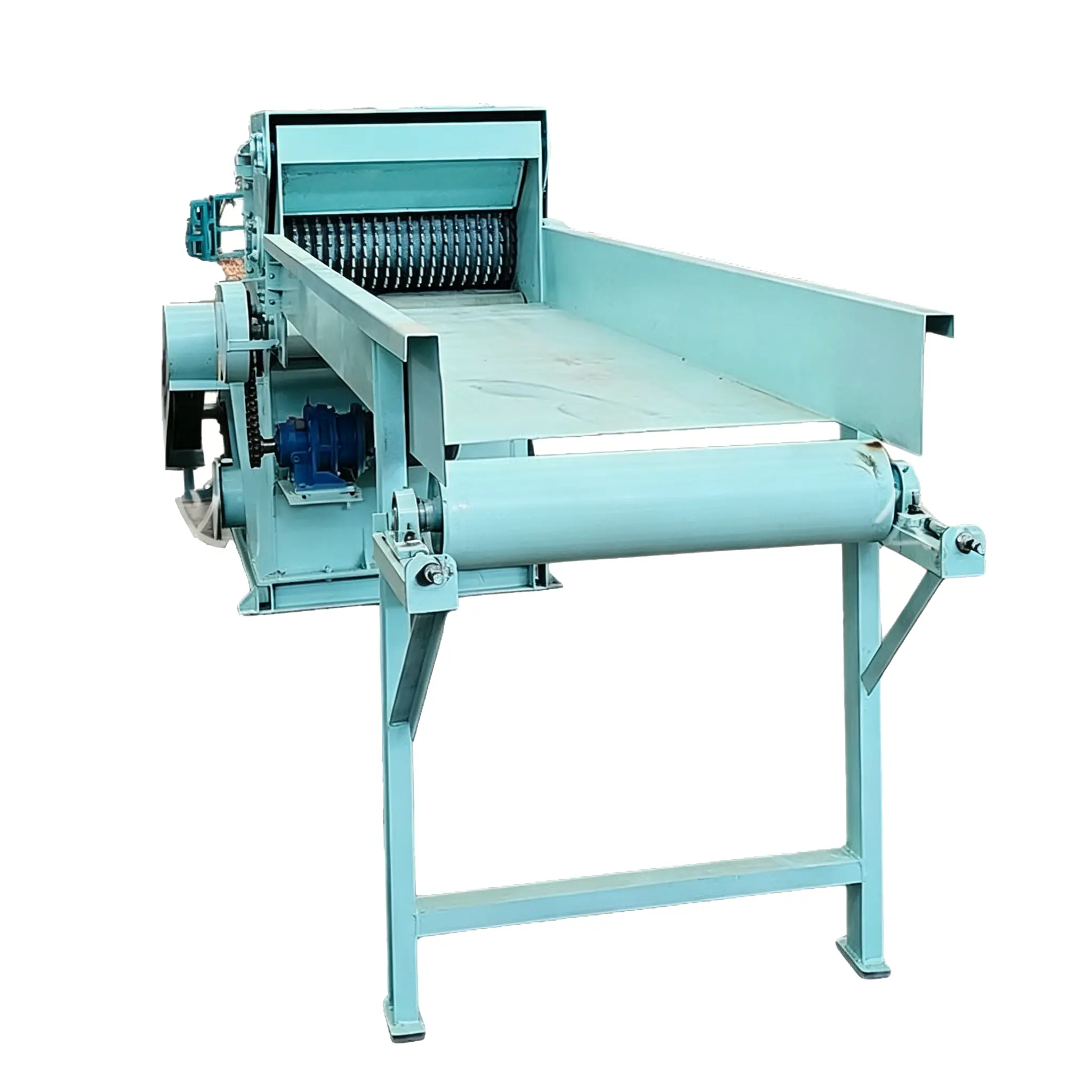

| Feeding Method | 2-meter Feeding Conveyor |
| Bearing Housing | Split Detachable Type |
Liner and Screen
| Item | Specification |
| Liner Plate Thickness | 25 mm |
| Liner Plate Material | Manganese Steel / Cast Steel |
| Screen Size | Optional, 8–30 mm |
Dust Collection and Airflow
| Item | Specification |
| Dust Removal | Baghouse Dust Collector |
| Filter Bags | 10 pcs |
| Fan Power | 11 kW Independent Fan |
Motors and Gearboxes
| Item | Specification |
| Conveyor Motor | 2.2 kW |
| Press Roll Motor | 3 kW |
| Gearbox Model | BWD2-35-3 |
| Press Roll Gearbox | BLD3-35-4 |
Optional Configuration
| Item | Specification |
| Optional Accessory | Ventilation Discharger (optional, can be customized according to requirements) |
