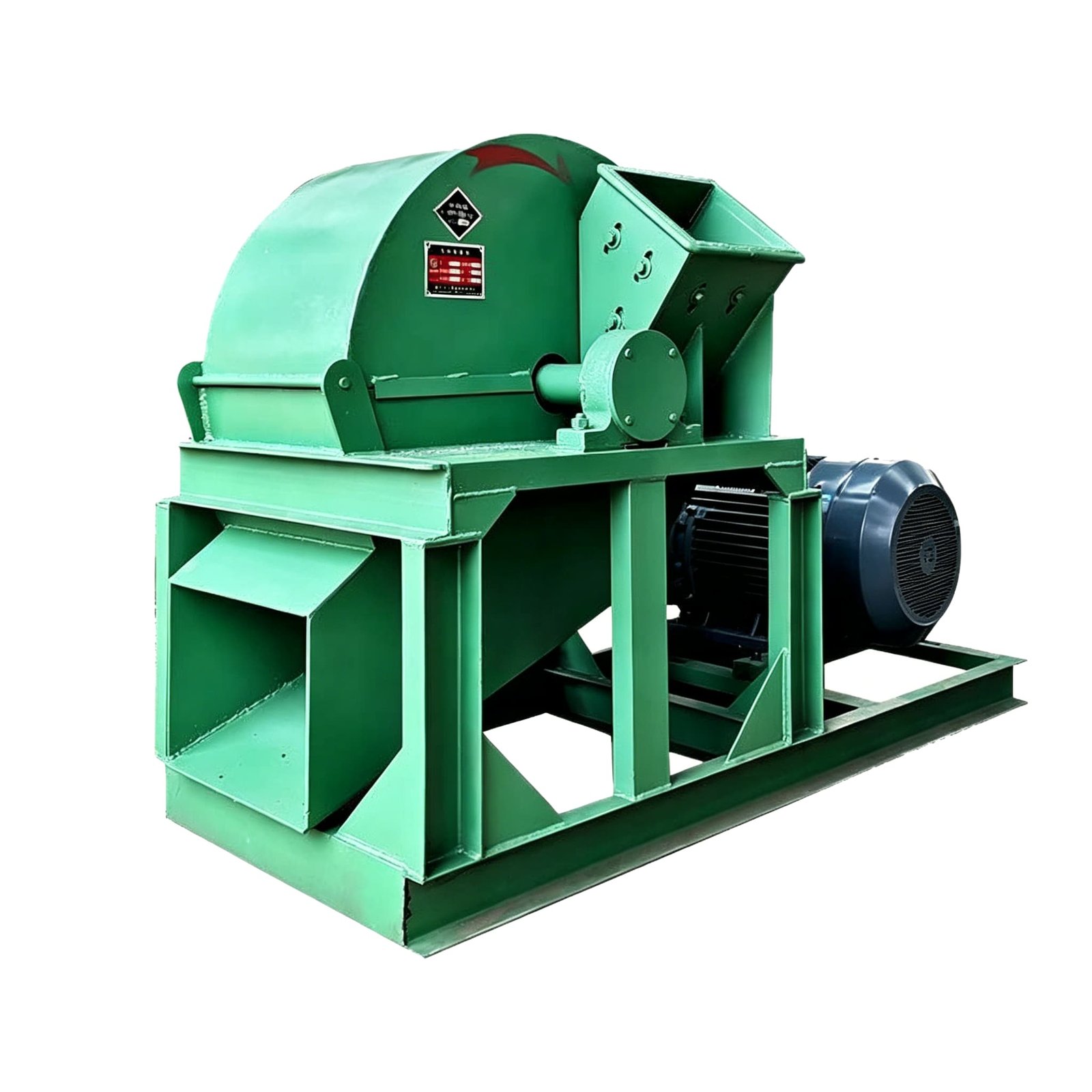

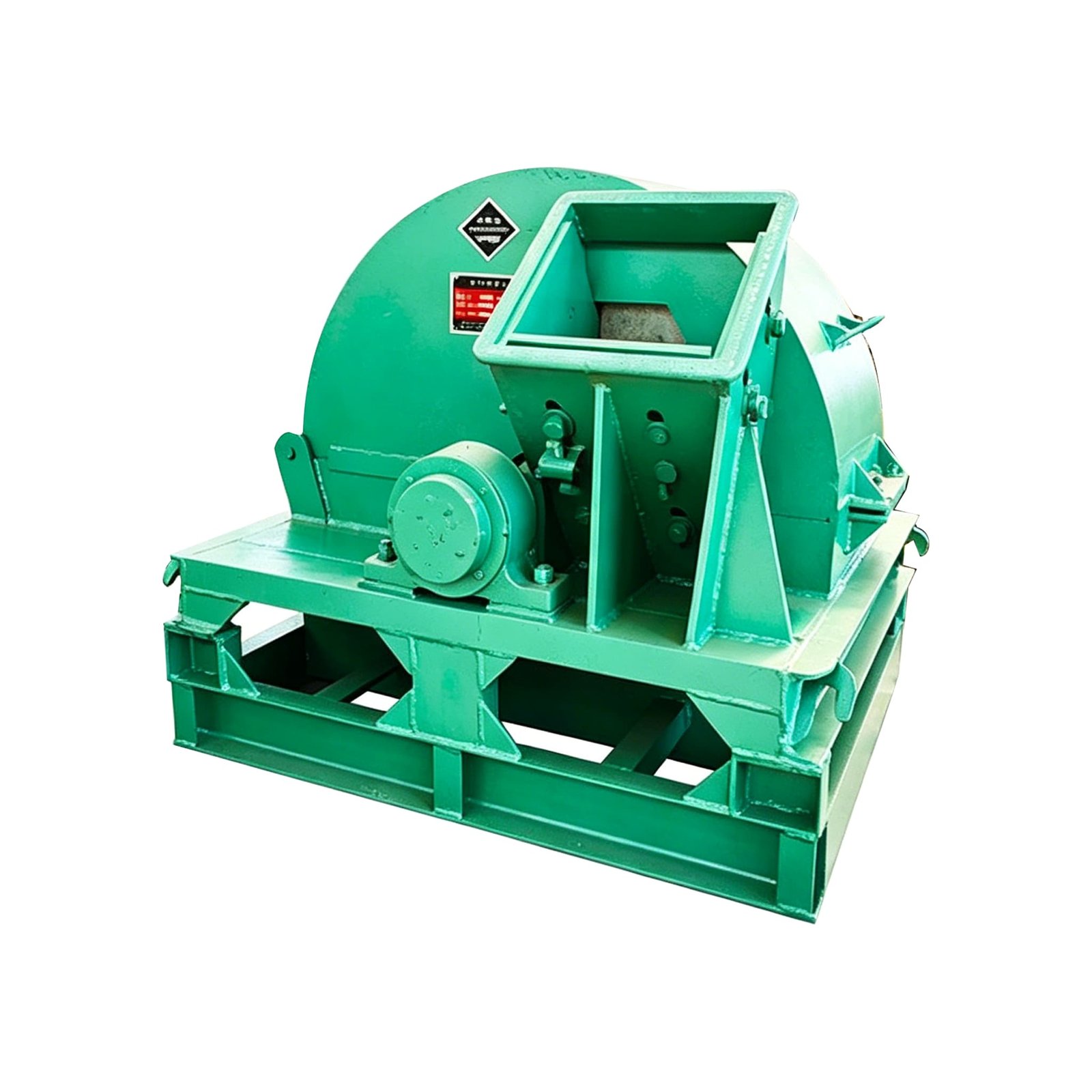

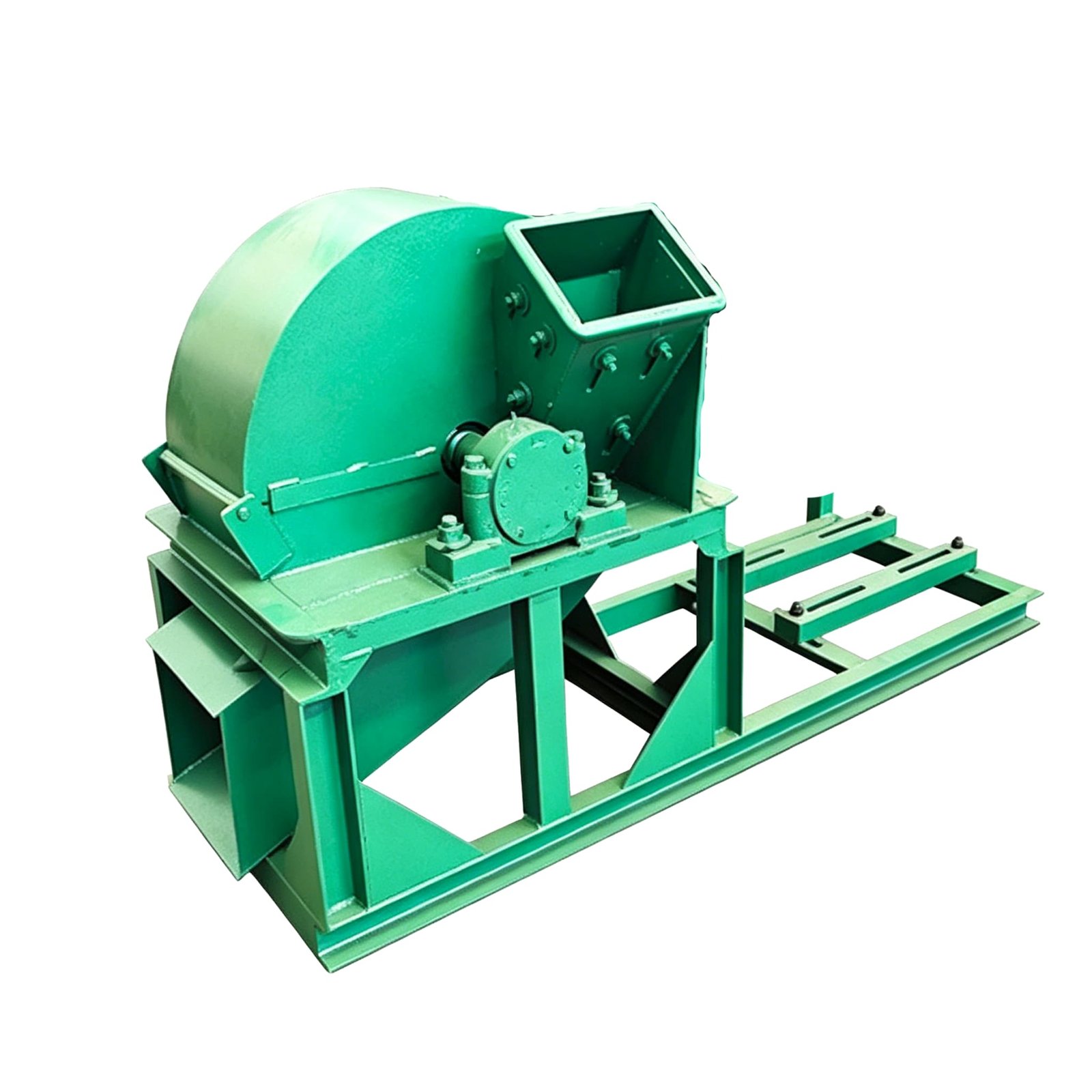

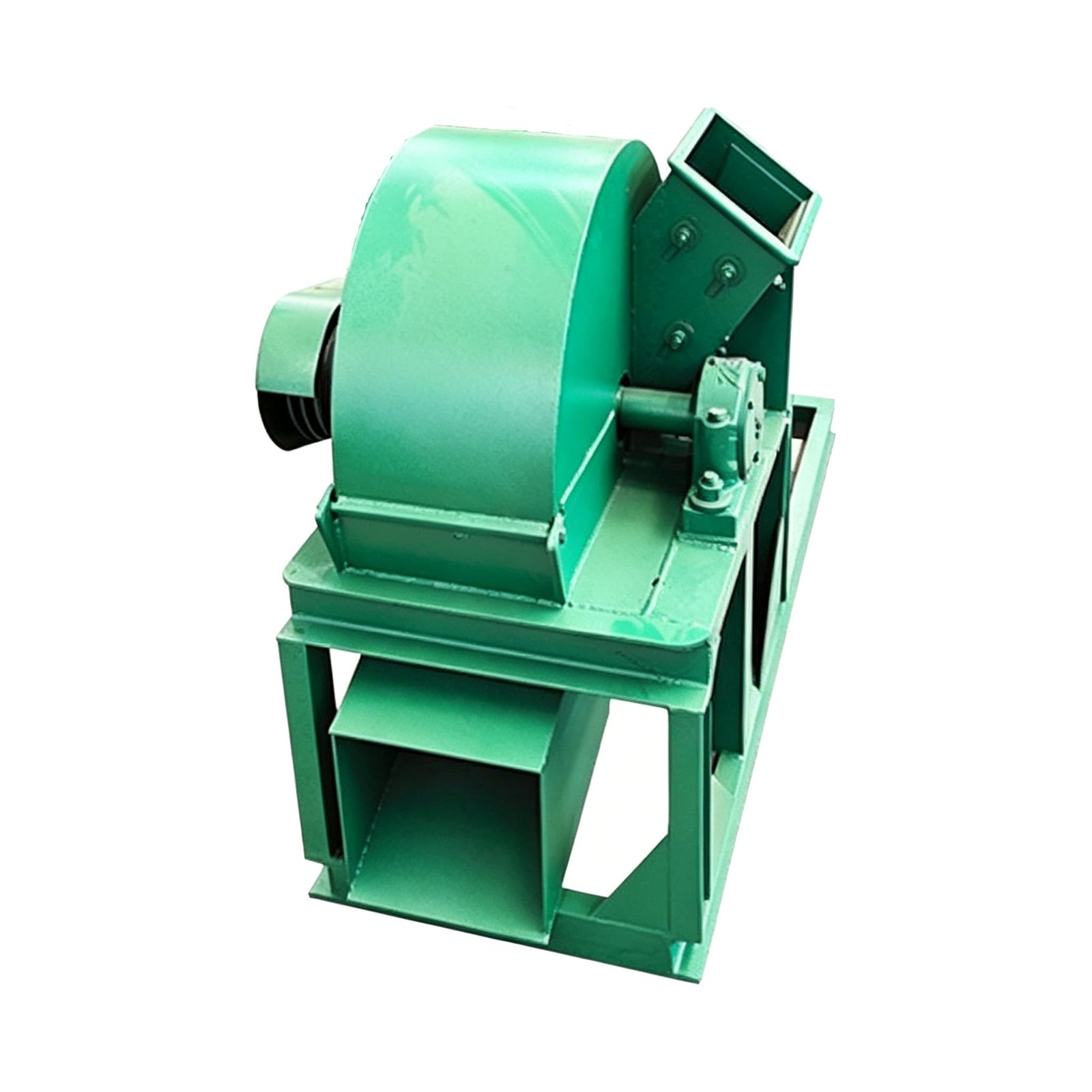

Name: Model 500 Wood Sawdust Crusher - JUNRONGECO
SKU: ECO-500-WSC-ME

The 500 Wood Sawdust Crusher is specially designed for small-scale wood processing, delivering efficient and stable crushing performance. It can process wood up to 30 cm in diameter, quickly turning logs, branches, and forestry residues into uniform wood sawdust.

This machine is widely used in forestry, edible mushroom cultivation, biomass energy, paper production, garden mulch, composting, organic fertilizer processing, wood pellet fuel, and engineered board manufacturing. It can also be optionally equipped with a diesel engine, making it suitable for mobile operations or off-grid working environments.

Key Specifications

Model: 500 Wood Sawdust Crusher
Power Configuration: 18.5 KW (optional oil engine configuration)
Production Capacity: Approx. 1–1.5 ton/hour
Cutting Disc Diameter: 500 mm
Blade Quantity: 4
Feed Inlet Size: 200×180 mm
Spindle Speed: 2600 r/min

Drive type

Electric/Diesel Engine

Branch Limit

≤5.91" Inch

Power

18.5 KW/25HP

Capacity

1-1.5 t/H

Make the crushing process easier.

Features & Advantages

Optional Electric Motor or Diesel Engine Drive System

The machine can be flexibly configured with either an electric motor or a diesel engine drive system, suitable for different working environments. It ensures stable performance and strong adaptability for both indoor and outdoor operations.

Dual-Bolt Chamber Locking

Ensures a secure and stable chamber structure with dual-bolt fastening, preventing loosening during operation and enhancing overall safety.

High Manganese Steel Disc

The cutter disc is made of high manganese steel casting, offering excellent impact resistance and wear resistance. Even under continuous heavy-duty operation, it maintains structural stability and resists deformation, ensuring long-term reliable performance.

Alloy Steel Blades

Made of high-strength alloy steel, the blades offer excellent wear resistance and impact strength. They can continuously process approximately 20,000–30,000 kg of material while maintaining sharp cutting edges with minimal wear, suitable for long-term heavy-duty operation.

Specifications

General Information

Item	Specification
Model	Model 500 Wood Sawdust Crusher
Machine Weight	210KG

Power & Drive System

Power (Hp)	25
Motor Power	18.5 kW (Standard Version)
Operating Voltage	380V, 50Hz, Three-phase
Transmission Type	Belt Drive

Processing Capacity

Production Capacity	1-1.5 ton/hour
Finished Chip Length	20–50 mm (Adjustable)
Finished Chip Thickness	3–8 mm
Main Shaft Speed	2600 r/min

Cutter & Blade System

Cutter Disc Diameter	500 mm
Blade Type	Double Arc Blade
Number of Blades	4 pcs
Blade Material	Alloy Blade

Feeding & Discharge

Feed Opening Size	200 × 180 mm
Feeding Method	Inclined Feeding
Discharge Method	Fan-assisted Top Discharge

Machine Body & Material

Machine Body Material

Thickened Welded Steel Plate

Applicable Materials

Logs, Branches, Bark, Bamboo, Straw, etc.
