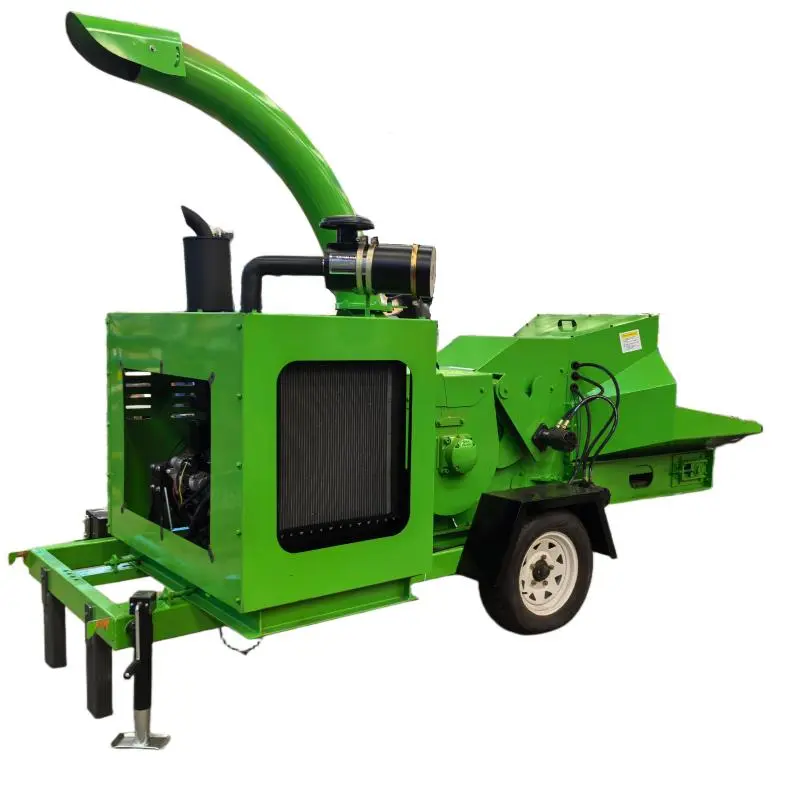

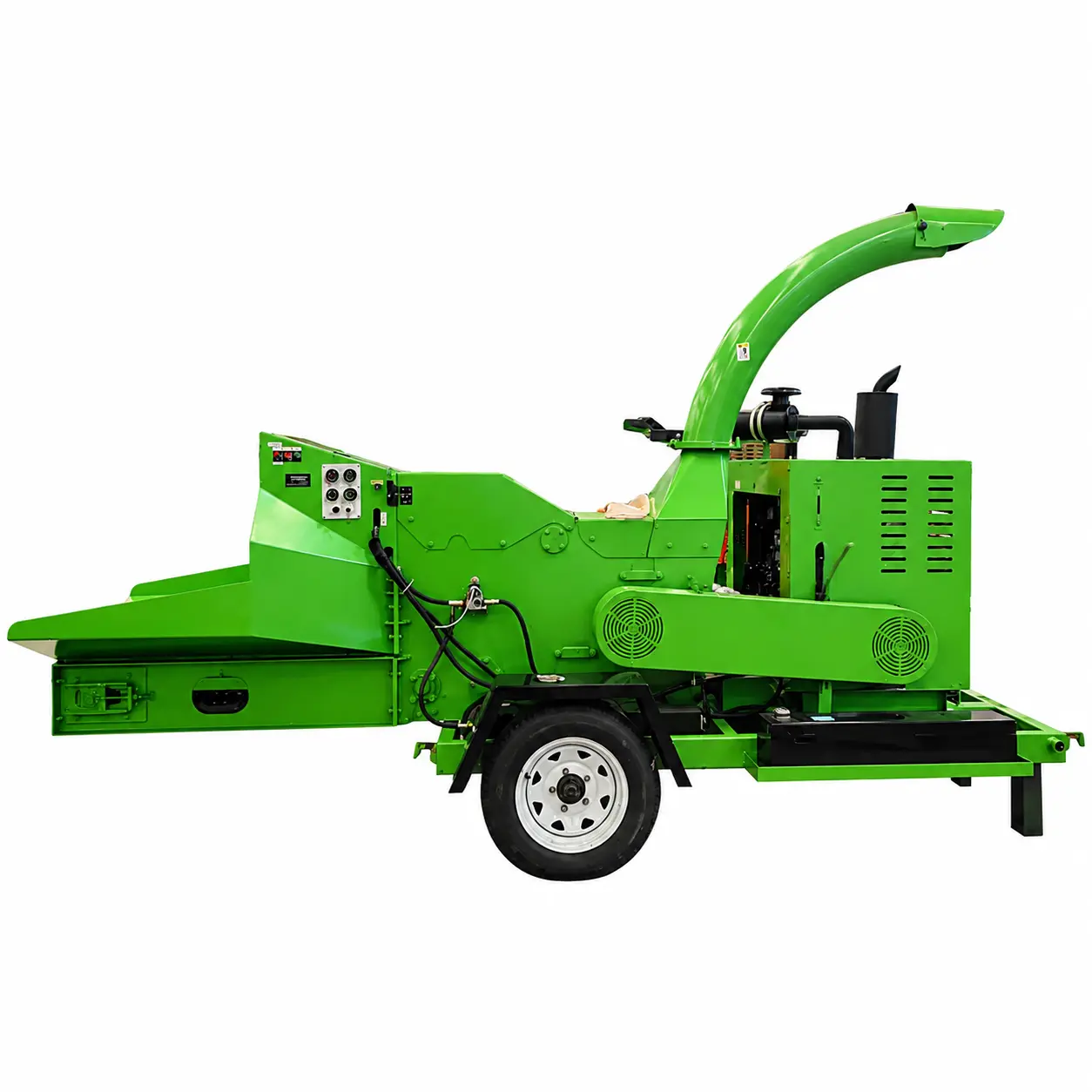

Model 6158 Electric Branch Chipper
The Model 6158 is specially designed for efficient wood processing, delivering powerful performance and stable output.
Power Configuration: 55 kW
Drive System: Electric motor powered
Production Capacity: Approx. 3–5 tons/hour (3–5 T/H)
Max Processing Diameter: 25 cm (≈ 9.84 inch)
Applications:
- Compost
- Mulch
- Engineered Boards
Further Processing Uses:
- Charcoal
- Biomass Pellets
- Animal Feed
- Organic Fertilizer
Let us tailor a solution for you.
Drive type
Electric
Branch Limit
≤9.84" Inch
Power
55 KW
Capacity
3–5 t/h
Make the crushing process easier.
Features & Advantages

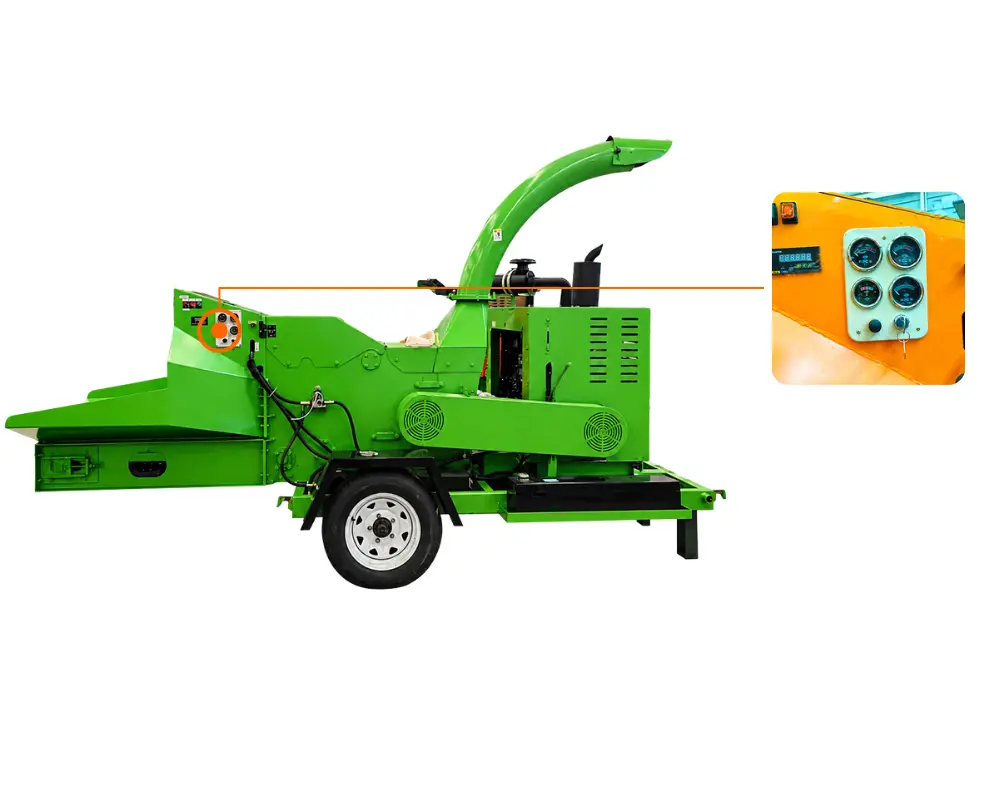

Digital display control system
It adopts an intelligent feeding system: when the engine load is high, the feeding automatically stops; when the engine load decreases, the feeding automatically resumes.

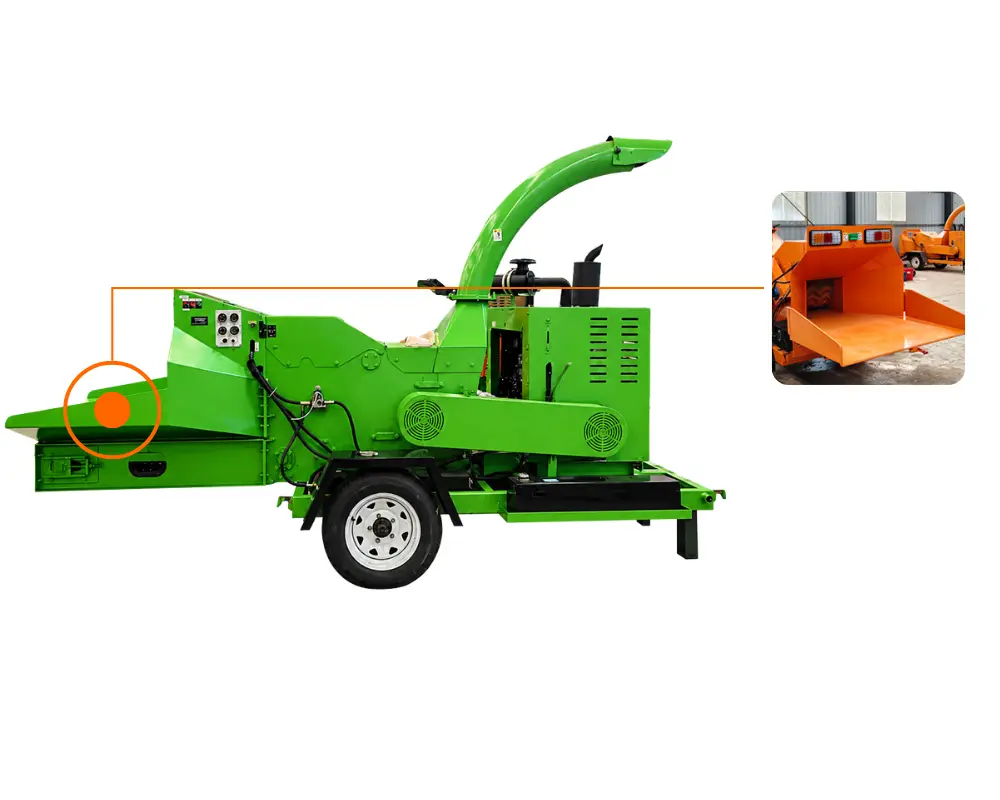

Enlarged and Reinforced Feed Hopper
Large-diameter feeding for faster processing Reinforced thick steel construction for durability Equipped with lighting for convenient operation

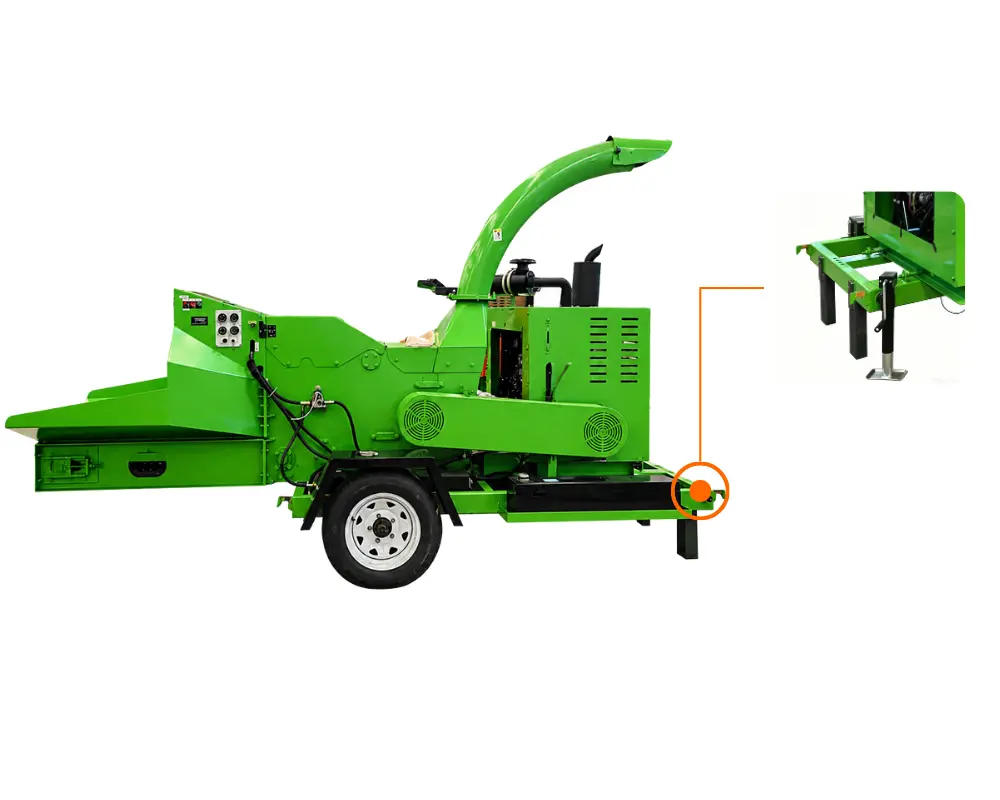

Towable design for flexible and efficient operation.
Supports quick towing for easy relocation across different job sites. No disassembly required, improving transport efficiency and flexibility. Ideal for forestry, parks, and multi-location operations.

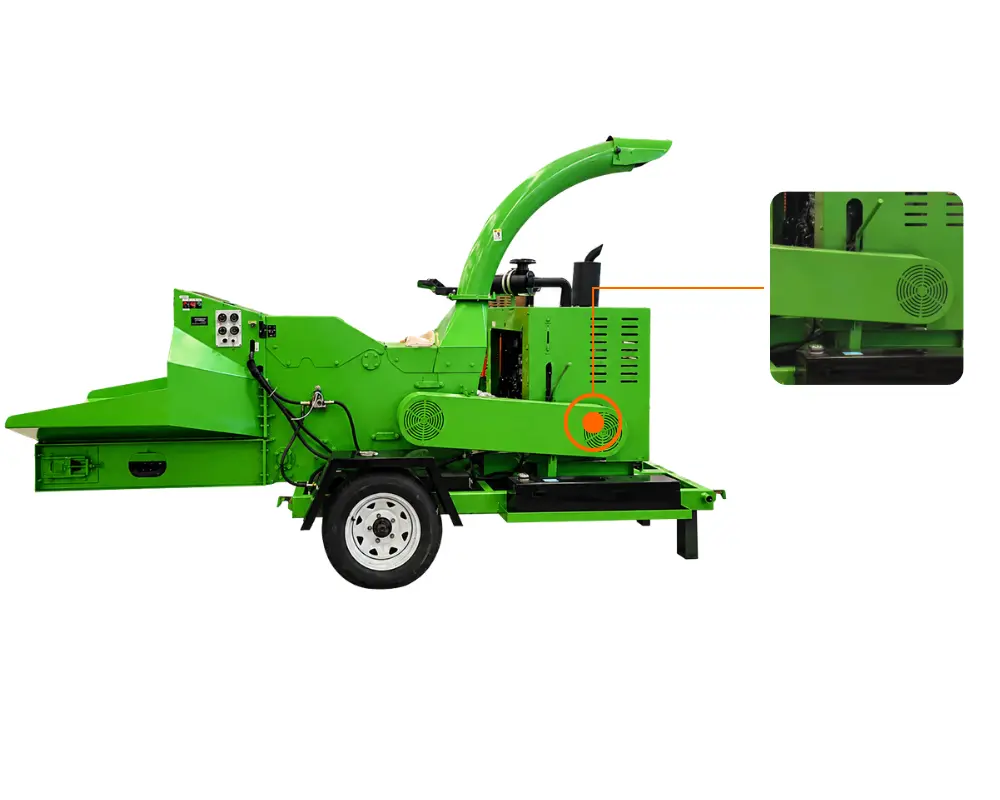

Ensures Safety Around Moving Components
Equipped with a protective cover over all rotating parts, this design ensures operator safety by preventing accidental contact with moving components, reducing the risk of injury during operation, and allowing for worry-free use in busy work environments.
Specifications
Basic Equipment Information
| Model | Model 6158 Electric Branch Chipper |
| Power Capacity | 55 KW |
| Power Type | Electric Motor |
| Machine Weight | Approx. 2.25 tons |
Performance
| Output Capacity | 3–5 t/h |
| Max Branch Diameter | < 250 mm |
| Material Moisture | No Limit (Branches) |
Feeding System
| Feed Opening | 1300 × 720 mm |
| Feed Throat | 460 × 400 mm |
| Roller Diameter | 450 mm |
| Roller Type | M-Type Wave |
| Drive | Hydraulic Motor |
| Control | Forward / Reverse / Stop |
Cutting System
| Blade Setup | 4 Moving + 1 Fixed |
| Blade Length | 240 mm |
| Cutting Disc | 560 mm |
| Speed | 2300 r/min |
Discharge System
| Direction | 360° Adjustable |
| Throw Height | 7000 mm |
| Pipe Type | One-piece Formed |
Power & Electrical
| Power | 55KW |
| Battery | 24V 85Ah |
| Start Method | Electric Start |
Hydraulic System
| Tank Capacity | 40 L |
| Roller Drive | Hydraulic Motor |
Control System
| Smart System | Digital Display |
| Overload Protection | Auto Stop Feeding |
| Auto Recovery | Auto Resume |
| Control Handle | Throttle + Stop |
Structure & Configuration
| Dimensions | 3400 × 1850 × 2600 mm |
| Lighting | Rear + Feed Light |
| Jack | Foldable Manual |
| Trailer Height | Adjustable |
| Customization | Supported |
